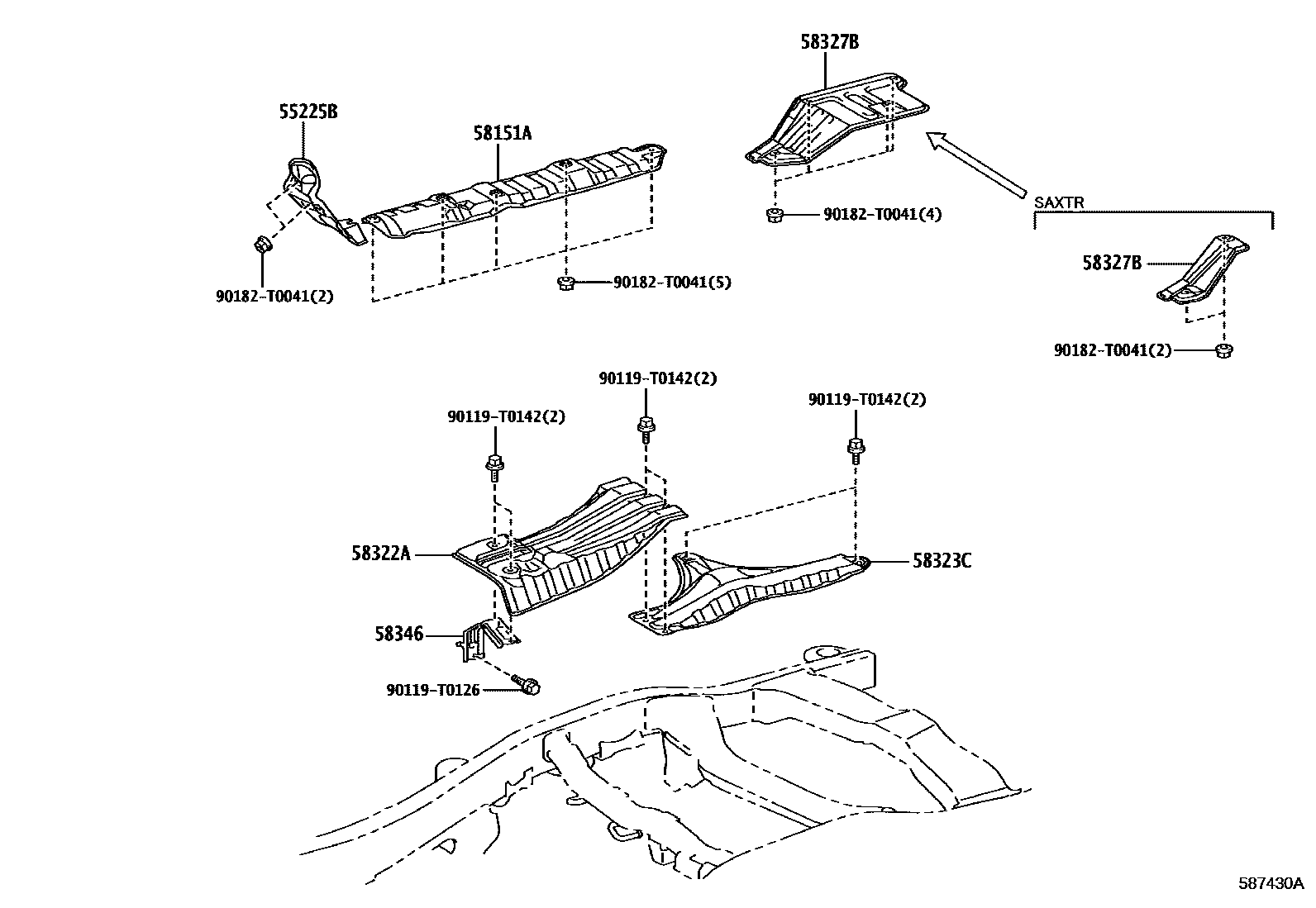

Toyota HILUX 地板隔热垫 — Figure 5853
Toyota HILUX EPC diagram 5853, 地板隔热垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55225B | Front wall insulation pad | 55225-KK011 |
| 58151A | Floor No. 1 insulation mat | 58151-KK020 |
| 58322A | Rear floor insulation mat | 58322-KK011 |
| 58323C | Rear floor insulation mat No. 3 | 58323-KK011 |
| 58327B | Main muffler heat insulation pad | 58327-0K011 · 58327-0K021 |
| 58346 | Rear floor insulation pad bracket | 58332-KK010 |
