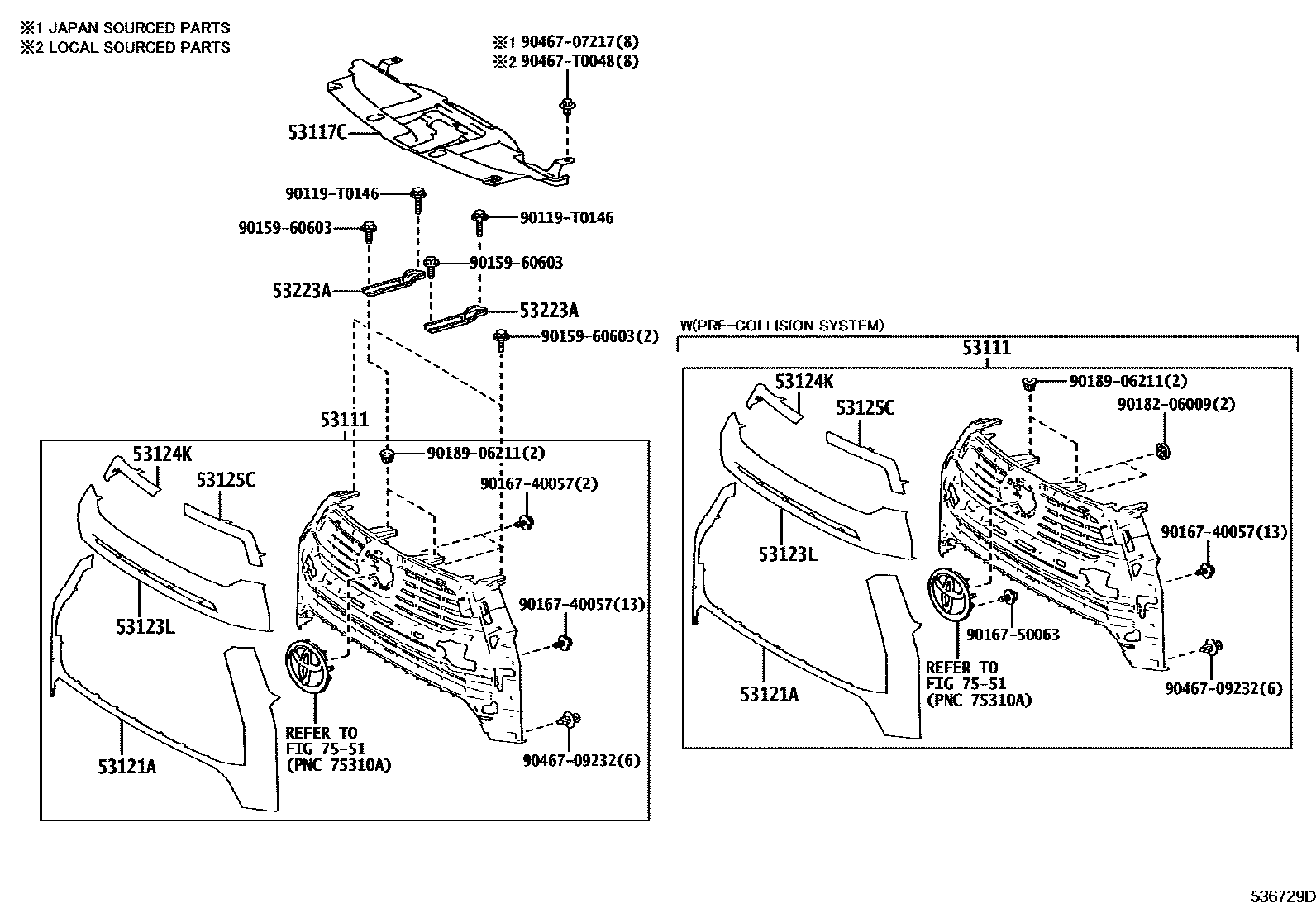

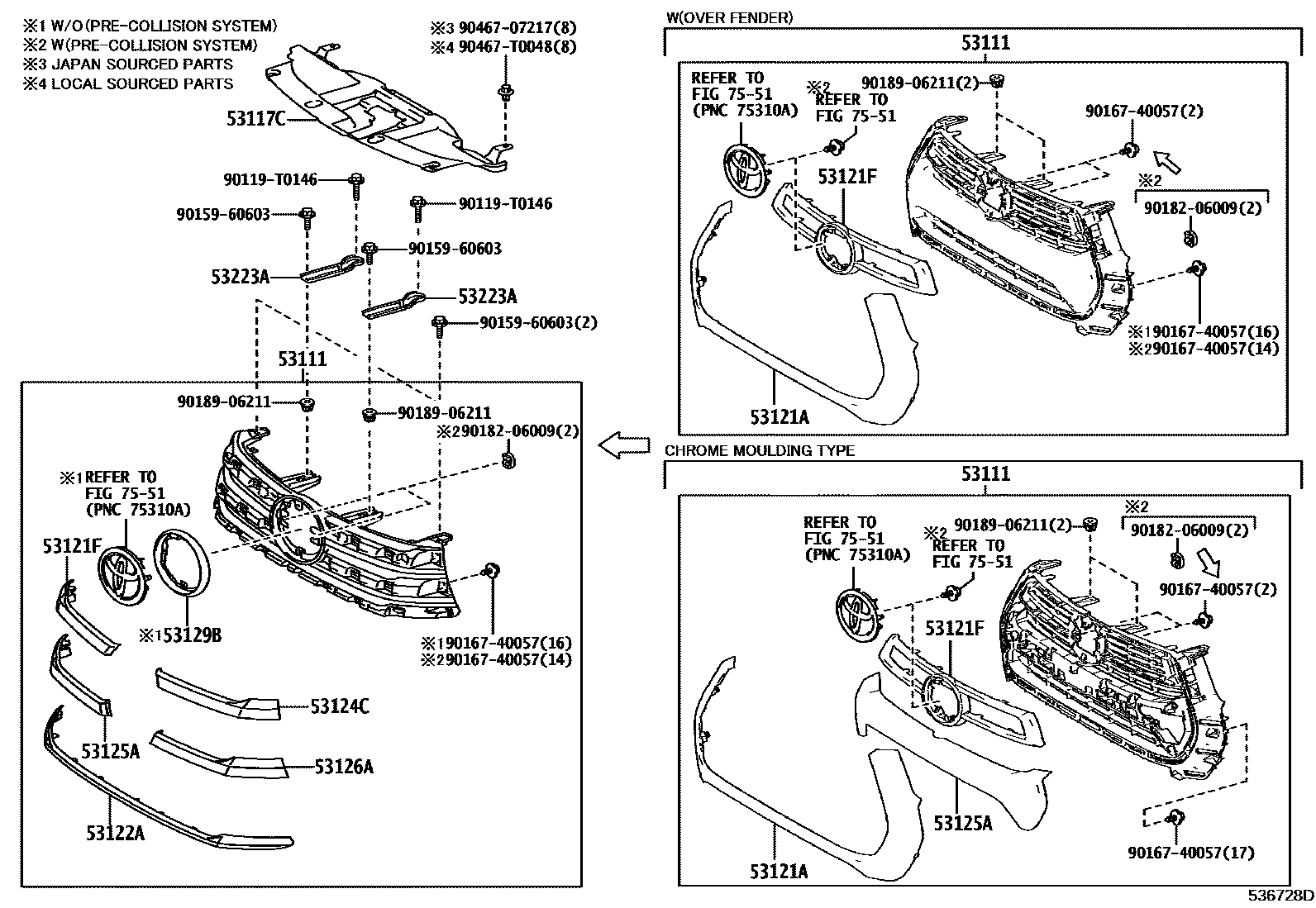

Toyota HILUX radiator grille — Figure 5351
Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53100-0K911 · 53100-0KA70 · 53100-0KG00 · 53100-0KG20 · 53100-0KG40 · 53100-0KJ00 · 53100-0KJ20 · 53100-0KJ40 · 53100-0KJ60 · 53100-0KJ90 · 53100-0KK20 · 53100-0KT10 · 53100-0KT20 · 53100-0KT30 · 53100-0KT40 · 53100-YP220 · 53100-YP230 · 53100-YP250 · 53100-YP260 · 53100-YP280 · 53100-YP300 |
| 53117C | Radiator grille fixing No. 1 | 53117-0K050 · 53117-0K120 · 53117-0K130 |
| 53121A | Radiator grille protection strip | 53121-0K880 · 53121-0K890 · 53121-0KA10 · 53121-0KA50 · 53121-0KA60 · 53121-0KA70 · 53121-YP160 · 53121-YP170 |
| 53121F | Radiator grille upper right protective strip | 53125-0K220 · 53125-0K490 · 53125-0K520 · 53125-0K570 · 53125-0K580 |
| 53122A | Radiator grille lower protective strip | 53122-0K420 |
| 53123L | MOULURE, GRILLE RADIATEUR, NO.3 | 53123-YP010 · 53123-YP030 |
| 53124C | Radiator grille upper left protective strip | 53126-0K220 |
| 53124K | MOULURE, GRILLE RADIATEUR, NO.4 | 53124-YP020 · 53124-YP040 · 53124-YP060 |
| 53125A | Radiator grille right center protective strip | 53123-0K250 · 53123-0K560 · 53123-0K590 |
| 53125C | Radiator grille No. 5 protective strip | 53125-YP020 · 53125-YP040 · 53125-YP060 |
| 53126A | Radiator grille left middle protective strip | 53124-0K250 |
| 53129B | Radiator grille No. 9 protective strip | 53127-0K120 |
| 53223A | Radiator grille mounting bracket | 53115-0K080 · 53115-0K090 |
