Toyota HILUX 喷油嘴 — Figure 2201

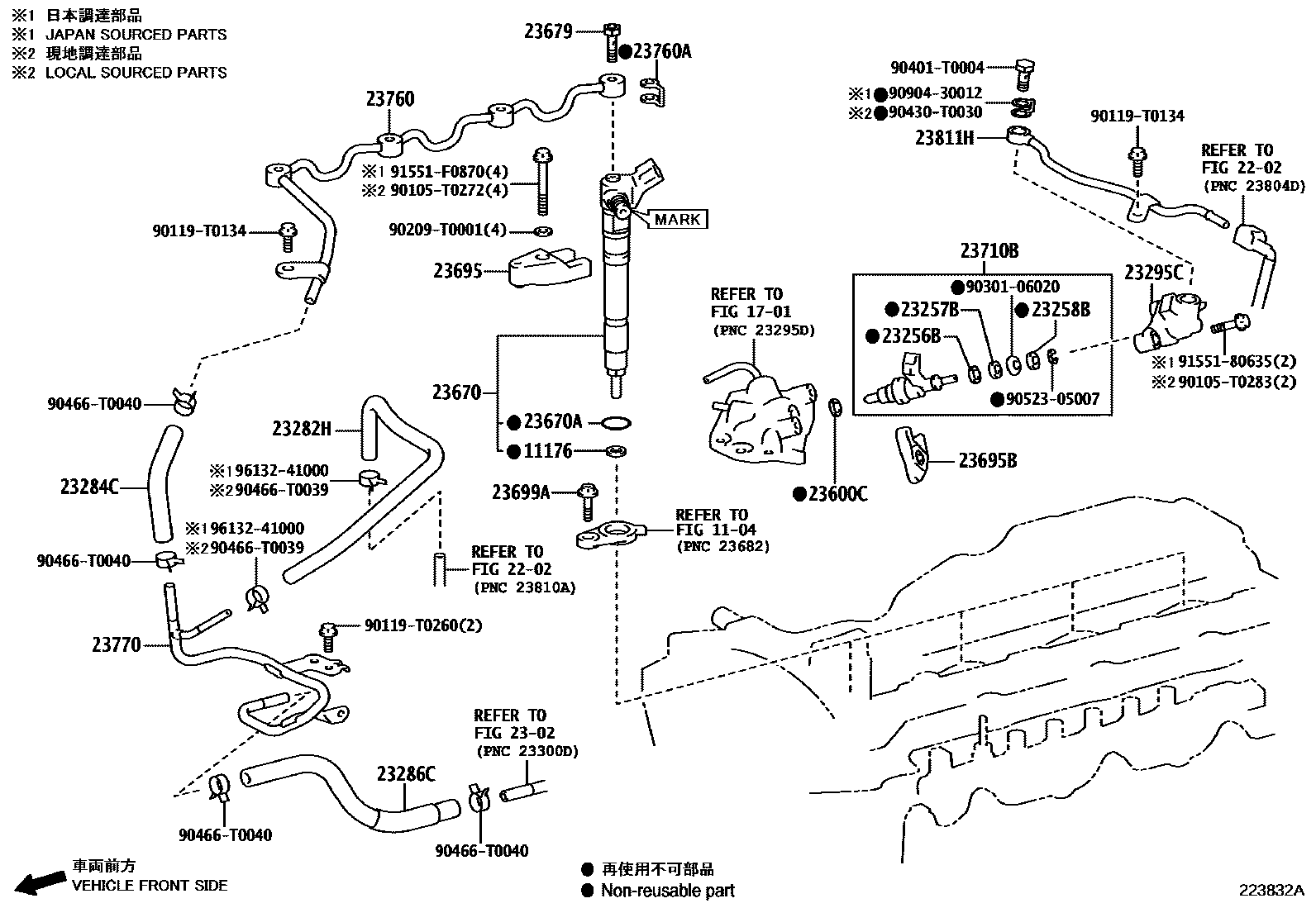

Toyota HILUX EPC diagram 2201, 喷油嘴, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-0E010 · 11176-33010 |
| 23256B | No. 1 injector retaining ring | 23256-74010 |
| 23257B | ANNEAU RECUL INJECTEUR ESSENCE NO. 2 | 23257-74010 |
| 23258B | ANNEAU RECUL INJECTEUR ESSENCE NO. 3 | 23258-28011 |
| 23282H | COND. FLEX., ESSENCE, NO.4 | 23282-0E012 · 23282-0E022 · 23282-0E030 |
| 23284C | COND. FLE., ESSENCE, NO.5 | 23284-0E010 · 23284-0E020 |
| 23286C | COND. FLE., ESSENCE, NO.6 | 23286-0E011 · 23286-0E020 |
| 23295C | Injector fixing parts | 23296-0E010 |
| 23600C | Gasket (for injector body and injector assembly) | 90430-T0019 · 90430-T0029 |
| 23670 | Fuel injector assembly | 23670-09460 · 23670-09470 · 23670-09480 · 23670-09490 |
| 23670A | O-ring (for injector assembly) | 96721-19017 |
| 23679 | Fuel injector hollow screw | 90401-T0007 |
| 23695 | No. 1 injector body clamp | 23695-0E010 · 23695-11010 |
| 23695B | No. 2 injector body clamp | 23695-0E020 · 23695-28010 |
| 23699A | Injector body clamp seat | 23699-0E010 · 23699-0E020 |
| 23710B | Exhaust fuel addition injector assembly | 23710-11010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-0E011 · 23760-0E020 |
| 23760A | padding | 90430-T0017 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-0E011 · 23770-0E021 |
| 23811H | No. 1 fuel pipe | 23811-0E010 · 23811-0E020 |
