Toyota HILUX Exhaust Pipe — Figure 1702

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 2 images and 8 PNC and OE references.

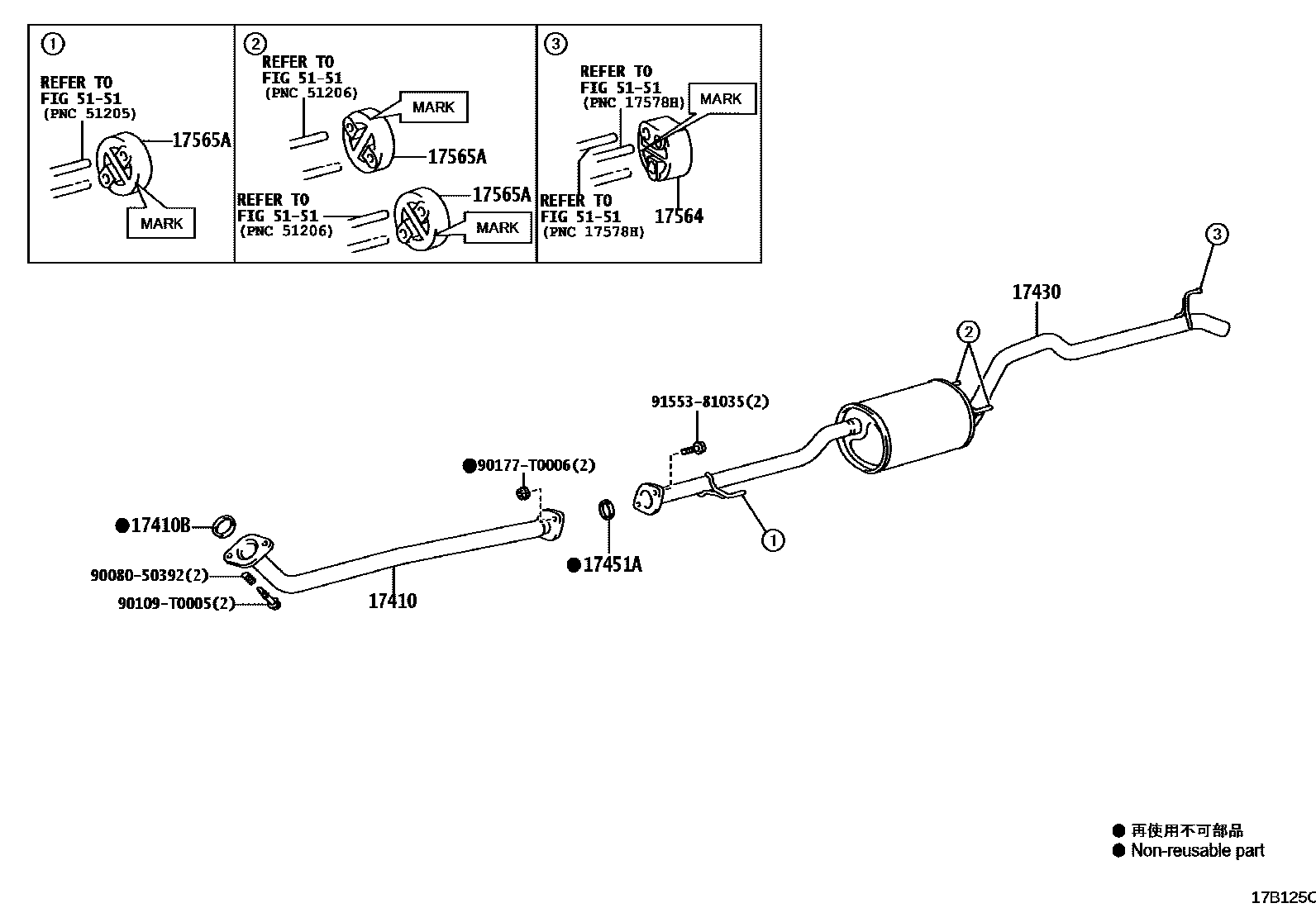

Toyota HILUX Exhaust Pipe EPC diagram — 17B125C — Exhaust Pipe — 17B125C (202006 – 999999)

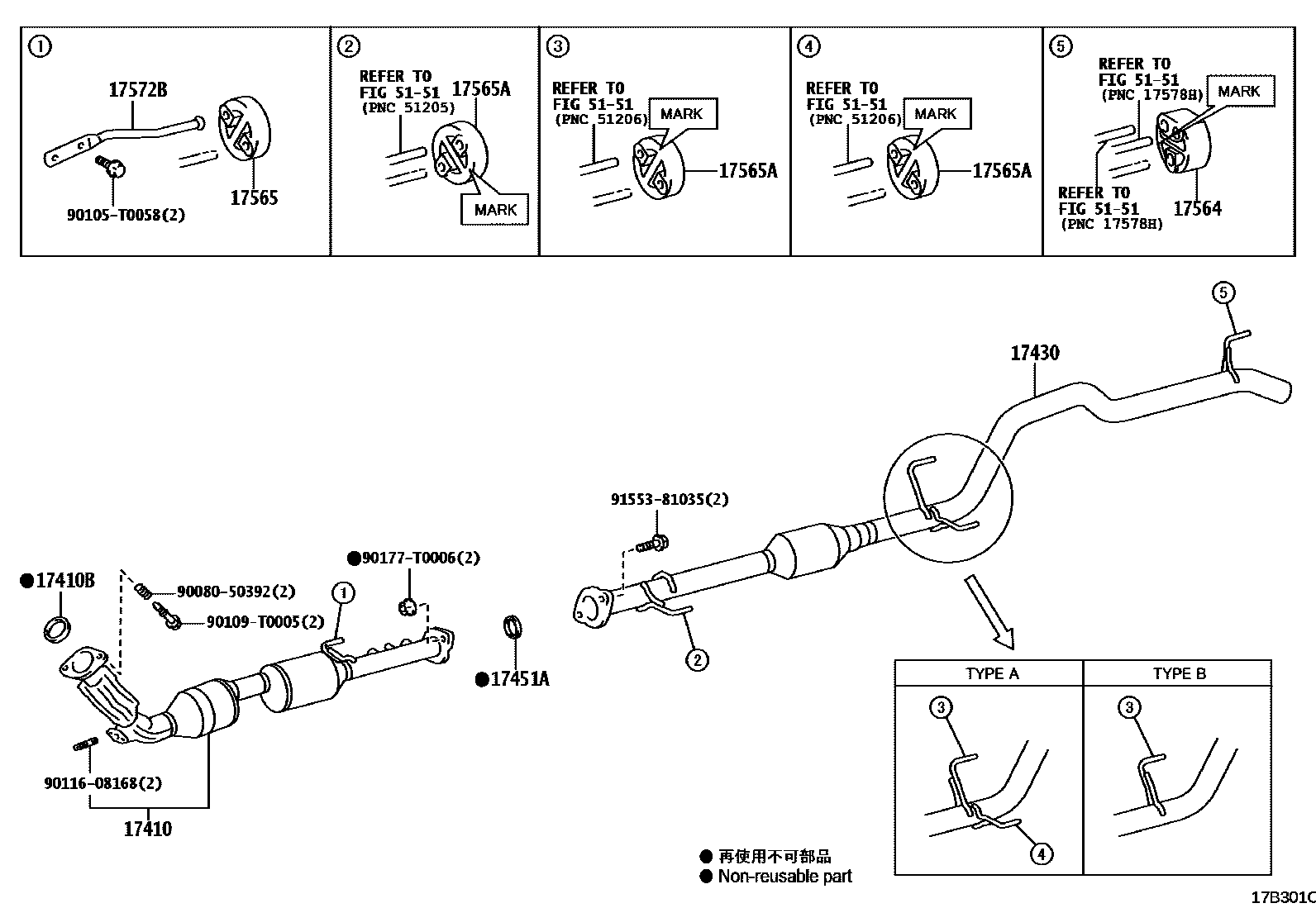

Toyota HILUX Exhaust Pipe EPC diagram — 17B301C — Exhaust Pipe — 17B301C (202006 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17401-0L210 · 17410-0E040 · 17410-0E051
17410B	Exhaust pipe gasket	17451-0L050
17430	Exhaust tailpipe assembly	17430-0E040 · 17430-0L101 · 17430-0L130
17451A	No. 2 exhaust pipe gasket	90917-06076 · 90917-T6002
17564	No. 4 exhaust pipe lifting lug	17565-0L100 · 17565-0L110 · 17565-0L120 · 17565-0L130
17565	No. 5 exhaust pipe lifting lug	17565-0P240
17565A	No. 4 exhaust pipe lifting lug	17565-0L070 · 17565-0L080 · 17565-0L090 · 17565-0P240
17572B	No. 2 exhaust pipe bracket	17572-0L040
