Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

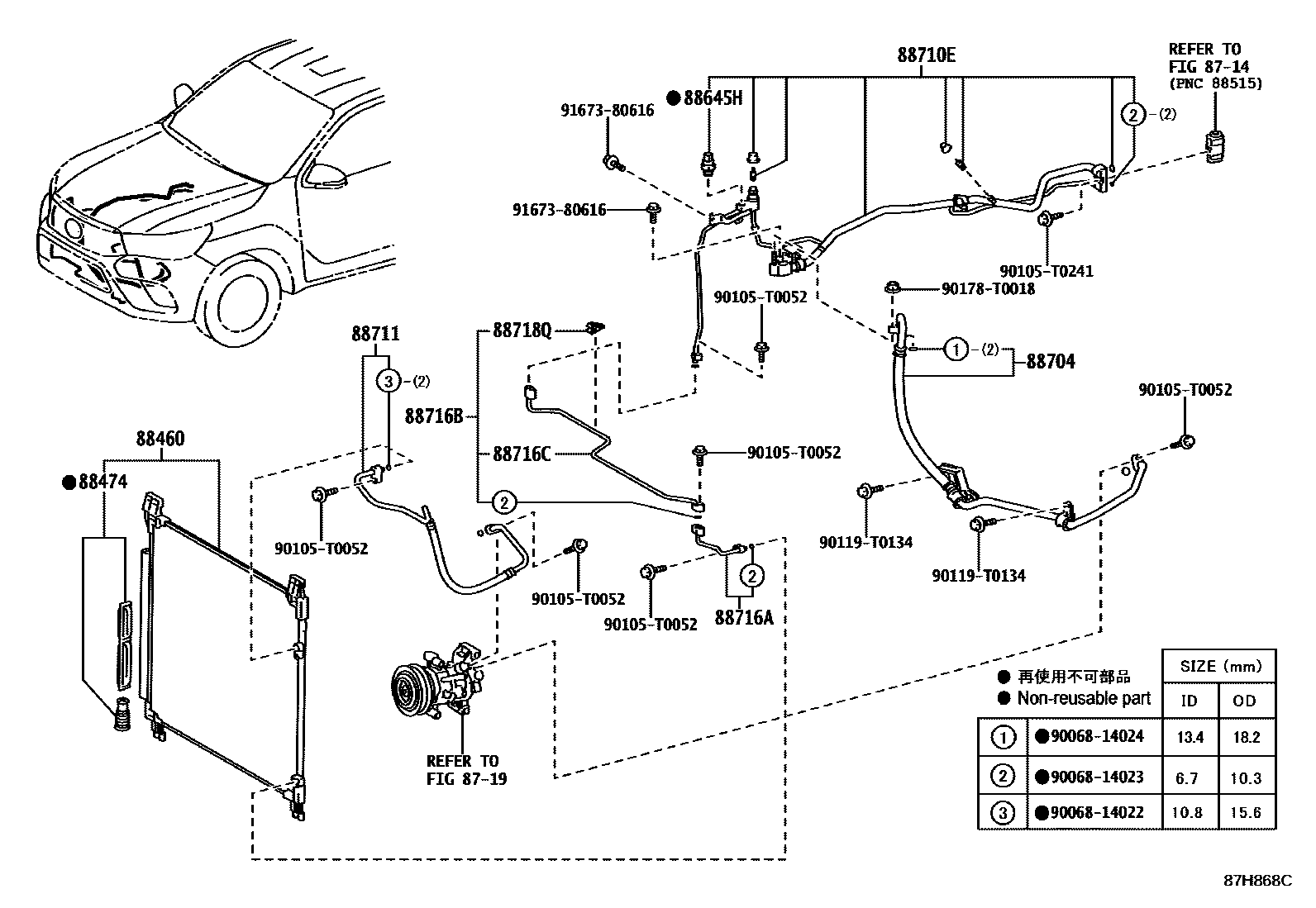

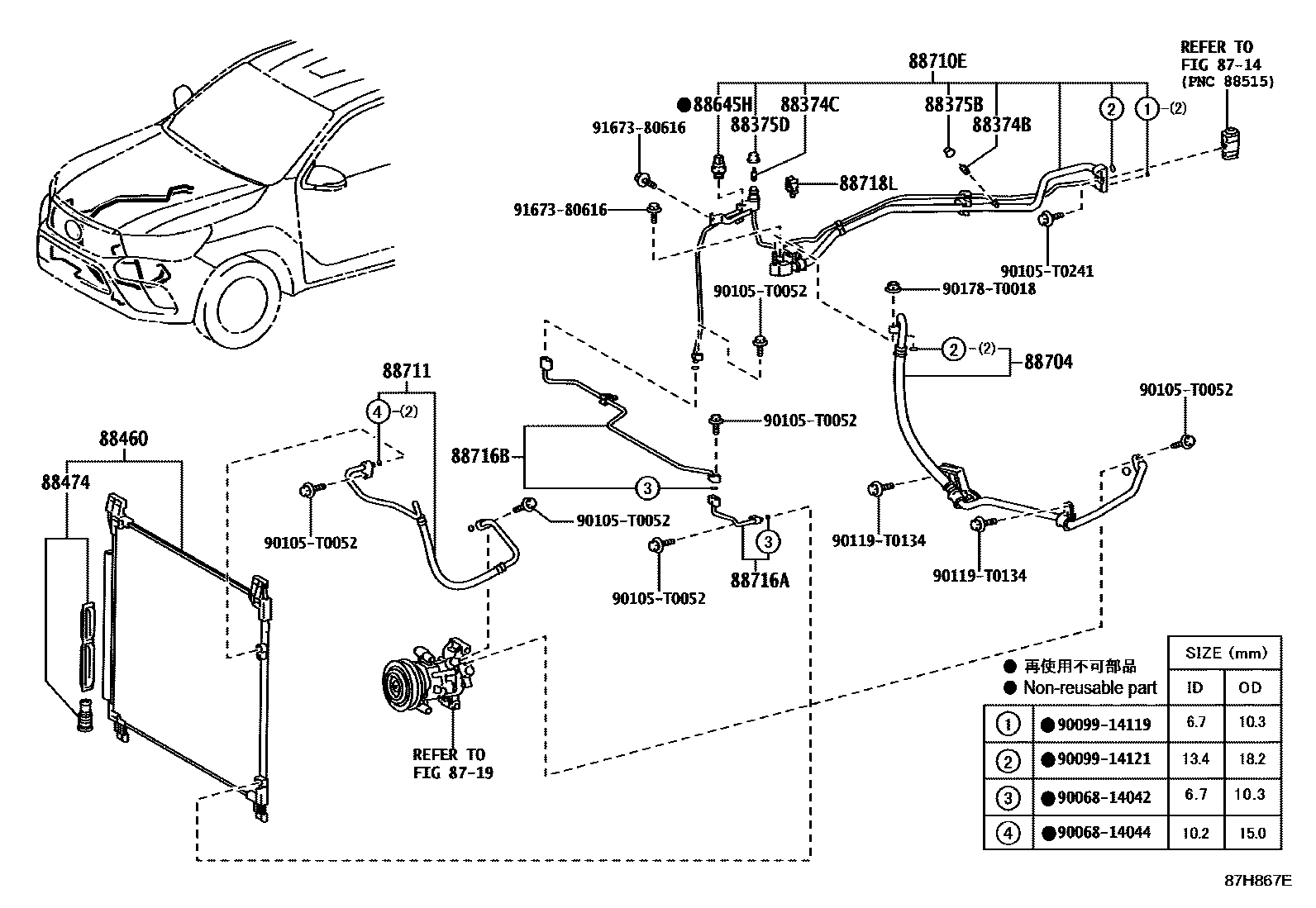

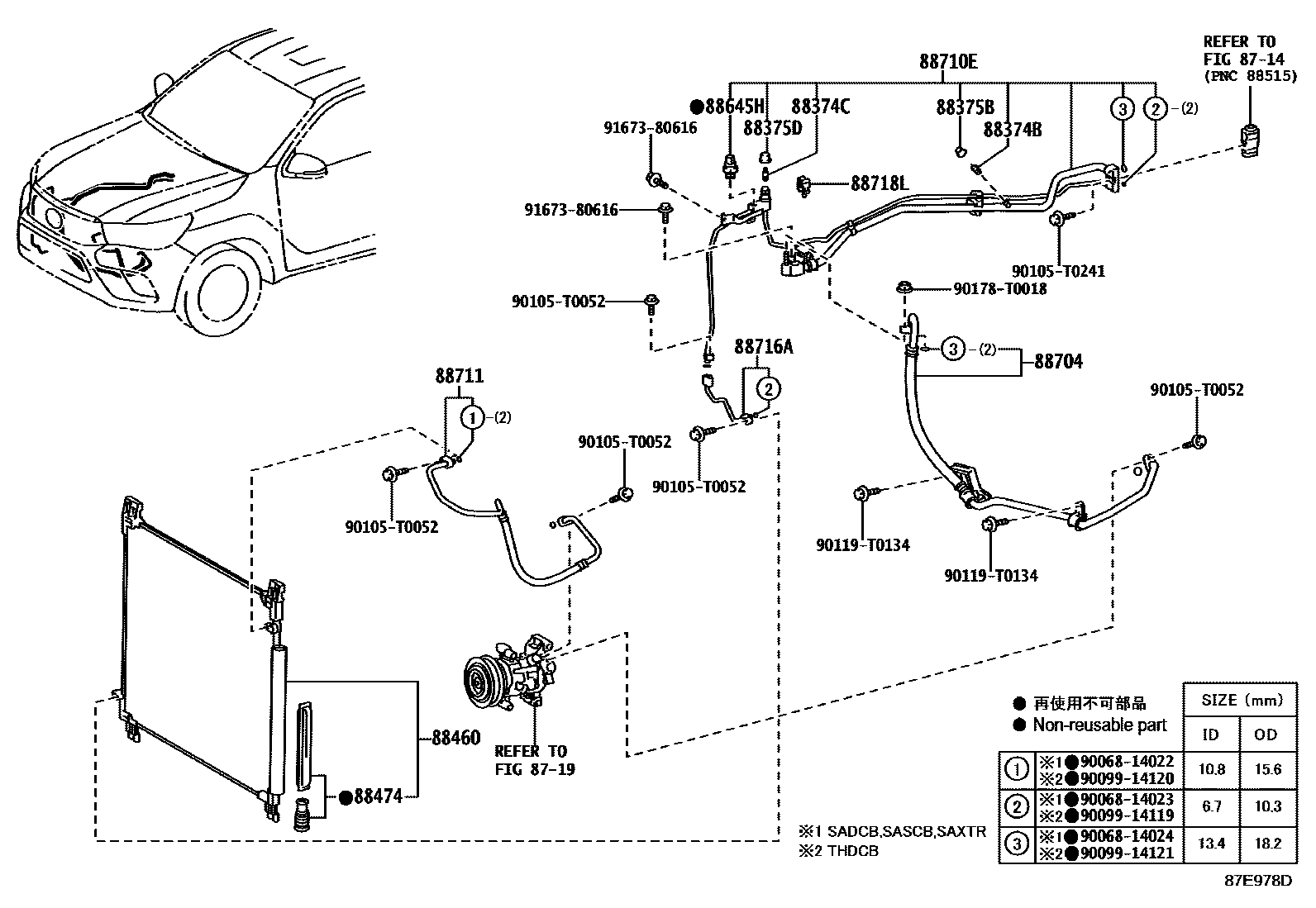

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02020 · 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02020 · 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02140 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02150 · 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K350 · 88460-0K430 · 88460-0K800 · 88460-0K820 |
| 88474 | cooler dryer | 88474-0K030 · 88474-12010 · 88474-12020 |
| 88645H | No. 1 pressure switch | 88645-0K030 · 88645-0K040 |
| 88704 | Oil suction hose sub-assembly | 88704-0KF50 · 88704-0KF60 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0KE70 · 88710-0KF80 · 88710-0KQ80 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0KA20 · 88711-0KA30 · 88711-0KB50 · 88711-0KC20 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0KL40 · 88716-0KL50 · 88716-0KQ80 · 88716-0KR20 |
| 88716B | Cooler refrigerant liquid pipe B | 88710-0KN60 · 88710-0KN80 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-0KM10 |
| 88718L | Pipe clamp | 88718-0KF20 · 88718-0KW80 |
| 88718Q | FIXATION, TUYAUTERIE | 88718-F4100 |
