Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.

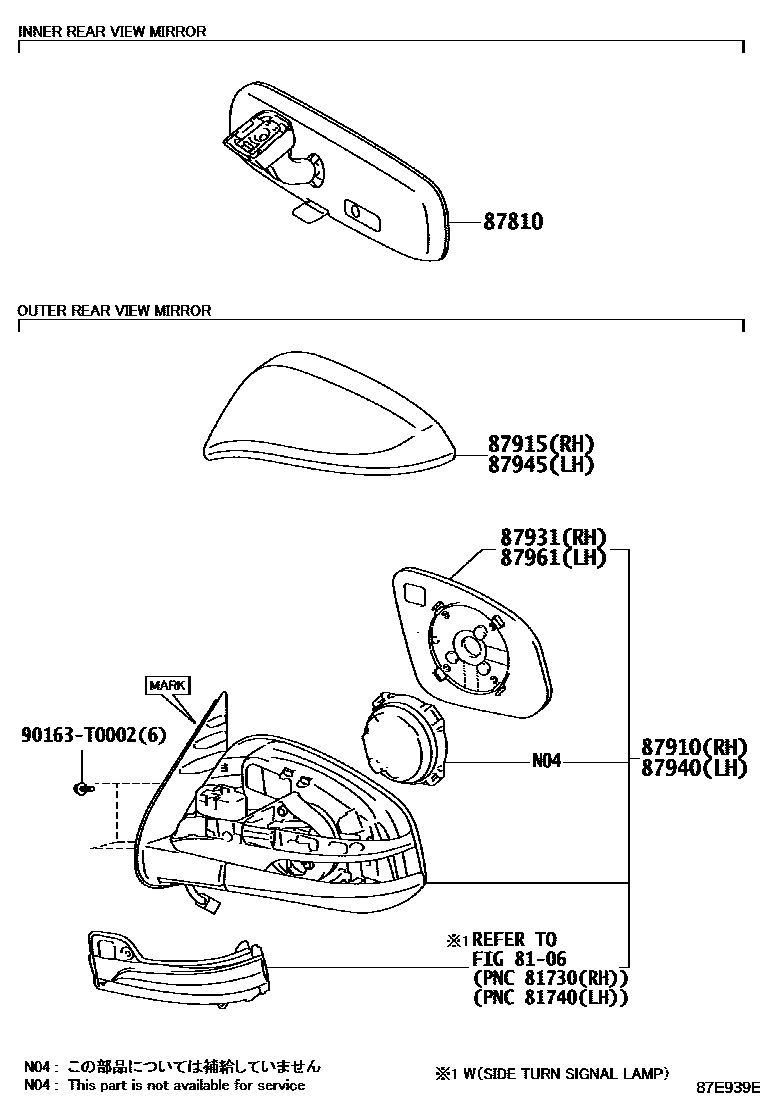

Toyota HILUX 后视镜 EPC diagram — 87E939E
后视镜 — 87E939E (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06041
87910Right exterior rearview mirror assembly87910-0K721 · 87910-0K722 · 87910-0K731 · 87910-0K732 · 87910-0K831 · 87910-0K832 · 87910-0K841 · 87910-0K842 · 87910-0KC41 · 87910-0KC81 · 87910-0KC91 · 87910-0KG21 · 87910-0KG22
87915Right exterior rearview mirror cover87915-0K390 · 87915-0K540 · 87915-0K600 · 87915-0K620 · 87915-0K916 · 87915-0K918
87931Right exterior rearview mirror87931-0KC60 · 87931-0KC80
87940Left exterior rearview mirror assembly87940-0K701 · 87940-0K702 · 87940-0KB01 · 87940-0KB41 · 87940-0KB51 · 87940-0KE31 · 87940-0KE32 · 87940-0KF21 · 87940-0KF22 · 87940-0KF31 · 87940-0KF32 · 87940-0KF91 · 87940-0KF92
87945Left exterior rearview mirror cap87945-0K390 · 87945-0K540 · 87945-0K600 · 87945-0K620 · 87945-0K916 · 87945-0K918
87961Left exterior rearview mirror87961-0KB20 · 87961-0KB40
