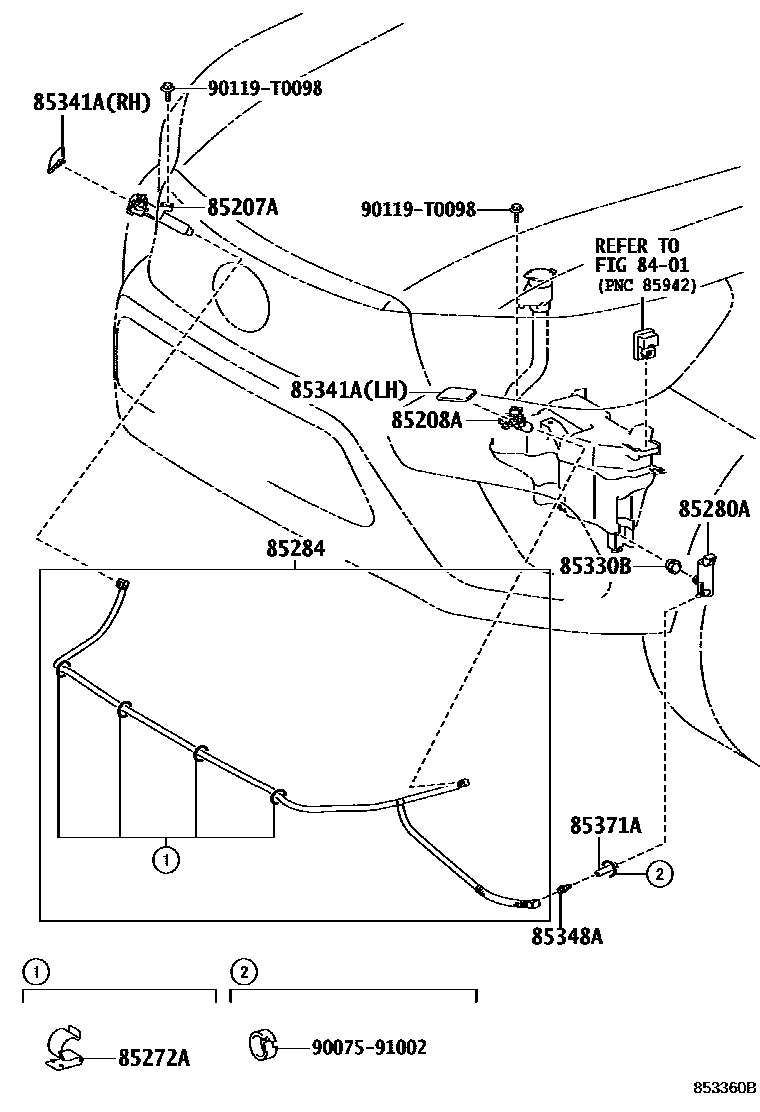

Toyota HILUX 前大灯清洗器 — Figure 8505
Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-0K040 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-0K040 |
| 85272A | Headlight washer No. 1 clip | 90075-90512 |
| 85280A | Headlight washer motor and pump assembly | 85280-33030 |
| 85284 | Headlight washer hose assembly | 85271-0K040 · 85271-0K070 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85341A | Headlight washer nozzle cover | 85046-0K030 · 85046-0K031 · 85047-0K030 · 85047-0K031 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17012 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15053 |
