Toyota HILUX 防盗装置 — Figure 8424

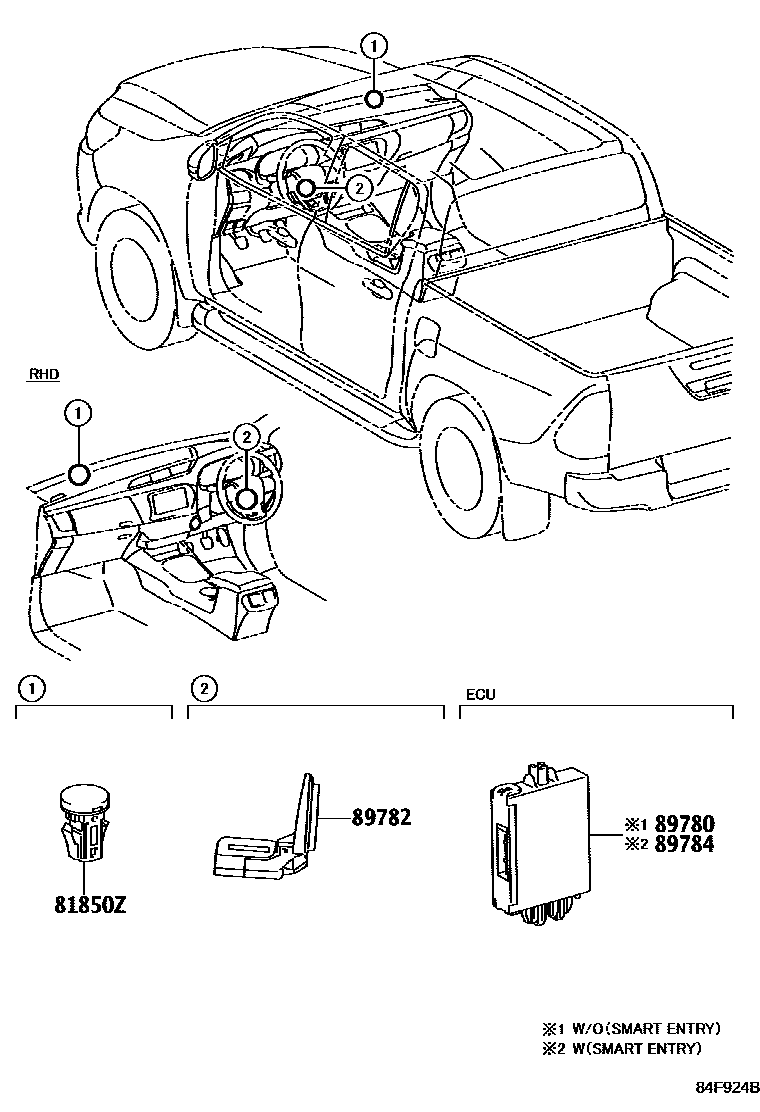

Toyota HILUX EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-0K020 · 81850-0K040 |
| 89780 | Transceiver key ECU assembly | 89780-06110 · 89780-06111 · 89780-06112 |
| 89782 | transceiver key coil | 89782-02050 · 89782-0K030 · 89782-0K040 |
| 89784 | Shutdown code system ECU | 89784-30060 · 89784-F4020 |
