Toyota HILUX 空气囊 — Figure 8421

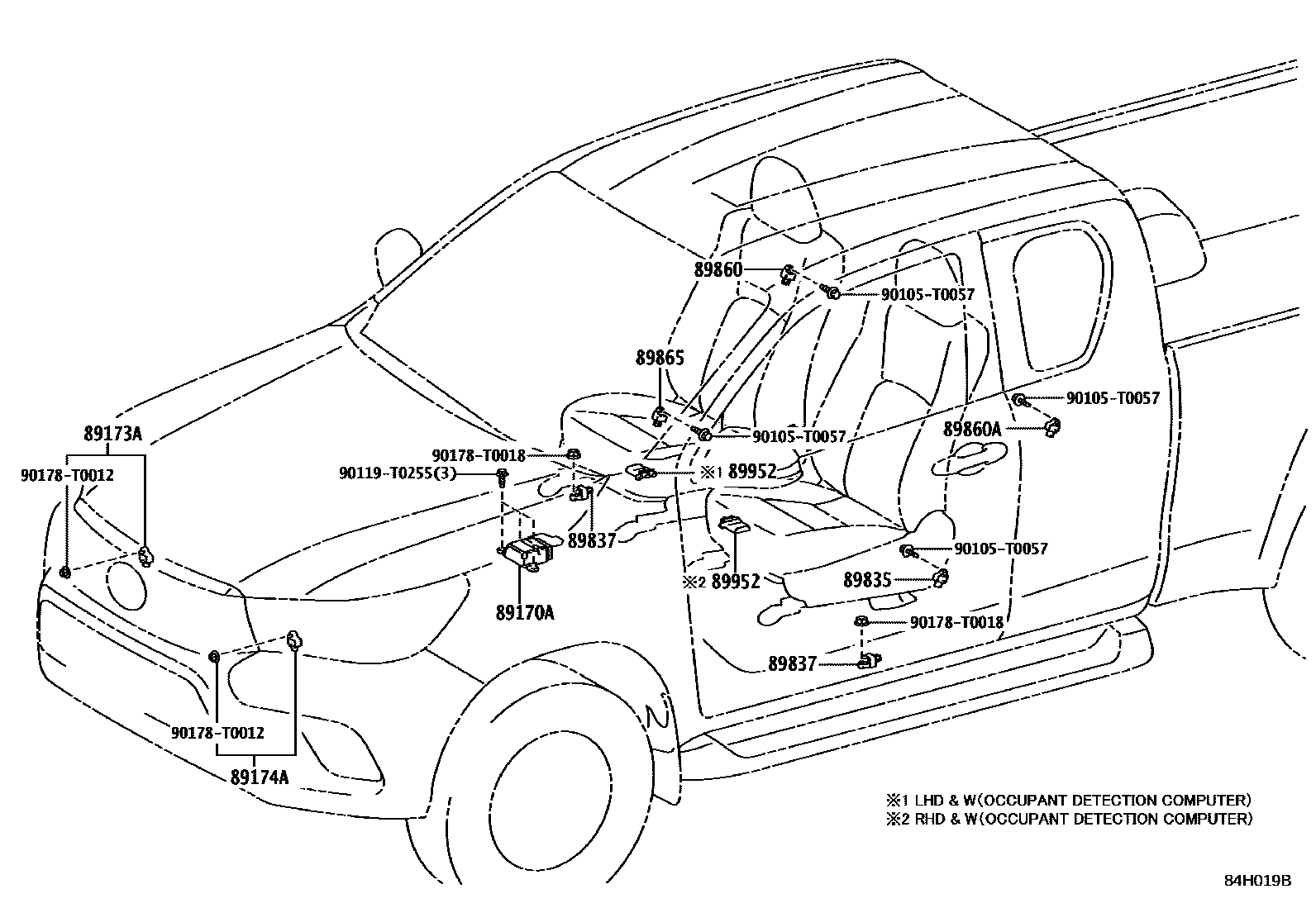

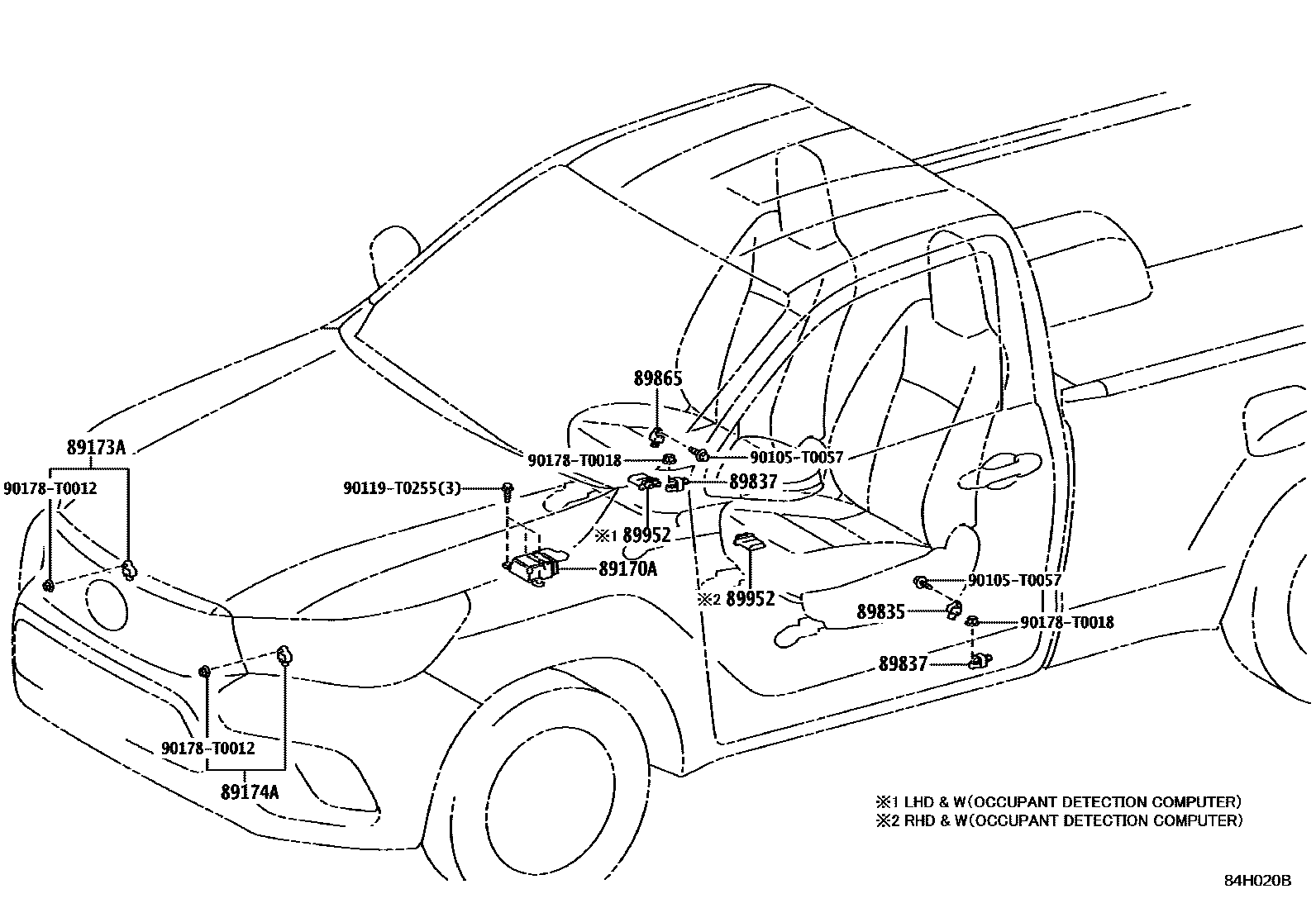

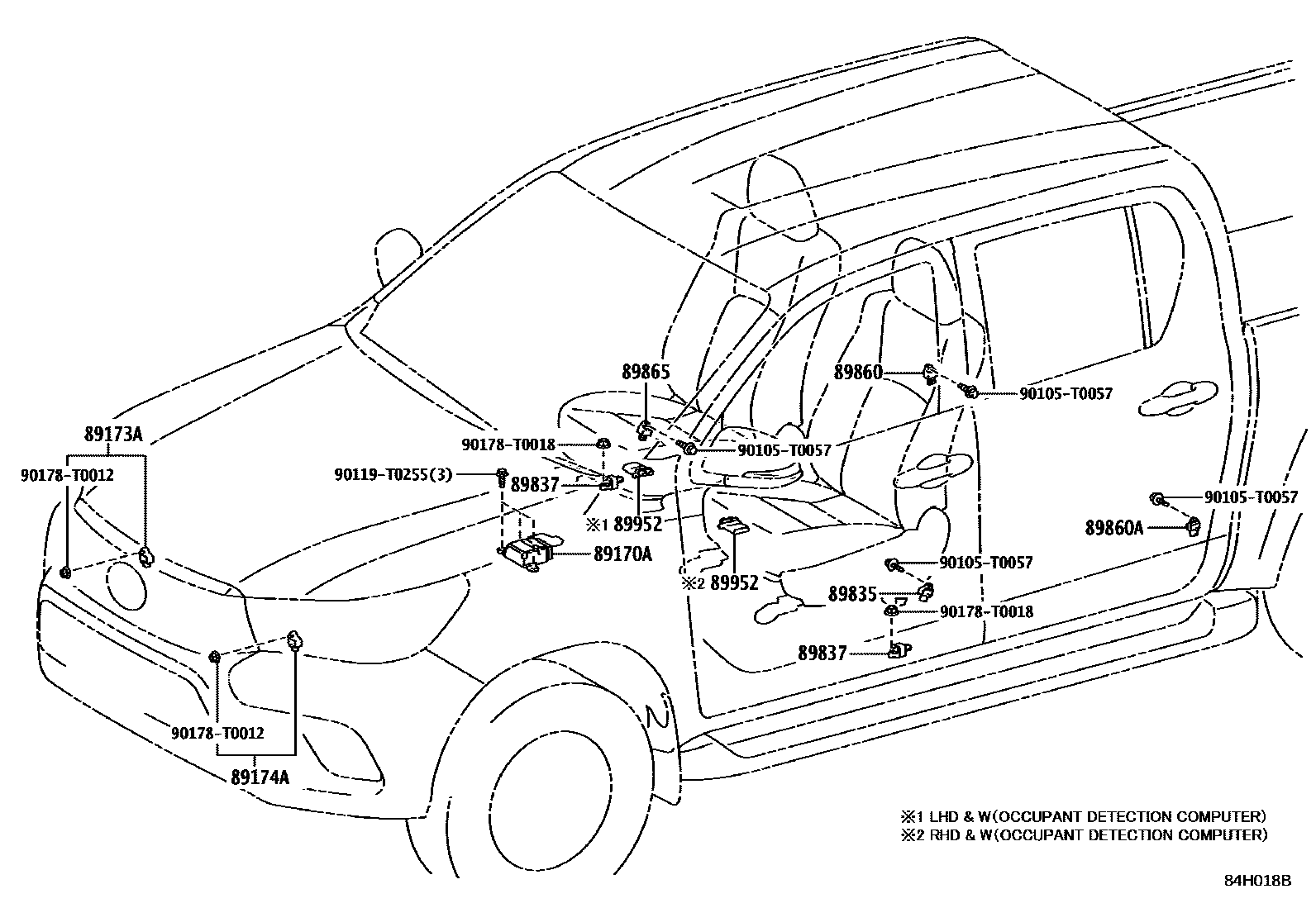

Toyota HILUX EPC diagram 8421, 空气囊, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0K800 · 89170-0K801 · 89170-0K810 · 89170-0K811 · 89170-0K820 · 89170-0K821 · 89170-0K830 · 89170-0K831 · 89170-0K840 · 89170-0K841 · 89170-0K850 · 89170-0K851 · 89170-0KA80 · 89170-0KA81 · 89170-0KA90 · 89170-0KA91 · 89170-0KB80 · 89170-0KG60 |
| 89173A | Right front air bag sensor | 89173-09B20 |
| 89174A | Left front air bag sensor | 89173-09B20 |
| 89835 | Left door side air bag sensor | 89831-0K040 |
| 89837 | Front floor side air bag sensor | 89837-0K010 |
| 89860 | Right side airbag sensor assembly | 89831-0K050 |
| 89860A | Left side air bag sensor assembly | 89831-0K050 |
| 89865 | Right door side air bag sensor | 89831-0K040 |
| 89952 | Occupant detection ECU | 89952-71010 |
