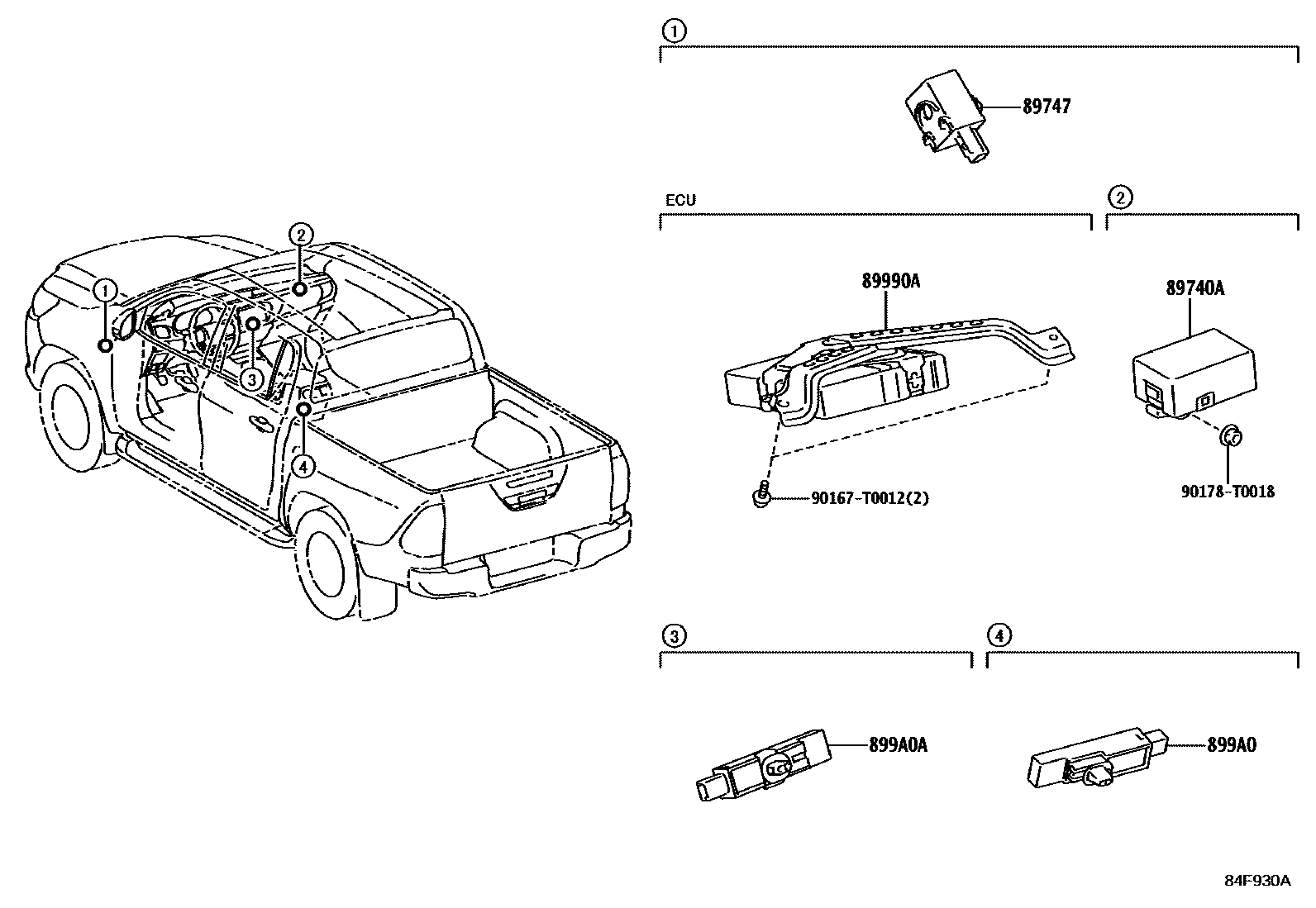

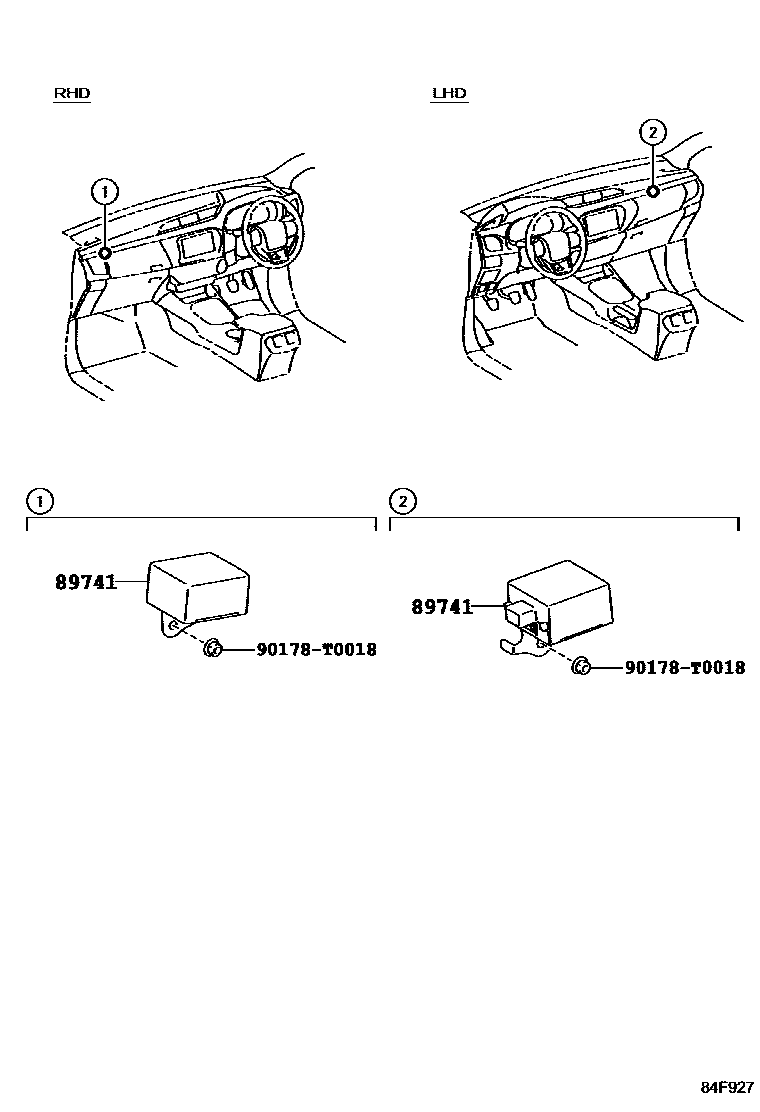

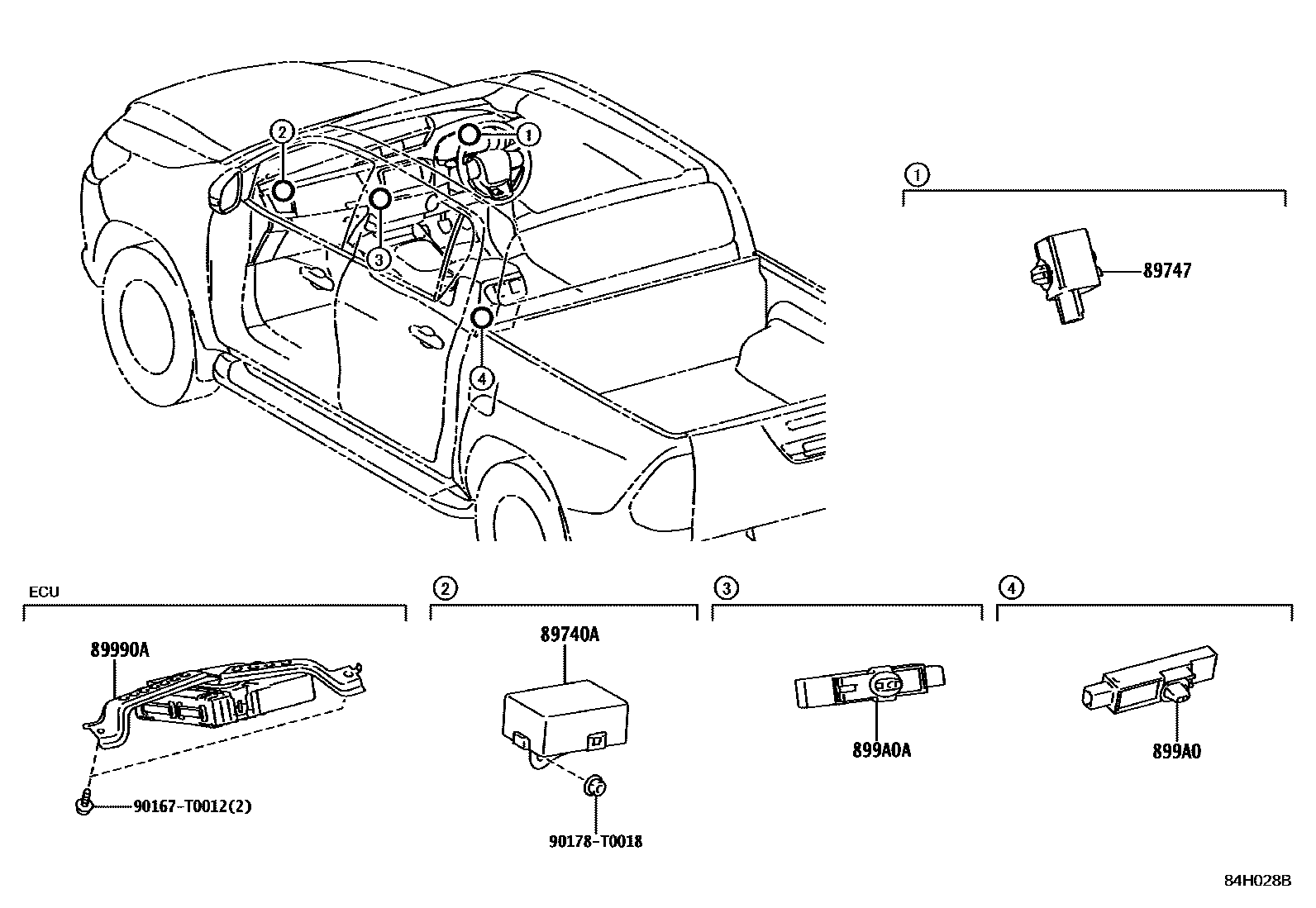

Toyota HILUX 遥控门锁 — Figure 8420
Toyota HILUX EPC diagram 8420, 遥控门锁, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-0K040 · 89740-0K170 · 89740-0K171 |
| 89741 | door control receiver | 89741-0K100 · 89741-0K101 · 89741-0K170 · 89741-0K171 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-0K080 · 89990-0K081 · 89990-0K082 · 89990-0K290 · 89990-0K291 · 89990-0K292 · 89990-0K790 · 89990-0K890 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D110 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D170 |
