Toyota HILUX ABS 和 VSC — Figure 8414

Toyota HILUX EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.

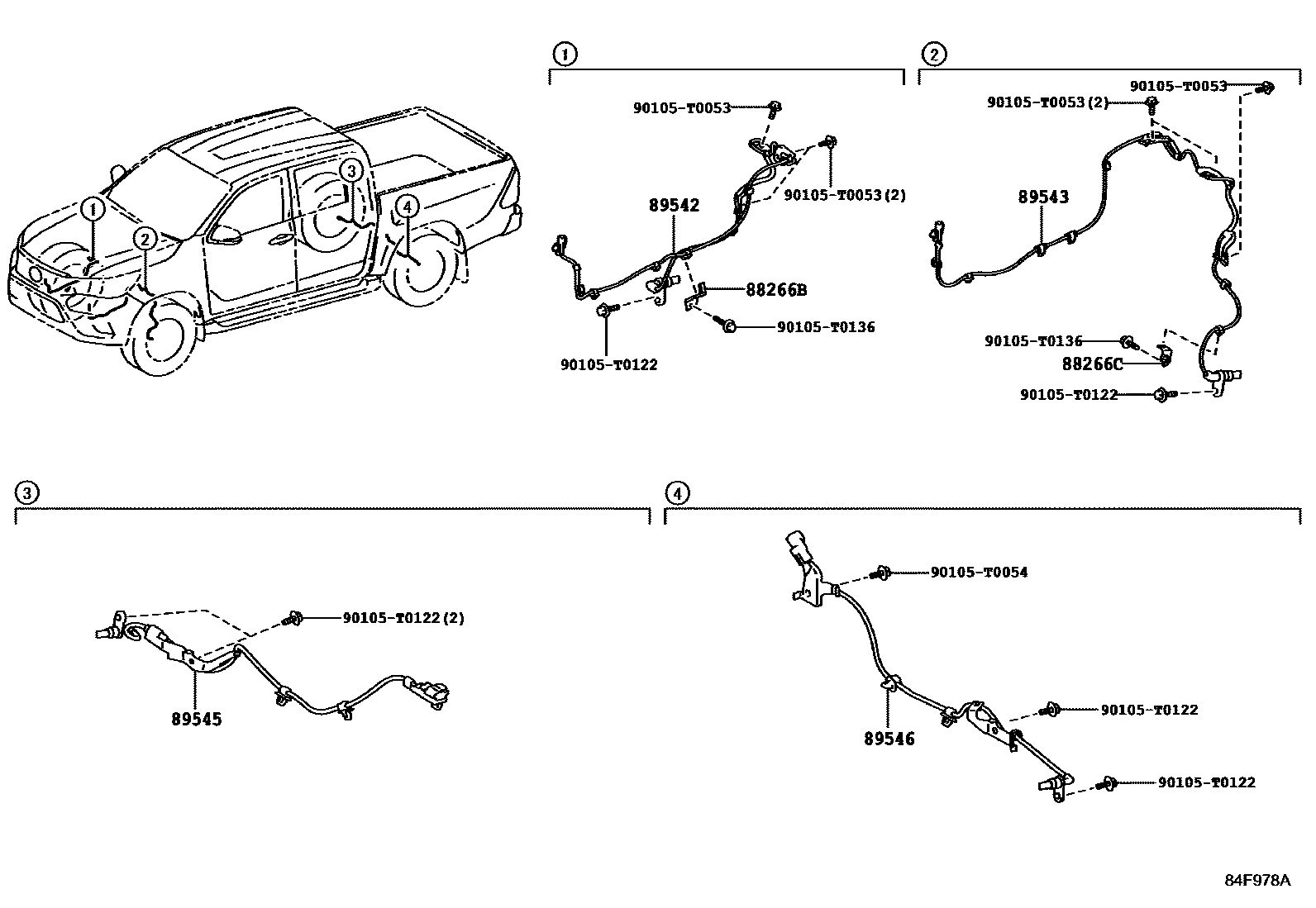

Toyota HILUX ABS 和 VSC EPC diagram — 84F978A
ABS 和 VSC — 84F978A (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
88266BNo. 1 anti-skid control sensor clip88266-0K020
88266CNo. 2 anti-skid control sensor clip88266-0K040
89542Right front wheel speed sensor89542-0K060 · 89542-0K080
89543Left front wheel speed sensor89543-0K060 · 89543-0K061 · 89543-0K081
89545Right rear wheel speed sensor89545-0K240 · 89545-0K290
89546Left rear wheel speed sensor89546-0K240 · 89546-0K290
