Toyota HILUX Headlamp — Figure 8101

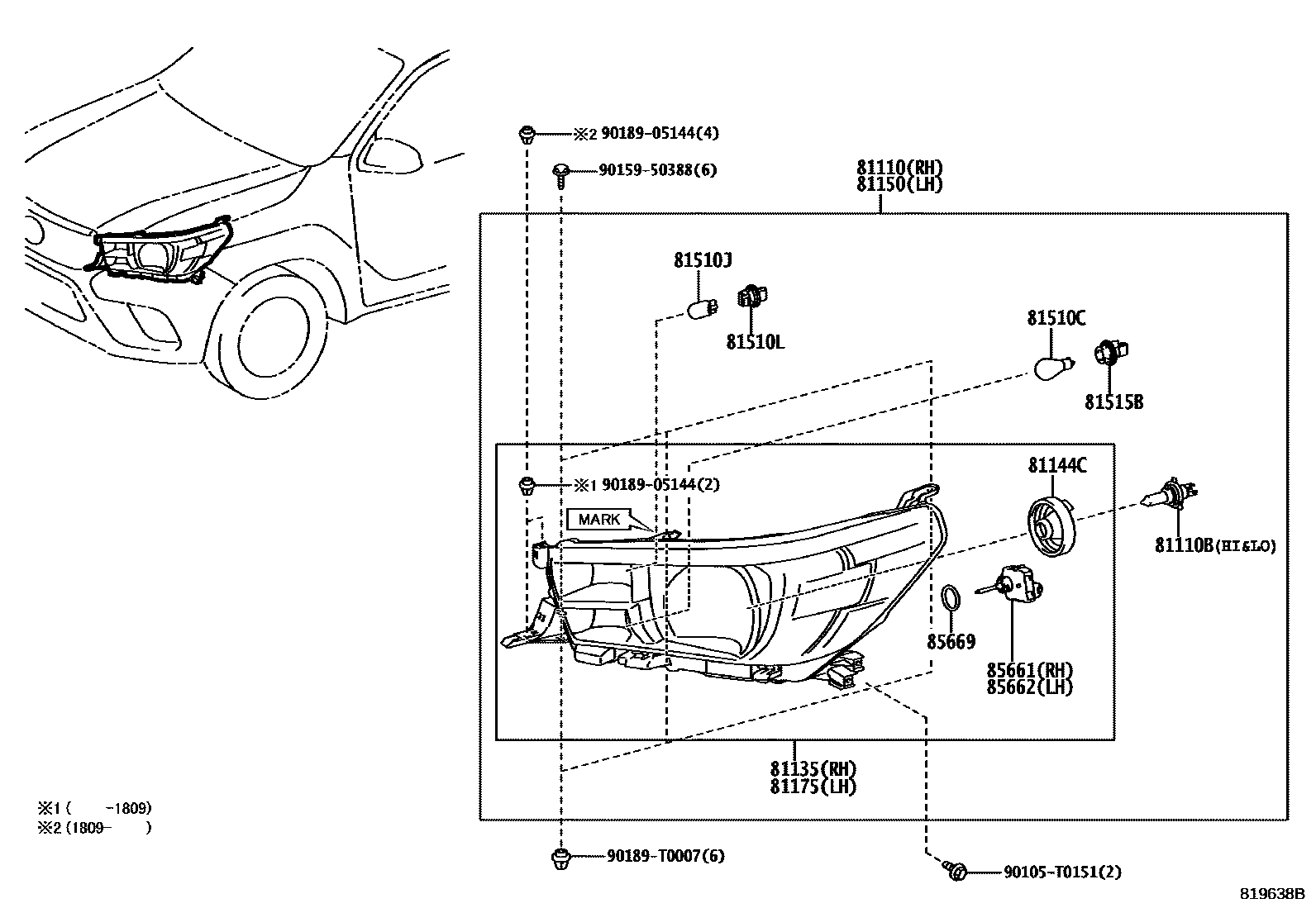

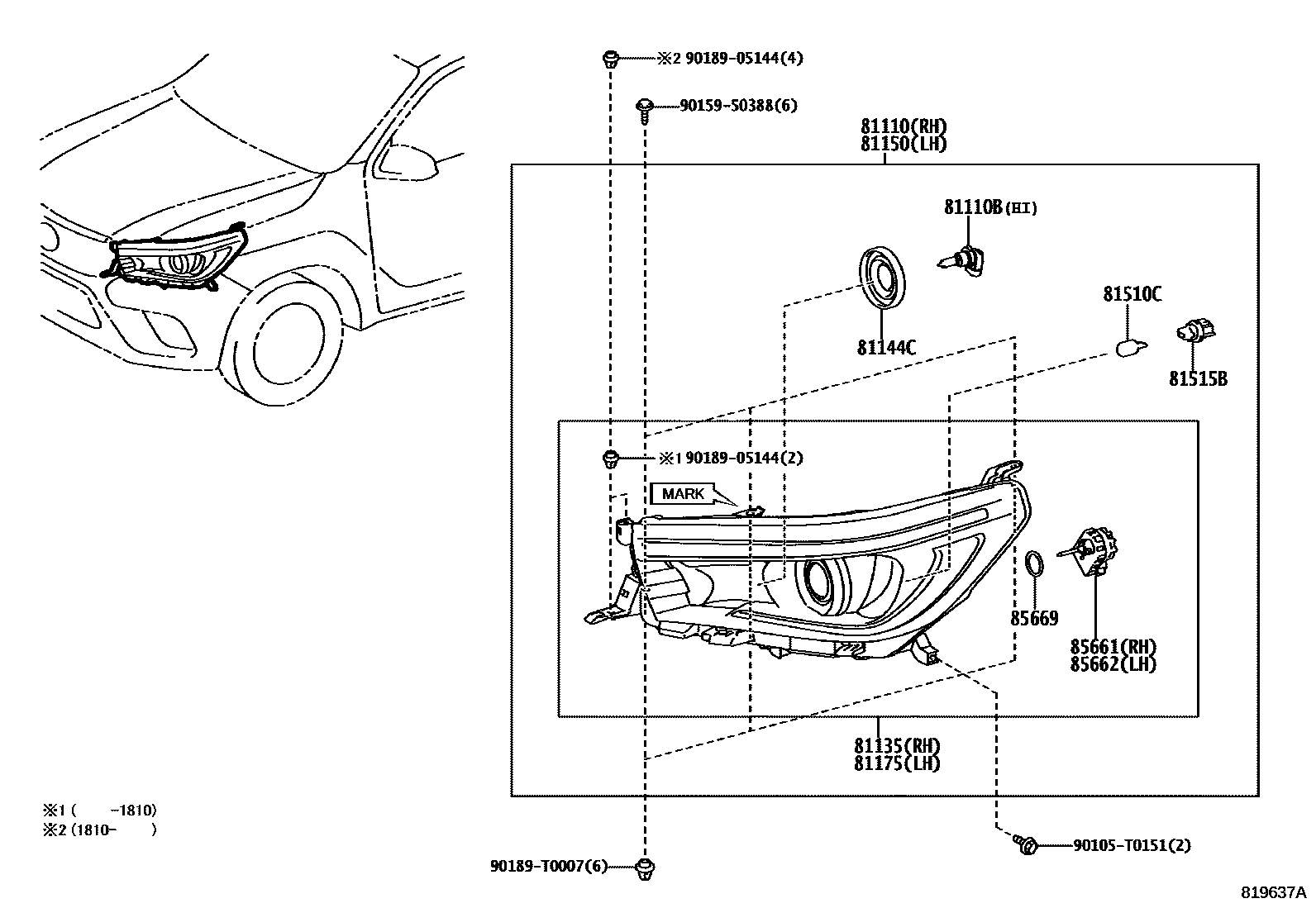

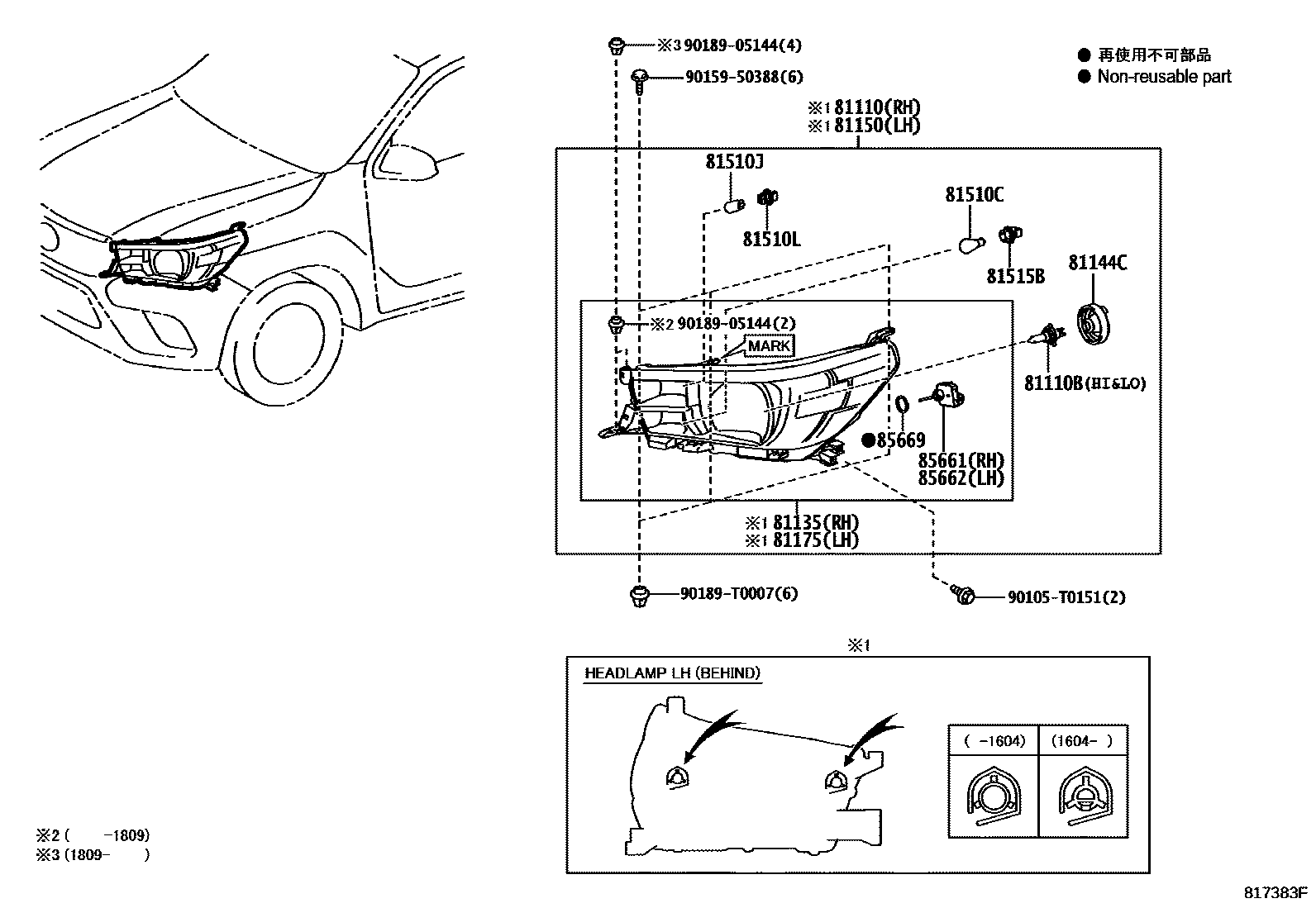

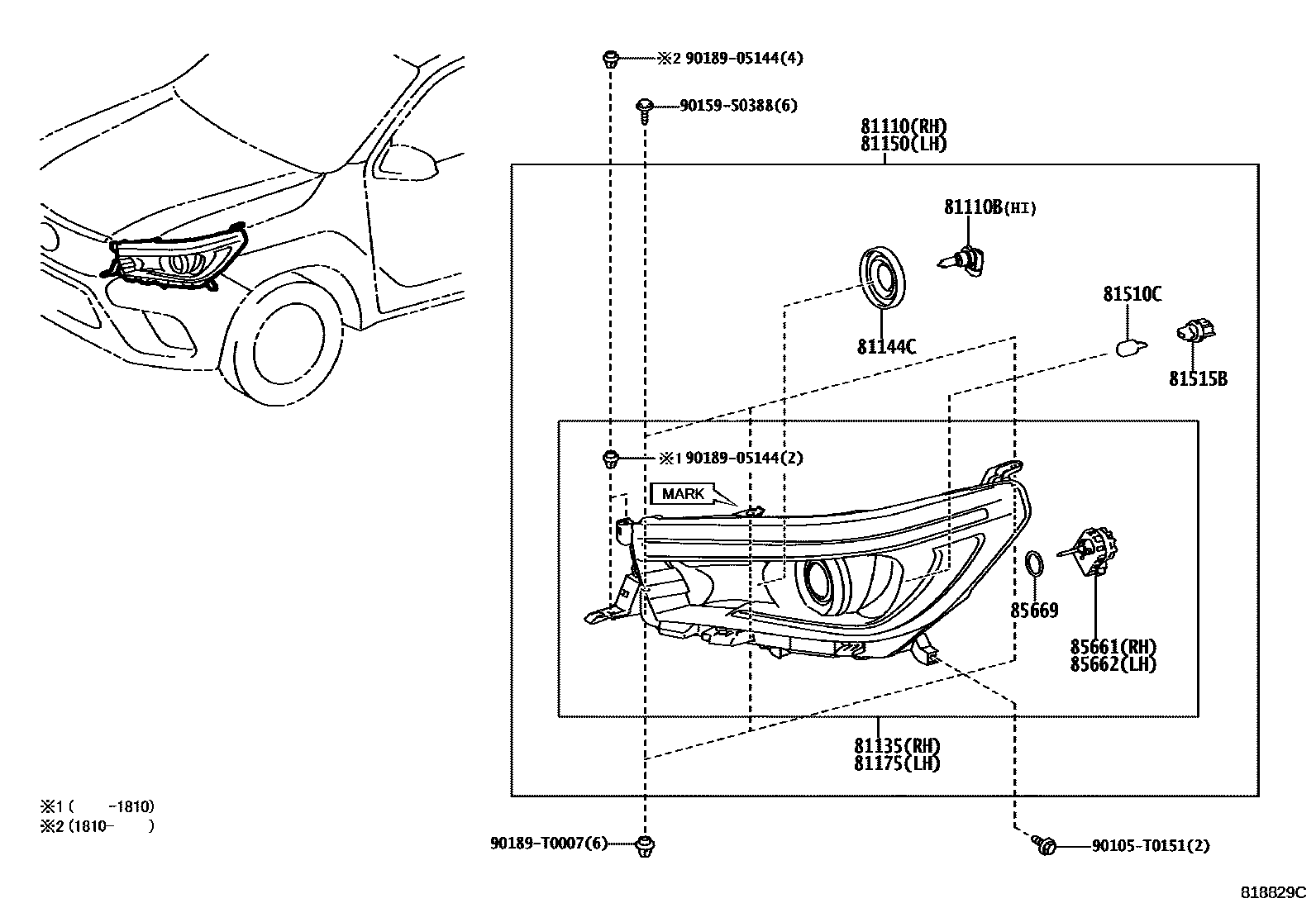

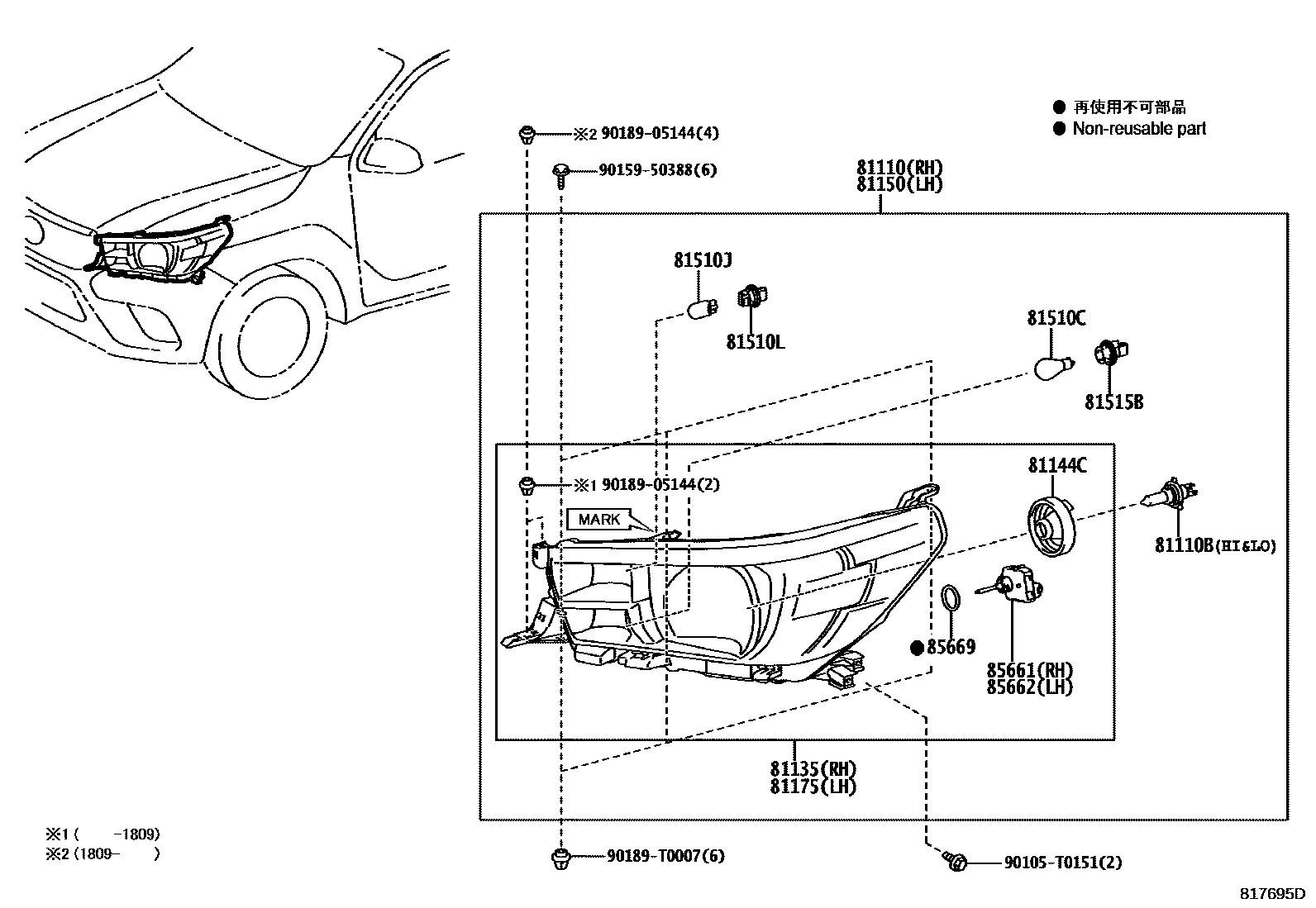

Toyota HILUX EPC diagram 8101, Headlamp, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0K690 · 81110-0K691 · 81110-0K692 · 81110-0K720 · 81110-0K722 · 81110-0K730 · 81110-0K732 · 81110-0K780 · 81110-0K781 · 81110-0K782 · 81110-0K790 · 81110-0K791 · 81110-0K792 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-13099 |
| 81135 | Right headlight assembly | 81130-0K690 · 81130-0K691 · 81130-0K692 · 81130-0K780 · 81130-0K781 · 81130-0K782 · 81130-0K790 · 81130-0K791 · 81130-0K792 · 81140-0K720 · 81140-0K722 · 81140-0K730 · 81140-0K732 |
| 81144C | Headlight lamp holder cover | 90075-65002 · 90075-65006 · 90075-65019 |
| 81150 | Left headlight assembly | 81150-0K690 · 81150-0K691 · 81150-0K692 · 81150-0K720 · 81150-0K722 · 81150-0K730 · 81150-0K732 · 81150-0K780 · 81150-0K781 · 81150-0K782 · 81150-0K790 · 81150-0K791 · 81150-0K792 |
| 81175 | Left headlight assembly | 81070-0K720 · 81070-0K722 · 81070-0K730 · 81070-0K732 · 81170-0K690 · 81170-0K691 · 81170-0K692 · 81170-0K780 · 81170-0K781 · 81170-0K782 · 81170-0K790 · 81170-0K791 · 81170-0K792 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 · 90981-15028 |
| 81510J | AMPOULE(POUR FEU DE CIRCULATION DIURNE) | 90981-13088 |
| 81510L | PRISES FEMELLE, FEU DE CIRCULATION DIURNE | 90075-60086 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-60069 |
| 85661 | Right headlight beam height adjustment motor | 85661-02040 · 85661-0D020 · 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-02040 · 85661-0D020 · 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
