Toyota HILUX 工具箱和牌照支架 — Figure 7554

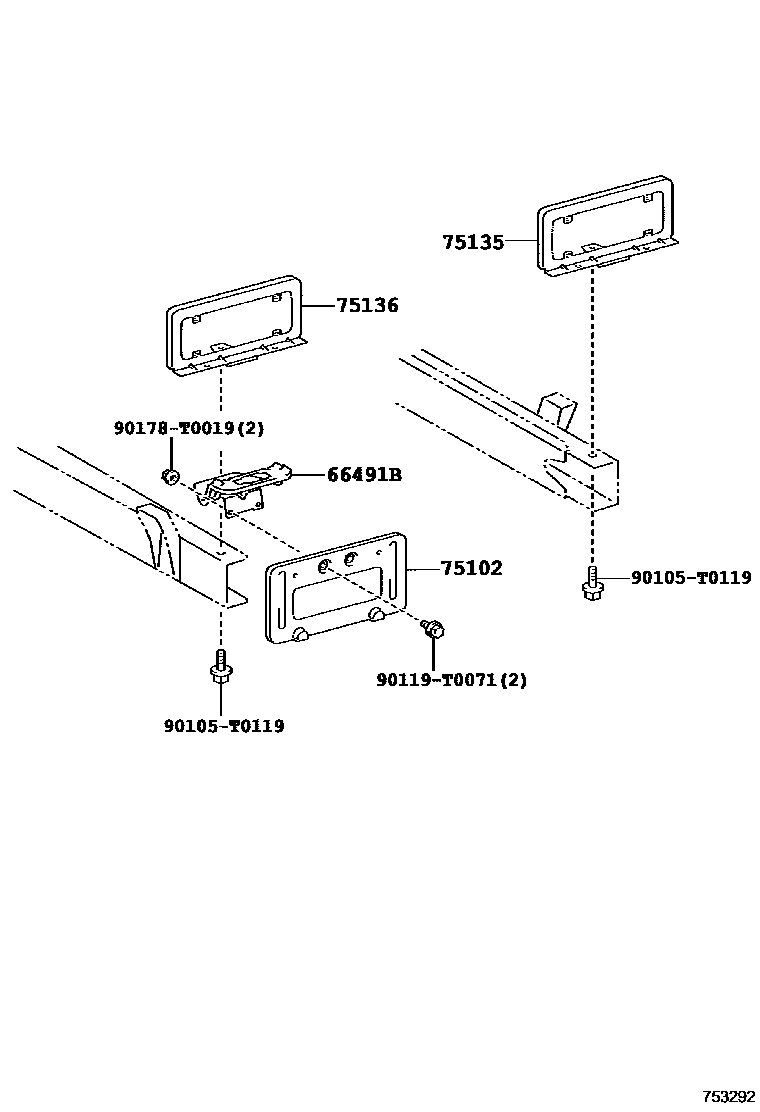

Toyota HILUX EPC diagram 7554, 工具箱和牌照支架, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58780 | Tool box strap assembly | 58780-0K060 · 58780-0K130 |
| 66491B | license plate bracket hanger | 66491-0K010 |
| 75102 | Rear license plate bracket sub-assembly | 75102-25020 |
| 75135 | Right rear combination light bracket | 75103-95411 |
| 75136 | Left rear combination light bracket | 75103-95411 |
