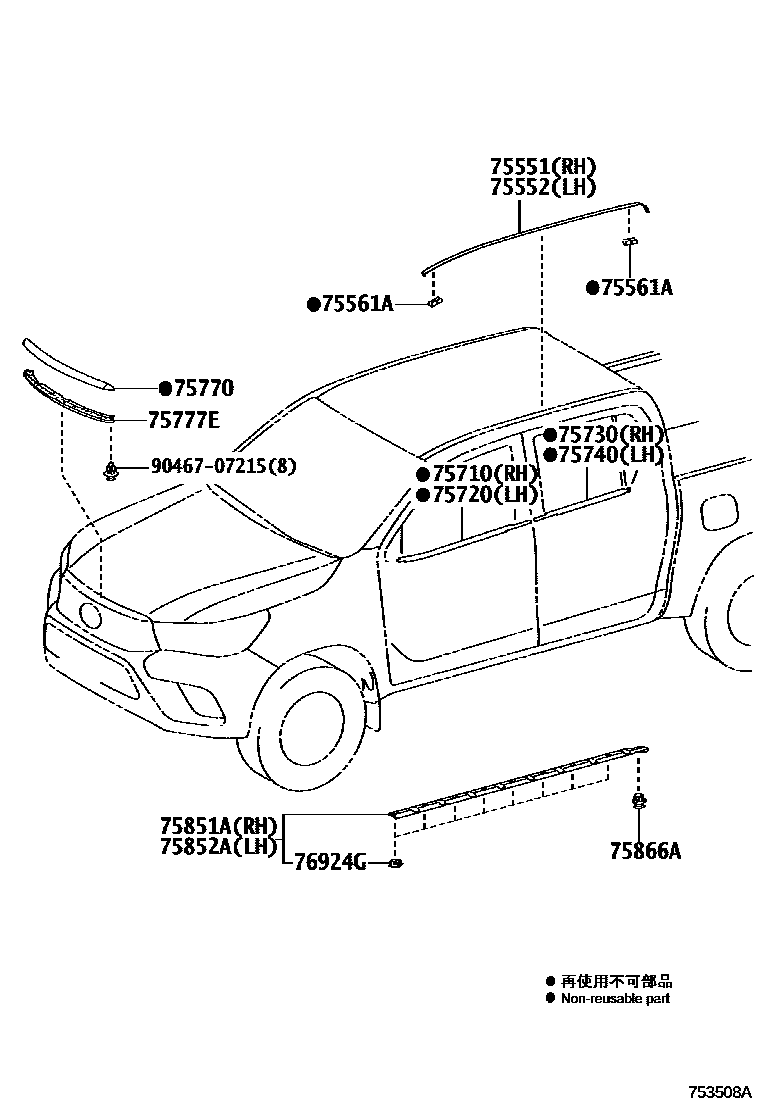

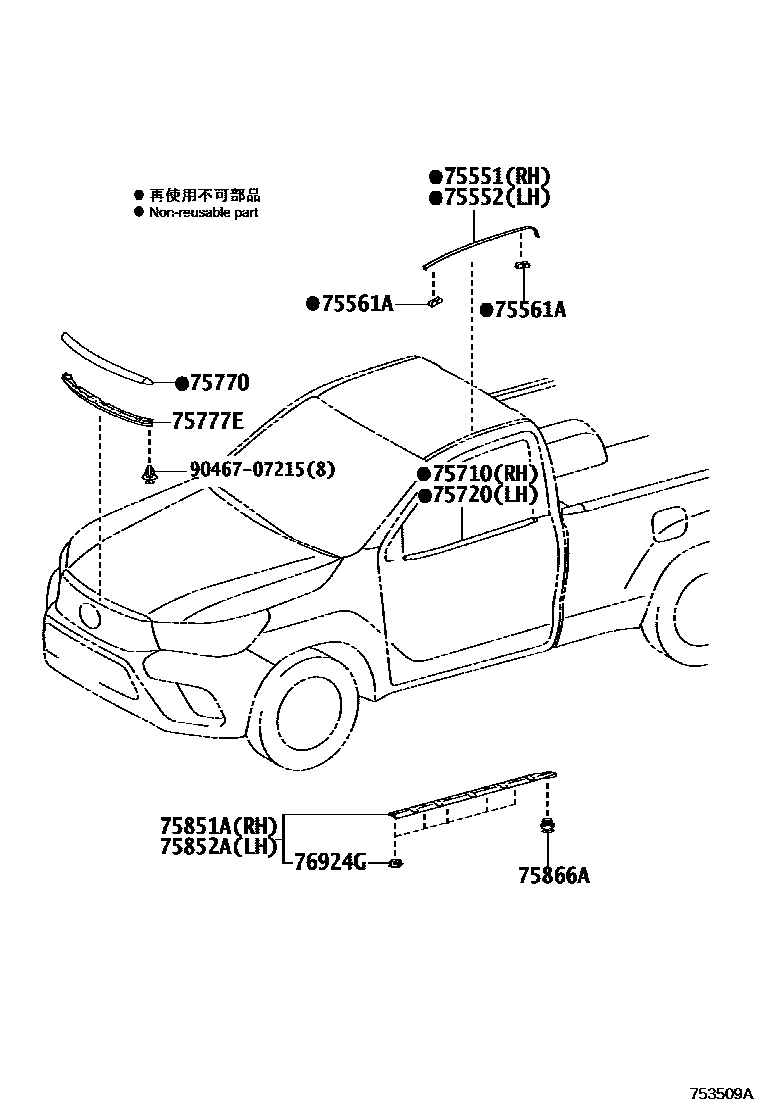

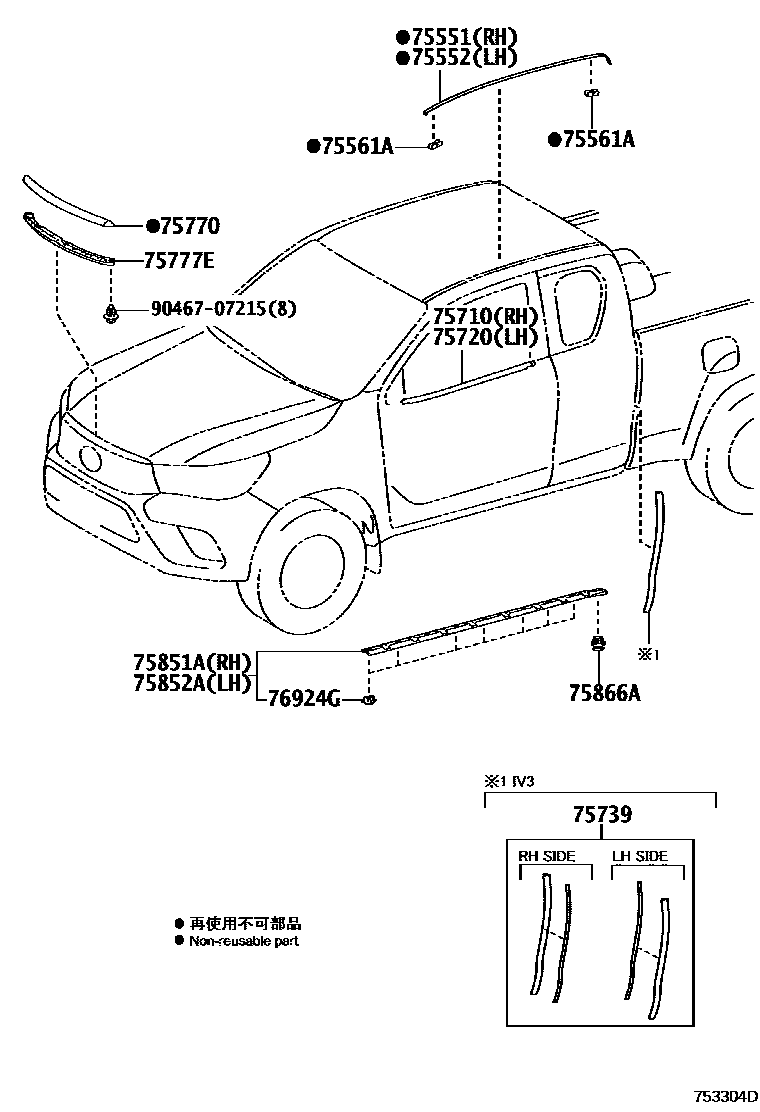

Toyota HILUX 防护条 — Figure 7552
Toyota HILUX EPC diagram 7552, 防护条, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K160 · 75551-0K170 · 75551-0K180 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K160 · 75552-0K170 · 75552-0K180 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K010 · 68160-0K040 · 68160-0K070 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K010 · 68210-0K040 · 68210-0K070 |
| 75730 | Right rear door waistline protection strip assembly | 68180-0K010 · 68180-0K120 |
| 75739 | Door edge protection strip | 75805-71010 |
| 75740 | Left rear door waistline protection strip assembly | 68230-0K010 · 68230-0K120 |
| 75770 | Engine cover front protective strip assembly | 75770-0K320 · 75770-0K321 · 75770-0K330 · 75770-0K331 · 75770-0K340 · 75770-0K341 · 75770-0K360 · 75770-0K361 · 75770-0K400 · 75770-0K401 · 75770-YP010 · 75770-YP020 |
| 75777E | Engine cover front protective strip liner | 53393-0K010 · 53393-0K020 |
| 75851A | Right front door sill panel protective strip | 75851-0K010 · 75851-0K060 · 75851-0K080 · 75851-0K100 |
| 75852A | Left front door sill panel protective strip | 75852-0K010 · 75852-0K060 · 75852-0K080 · 75852-0K100 |
| 75866A | Door sill panel protective strip fixings | 76923-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-0K010 · 76924-0K020 |
