Toyota HILUX 扶手和遮阳板 — Figure 7451

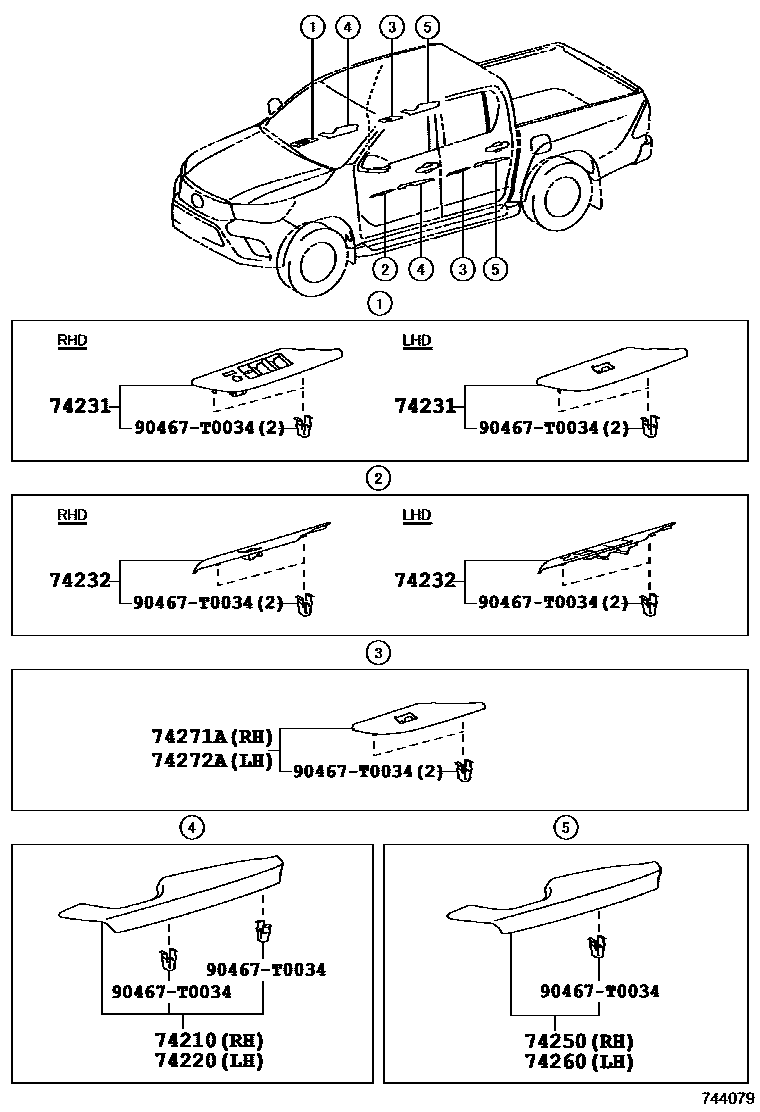

Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0K600 · 74231-0K610 · 74231-0K611 · 74231-0K660 · 74231-0K770 · 74231-0K790 · 74231-0K800 · 74231-0K810 · 74231-0KA80 · 74231-0KA90 |
| 74232 | Left front armrest upper panel | 74232-0K590 · 74232-0K591 · 74232-0K650 · 74232-0K651 · 74232-0K660 · 74232-0K671 · 74232-0K770 · 74232-0K790 · 74232-0K800 · 74232-0K810 · 74232-0K820 · 74232-0KA60 · 74232-0KB10 |
| 74271A | Right rear door armrest upper panel | 74271-0K310 · 74271-0K320 · 74271-0K321 · 74271-0K390 · 74271-0K400 |
| 74272A | Left rear door armrest upper panel | 74272-0K310 · 74272-0K320 · 74272-0K321 · 74272-0K390 · 74272-0K400 |
| 74318 | Left sun visor bracket cover | 74317-60020 |
| 74320 | Left sun visor assembly | 74320-0KF80 · 74320-0KF90 |
