Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 5 images and 8 PNC and OE references.

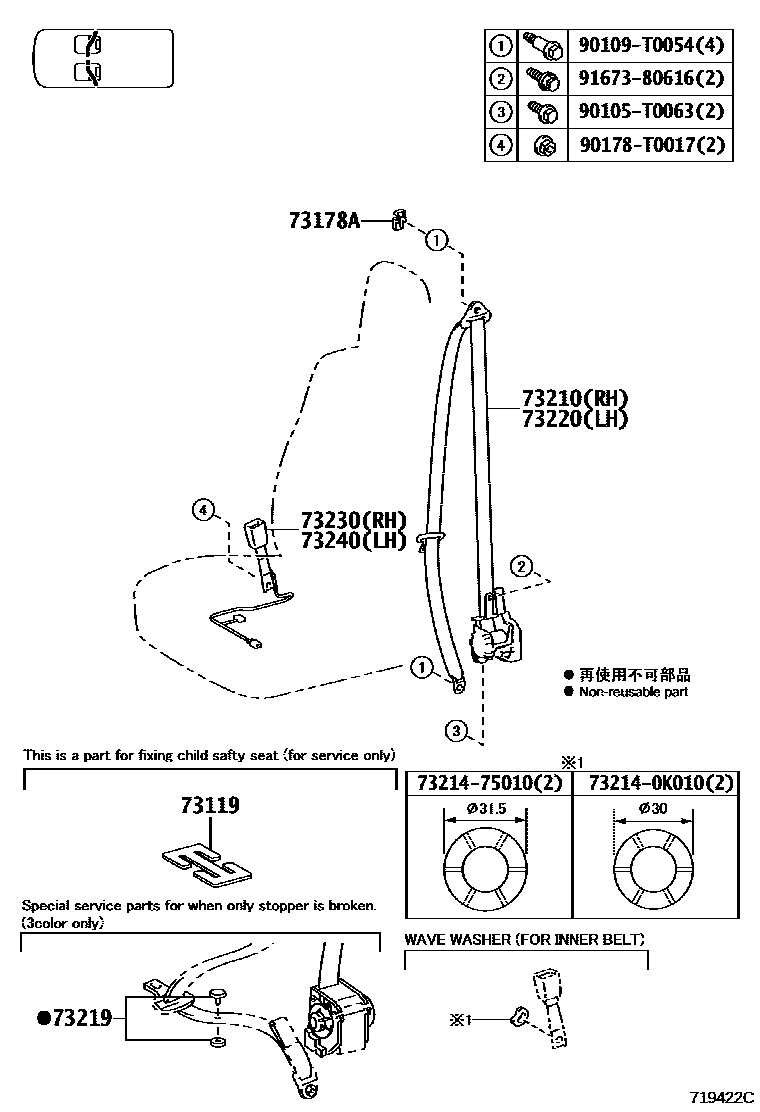

Toyota HILUX seat belt EPC diagram — 719422C
seat belt — 719422C (201603 – 999999)

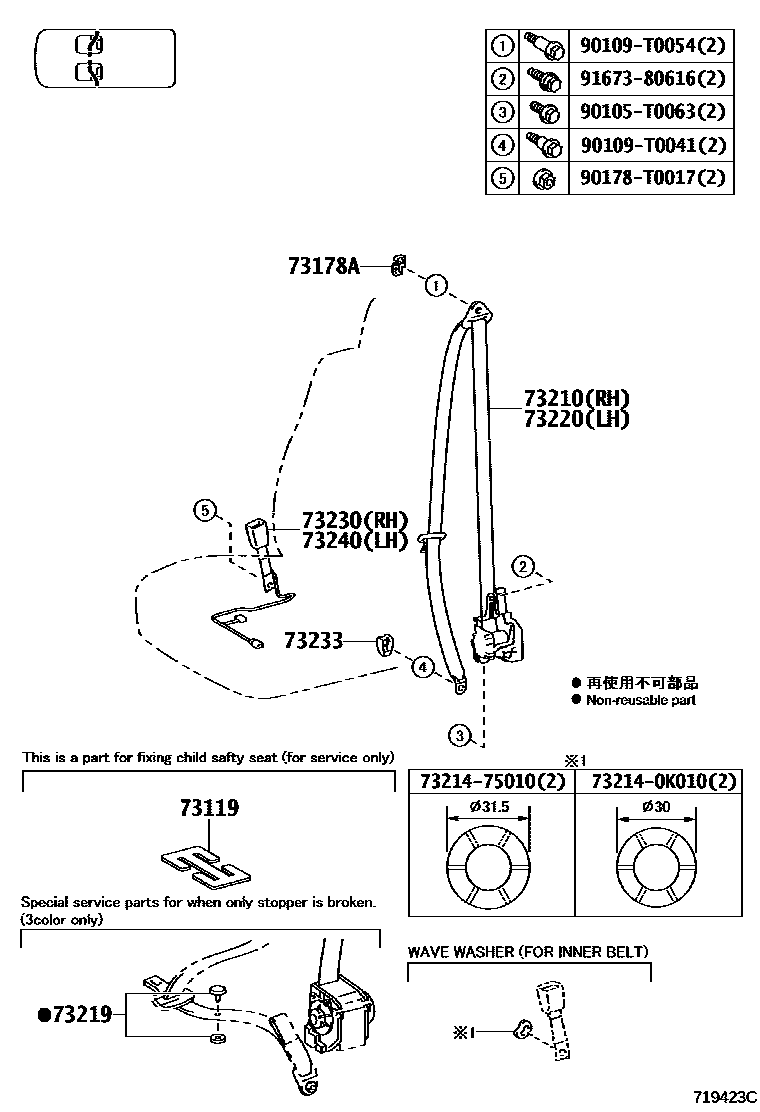

Toyota HILUX seat belt EPC diagram — 719423C
seat belt — 719423C (201603 – 999999)

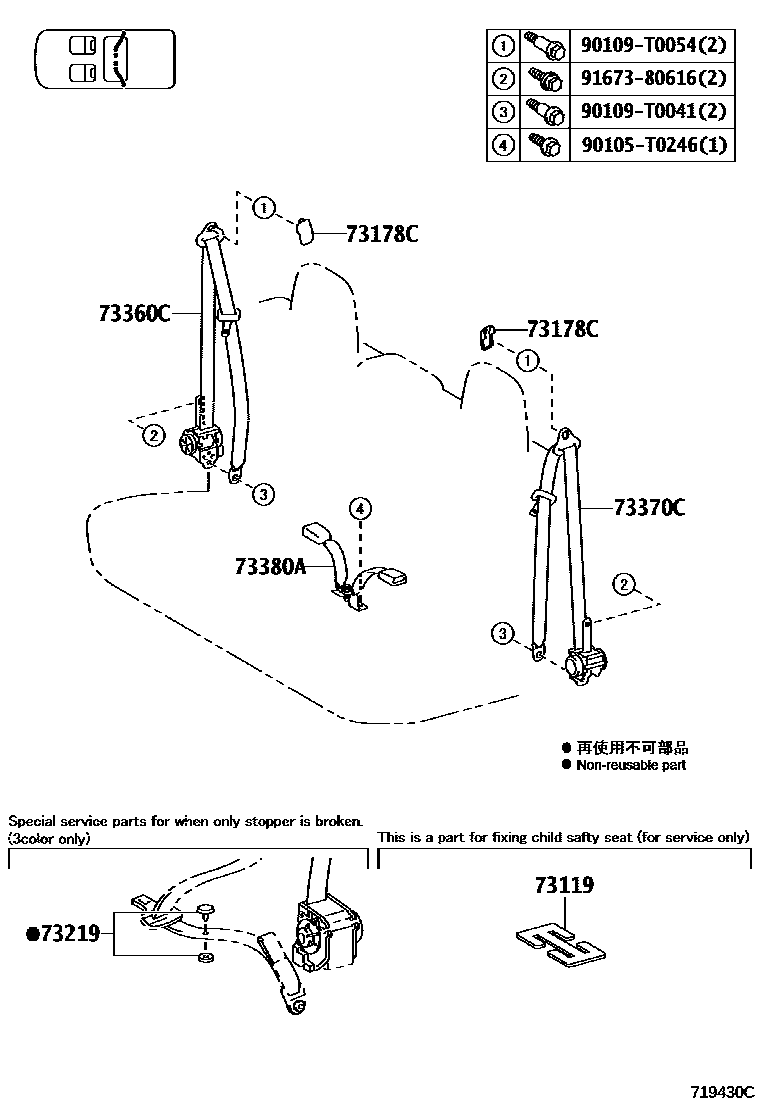

Toyota HILUX seat belt EPC diagram — 719430C
seat belt — 719430C (201603 – 999999)

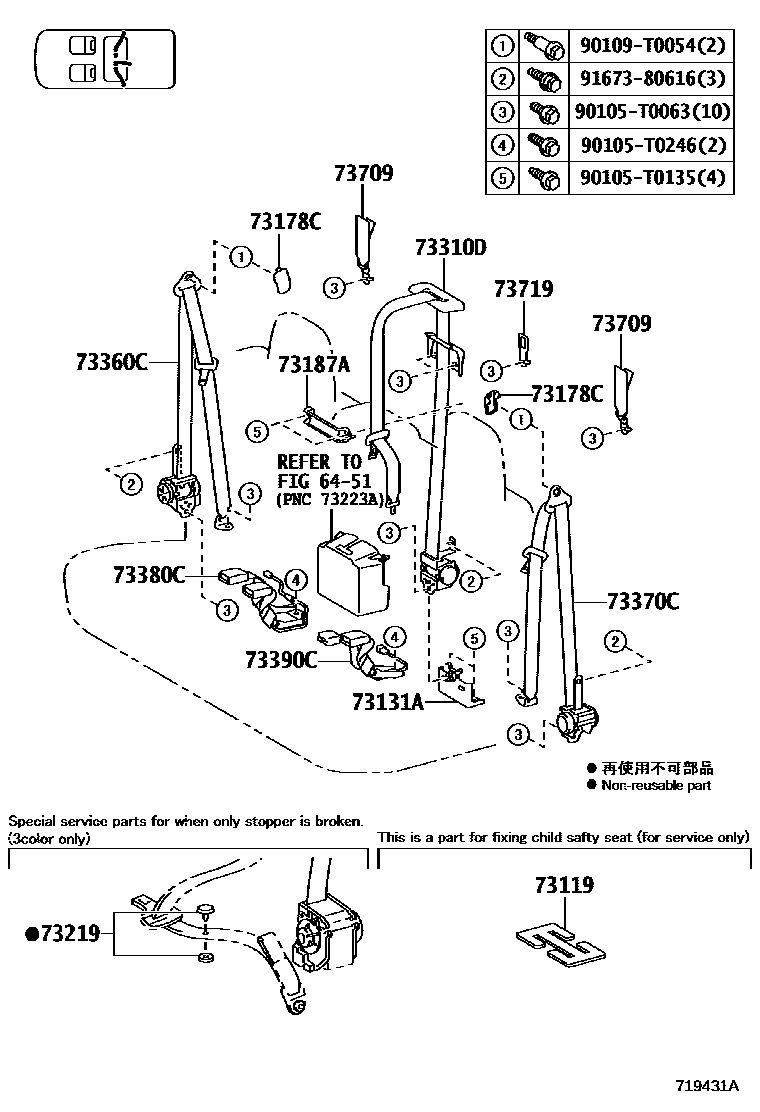

Toyota HILUX seat belt EPC diagram — 719431A
seat belt — 719431A (201506 – 999999)

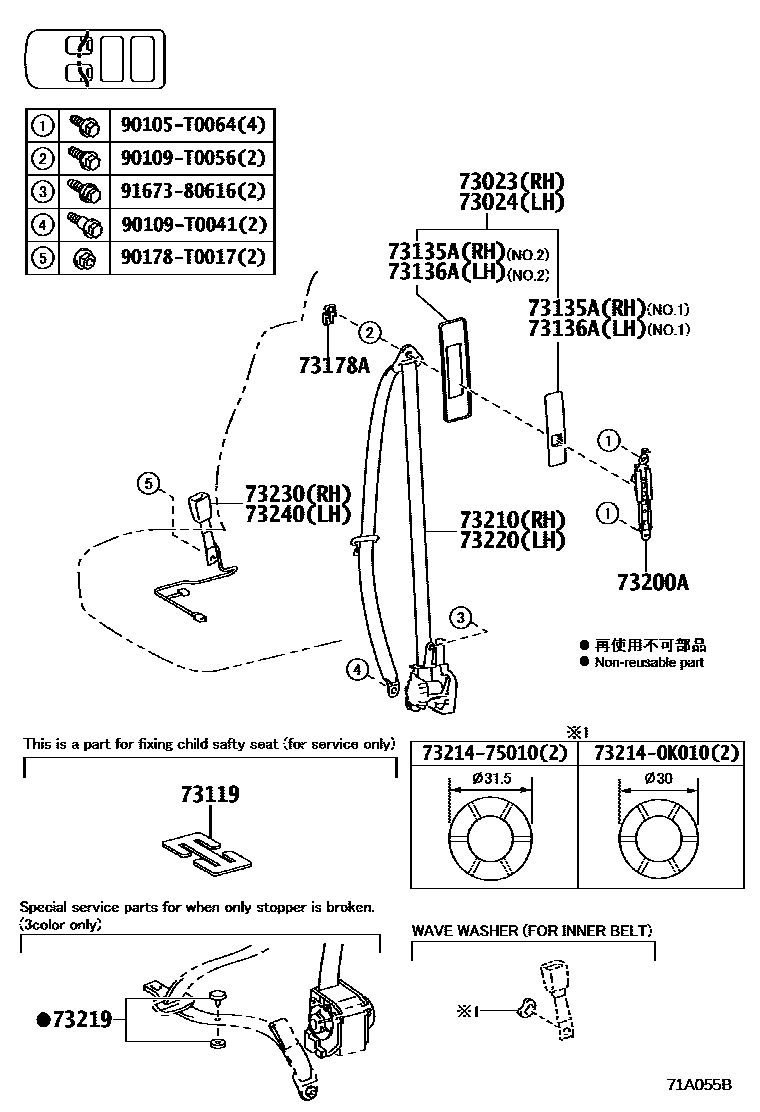

Toyota HILUX seat belt EPC diagram — 71A055B
seat belt — 71A055B (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
73119seat belt clip73119-22010
73131Aseat belt bracket73131-0K010 · 73131-0K020
73187ARear seat shoulder belt guides73187-KK020
73219Tongue plate stop73219-33010 · 73219-33020 · 73219-33030
73380ASeat belt assembly in rear seat73380-0K360
73380CSeat belt assembly in seat No. 1 on the right side of the rear row73380-0K400
73709Tie anchor bracket sub-assembly73709-0K010 · 73709-0K020
73719Child restraint seat tether anchor bracket73719-0K010 · 73719-0K020
