Toyota HILUX 座椅和座椅滑轨 — Figure 7151

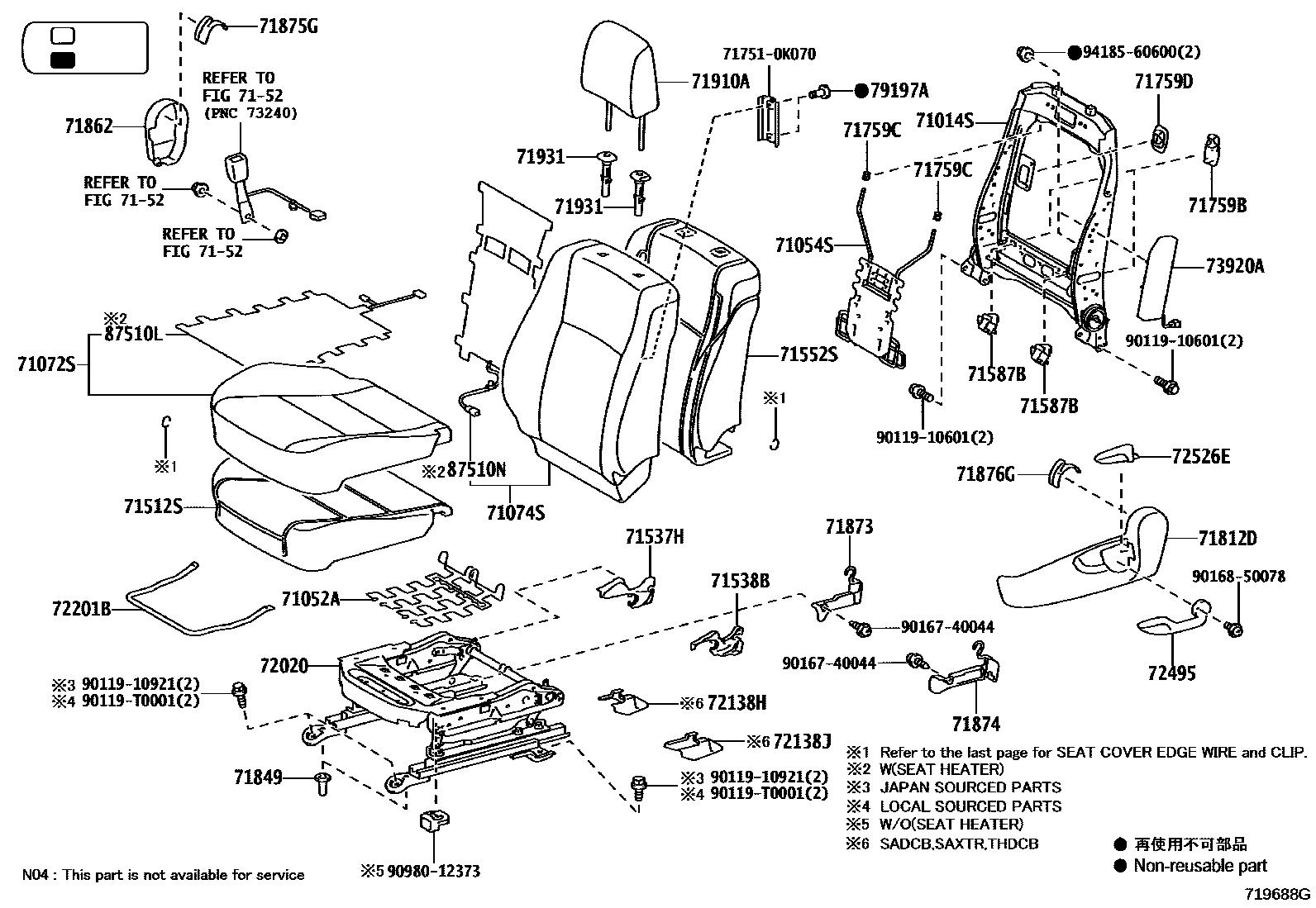

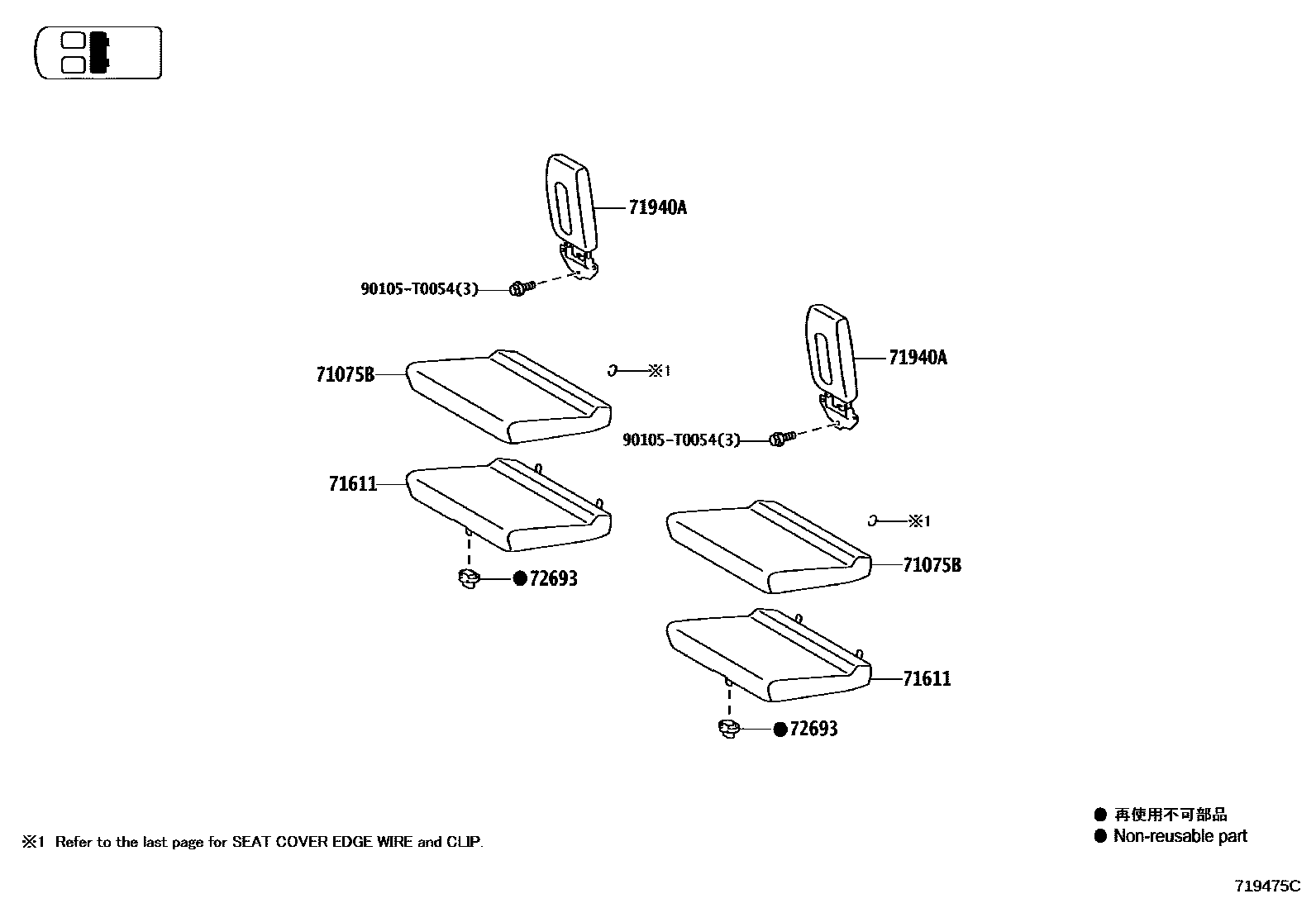

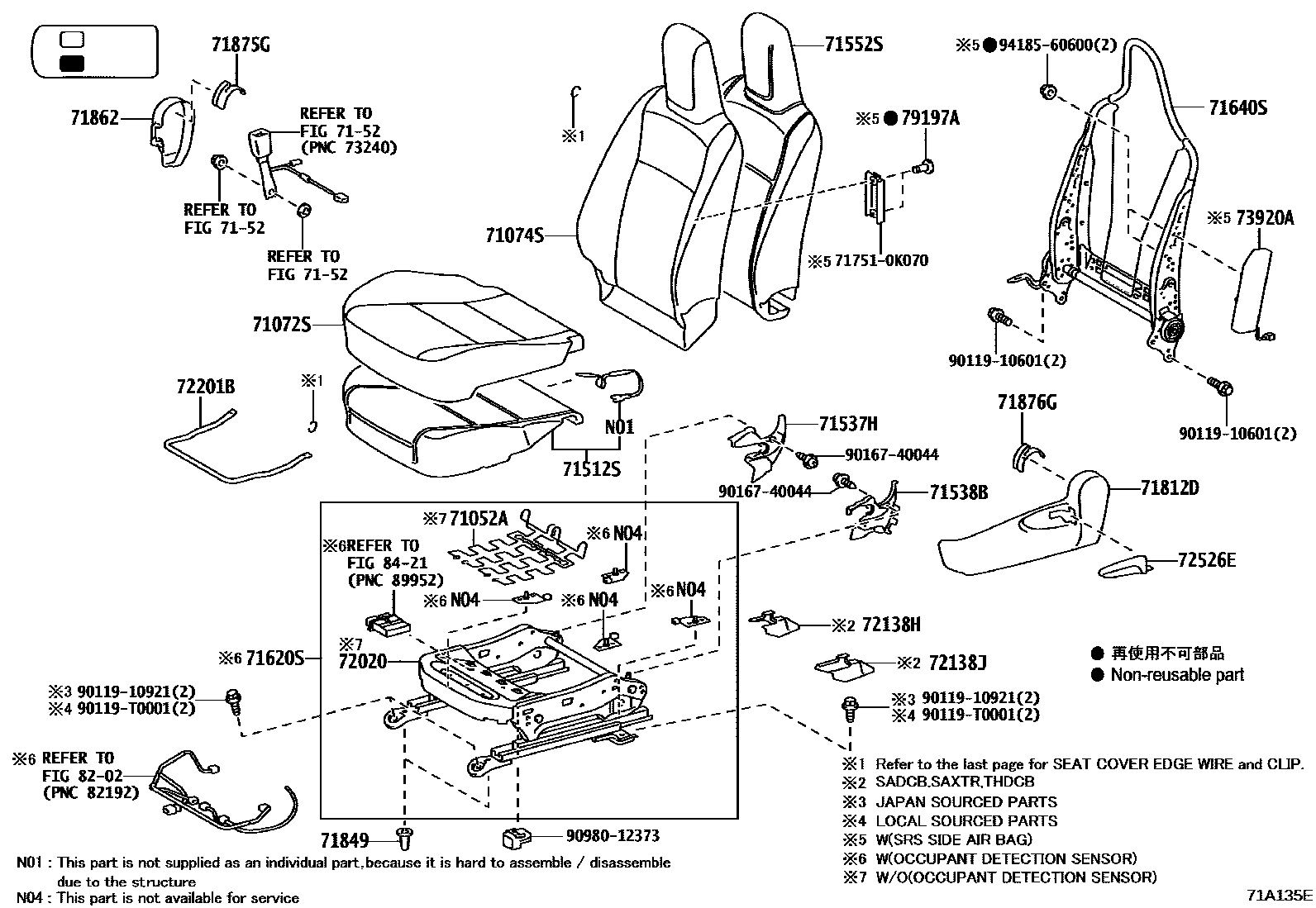

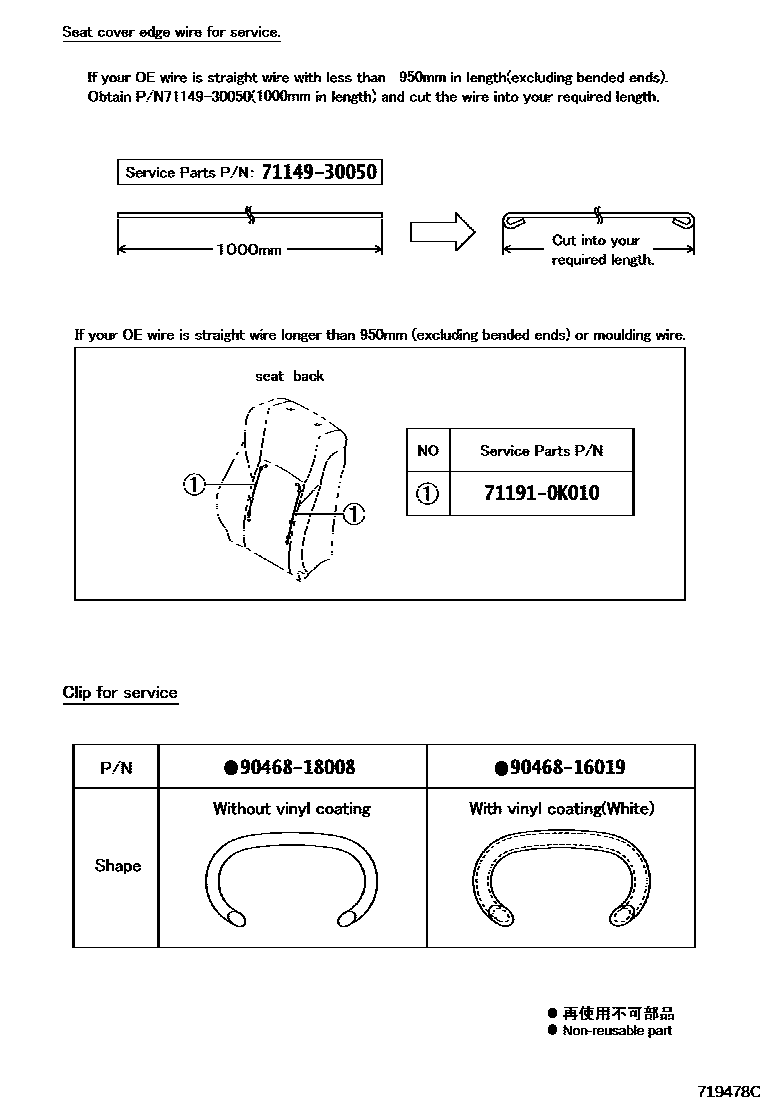

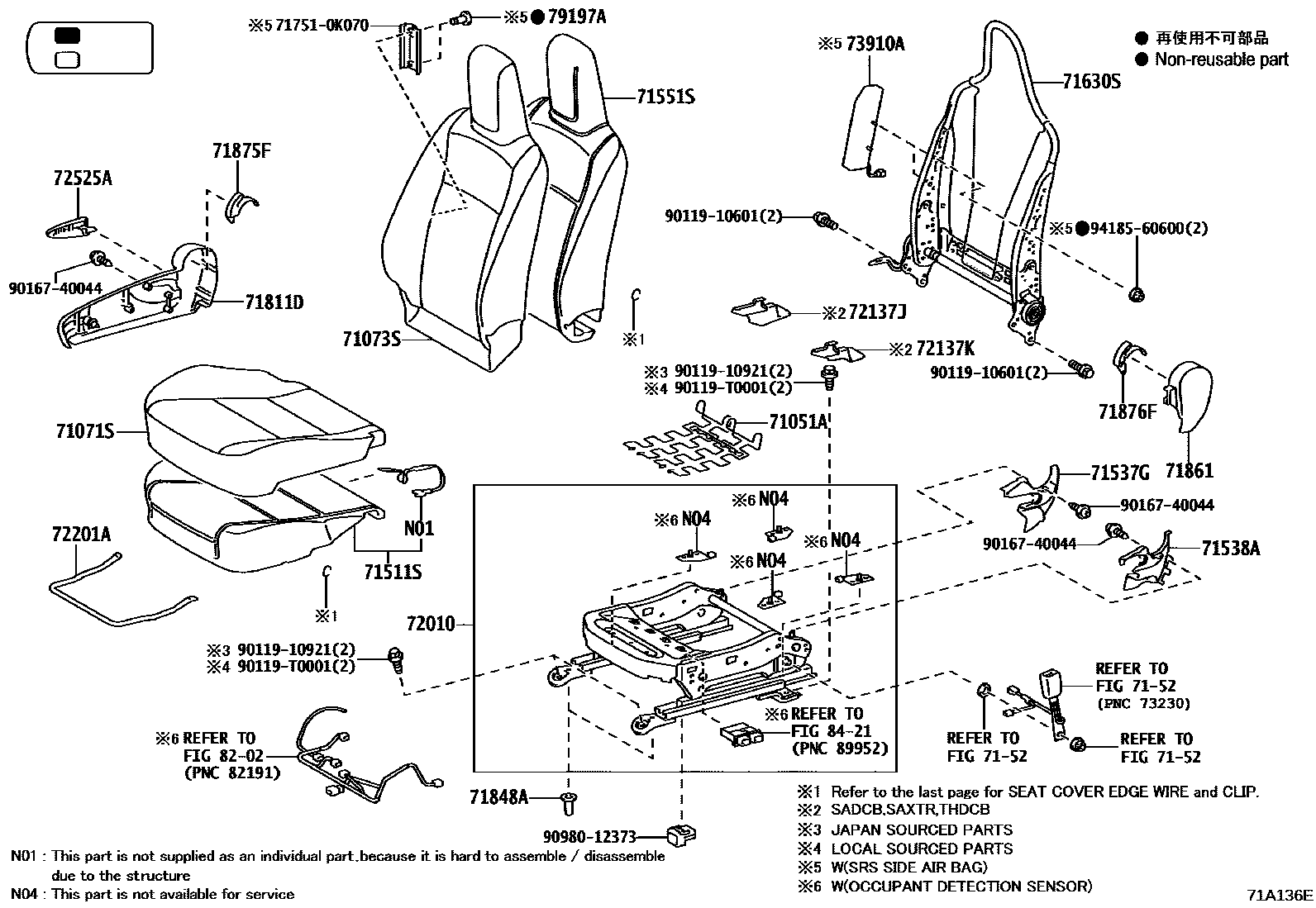

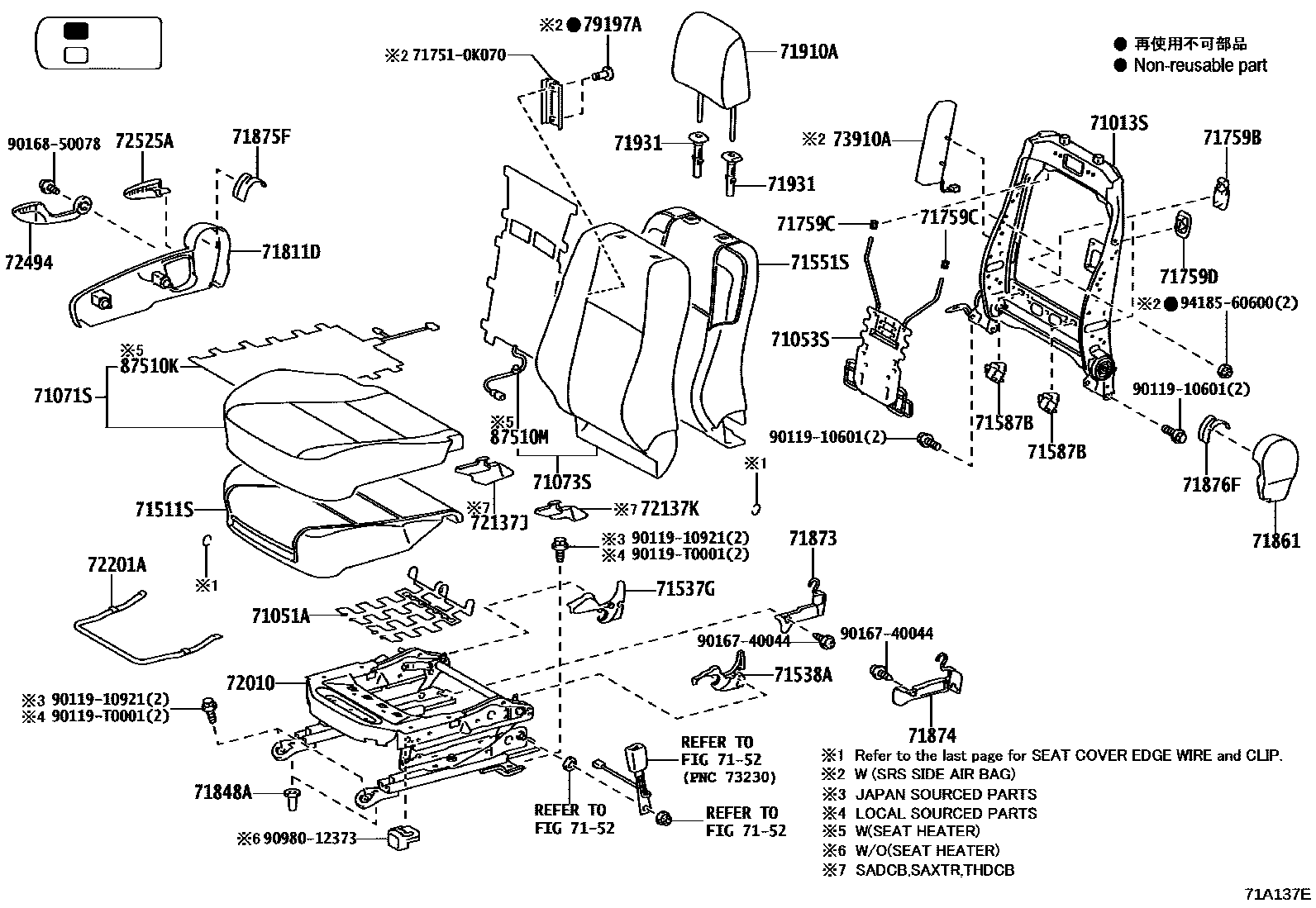

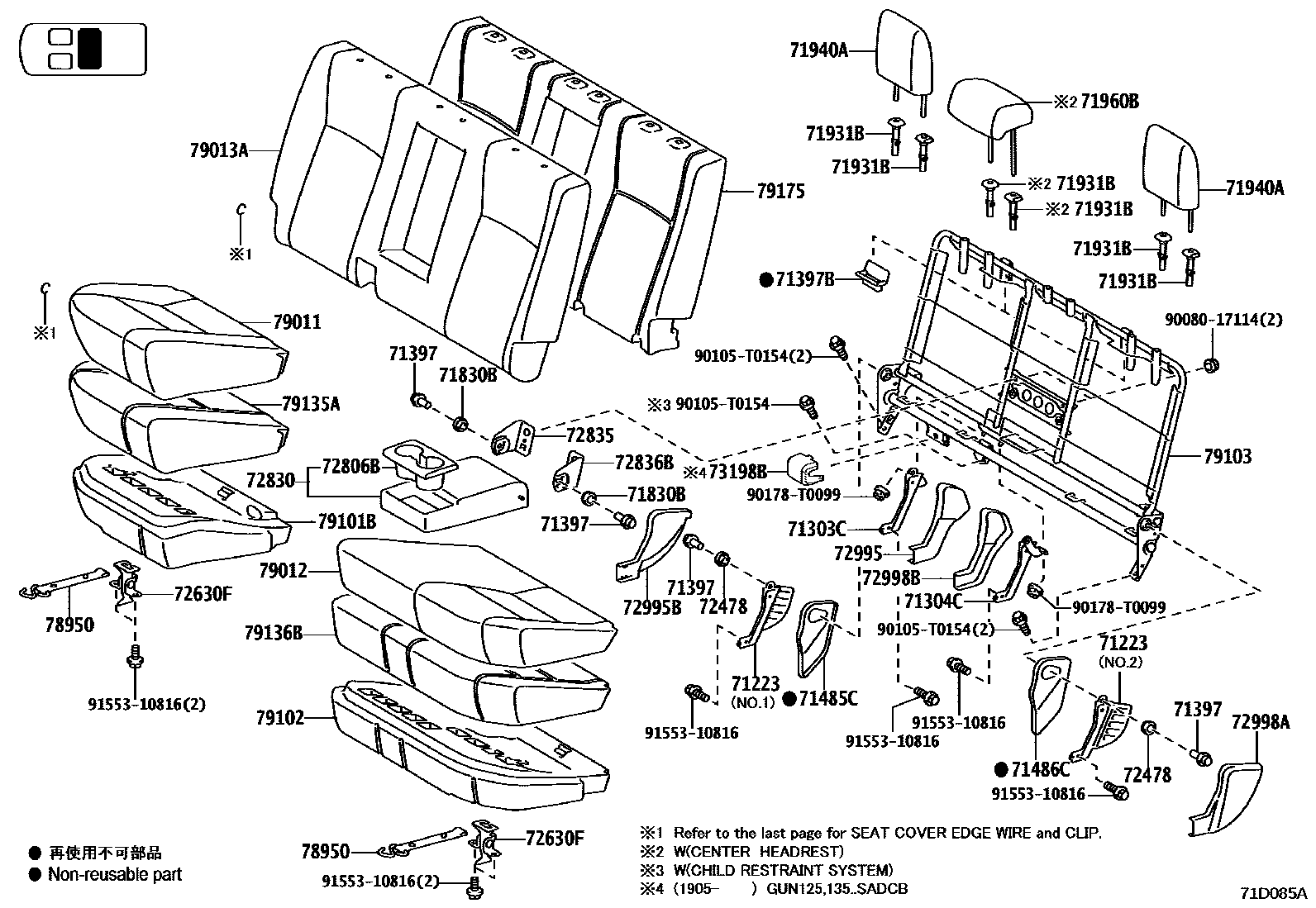

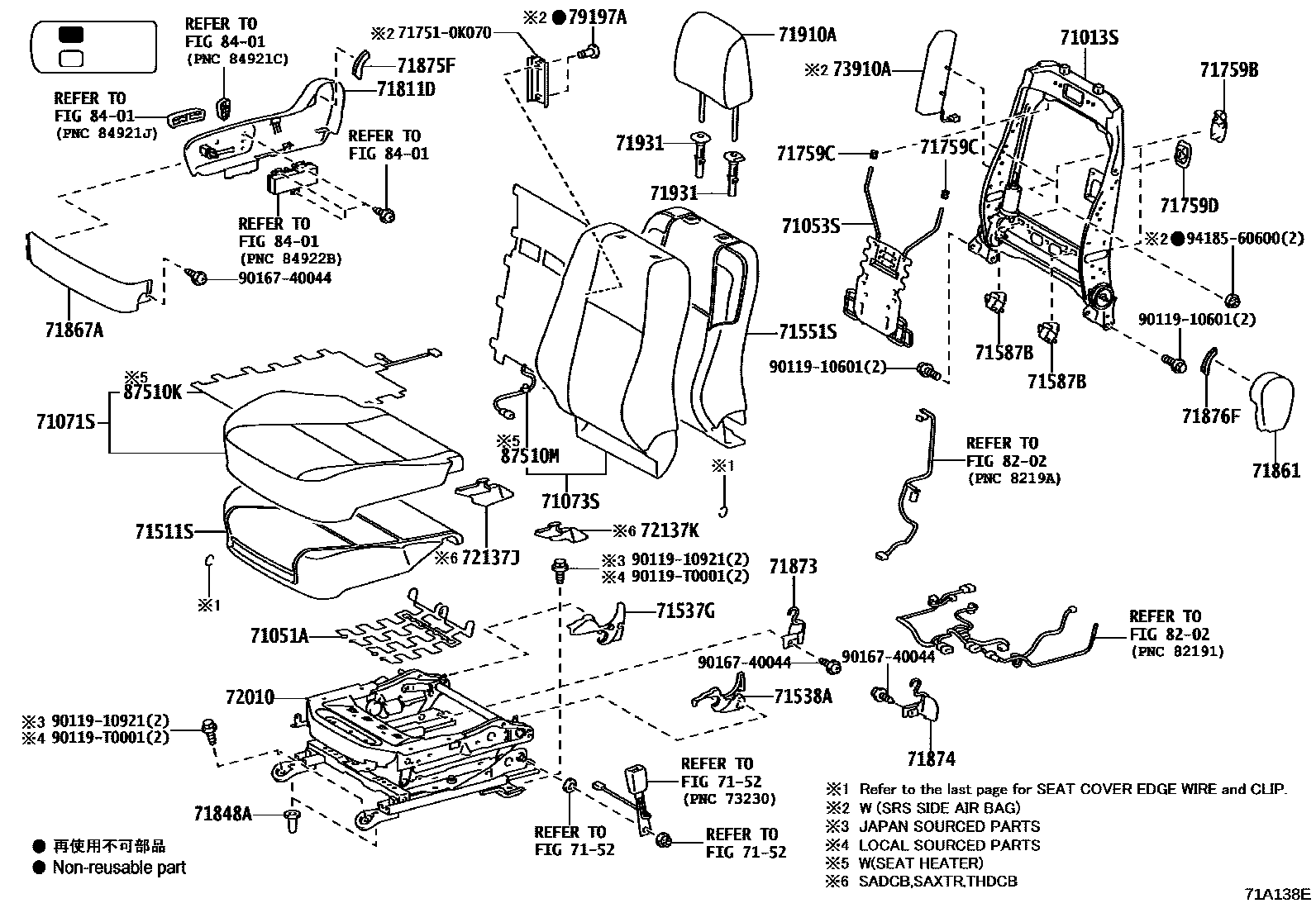

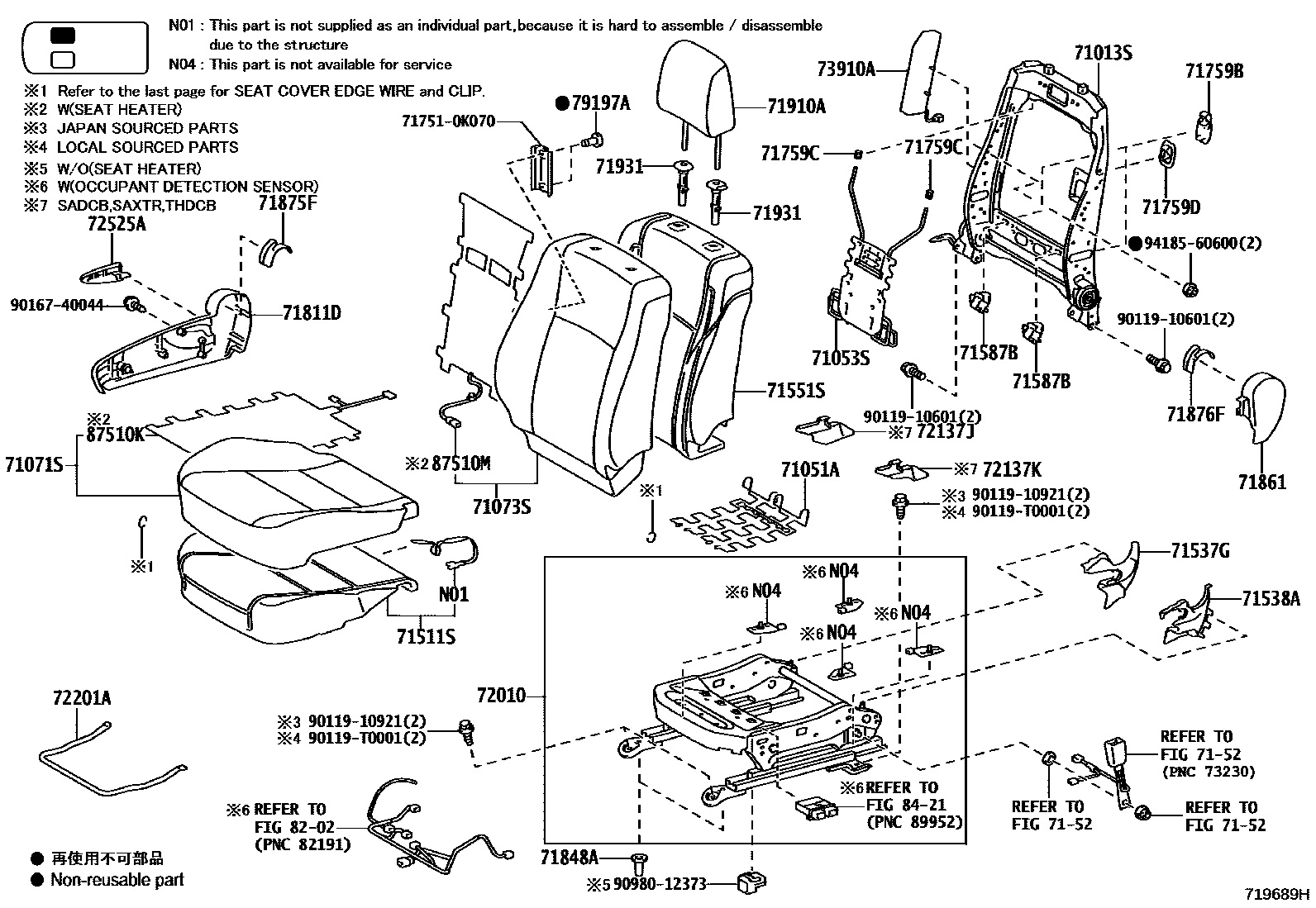

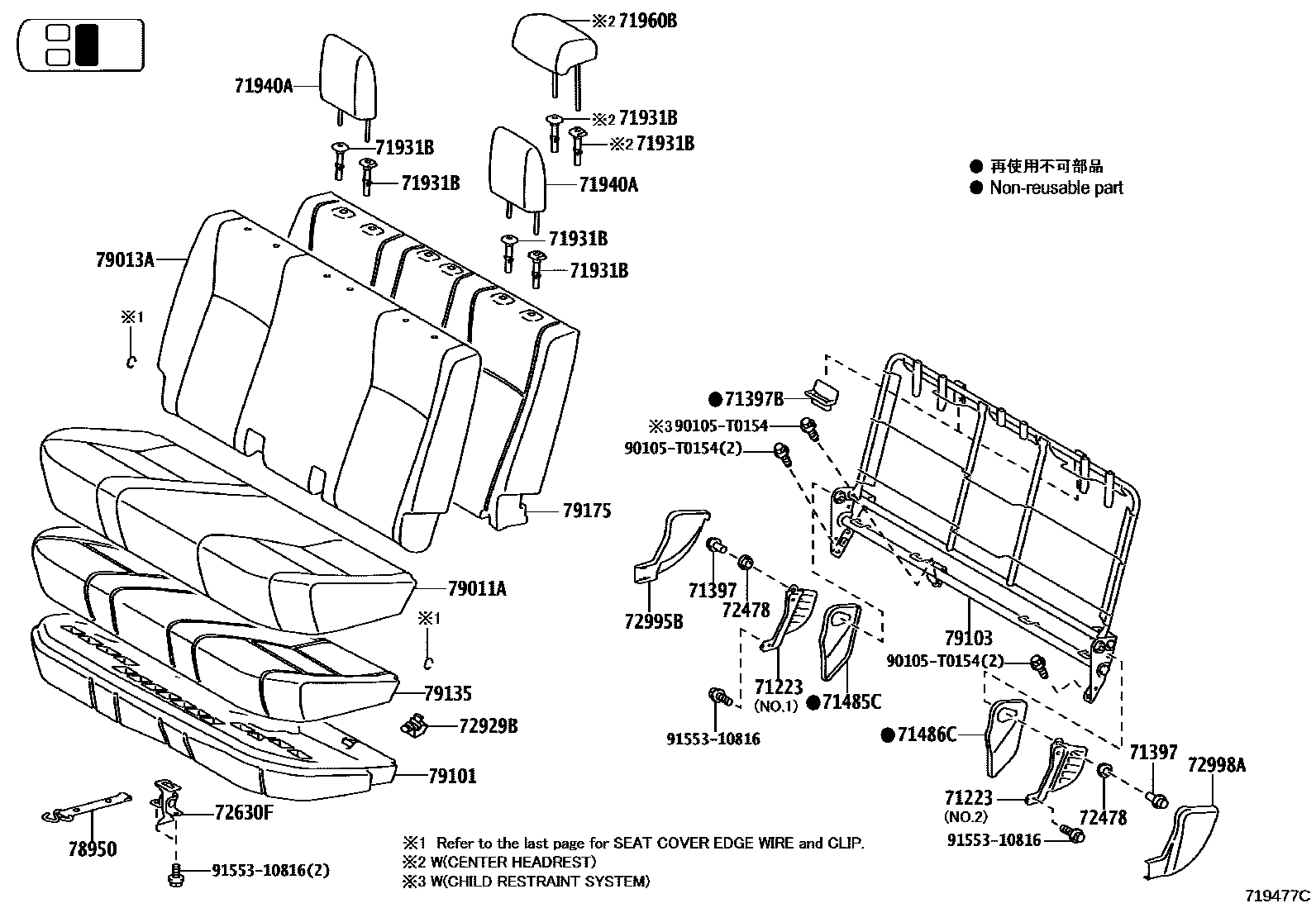

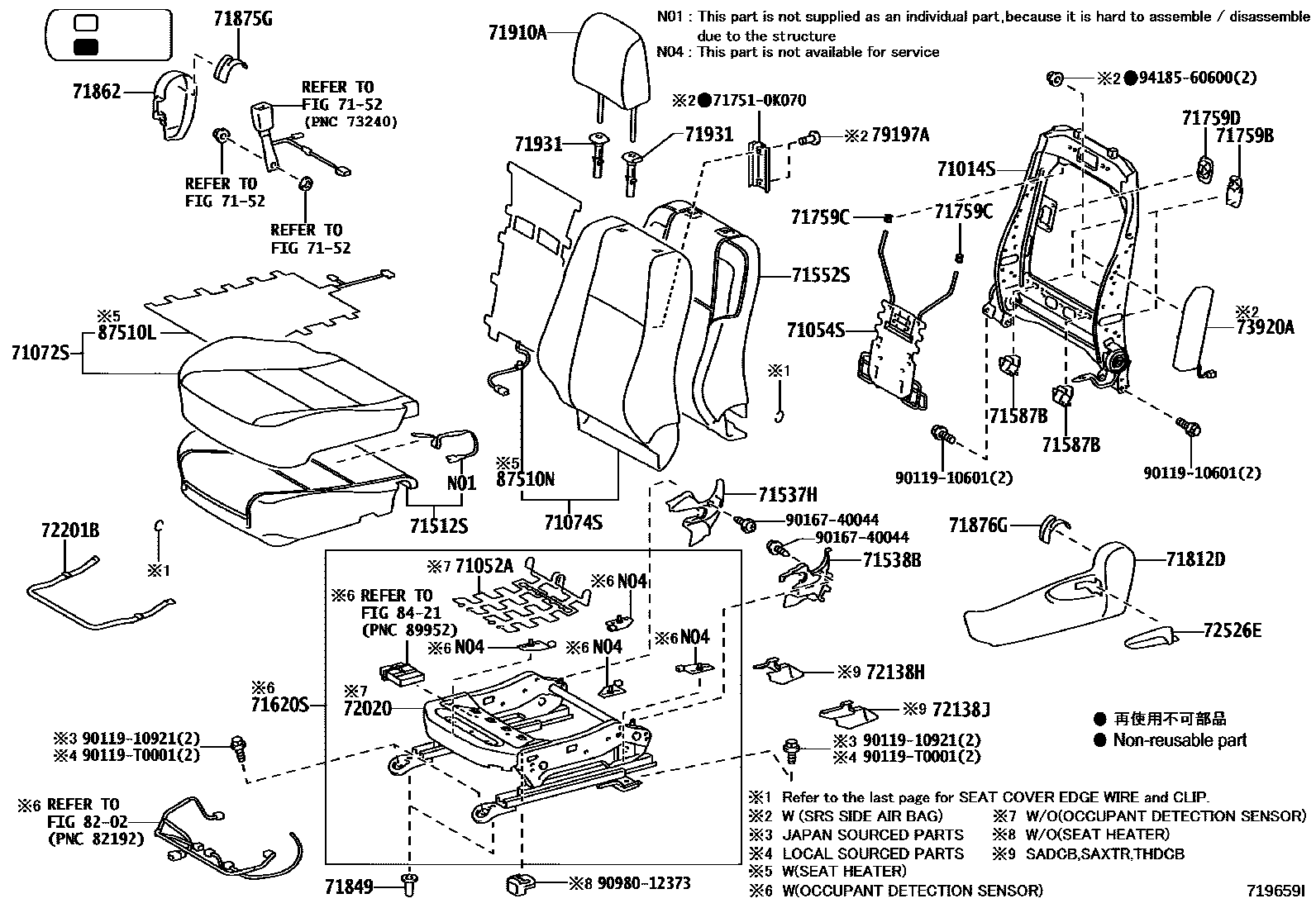

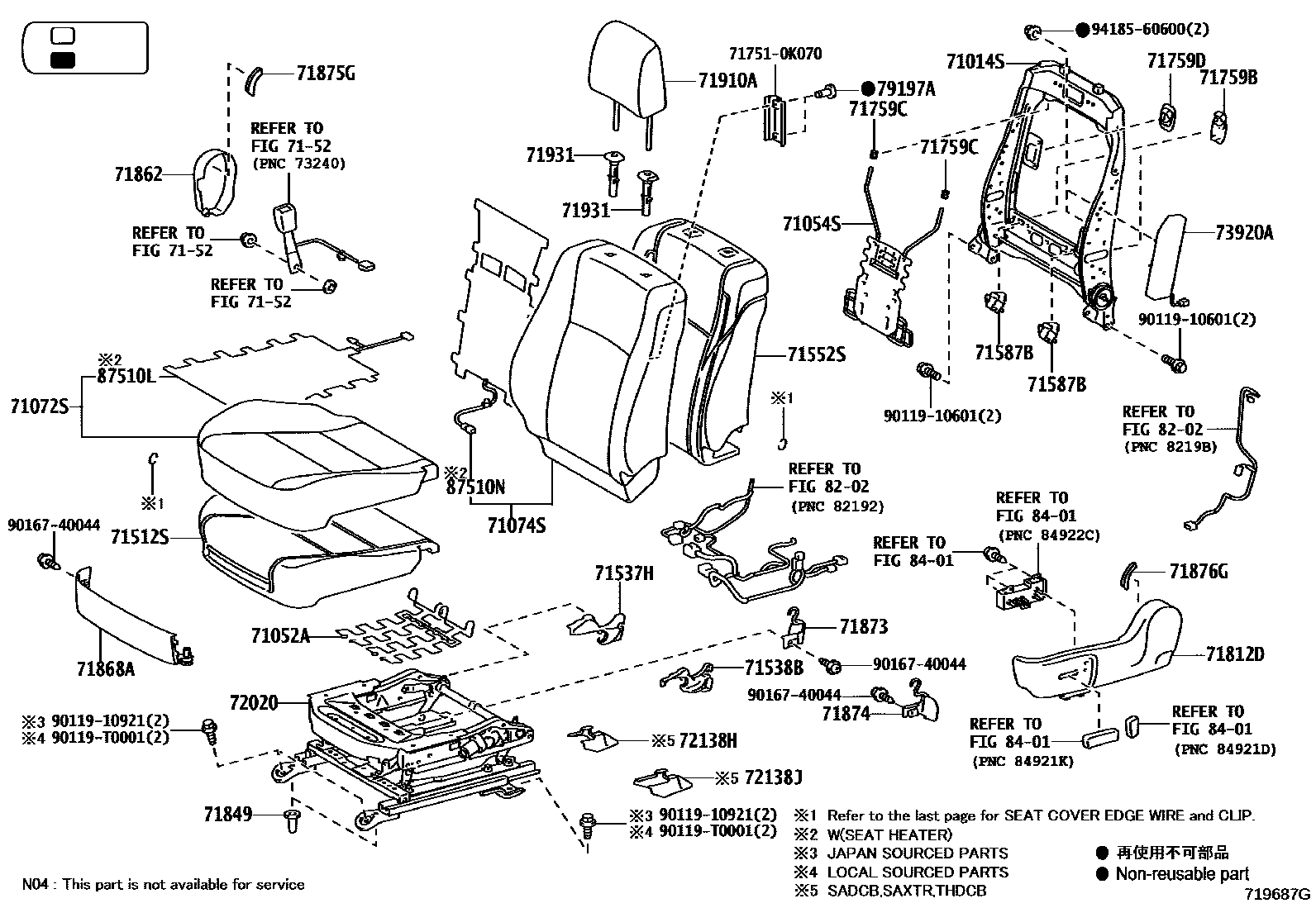

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 12 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0K400 · 71013-0K420 · 71013-0K540 · 71013-0K560 · 71013-0K580 |
| 71014S | Front left seat back frame sub-assembly | 71014-0K340 · 71014-0K360 · 71014-0K460 · 71014-0K480 · 71014-0K500 · 71014-0K650 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06070 · 71051-0D060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06070 · 71051-0D060 |
| 71053S | Front right seat back spring sub-assembly | 71053-0K030 · 71053-0K040 |
| 71054S | Front left seat back spring sub-assembly | 71053-0K030 · 71053-0K040 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-0K160 |
| 71223 | Rear seat cushion side bracket | 71223-0K050 · 71223-0K070 · 71223-0K100 · 71224-0K060 · 71224-0K080 · 71224-0K110 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71304-0K090 · 71304-0K100 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-0K090 · 71303-0K100 |
| 71397 | Rear seat block | 71397-0K090 |
| 71397B | Rear right seat backrest fixer | 71398-KK010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0K030 · 71501-0K031 · 71501-0K060 · 71501-0K230 · 71501-0K240 · 71511-0K230 · 71511-0K240 · 71511-0K241 · 71511-0K610 · 71511-0K611 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0K080 · 71512-0K081 · 71512-0K090 · 71512-0K091 · 71512-0K170 · 71512-0K180 · 71512-0K181 · 71512-0K570 · 71512-0K590 · 71512-0K591 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0K230 · 71551-0K270 · 71551-0K440 · 71551-0K470 · 71551-0K530 · 71551-0K540 · 71551-0K560 · 71551-0KD00 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0K160 · 71552-0K200 · 71552-0K360 · 71552-0K390 · 71552-0K400 · 71552-0K450 · 71552-0K460 · 71552-0KC30 |
| 71587B | Front seat back edge protective cover | 71587-0K030 · 71587-0K040 |
| 71611 | Rear seat cushion cushion | 71503-0K030 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0K250 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0K310 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0K340 |
| 71759B | Front seat back hook | 71759-0K140 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 · 71759-0K080 |
| 71830B | Bushing (for rear seat armrest) | 90386-12029 |
| 71848A | Right seat adjuster cover | 71848-02040 · 71848-47010 |
| 71849 | left seat adjuster cover | 71848-02040 · 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-02150 · 71873-06510 · 71873-06520 |
| 71874 | Front left seat cushion lower guard | 71874-02140 · 71874-06480 · 71874-06490 |
| 72010 | Front right seat adjuster assembly | 72010-0K080 · 72010-0K160 · 72010-0K170 · 72010-0K180 · 72010-0K230 |
| 72020 | Front left seat adjuster assembly | 72020-0K060 · 72020-0K070 · 72020-0K080 · 72020-0K140 · 72020-0K150 · 72020-0K160 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-0D160 · 72211-0K120 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-0D160 · 72211-0K120 |
| 72478 | height adjuster bushing | 72478-0K010 |
| 72630F | Rear No. 2 seat lock assembly | 72650-0K270 · 72650-0K271 · 72650-0K280 · 72650-0K281 |
| 72693 | Rear seat cushion hook | 72693-0K120 |
| 72835 | Rear right seat armrest | 72835-0K030 · 72835-0K050 |
| 72836B | Rear left seat armrest | 72836-0K030 · 72836-0K050 |
| 72929B | Rear seat cushion strap fasteners | 72929-0K020 |
| 73198B | Rear seat bracket cover | 73198-KK010 |
| 73910A | Front right seat airbag assembly | 73910-0K050 · 73910-0K070 · 73910-0K080 |
| 73920A | Front left seat airbag assembly | 73920-0K050 · 73920-0K070 · 73920-0K080 |
| 79101 | No. 1 seat cushion frame sub-assembly | 79101-0K240 · 79101-0K280 · 79101-0K560 |
| 79101B | Right No. 1 seat cushion frame sub-assembly | 79101-0K260 · 79101-0K300 · 79101-0K590 |
| 79102 | Left No. 1 seat cushion frame sub-assembly | 79102-0K250 · 79102-0K270 · 79102-0K540 |
| 79103 | No. 1 seat back frame sub-assembly | 79010-0K020 · 79010-0K040 · 79010-0K060 · 79010-0K080 · 79010-0K190 · 79010-0K220 |
| 79135 | Seat No. 1 cushion cushion | 71503-0K080 · 79135-0K250 · 79135-0K260 |
| 79135A | Right seat No. 1 seat cushion cushion | 71503-0K050 · 71611-0K010 · 71611-0K020 |
| 79136B | Seat cushion, seat No. 1, left | 71504-0K020 · 71612-0K020 · 71612-0K030 |
| 79175 | Seat 1 back cushion | 79175-0K270 · 79175-0K290 · 79175-0K310 · 79175-0K330 |
| 79197A | RIVET | 79197-0K010 |
| 87510K | Front right seat cushion heater assembly | 87510-0K110 · 87510-0K120 · 87510-0K220 · 87510-0K230 |
| 87510L | Front left seat cushion heater assembly | 87510-0K110 · 87510-0K120 · 87510-0K220 · 87510-0K230 |
| 87510M | Front right seat back heater assembly | 87510-0K130 · 87510-0K140 · 87510-0K150 · 87530-0K050 · 87530-0K060 · 87530-0K070 |
| 87510N | Front left seat back heater assembly | 87510-0K130 · 87510-0K140 · 87510-0K150 · 87530-0K050 · 87530-0K060 · 87530-0K070 |
