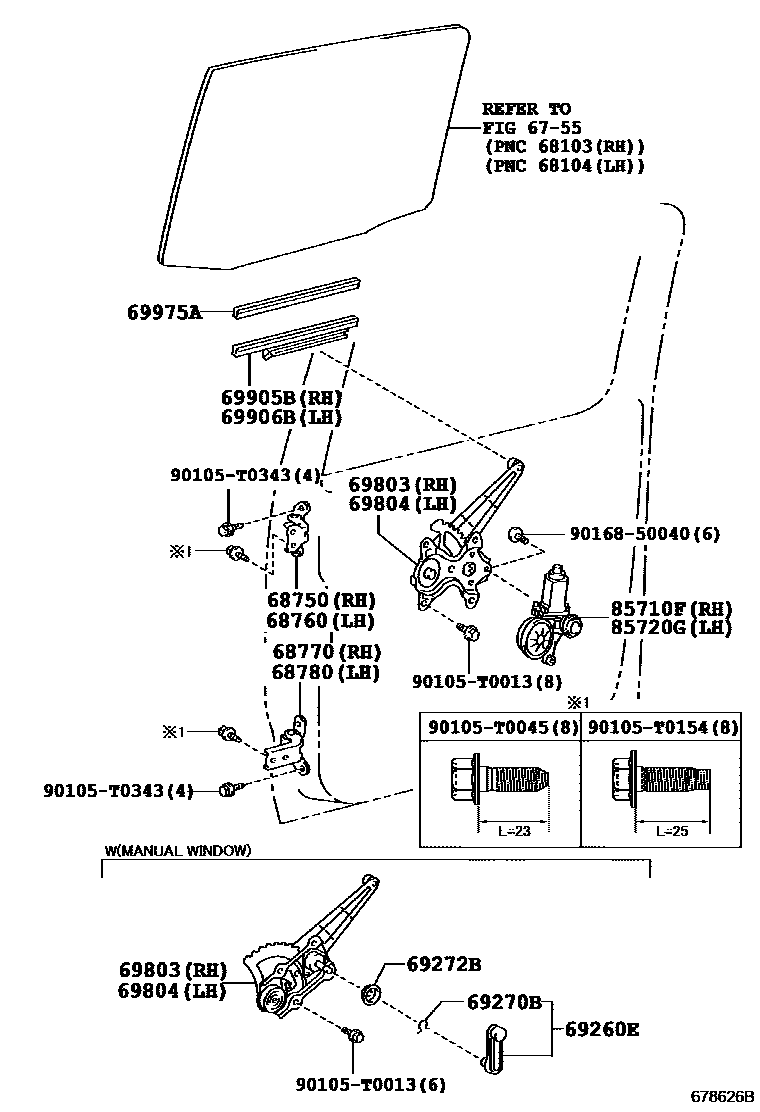

Toyota HILUX 后门车窗升降器和合页 — Figure 6757
Toyota HILUX EPC diagram 6757, 后门车窗升降器和合页, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02020 · 68750-0D030 |

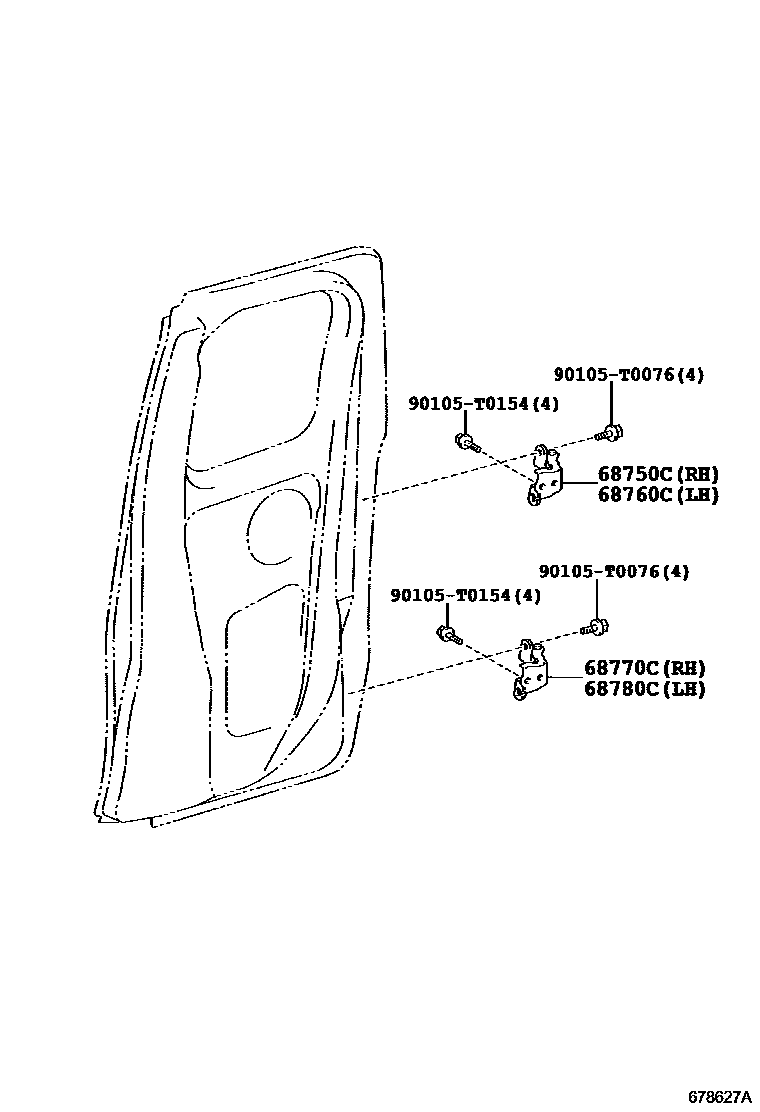

| 68750C | Entry door panel upper right hinge assembly | 68750-0K070 |
| 68760 | Left rear door upper hinge assembly | 68760-02020 · 68760-0D030 |
| 68760C | Entry door panel upper left hinge assembly | 68760-0K070 |
| 68770 | Right rear door lower hinge assembly | 68770-02020 · 68770-0D030 |
| 68770C | Entry door panel lower right hinge assembly | 68760-0K070 |
| 68780 | Left rear door lower hinge assembly | 68780-02020 · 68780-0D030 |
| 68780C | Entry door panel lower left hinge assembly | 68750-0K070 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90080-52152 |
| 69272B | Rear door window regulator inner handle plate | 69268-02022 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0K110 · 69803-0K120 · 69830-0K210 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0K110 · 69804-0K120 · 69840-0K210 |
| 69905B | Right rear door glass groove sub-assembly | 69905-0K070 · 69905-0K080 |
| 69906B | Left rear door glass groove sub-assembly | 69906-0K070 · 69906-0K080 |
| 69975A | Rear door glass channel filler | 69975-0D130 · 69975-0K050 |
| 85710F | Right power window lift motor assembly | 85720-0K180 · 85720-0K270 |
| 85720G | Left electric window lift motor assembly | 85710-0K180 · 85710-0K270 |
