Toyota HILUX 前围板和挡风玻璃 — Figure 5553

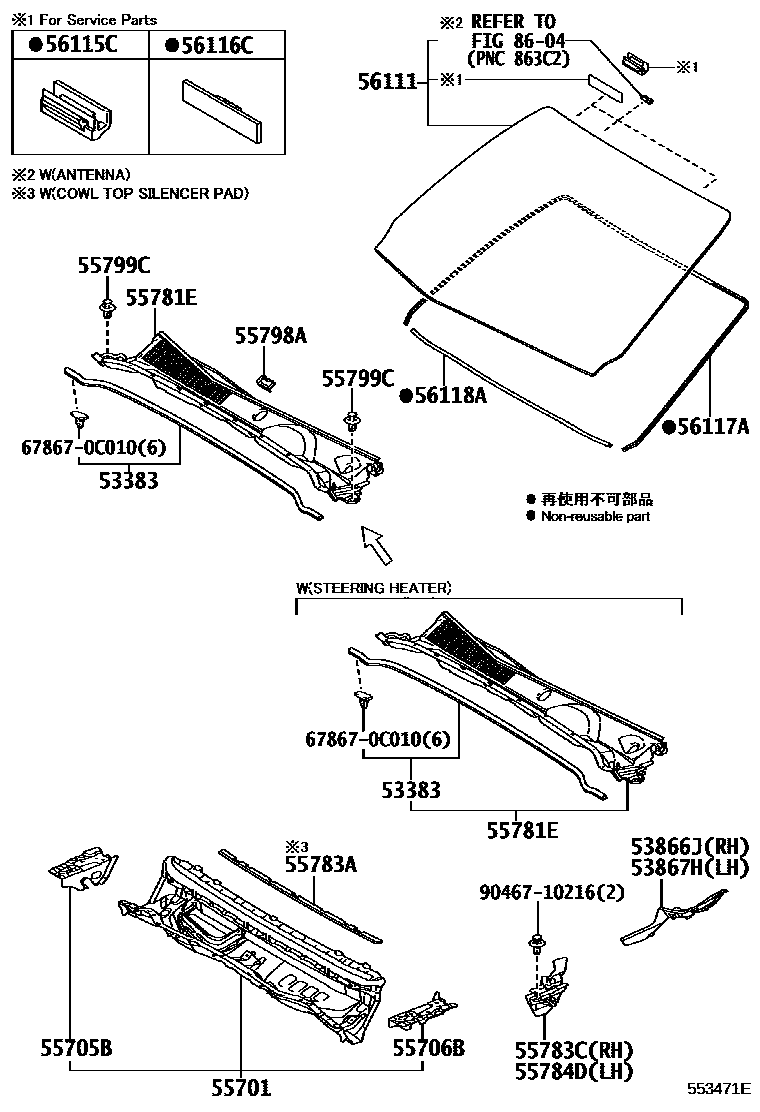

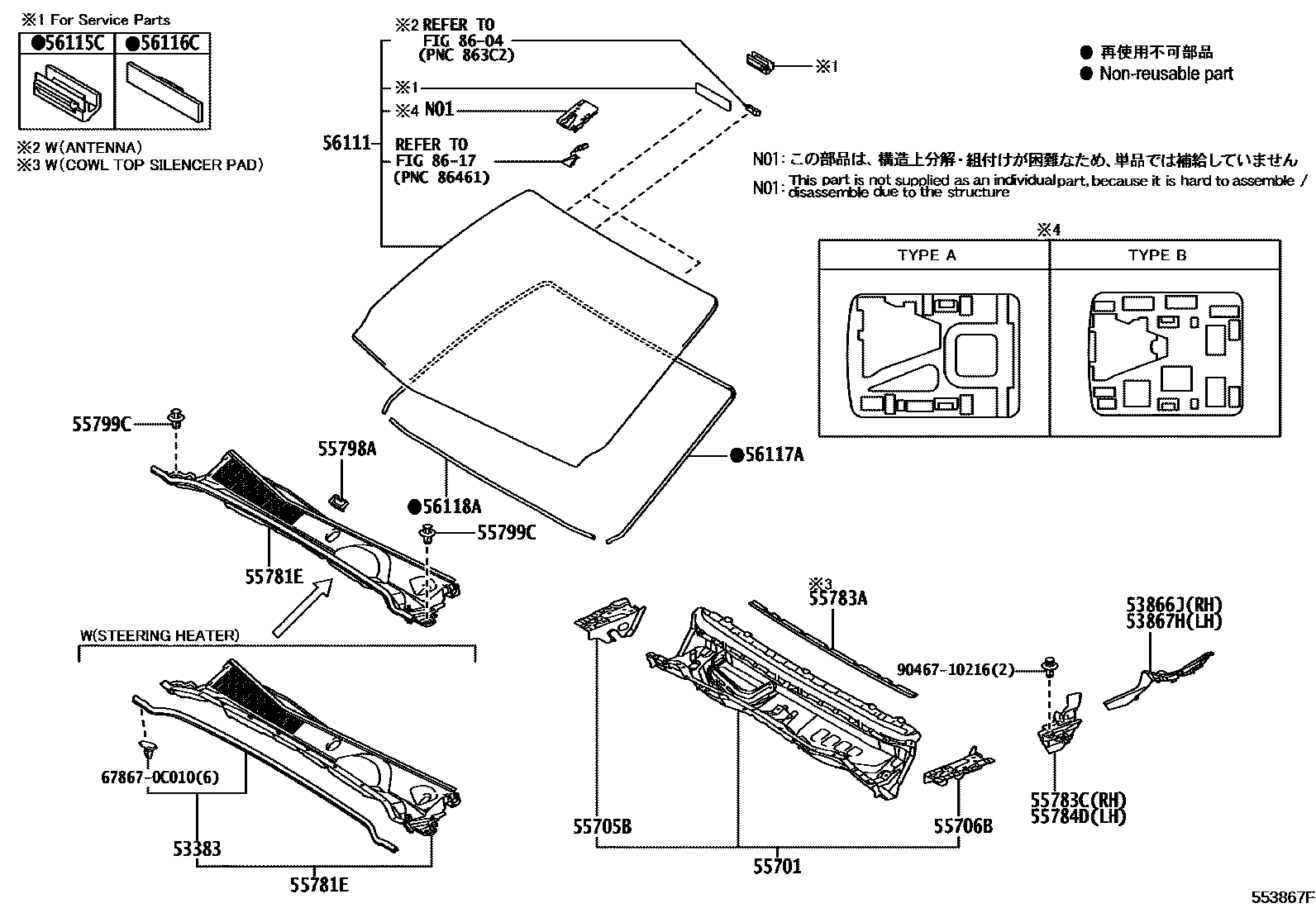

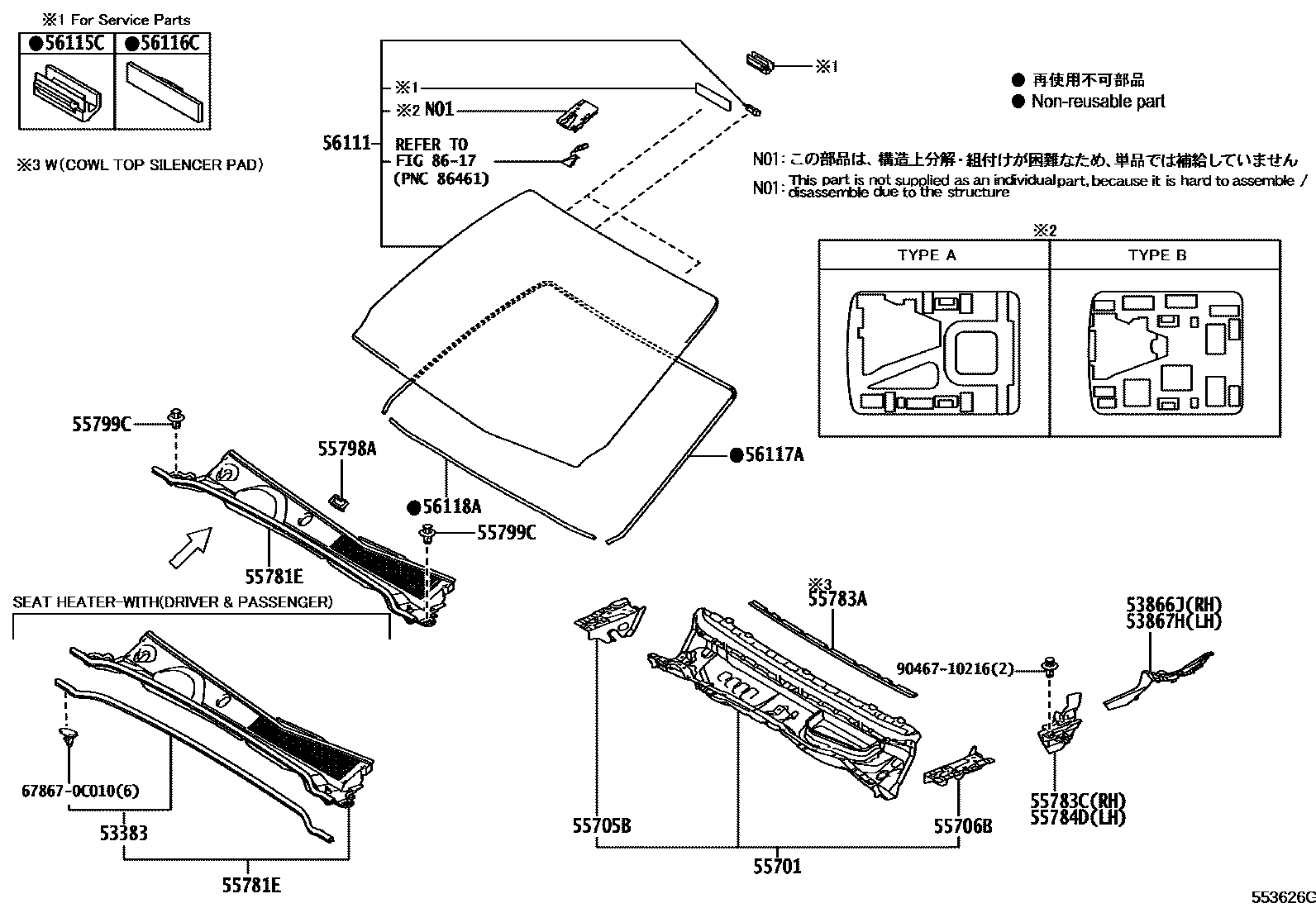

Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0K120 · 53383-0K130 |
| 53866J | Right front fender to cowl side seal | 53866-0K050 · 53866-0K100 |
| 53867H | Left front fender to cowl side seal | 53867-0K050 · 53867-0K100 |
| 55701 | Front apron sub-assembly | 55700-KK010 · 55700-KK020 · 55700-KK050 · 55700-KK060 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-KK010 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-KK010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0K180 · 55708-0K210 · 55708-0K230 · 55708-0K340 · 55708-0K350 · 55708-0K360 |
| 55783A | Front cowl upper cover silencer pad | 55785-0K040 · 55785-0K120 |
| 55783C | Ventilation grille bracket on right front apron | 55783-0K100 · 55783-0K110 |
| 55784D | Ventilation grille bracket on left front apron | 55784-0K030 · 55784-0K040 |
| 55798A | SUPPORT, JOINT EXTRACTION EAU AUVENT | 55798-0K010 |
| 55799C | Ventilation grille clips on front apron | 90467-07215 |
| 56111 | windshield | 56101-0K330 · 56101-0K331 · 56101-0K340 · 56101-0K341 · 56101-0K342 · 56101-0K370 · 56101-0K380 · 56101-0K390 · 56101-0K400 · 56101-0K560 · 56101-0K561 · 56101-0K570 · 56101-0K571 · 56101-0K580 · 56101-0K581 · 56101-0K590 · 56101-0K591 · 56101-0K600 · 56101-0K601 · 56101-0K610 · 56101-0K611 · 56101-0K612 · 56101-0K620 · 56101-0K621 · 56101-0K630 · 56101-0K631 · 56101-0K632 · 56101-0K650 · 56101-0K651 · 56101-0K652 · 56101-0K730 · 56101-0K740 · 56101-0K741 · 56101-0K840 · 56101-0K850 · 56101-0K860 · 56101-0K870 · 56101-0K880 · 56101-0K890 · 56101-0KA30 · 56101-0KA40 · 56101-0KA50 · 56101-0KA80 · 56101-0KA90 · 56101-0KB00 · 56101-0KB10 · 56101-0KL60 · 56101-0KL70 · 56101-0KL80 · 56101-0KL90 · 56101-0KM40 · 56101-0KM50 · 56101-0KM60 · 56101-0KM70 · 56101-0KM80 · 56101-0KM90 · 56101-0KN00 · 56101-0KN10 · 56101-0KN20 · 56101-0KN30 · 56101-0KN40 |
| 56115C | windshield block | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-KK060 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56117-KK030 |
