Toyota HILUX 发动机盖锁和铰链 — Figure 5354

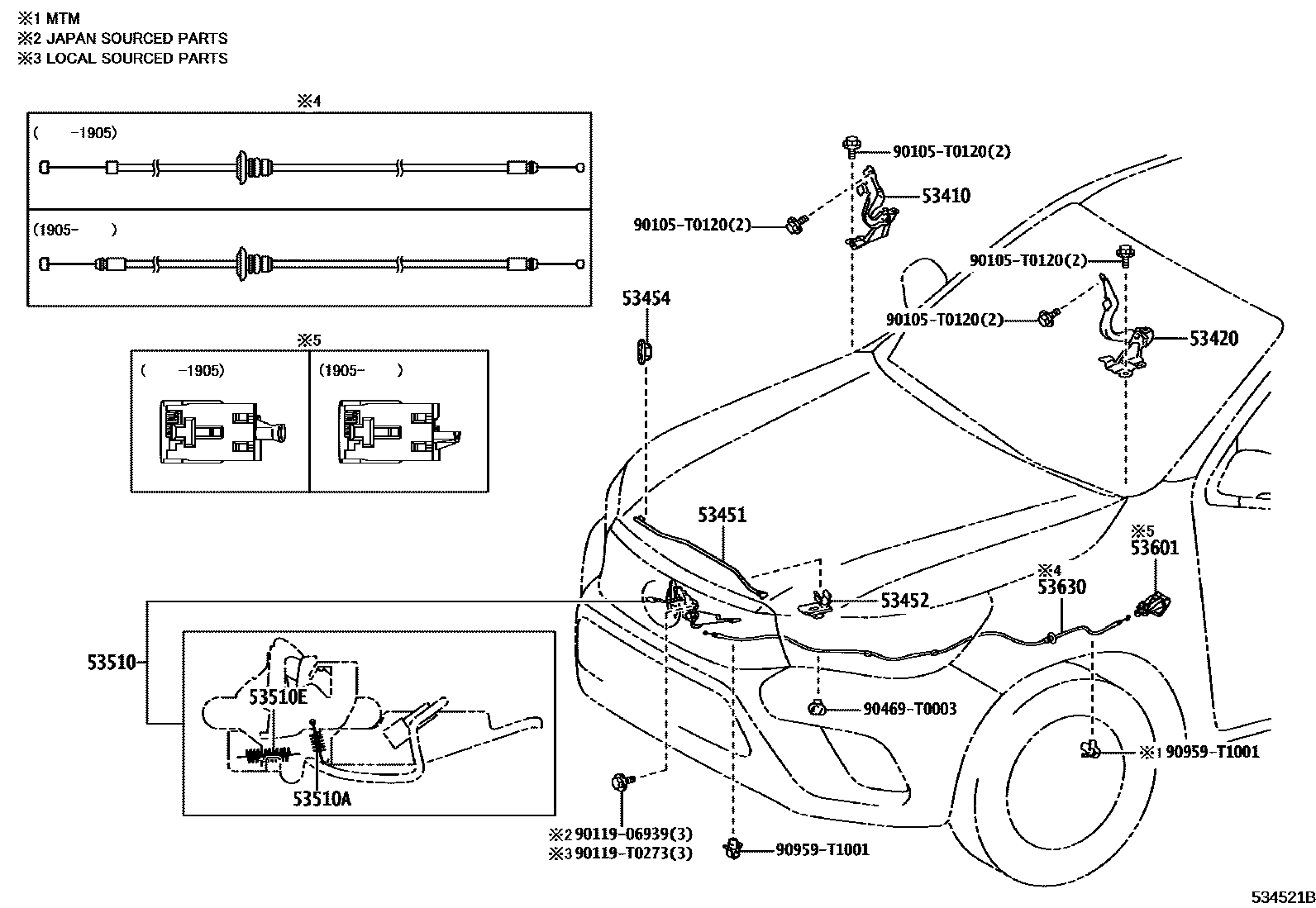

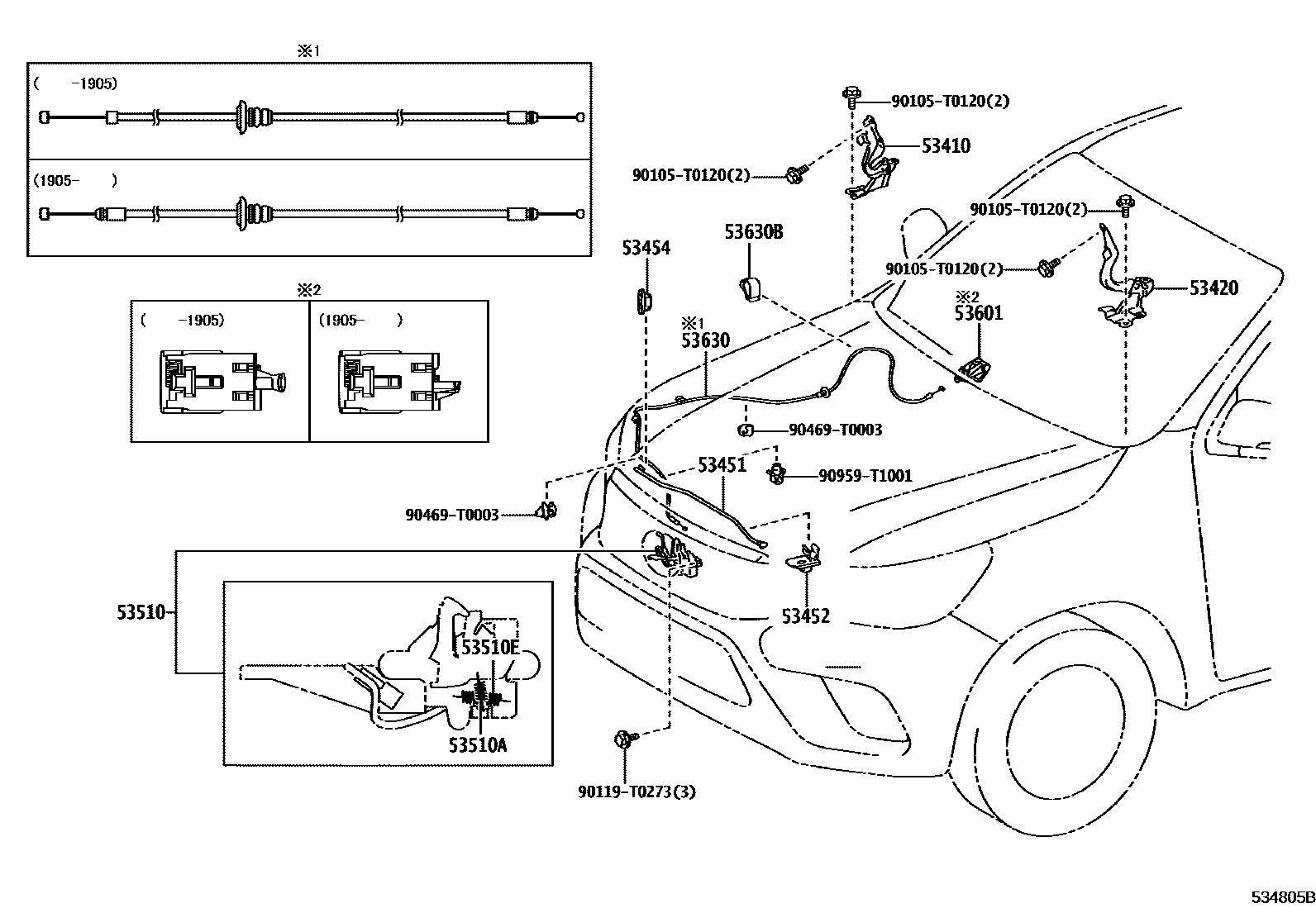

Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0K230 · 53410-0K370 |
| 53420 | Engine cover left hinge assembly | 53420-0K230 · 53420-0K370 |
| 53451 | Engine cover support rod | 53440-0K010 · 53440-0K020 |
| 53452 | Engine cover stay rod fixing | 53452-0K020 |
| 53454 | Engine cover support rod clip | 53454-0D010 · 53454-52020 |
| 53510 | Engine cover lock assembly | 53510-0K380 · 53510-0K480 · 53510-0K810 · 53510-0K820 · 53510-0K830 |
| 53510A | Tension spring (for hood lock) | 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-T0005 |
| 53630 | Engine hood lock control cable assembly | 53630-0K160 · 53630-0K190 · 53630-0K210 · 53630-0K260 |
| 53630B | Clip (for hood lock control cable) | 82711-1E350 |
