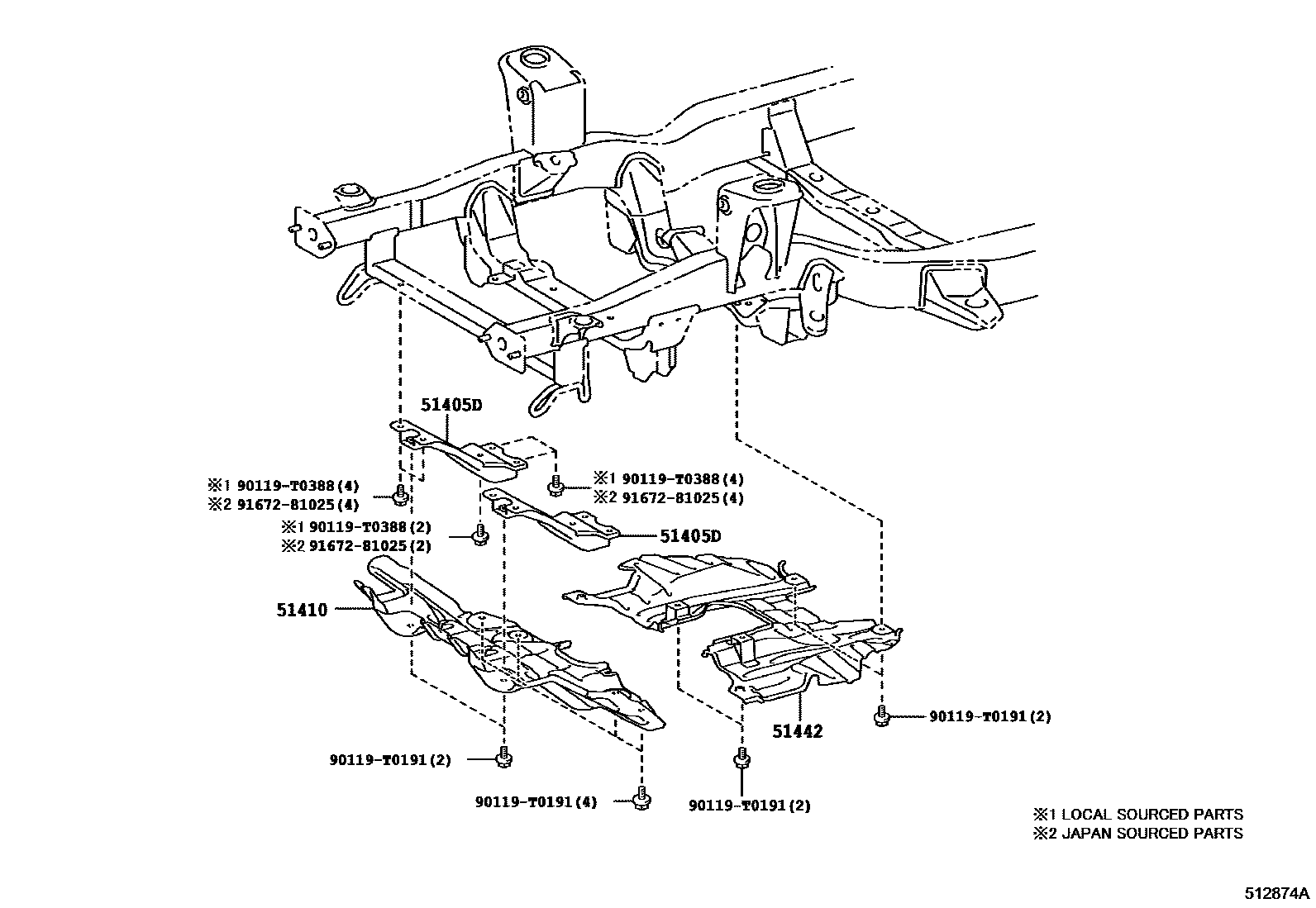

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51405D | Engine bottom bracket sub-assembly | 51405-KK030 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-KK010 · 51410-KK020 |
| 51442 | No. 2 engine bottom cover | 51420-KK010 · 51420-KK020 |
