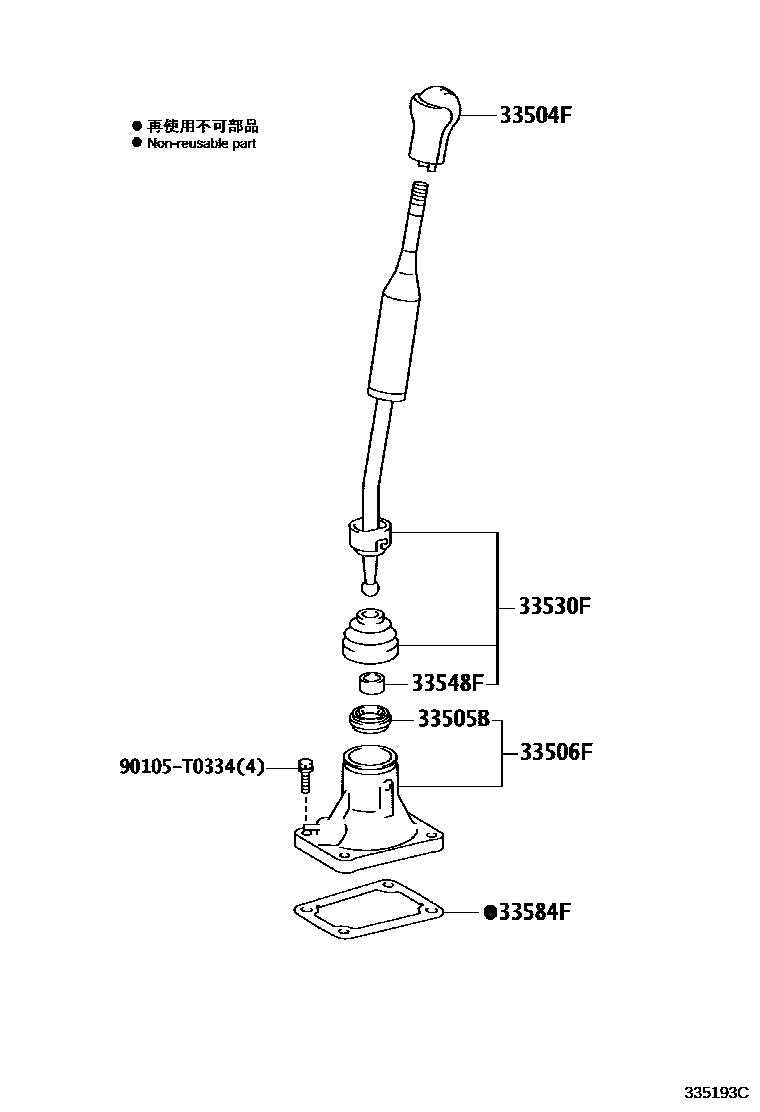

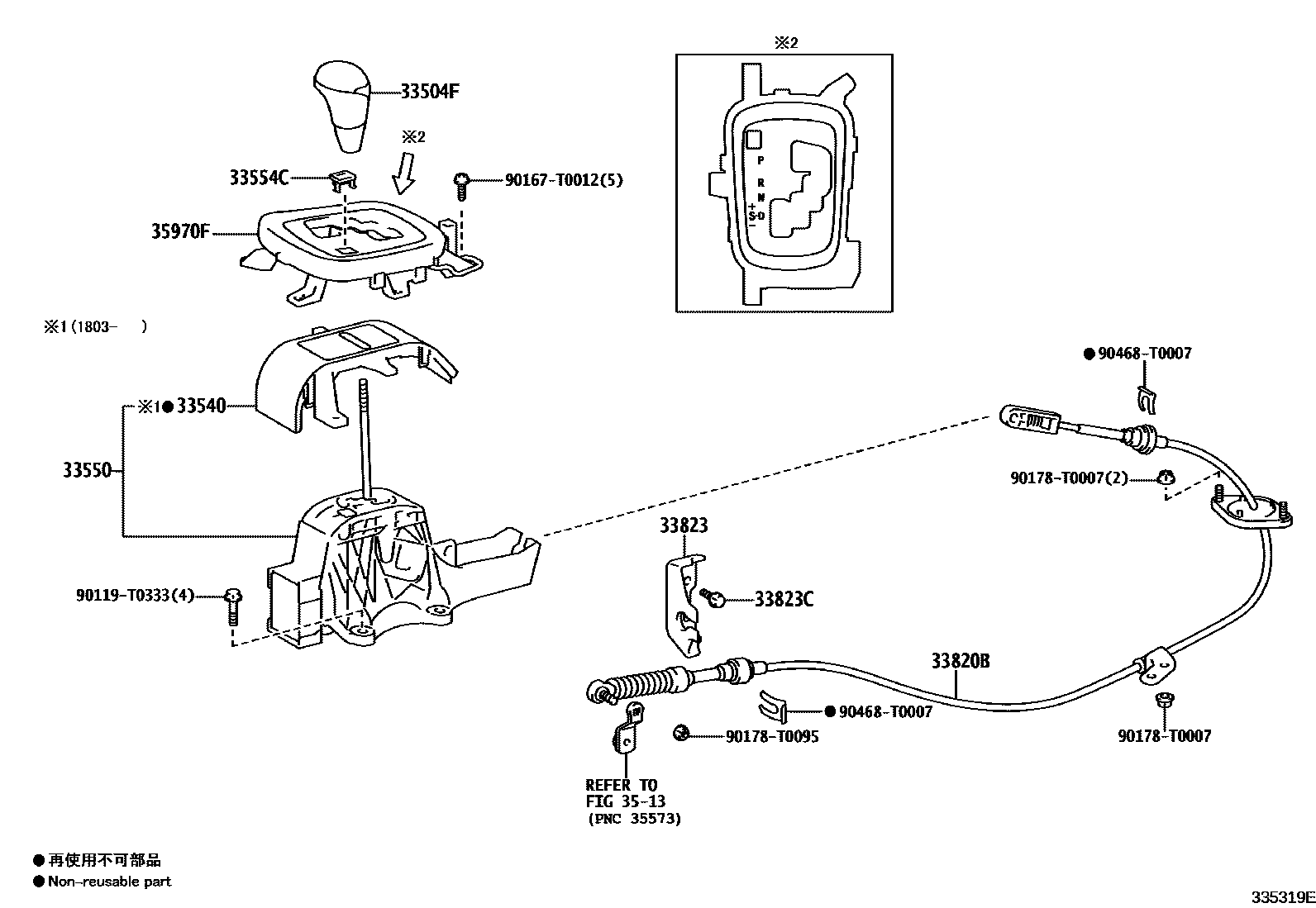

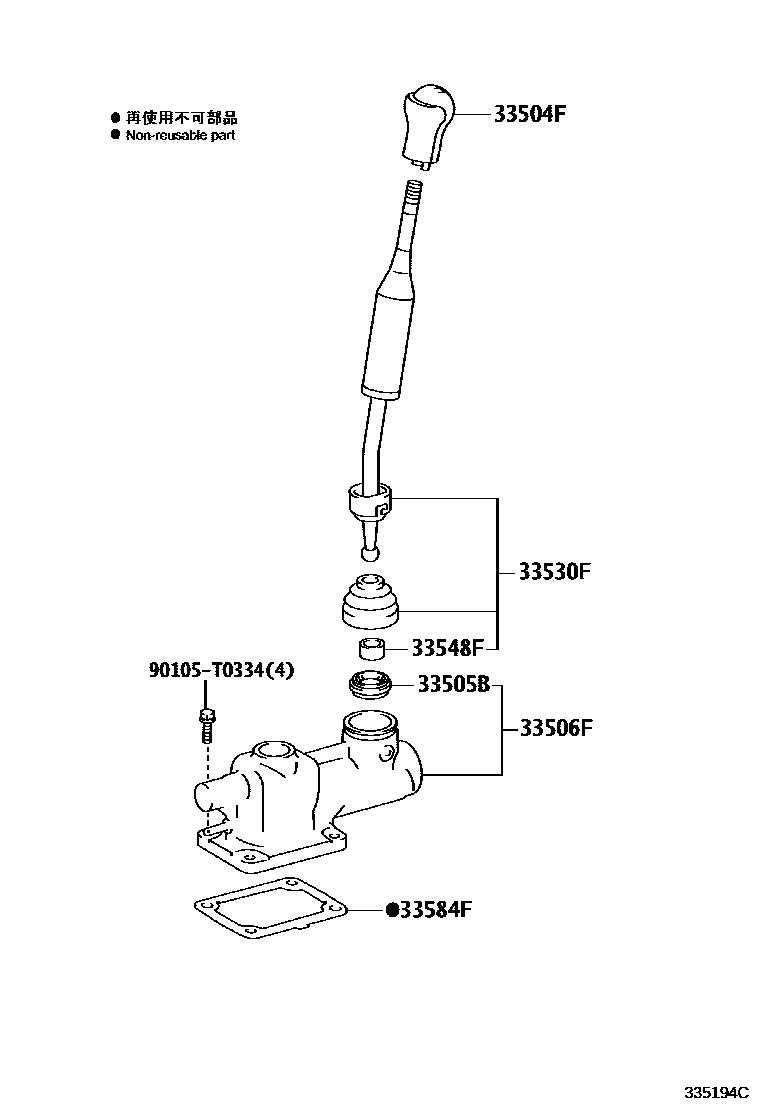

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33505B | Shift lever seat sub-assembly | 33505-0K010 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-0K070 · 33506-0K090 · 33570-0K110 · 33570-0K111 · 33570-0K120 · 33570-0K121 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0K680 · 33530-0K681 · 33530-0K690 · 33530-0K691 |
| 33540 | Shift lever base plate assembly | 33540-0K040 · 33540-0K050 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-22020 · 33548-60040 |
| 33550 | Transmission floor shift assembly | 33550-0K160 · 33550-0K170 · 33550-0K180 · 33550-0K190 |
| 33554C | Shift lock release button cover | 33554-0K020 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-0K010 · 33584-0K020 |
| 33820B | Transmission control cable assembly | 33820-0K170 · 33820-0K171 |
| 33823 | No. 1 transmission control cable bracket | 33823-KK010 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0102 |
| 35970F | Position indicator light housing assembly | 35970-0K250 · 35970-0K260 · 35970-0K310 · 35970-0K390 · 35970-0K410 |
