Toyota HILUX 离合器总泵 — Figure 3103

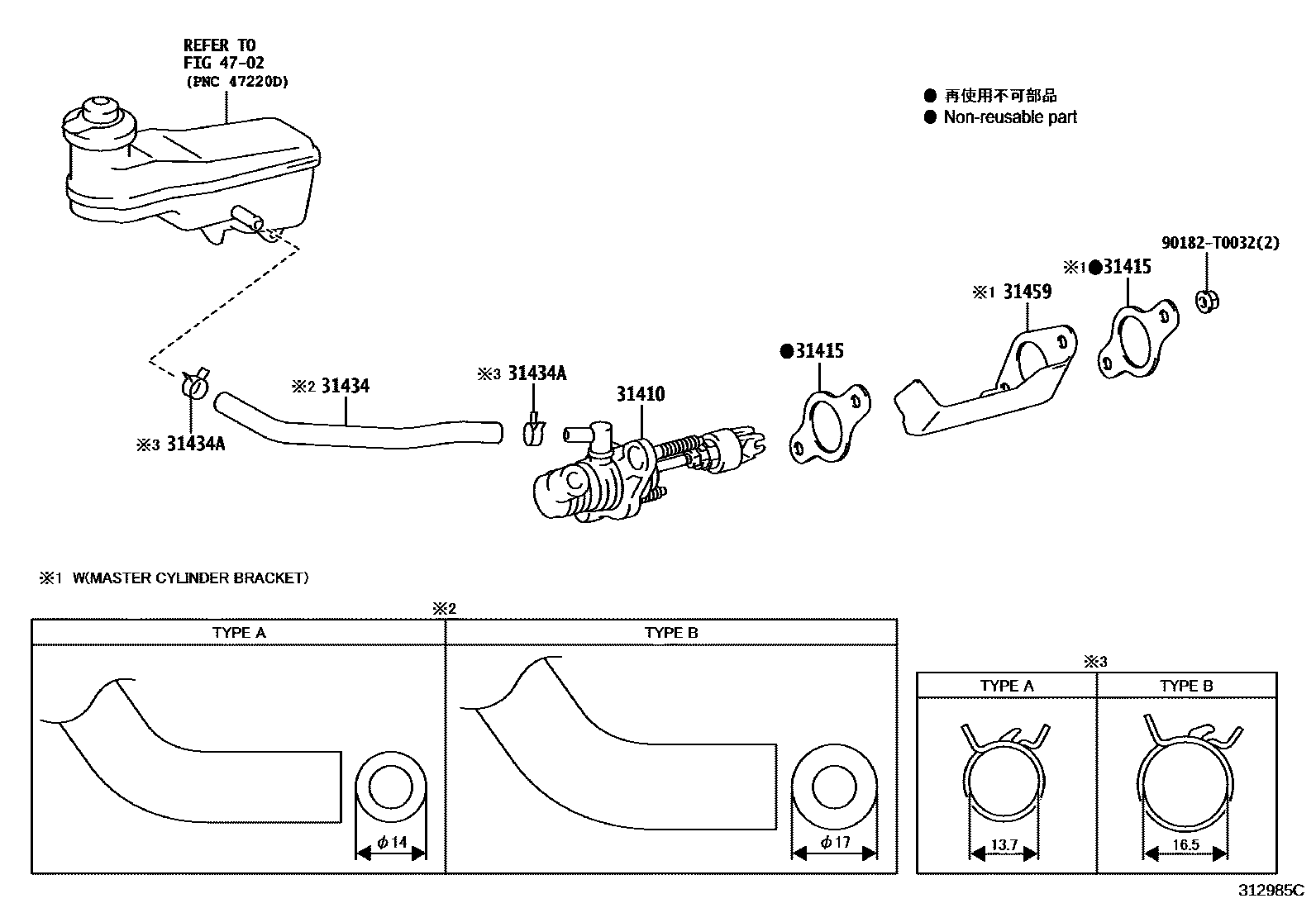

Toyota HILUX EPC diagram 3103, 离合器总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-0K070 · 31420-0K071 |
| 31415 | Clutch master cylinder gasket | 31415-0K010 |
| 31434 | Clutch reservoir connecting pipe | 31434-0K090 · 31434-0K091 · 31434-0K110 · 31434-0K111 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 90466-T0015 · 90466-T0052 |
| 31459 | Clutch master cylinder bracket | 31459-71010 |
