Toyota HILUX Oil Filter — Figure 1502

Toyota HILUX EPC diagram 1502, Oil Filter, with 1 images and 4 PNC and OE references.

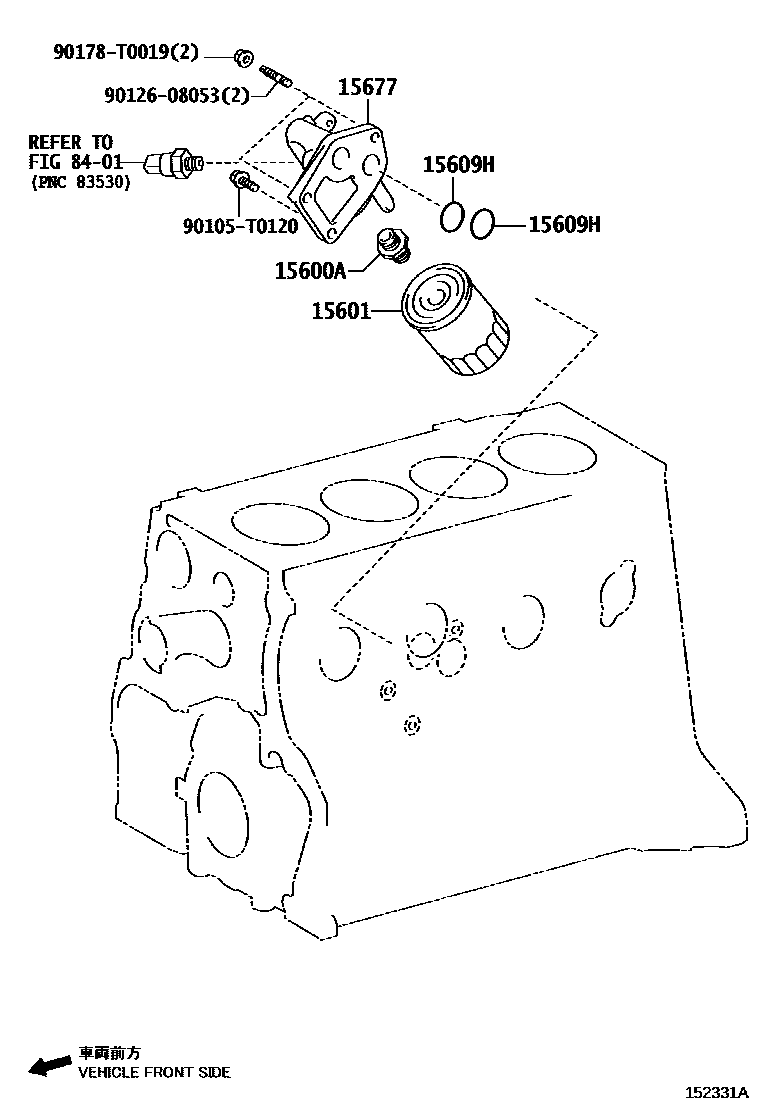

Toyota HILUX Oil Filter EPC diagram — 152331A
Oil Filter — 152331A (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-T0002
15601Oil filter sub-assembly90915-TB001
15609HO-ring (for oil filter bracket)90301-T0046 · 90301-T0062
15677Oil filter bracket15677-0E010 · 15677-0E020
