Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

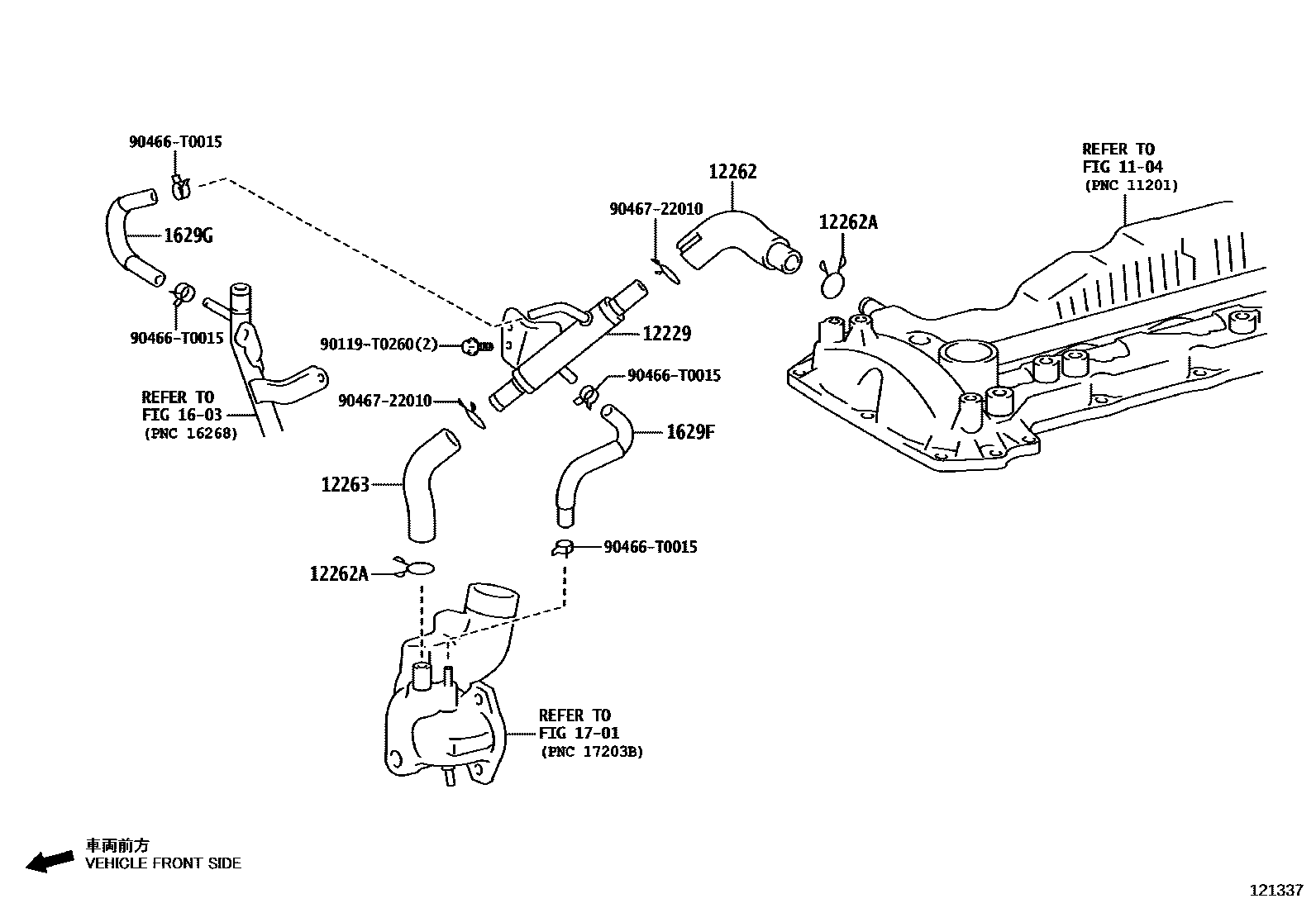

Toyota HILUX Ventilation Hose EPC diagram — 121337
Ventilation Hose — 121337 (201905 – 999999)

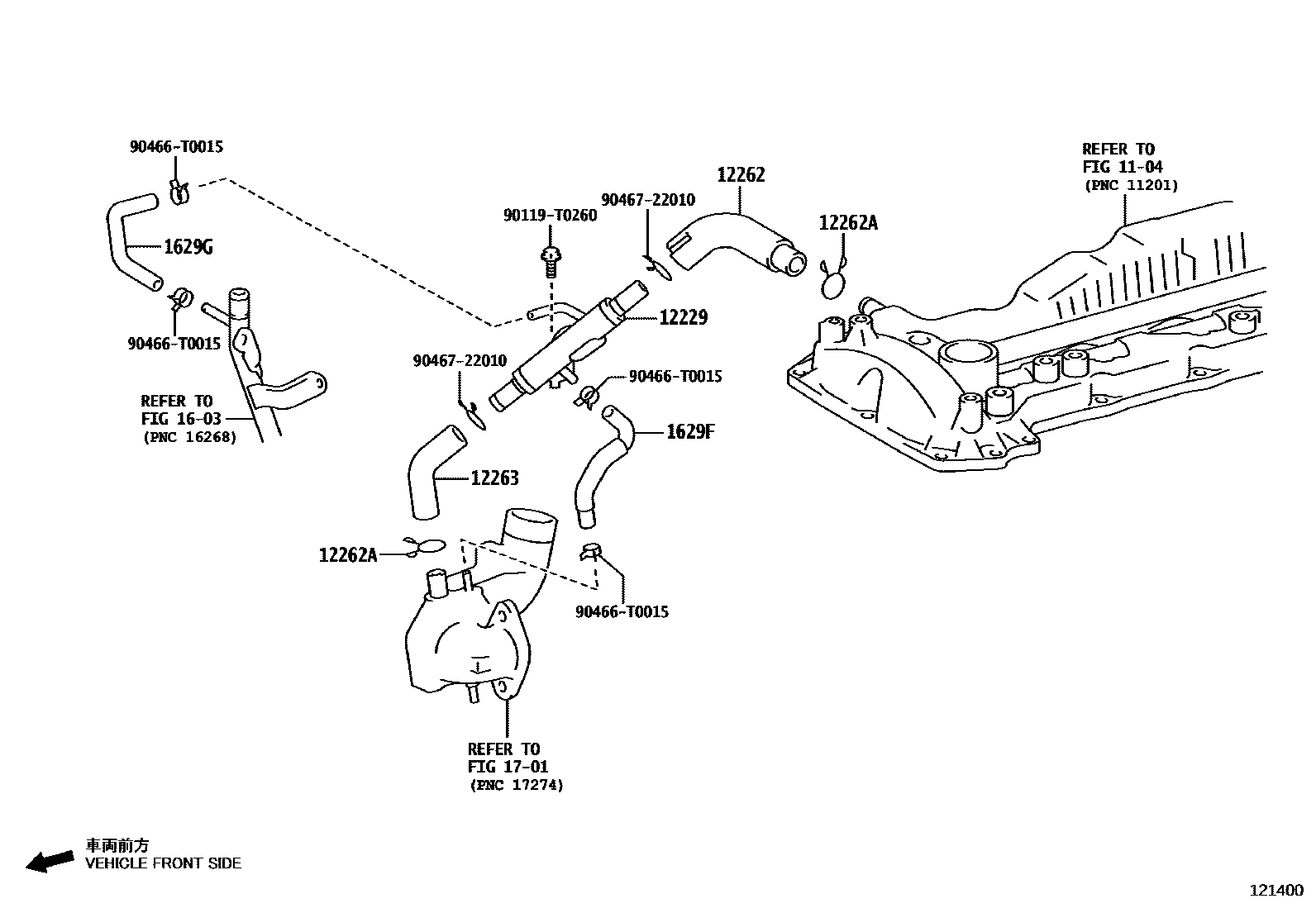

Toyota HILUX Ventilation Hose EPC diagram — 121400
Ventilation Hose — 121400 (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
12229ventilation duct12229-0E010 · 12229-0E020
12262Ventilation hose No. 212262-0E010 · 12262-0E020
12262AClamp (for vent hose No. 2)90466-22005
12263No. 3 ventilation hose12263-0E010 · 12263-0E020
1629FCONDUITE FLEXIBLE, DERIVATION D'EAU, NO.191629F-0E010 · 1629F-0E020
1629GCONDUITE FLEXIBLE, DERIVATION D'EAU, NO.201629G-0E010 · 1629G-0E020
