Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103

Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

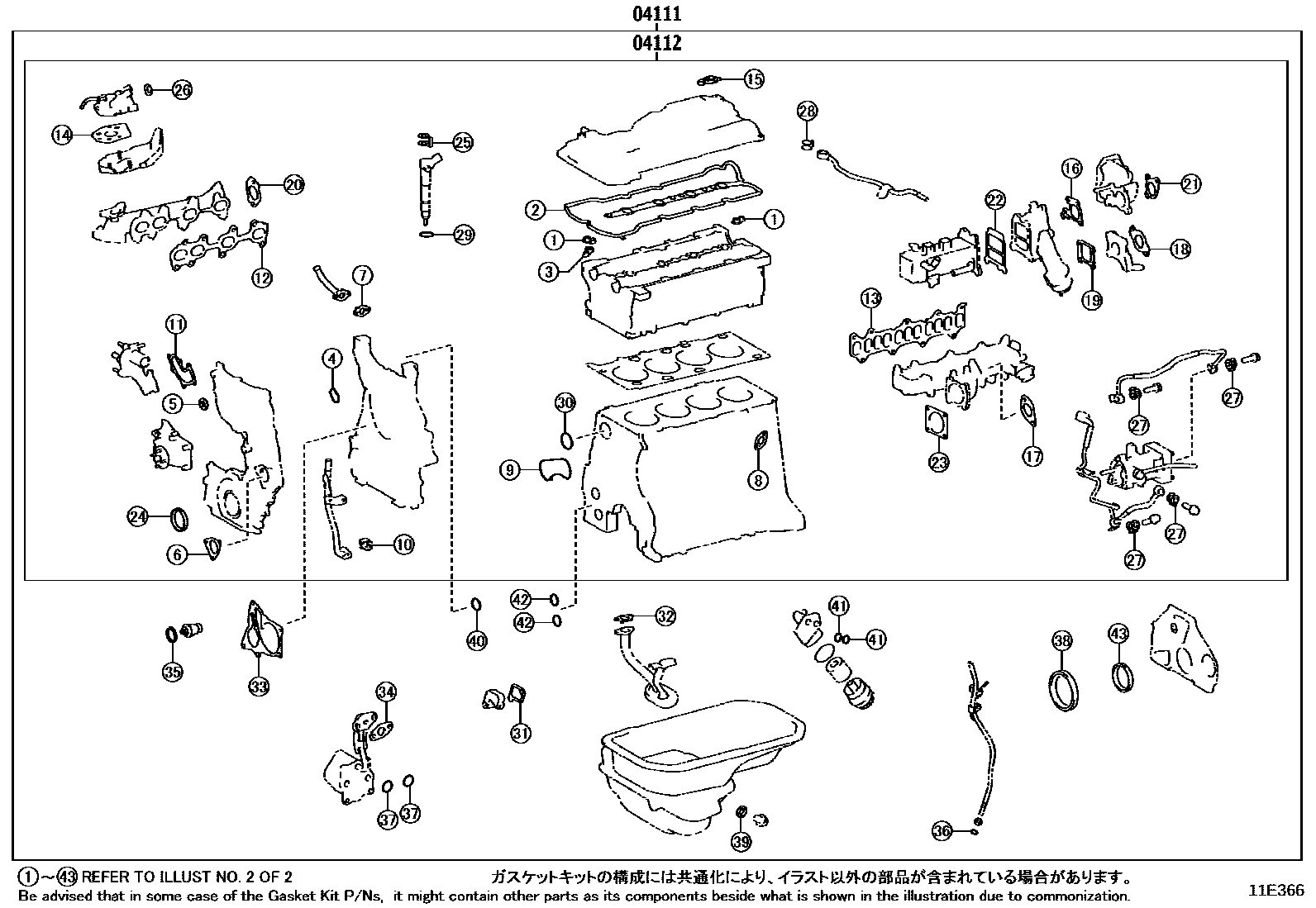

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11E366 — Engine Overhaul Gasket Kit — 11E366 (201506 – 999999)

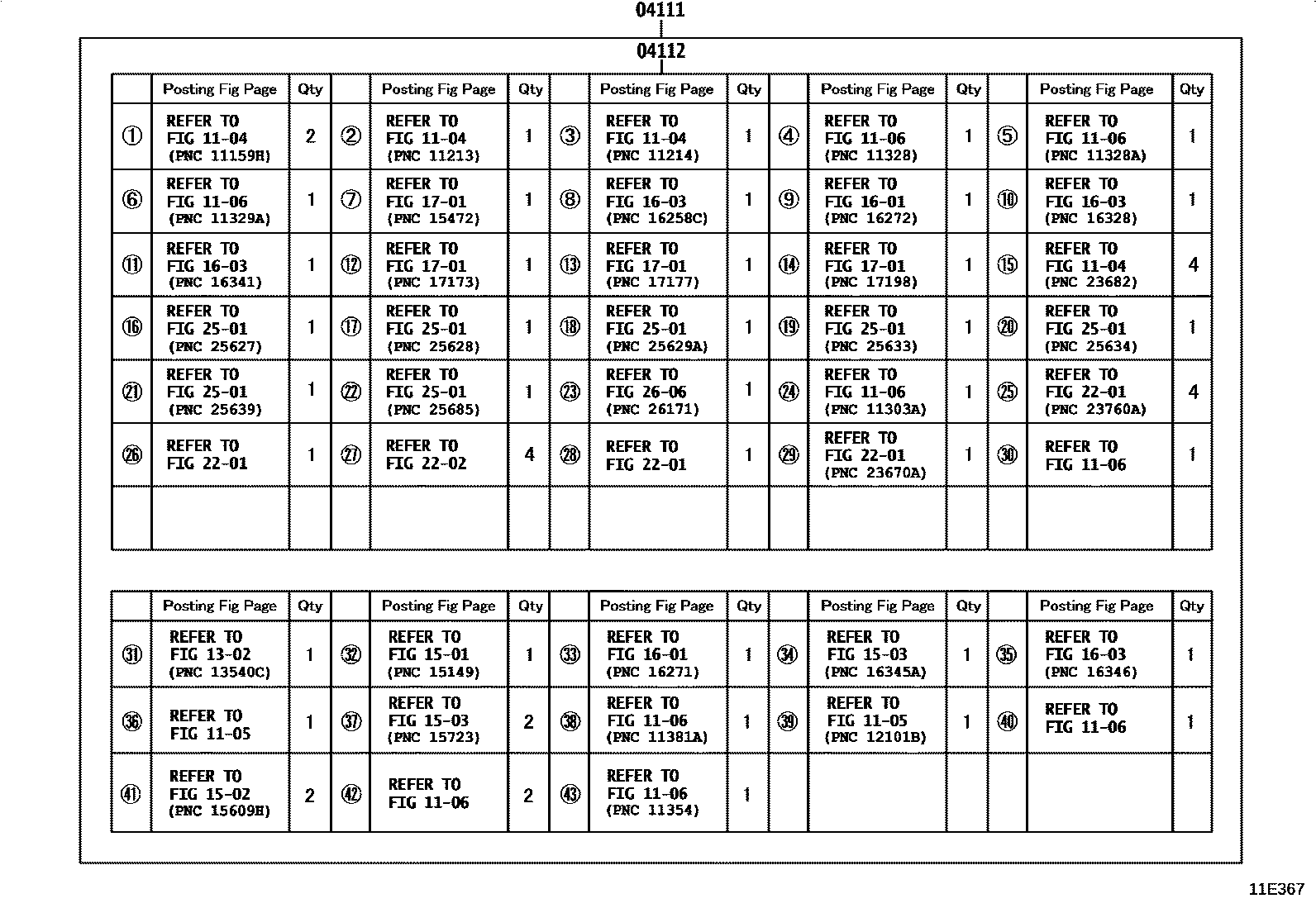

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11E367 — Engine Overhaul Gasket Kit — 11E367 (201506 – 999999)

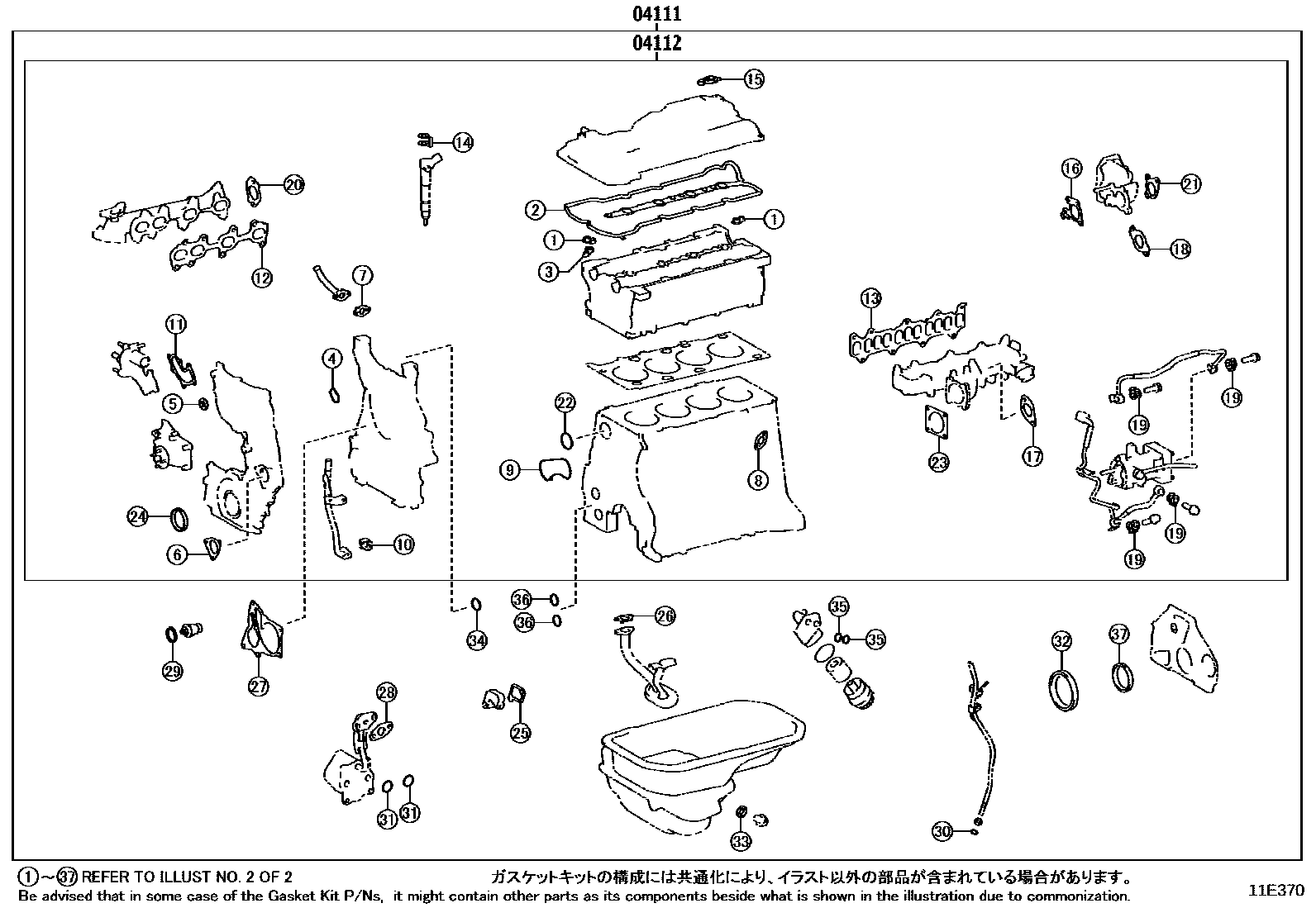

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11E370 — Engine Overhaul Gasket Kit — 11E370 (201905 – 999999)

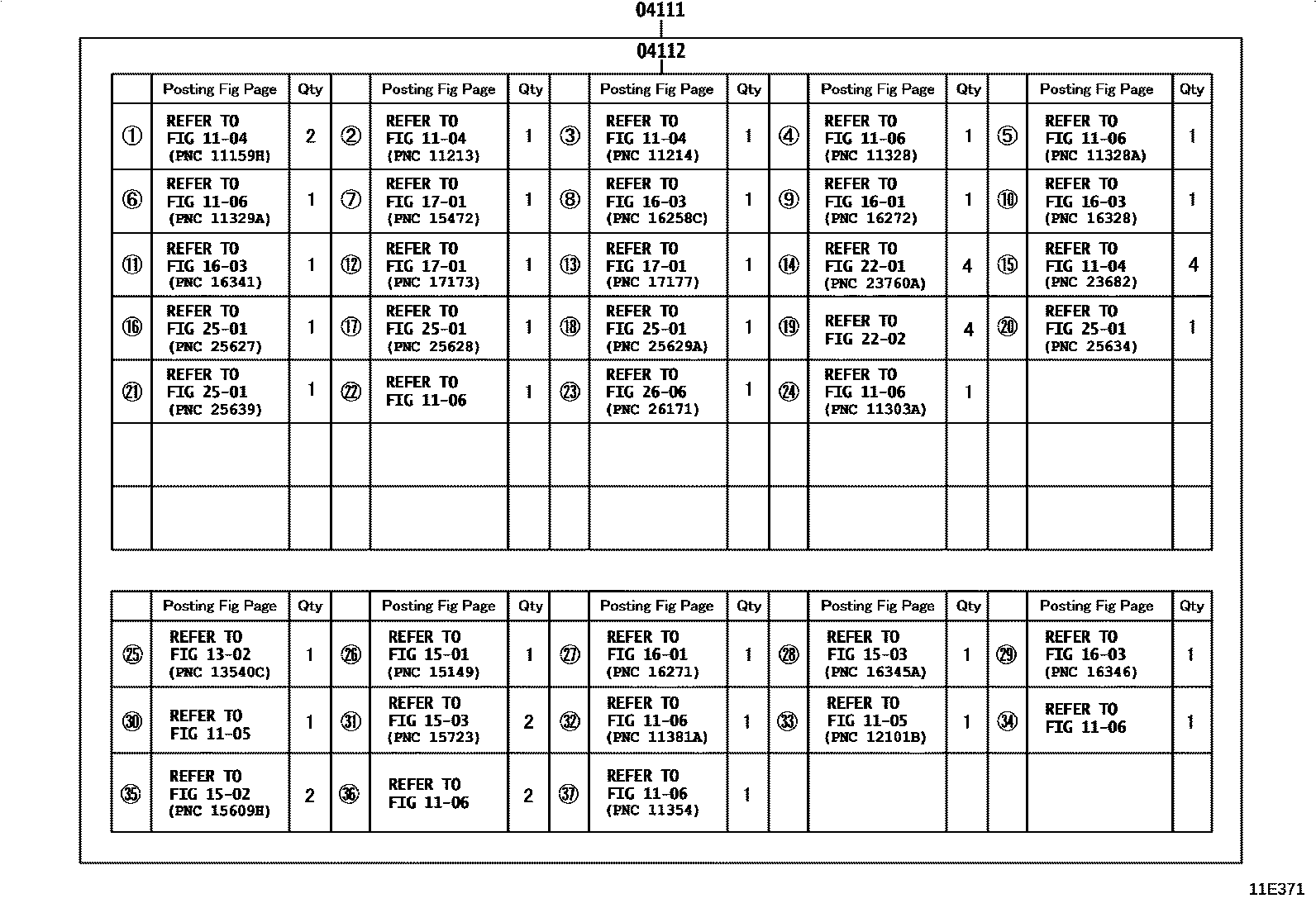

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 11E371 — Engine Overhaul Gasket Kit — 11E371 (201905 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04111	Engine overhaul gasket assembly	04111-0E010 · 04111-0E030
04112	Engine valve grinding pad assembly	04112-0E010 · 04112-0E030
