Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

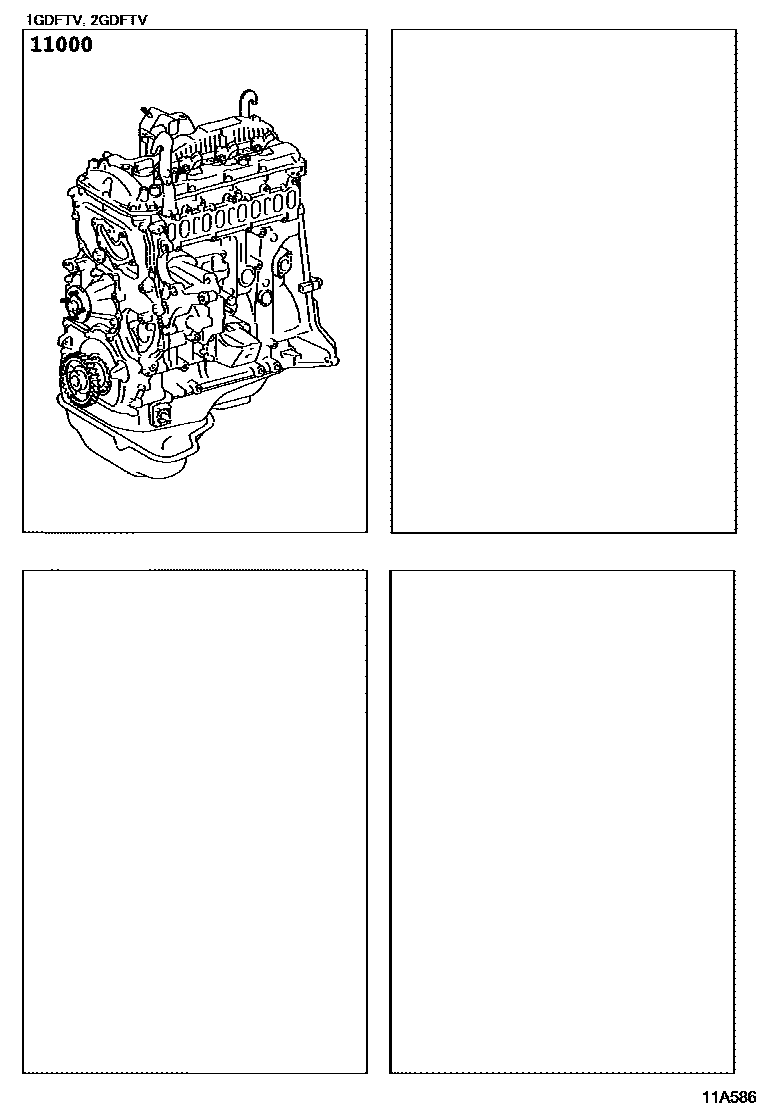

Toyota HILUX Partial Engine Assembly EPC diagram — 11A586
Partial Engine Assembly — 11A586 (201506 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0E010 · 19000-0E090 · 19000-0E110 · 19000-0E190 · 19000-0E220 · 19000-0E280 · 19000-0E290
