Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

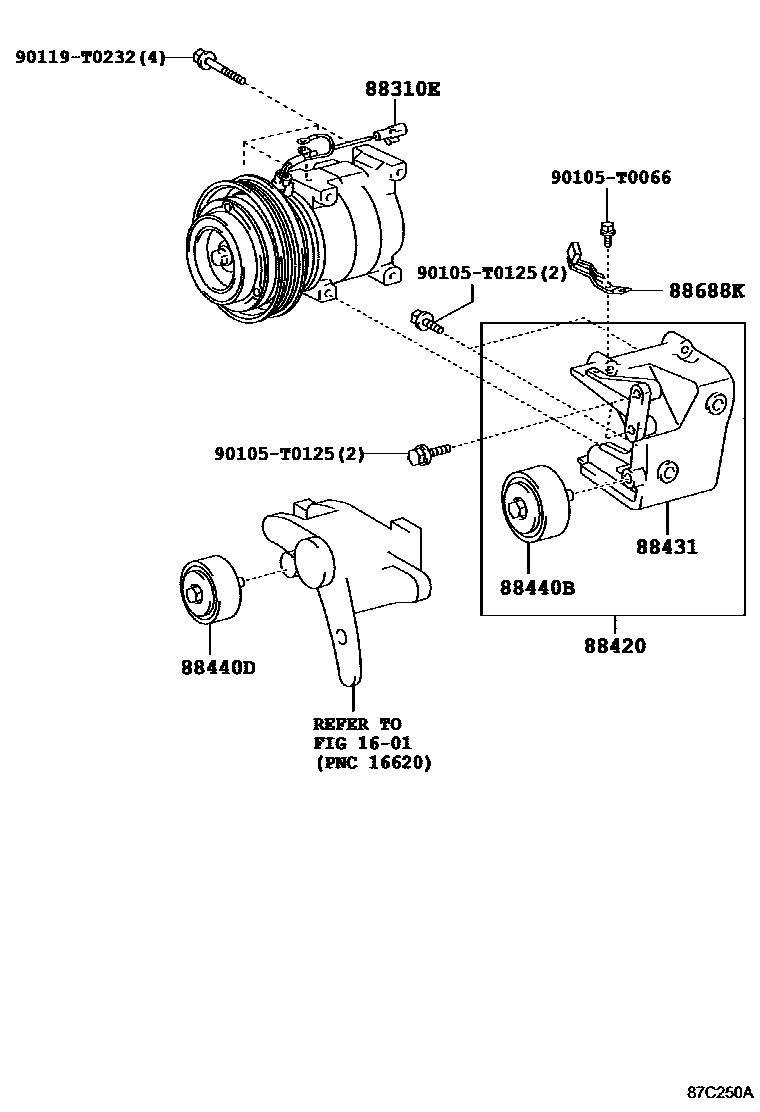

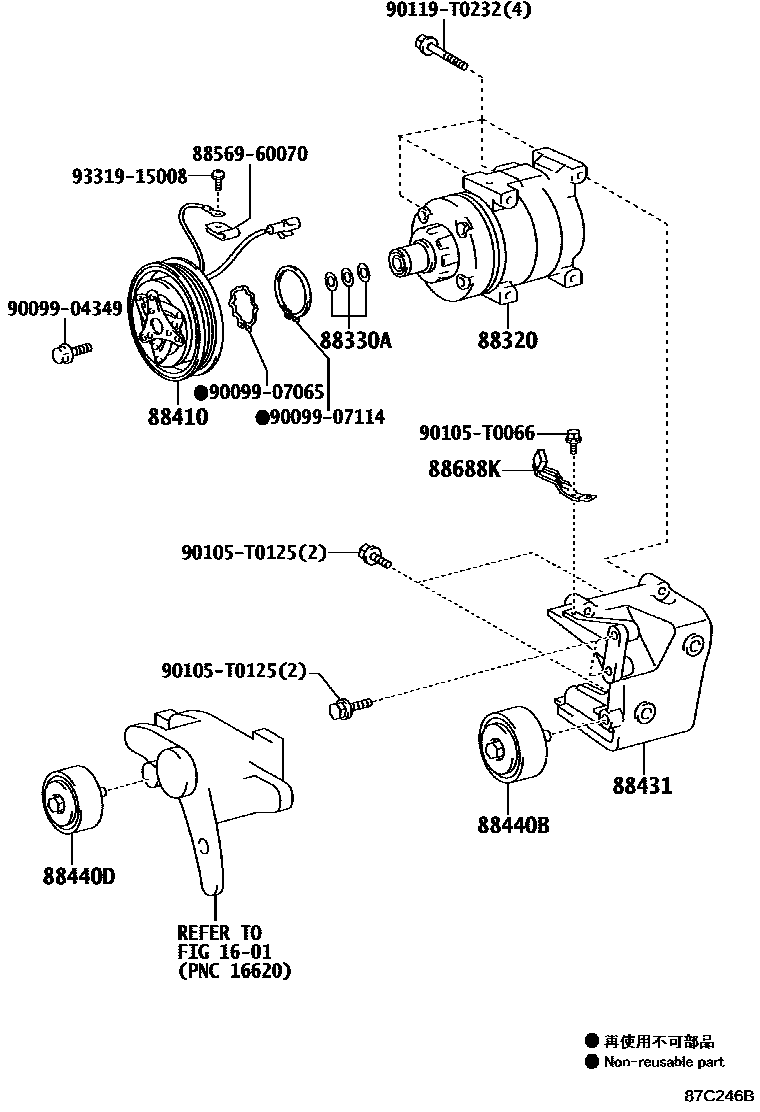

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310E | Compressor with electromagnetic clutch | 88310-0K112 · 88310-0K113 · 88310-0K114 |
| 88320 | Cooler Compressor Assembly | 88320-0K080 |
| 88330A | Washer (for electromagnetic clutch) | 88335-30420 |
| 88410 | Magnetic Clutch Assembly | 88410-0K460 |
| 88420 | Idler pulley assembly with bracket | 88420-0K050 |
| 88431 | Compressor No. 1 mounting bracket | 88431-0K020 · 88431-0K060 |
| 88440B | Idler gear assembly | 88440-0K060 · 88440-0K250 |
| 88440D | No. 2 idler gear assembly | 88440-0K010 · 88440-0K030 |
| 88688K | Cooler compressor bracket | 88688-0K100 · 88688-0K140 |
