Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

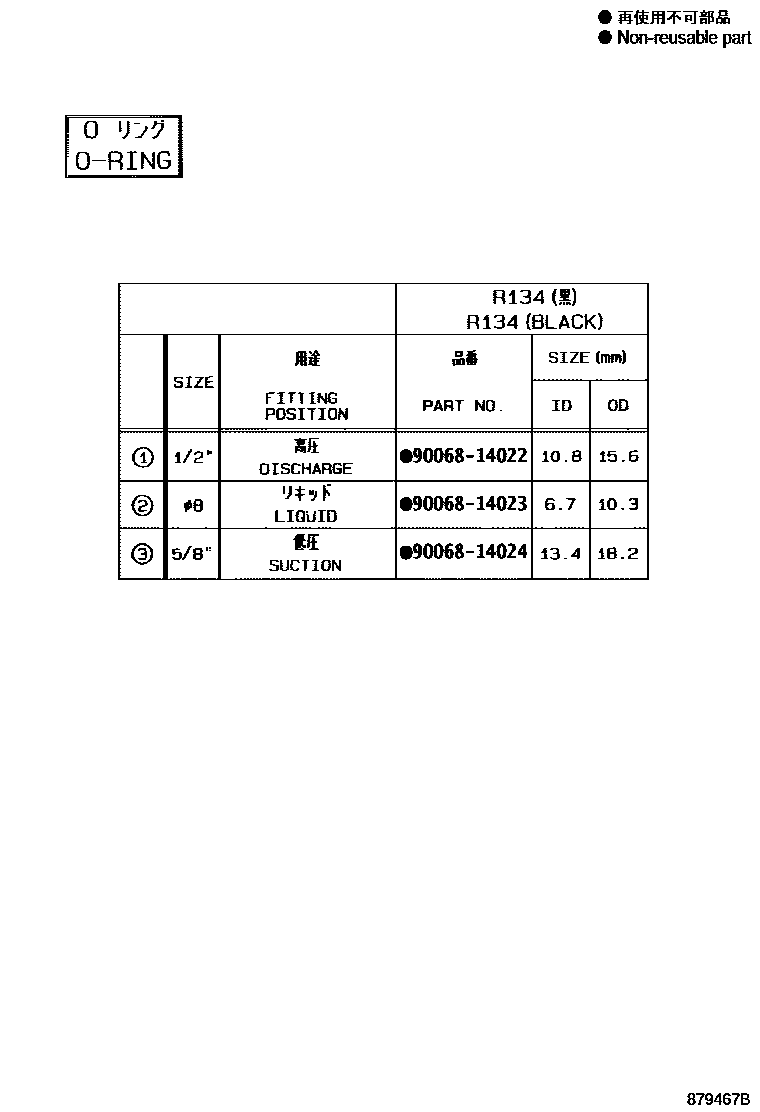

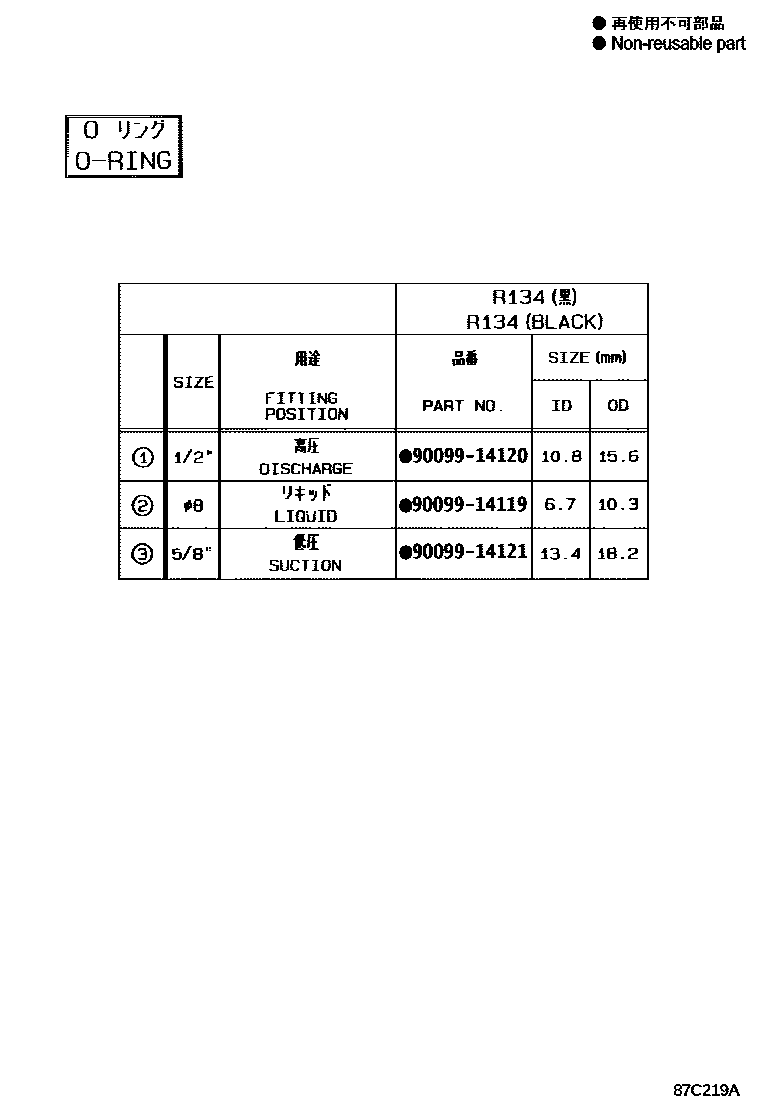

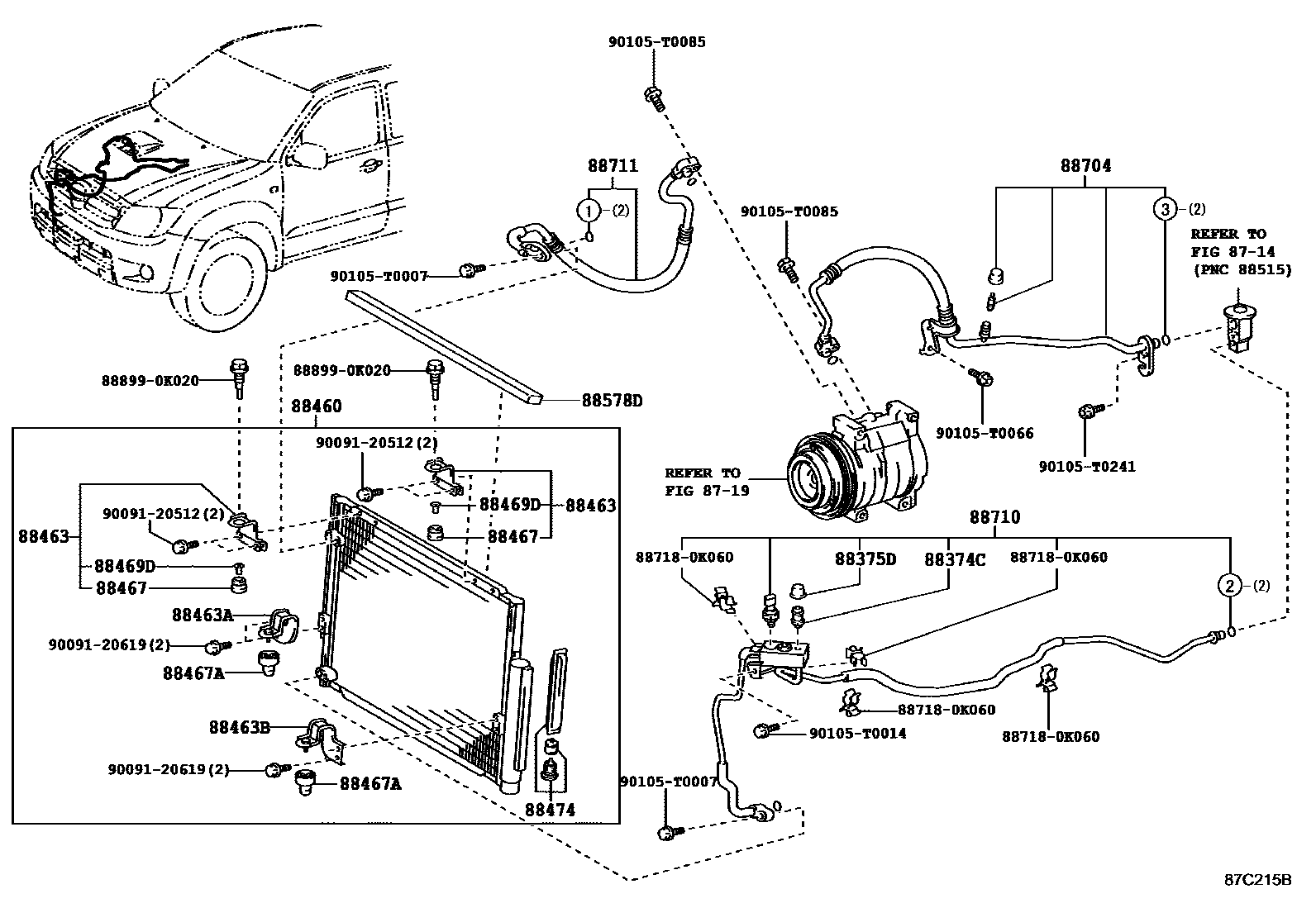

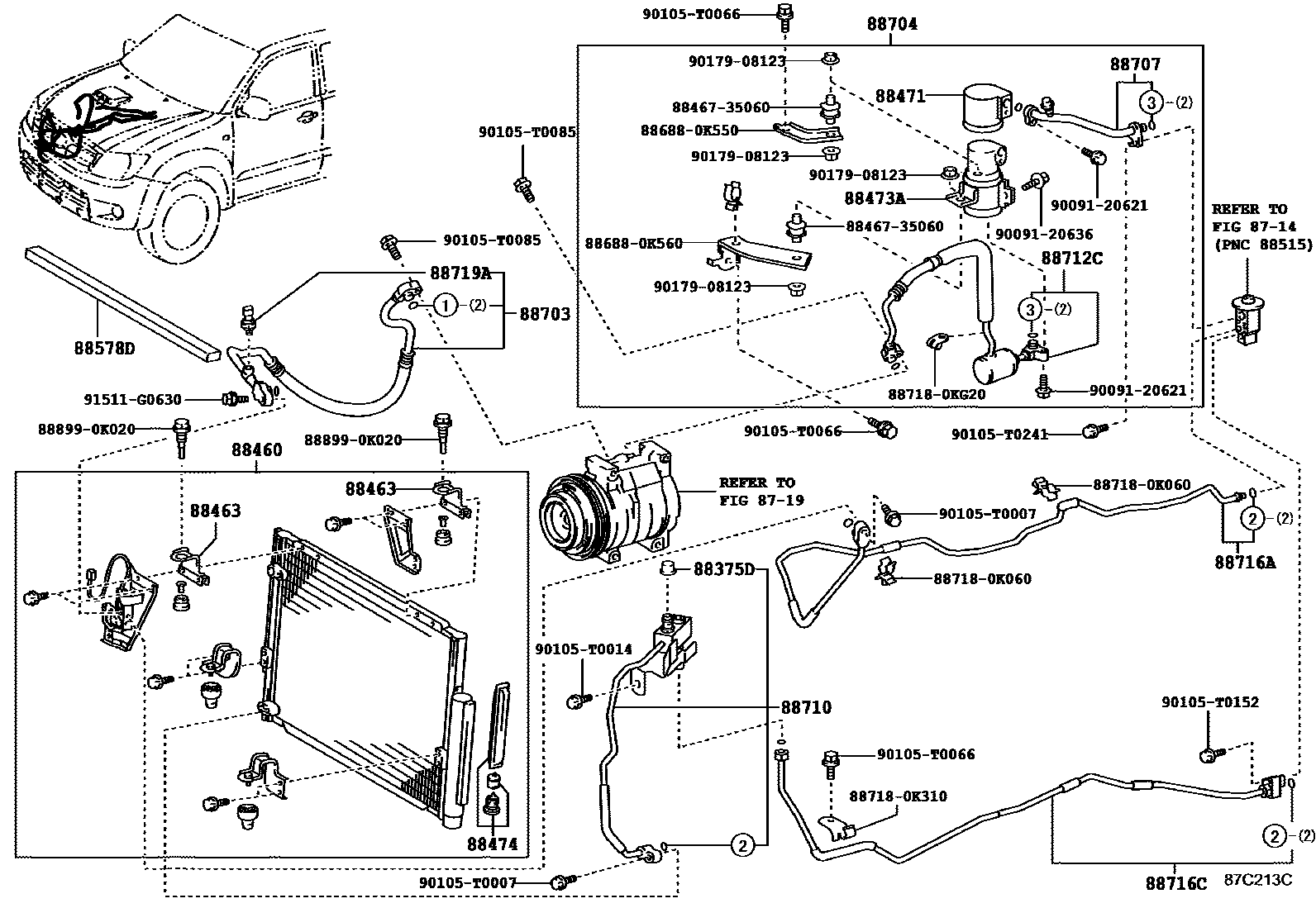

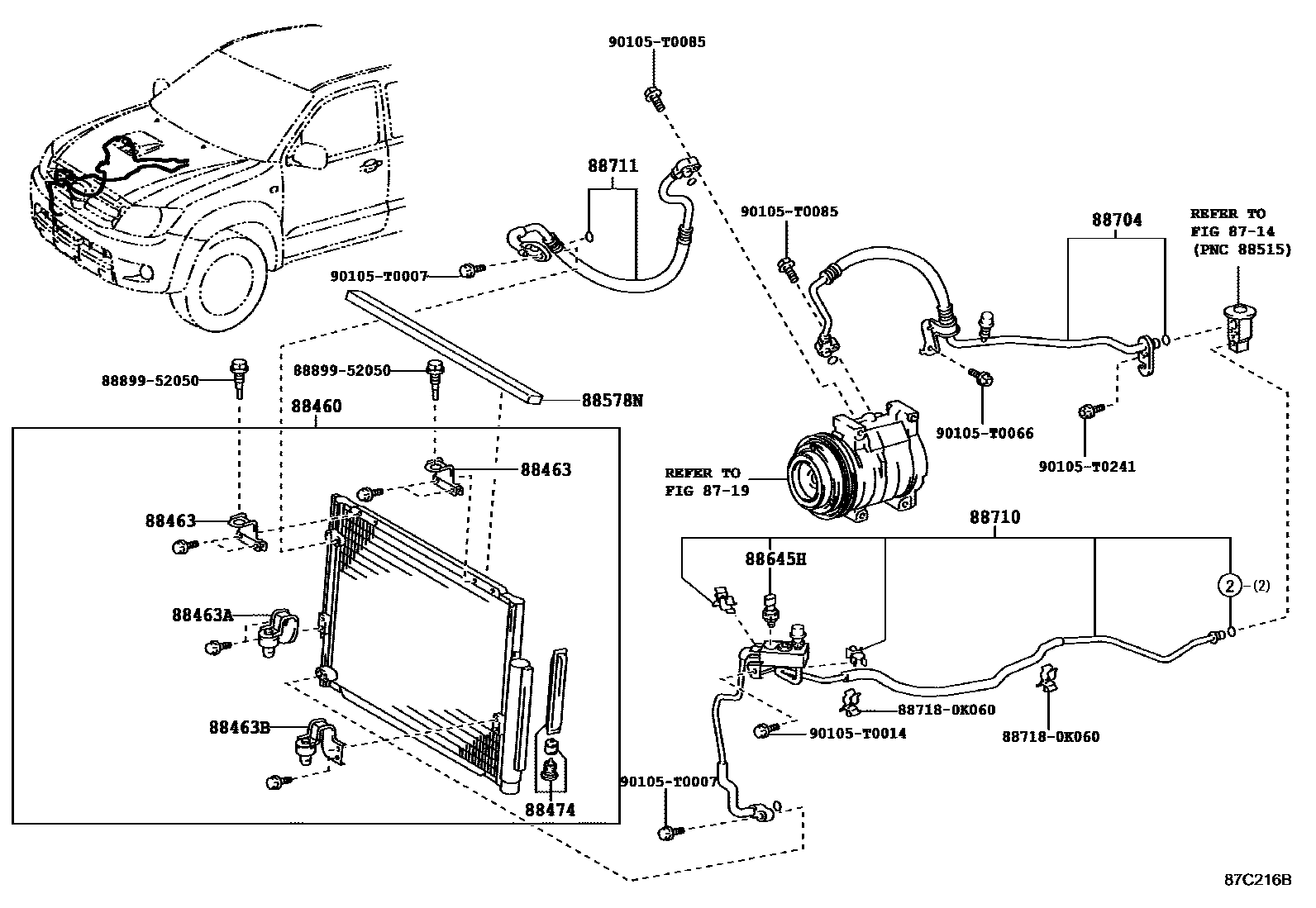

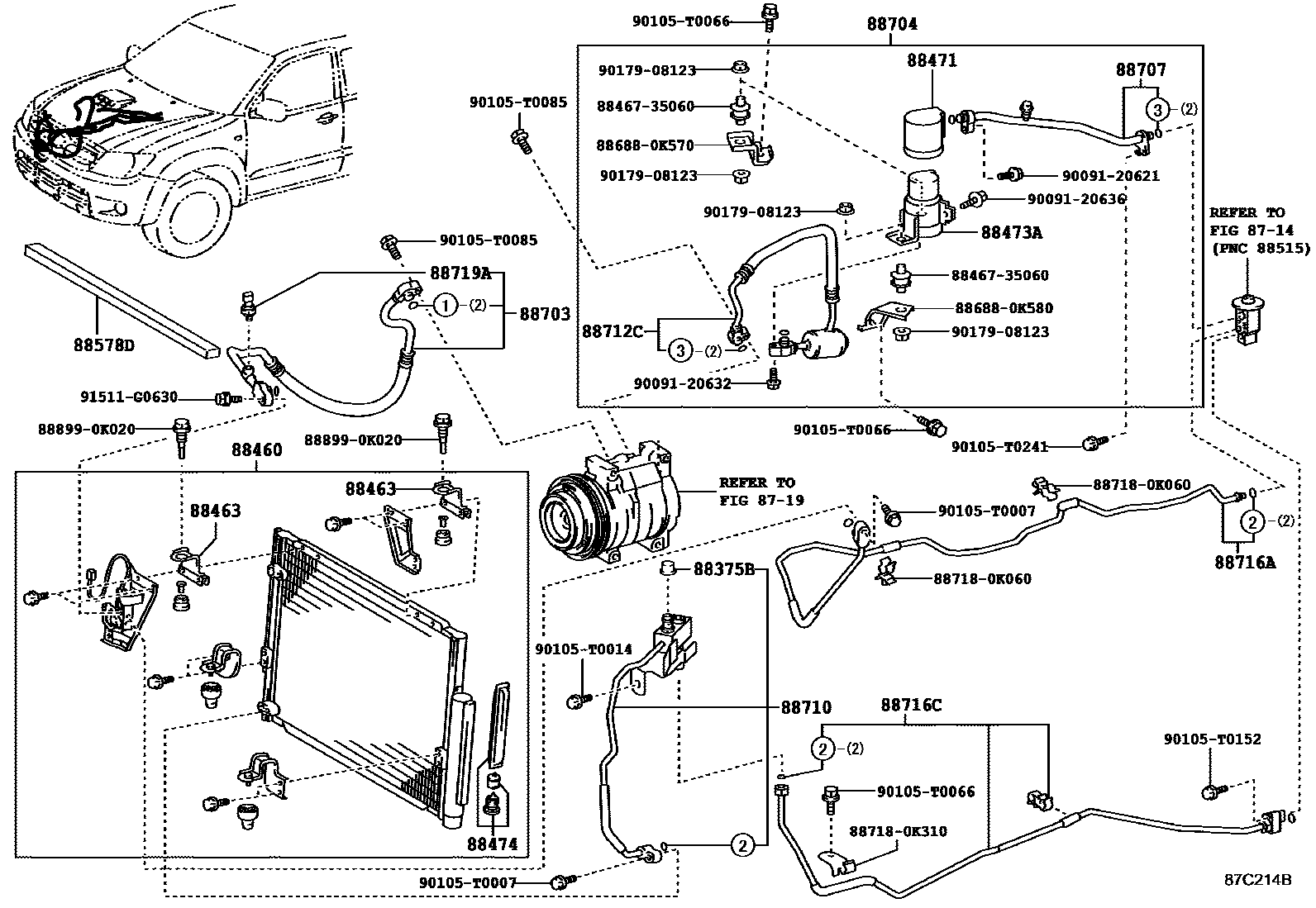

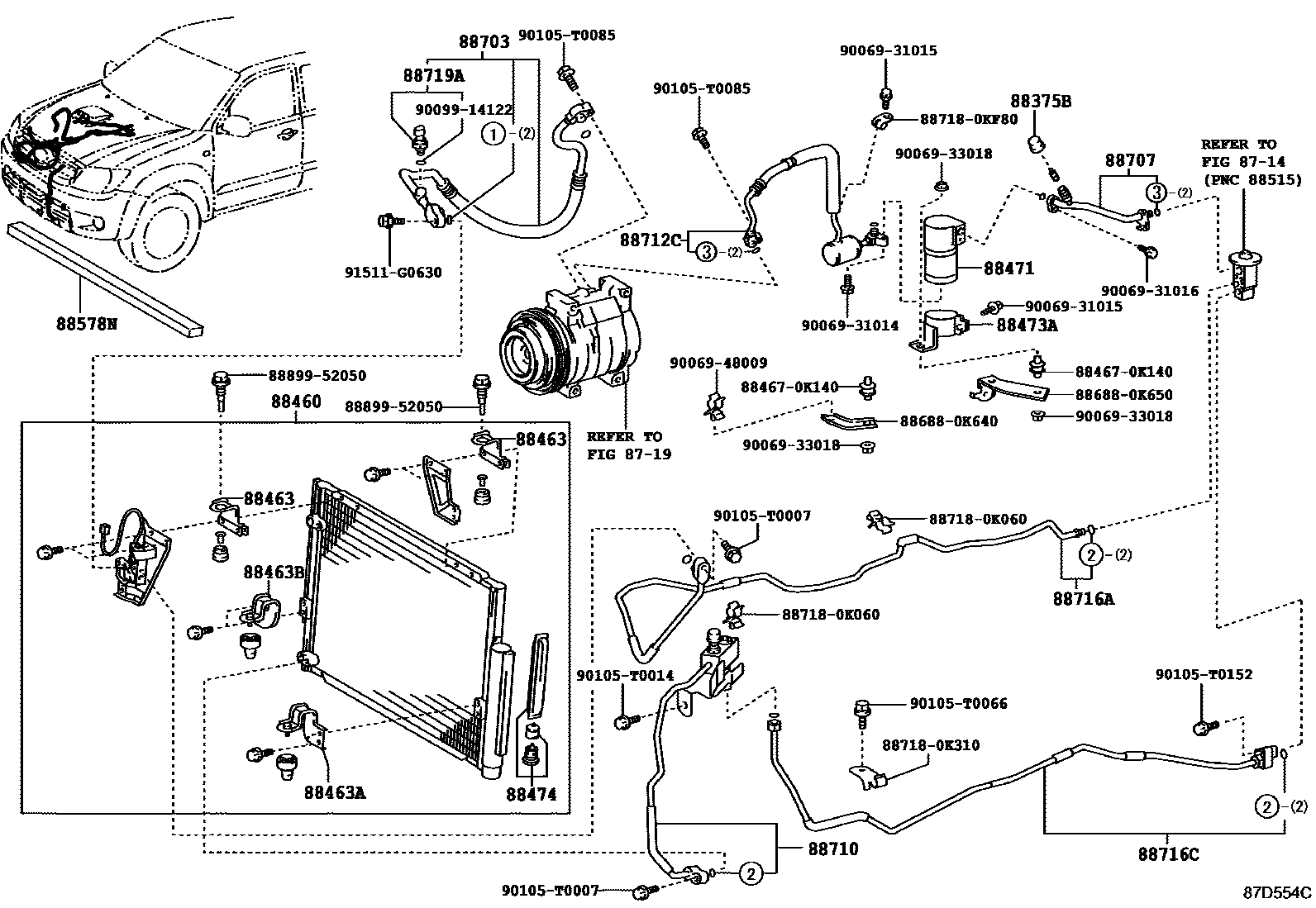

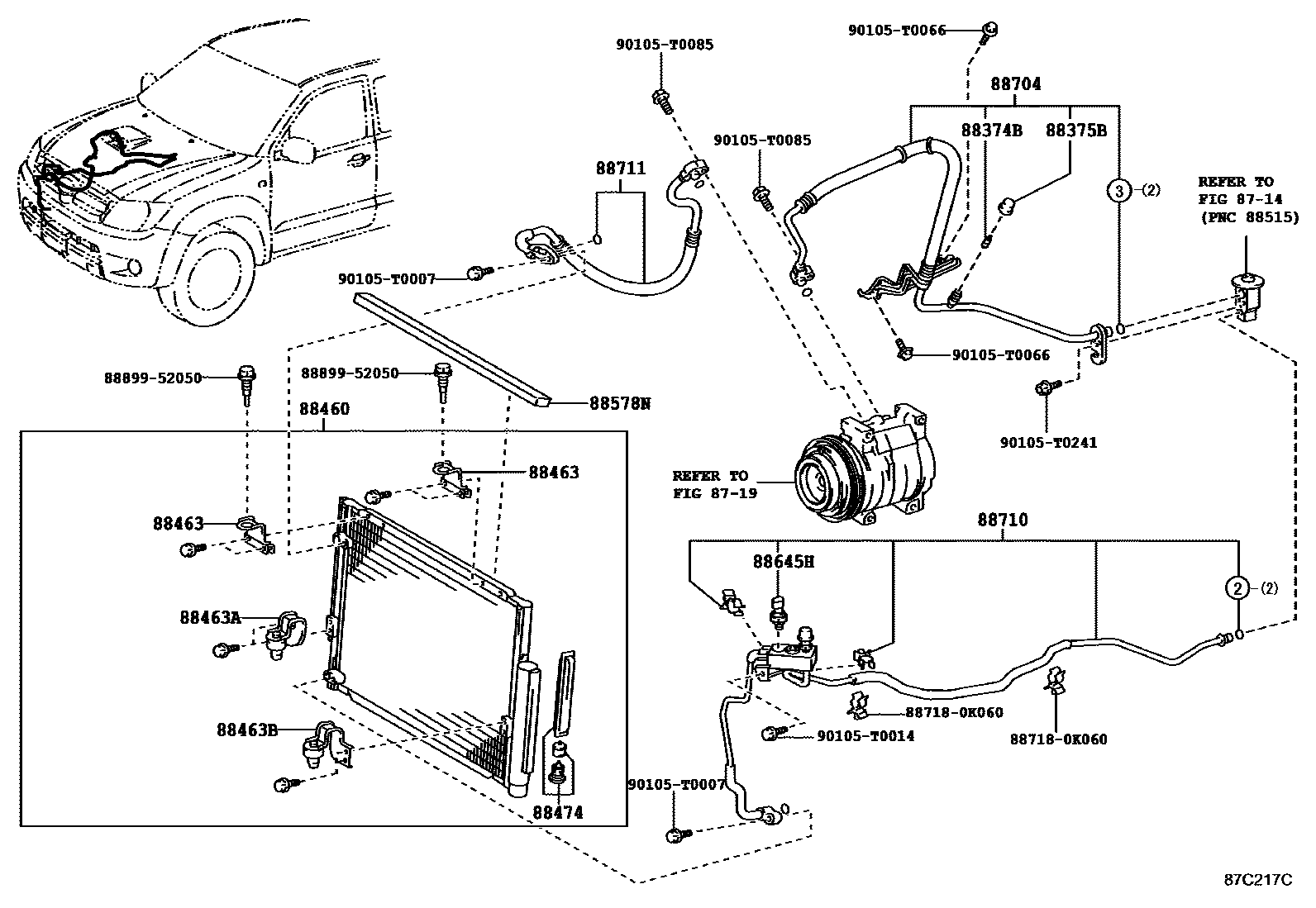

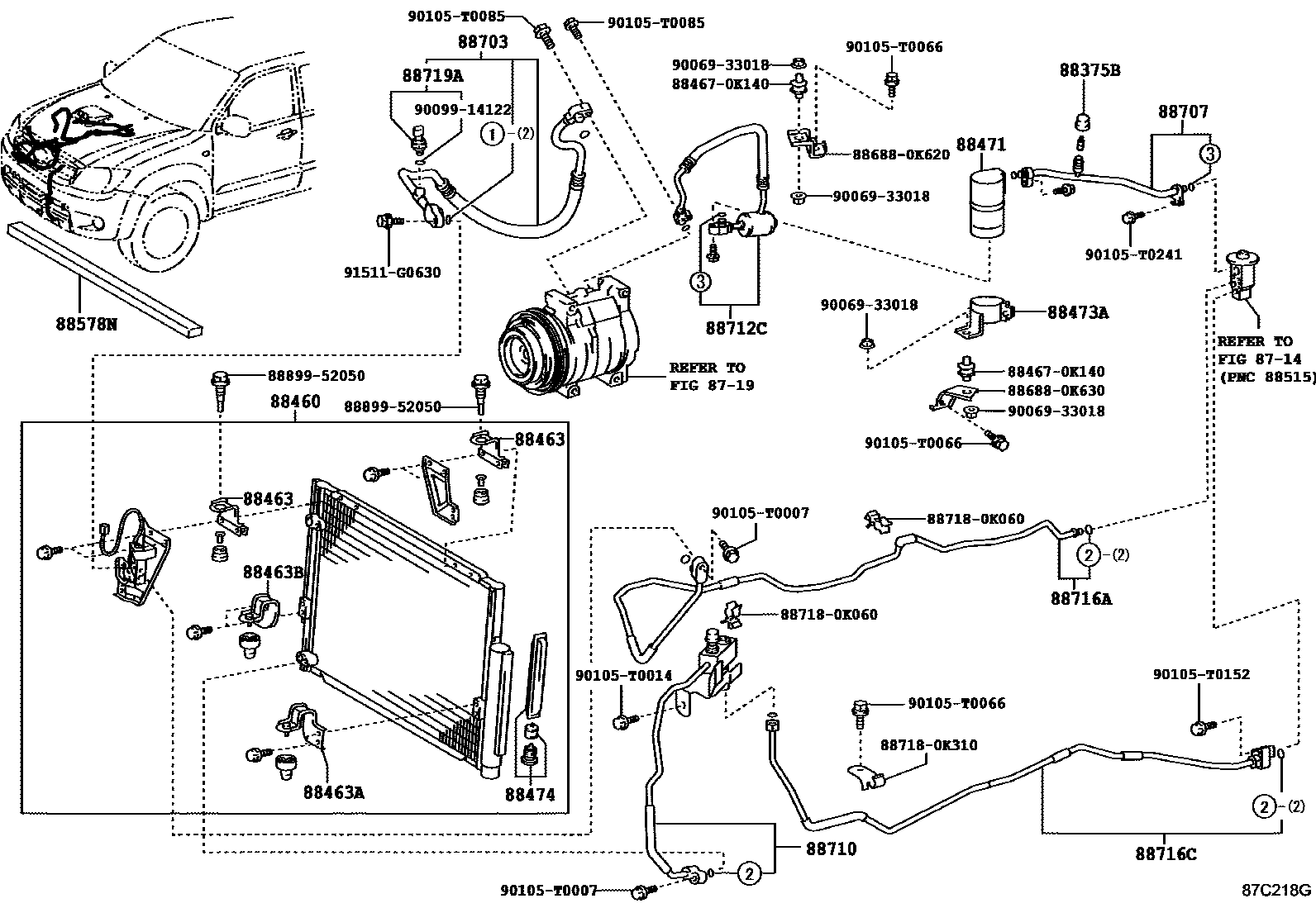

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 9 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02020 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02140 · 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K010 · 88460-0K050 · 88460-0K080 · 88460-0K120 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-0K020 · 88463-0K190 |
| 88463A | No. 2 air conditioner condenser bracket | 88463-0K200 · 88463-0K250 |
| 88463B | No. 3 air conditioner condenser bracket | 88463-0K210 · 88463-0K260 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-28040 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88471 | Air conditioning fluid storage tank | 88470-0K010 · 88470-0K020 |
| 88473A | Reservoir tank fixings | 88473-0K010 · 88473-0K020 · 88473-0K030 · 88473-0K040 |
| 88474 | cooler dryer | 88474-02220 · 88474-17010 |
| 88578D | Cooler tube seal No. 1 | 88578-0K790 |
| 88578N | No. 4 cooling pipe seal | 88578-0K800 |
| 88645H | No. 1 pressure switch | 88645-34010 |
| 88703 | Discharge hose sub-assembly | 88703-0K250 · 88703-0K260 |
| 88704 | Oil suction hose sub-assembly | 88704-0K651 · 88704-0K662 · 88704-0K673 · 88704-0K681 · 88704-0KC60 |
| 88707 | Suction pipe sub-assembly | 88717-0KE01 · 88717-0KE10 · 88717-0KE20 · 88717-0KE30 |
| 88710 | Air conditioning pipe assembly | 88710-0K010 · 88710-0K020 · 88710-0K030 · 88710-0K040 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0K071 · 88711-0K092 · 88711-0K093 |
| 88712C | Oil suction hose | 88712-0K861 · 88712-0K890 · 88712-0KA00 · 88712-0KA40 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0K151 · 88716-0K161 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-0KD11 · 88716-0KD22 · 88716-0KD31 · 88716-0KD42 |
| 88719A | Air conditioning pressure sensor | 88719-33020 · 88719-40020 |
