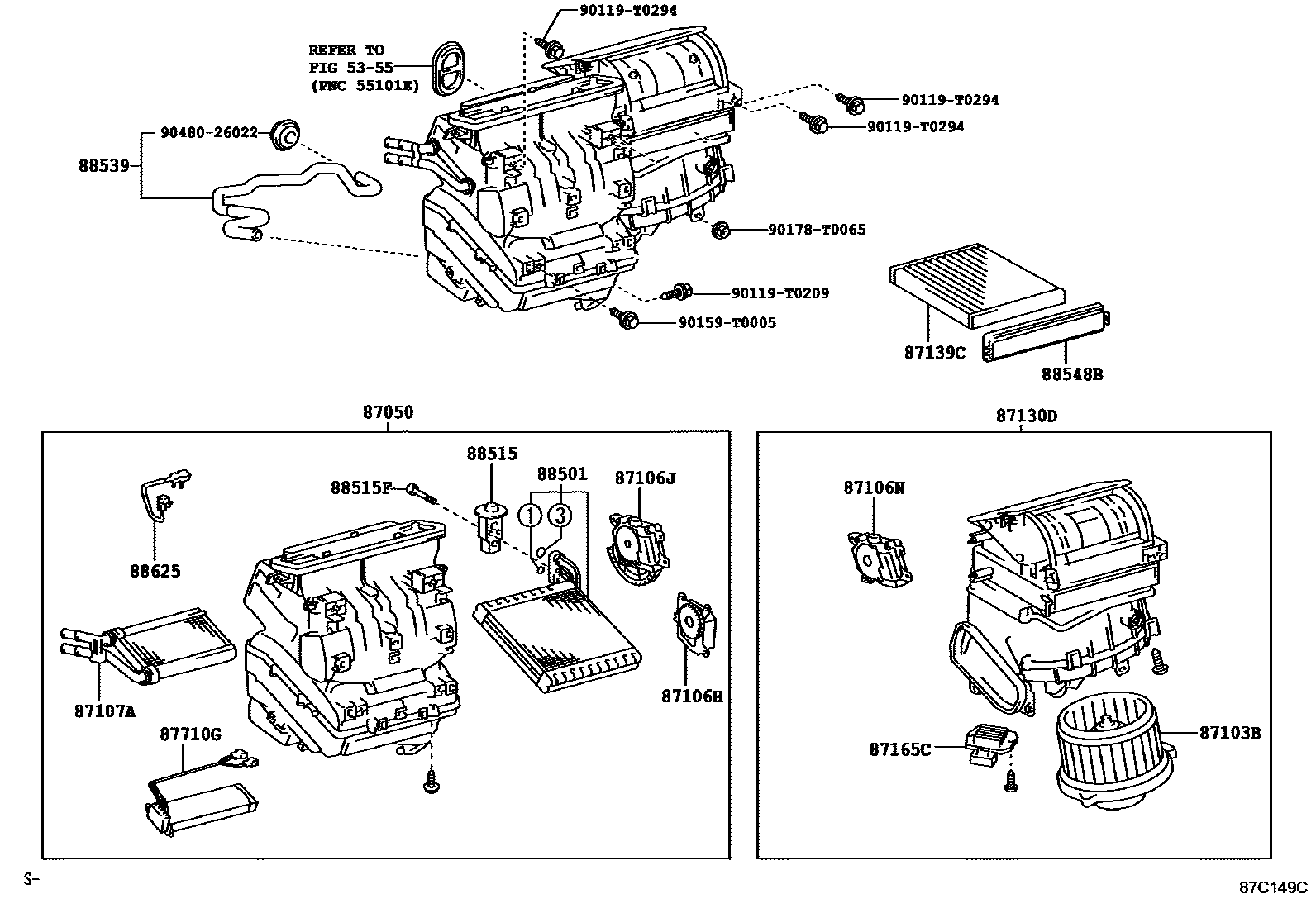

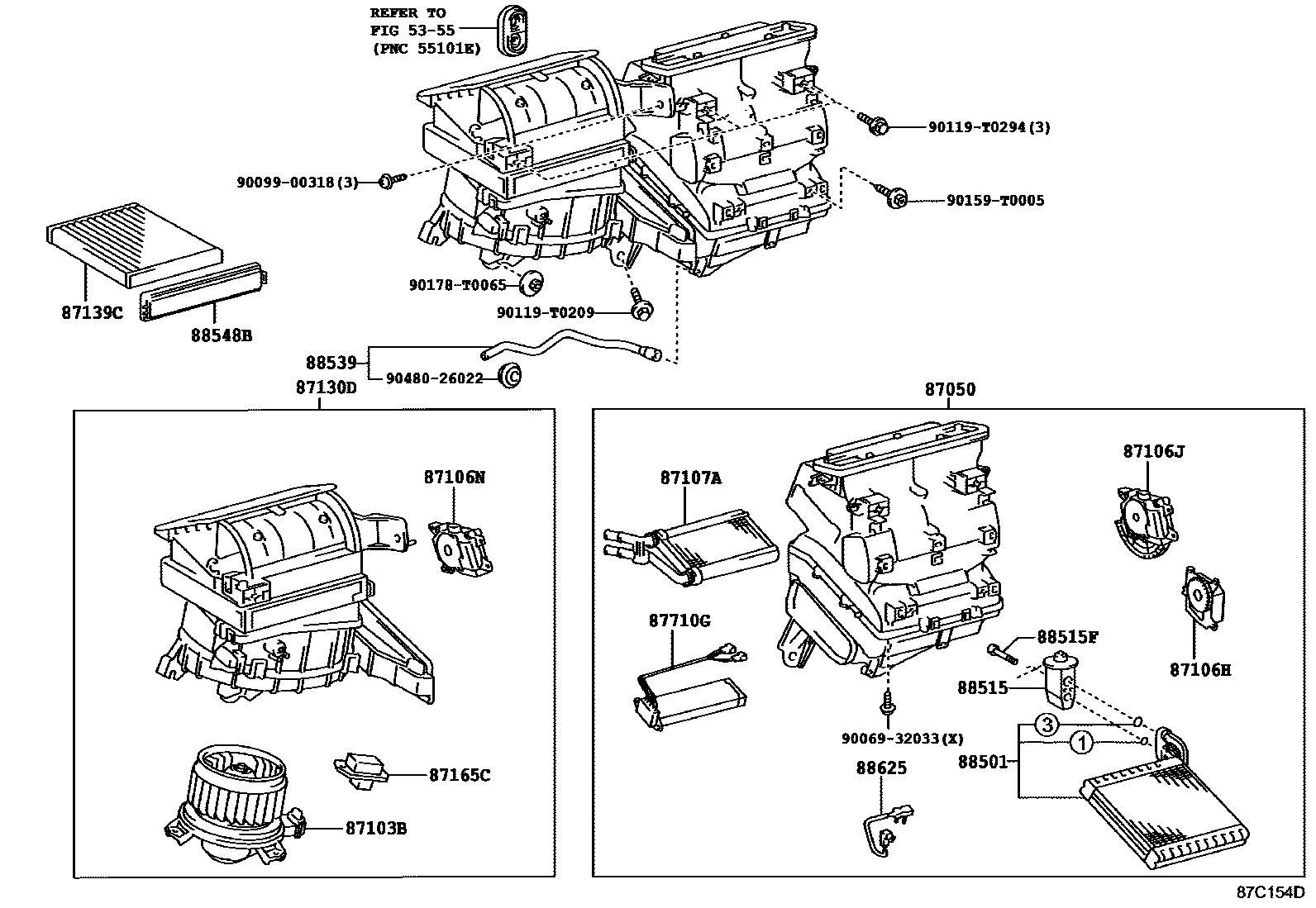

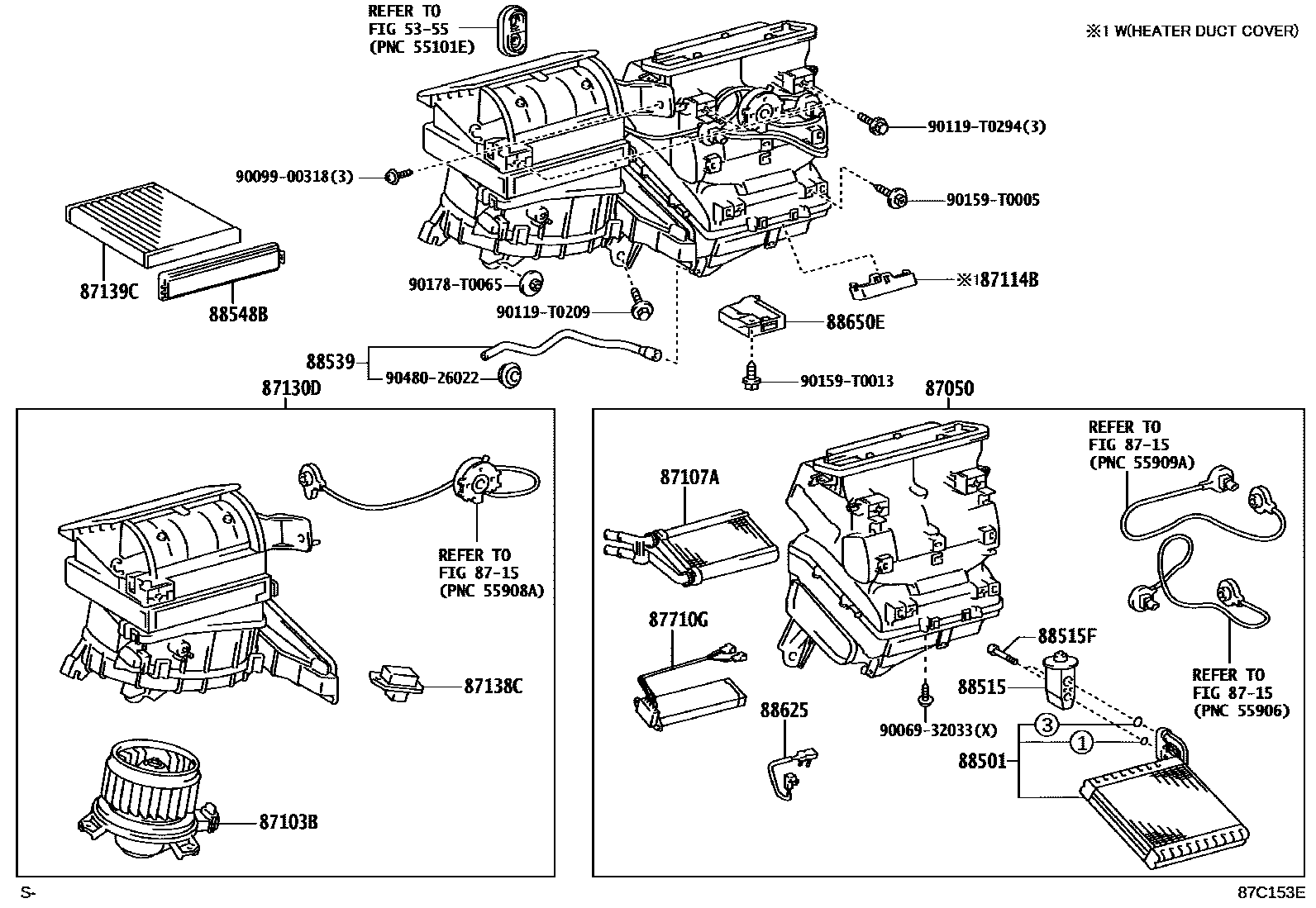

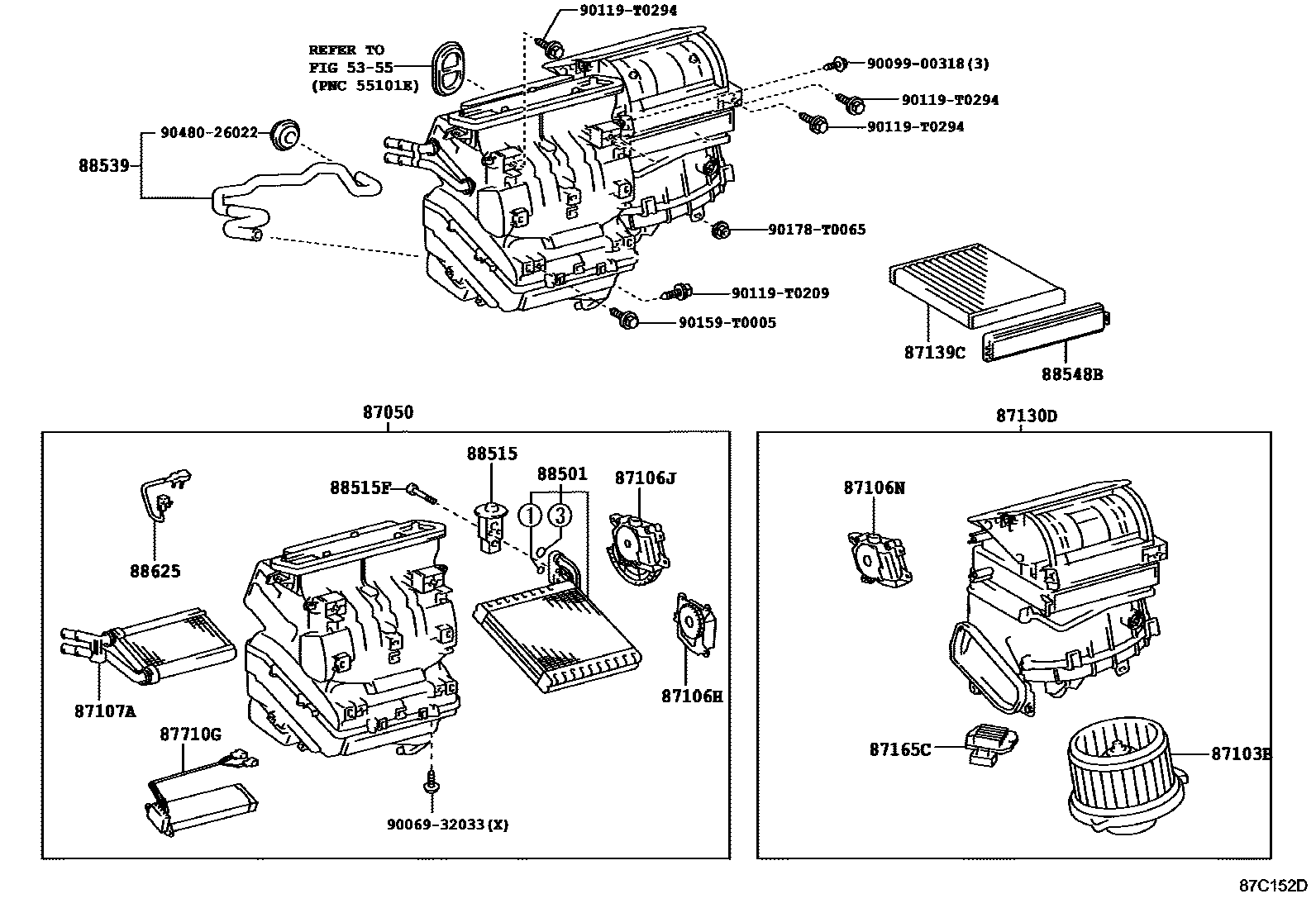

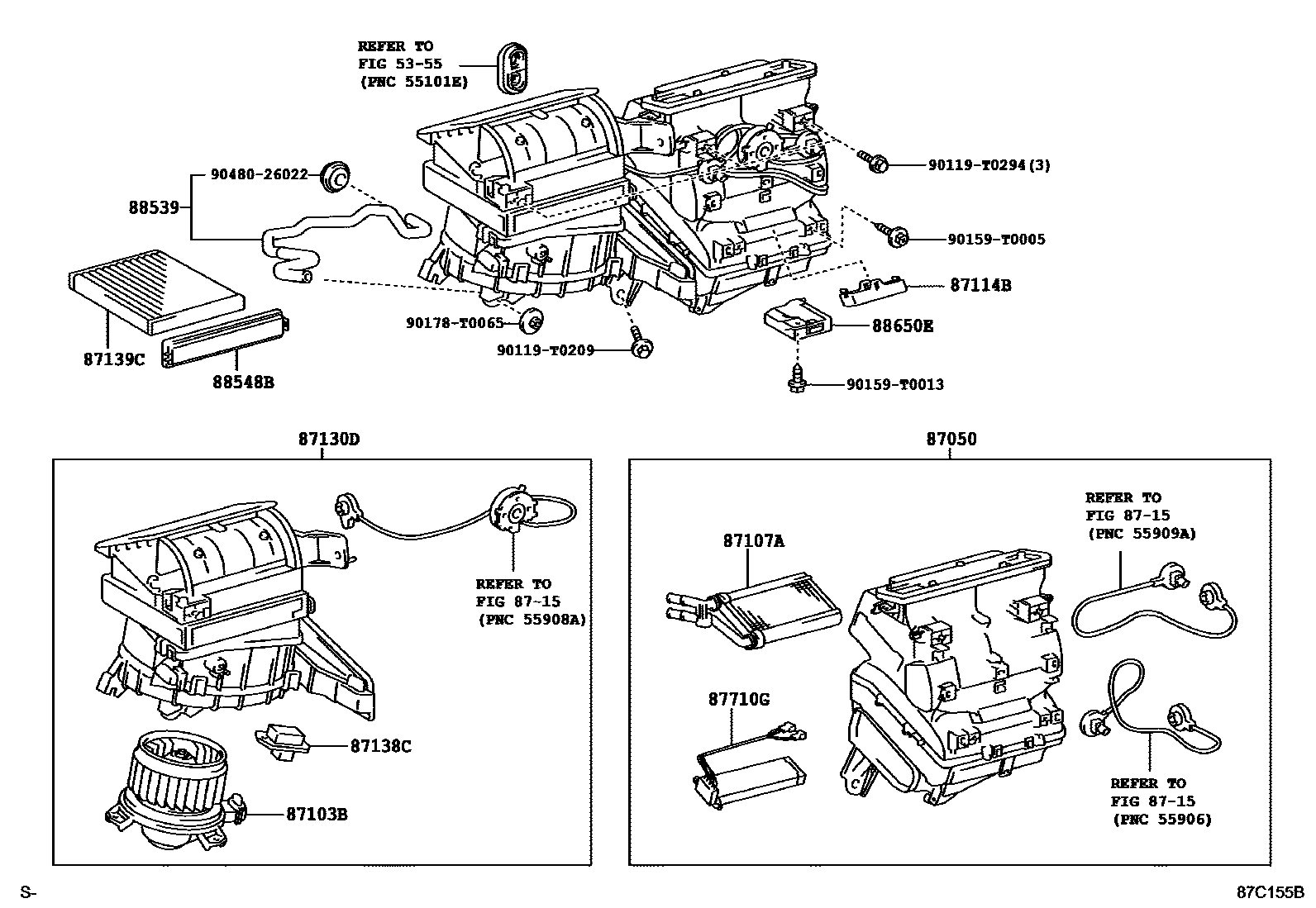

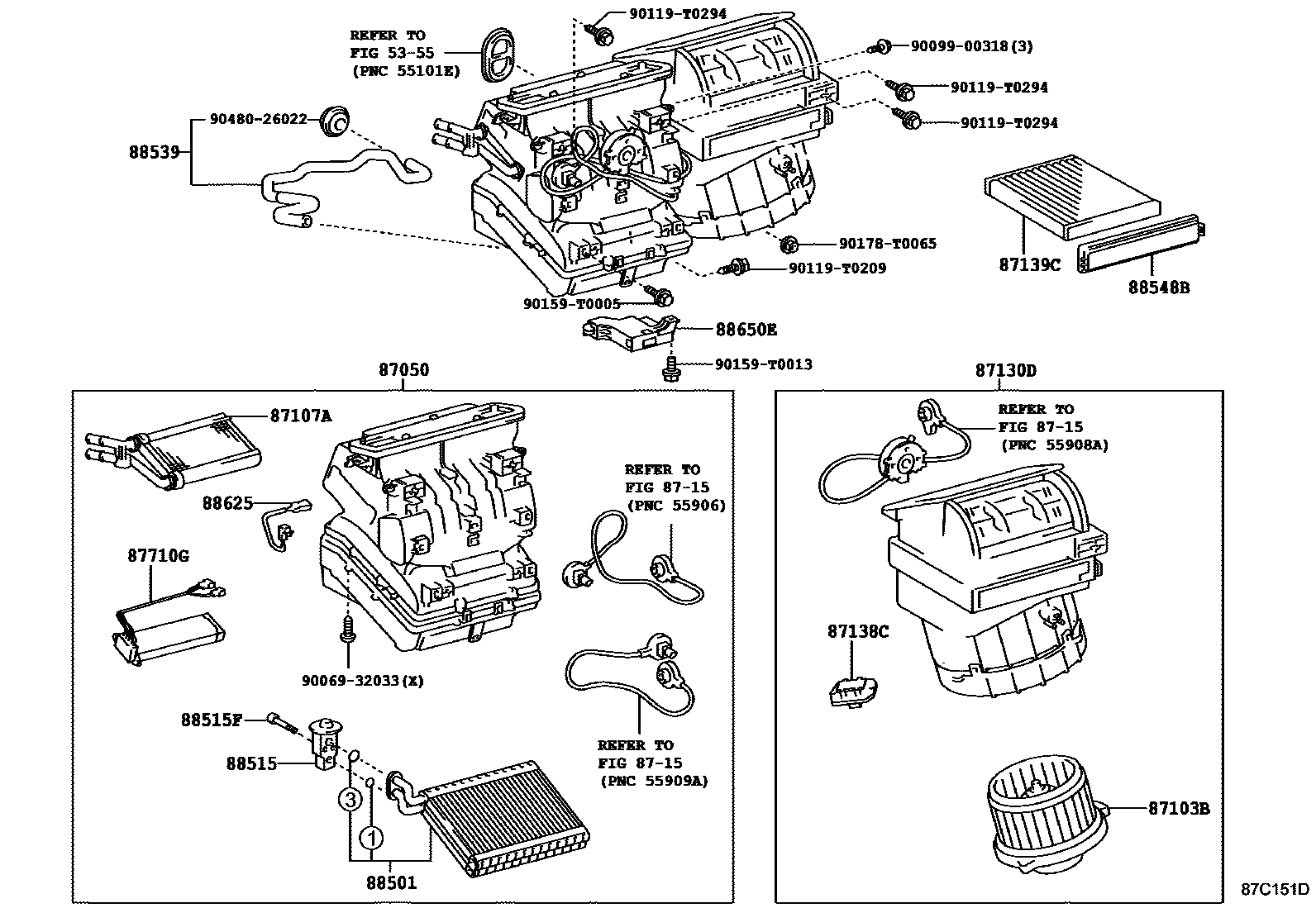

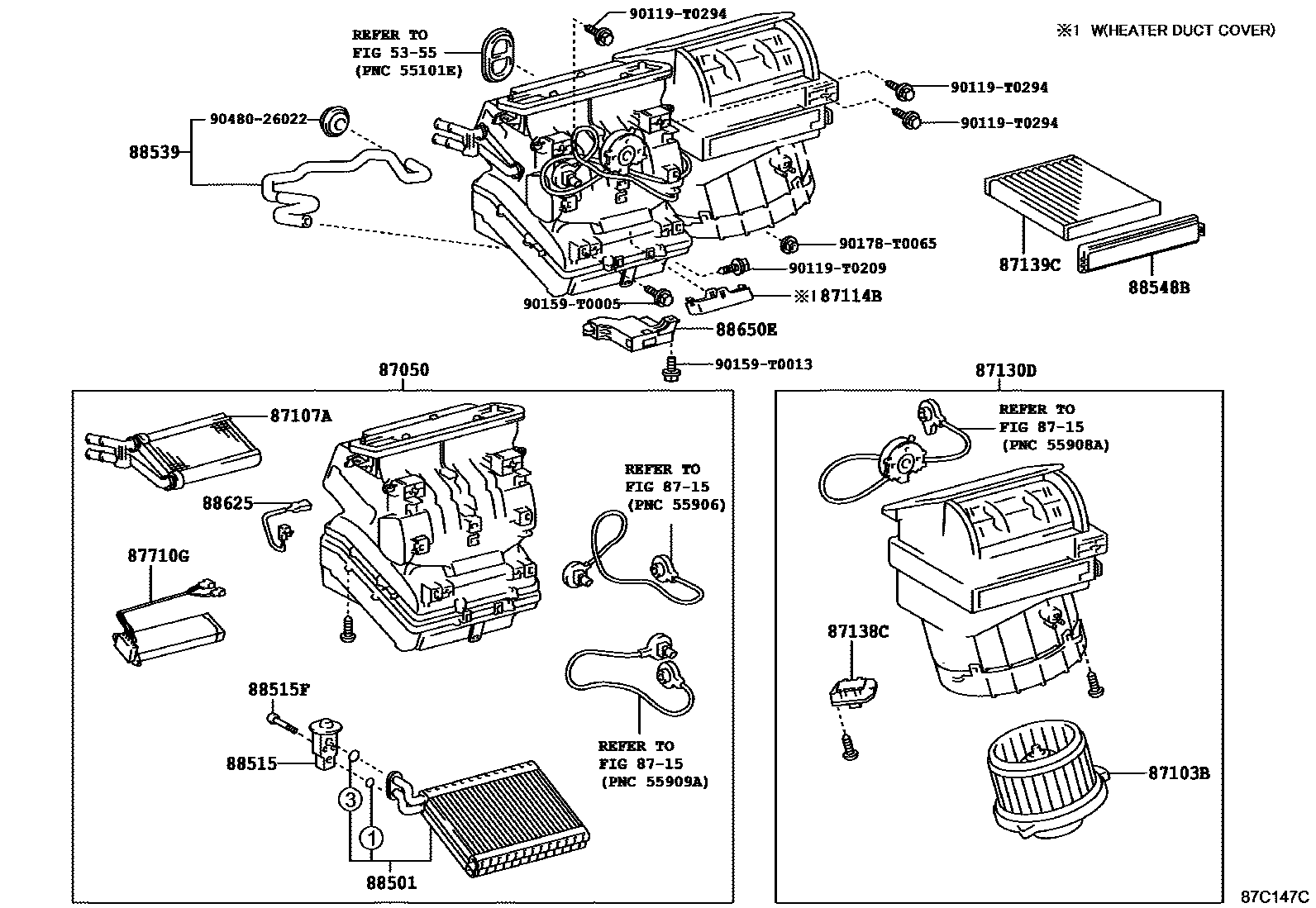

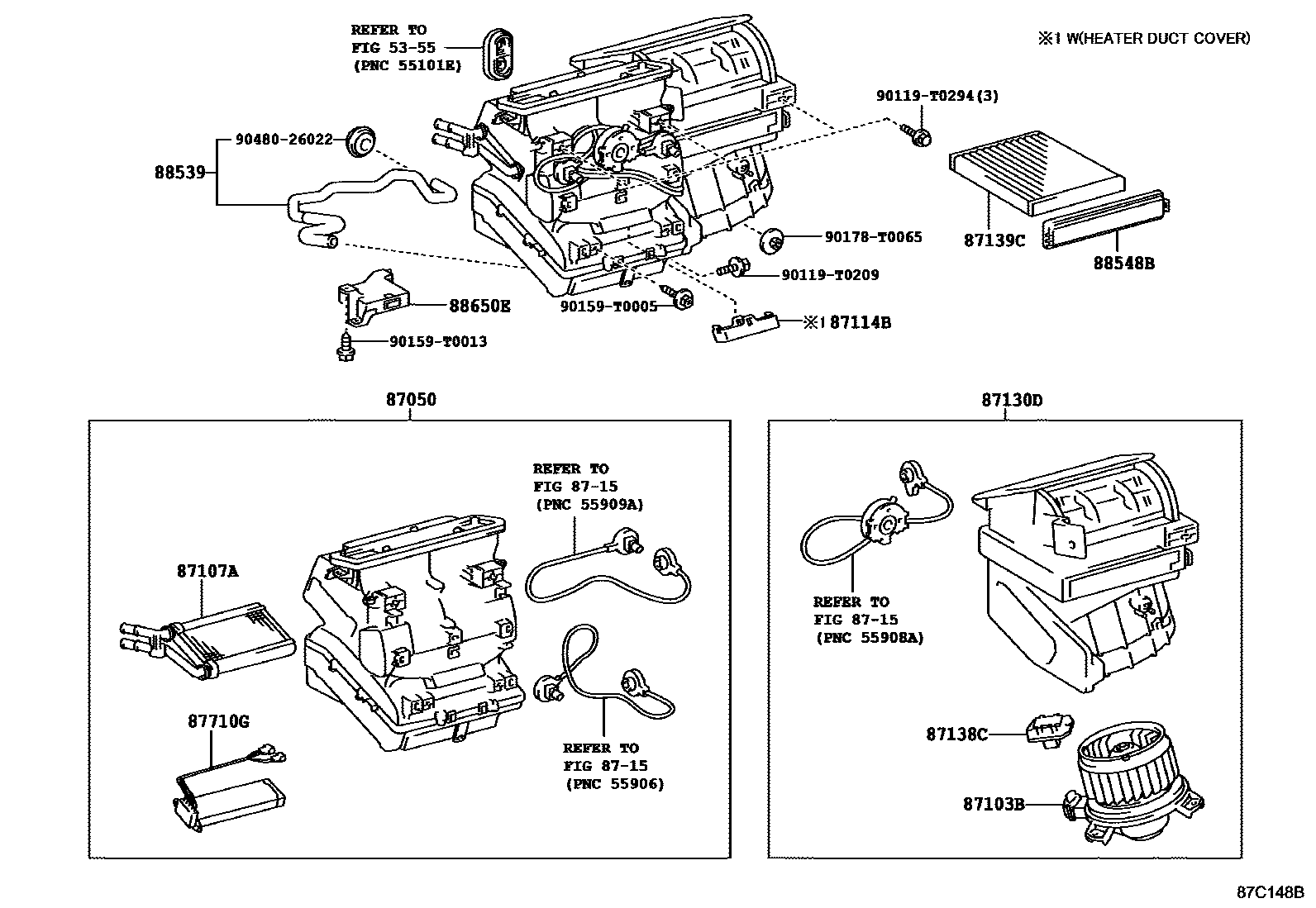

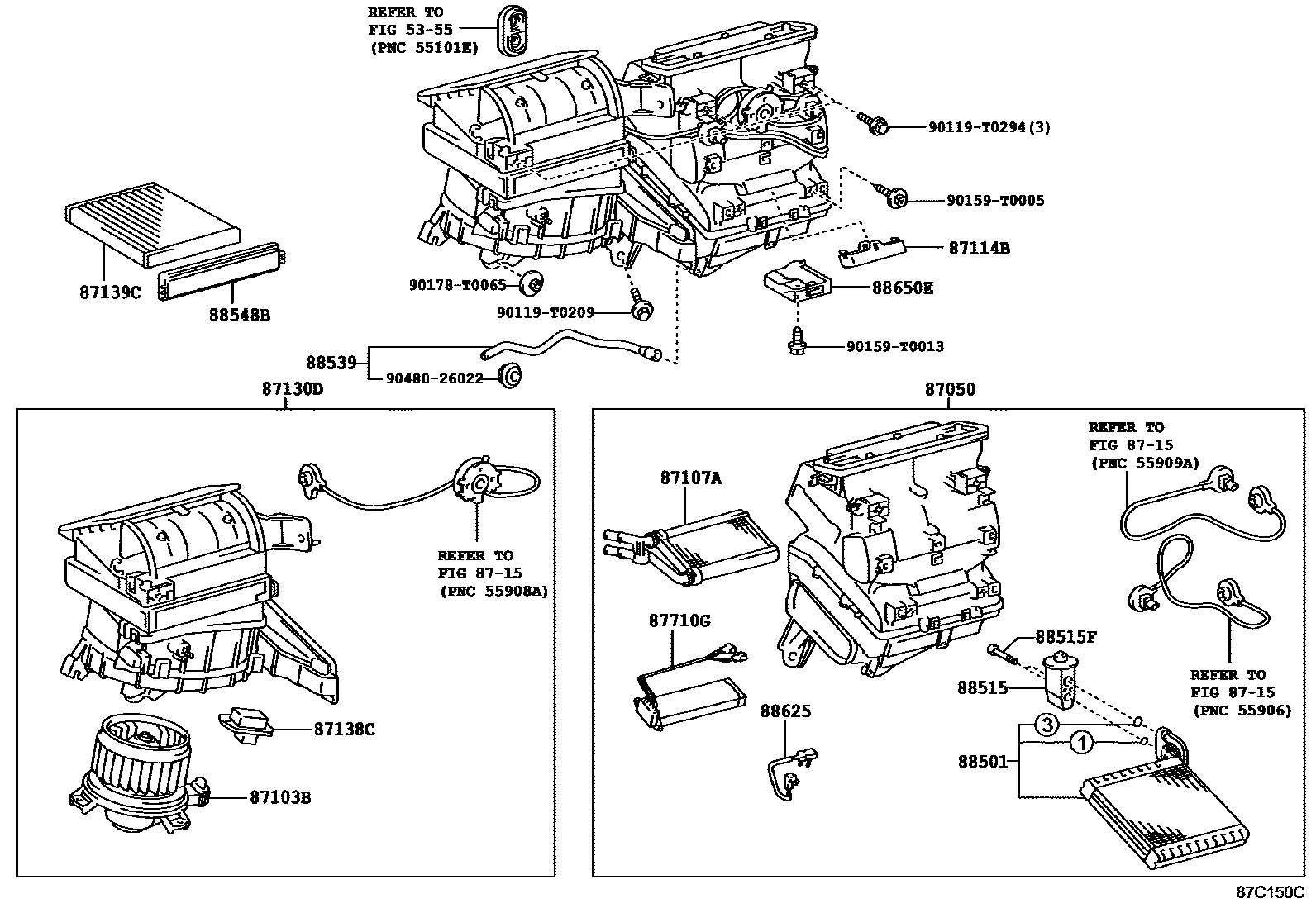

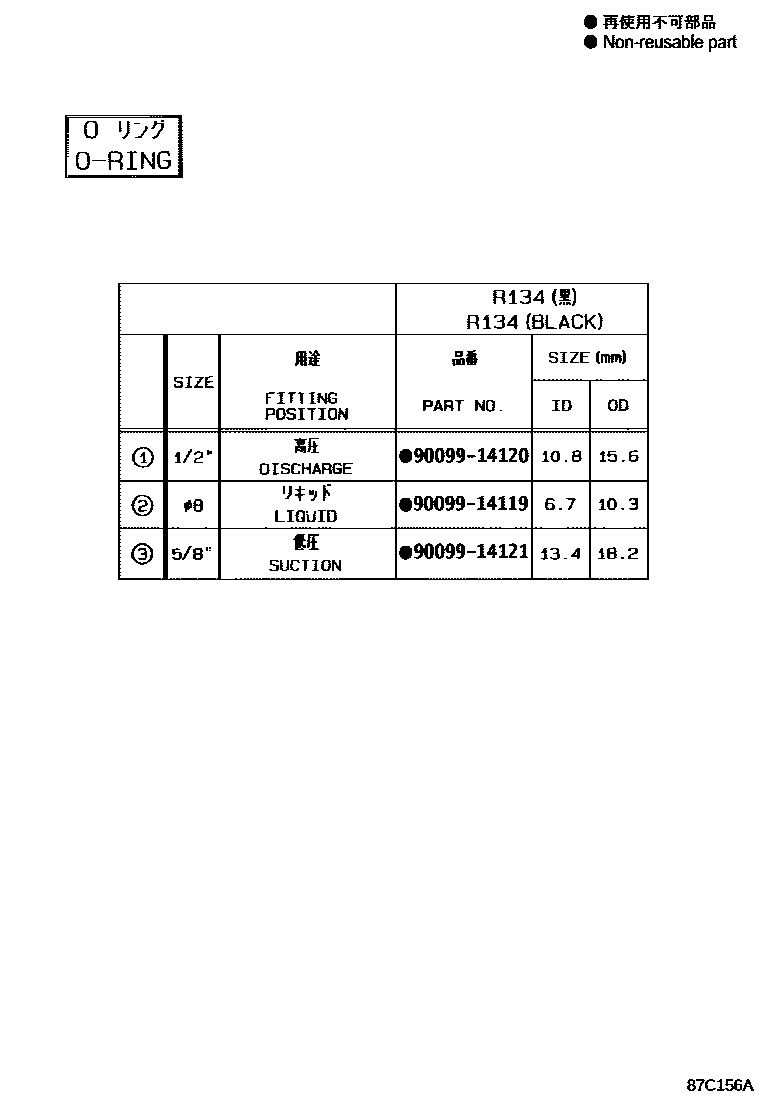

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 11 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-0K252 · 87050-0K262 · 87050-0K272 · 87050-0K282 · 87050-0K412 · 87050-0K422 · 87050-0K452 · 87050-0K492 · 87050-0K711 · 87050-0K721 |
| 87103B | Blower motor sub-assembly with fan | 87103-02460 · 87103-02470 · 87103-0K200 · 87103-0K210 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02360 · 87106-0K100 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02370 · 87106-0K070 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02380 · 87106-02400 · 87106-0K060 |
| 87107A | Heater radiator device sub-assembly | 87107-02210 · 87107-02290 · 87107-0K010 · 87107-0K050 |
| 87114B | heater cover | 87114-0K010 · 87114-0K030 |
| 87130D | Blower assembly | 87130-0K103 · 87130-0K113 · 87130-0K141 · 87130-0K151 · 87130-0K220 · 87130-0K400 · 87130-0K410 |
| 87138C | Blower resistor | 87138-0K090 · 87138-0K110 |
| 87139C | air purification filter | 87139-50100 · 87139-52020 |
| 87165C | Blower motor control device | 87165-71020 |
| 87710G | Rapid heater assembly | 87710-0K061 · 87710-0K071 · 87710-0K081 · 87710-0K091 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K090 · 88501-12510 |
| 88515 | Cooler expansion valve | 88515-0K100 · 88515-0K170 · 88515-0K190 · 88515-0K200 · 88515-0K530 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 · 90099-04597 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0K010 · 88539-0K030 · 88539-0K050 · 88539-0K070 · 88539-0K290 |
| 88548B | air filter housing | 88548-0K010 · 88548-0K020 |
| 88625 | Cooler No. 1 Thermistor | 88620-02110 · 88625-02110 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0K030 · 88650-0K070 · 88650-0K130 · 88650-0K140 |
