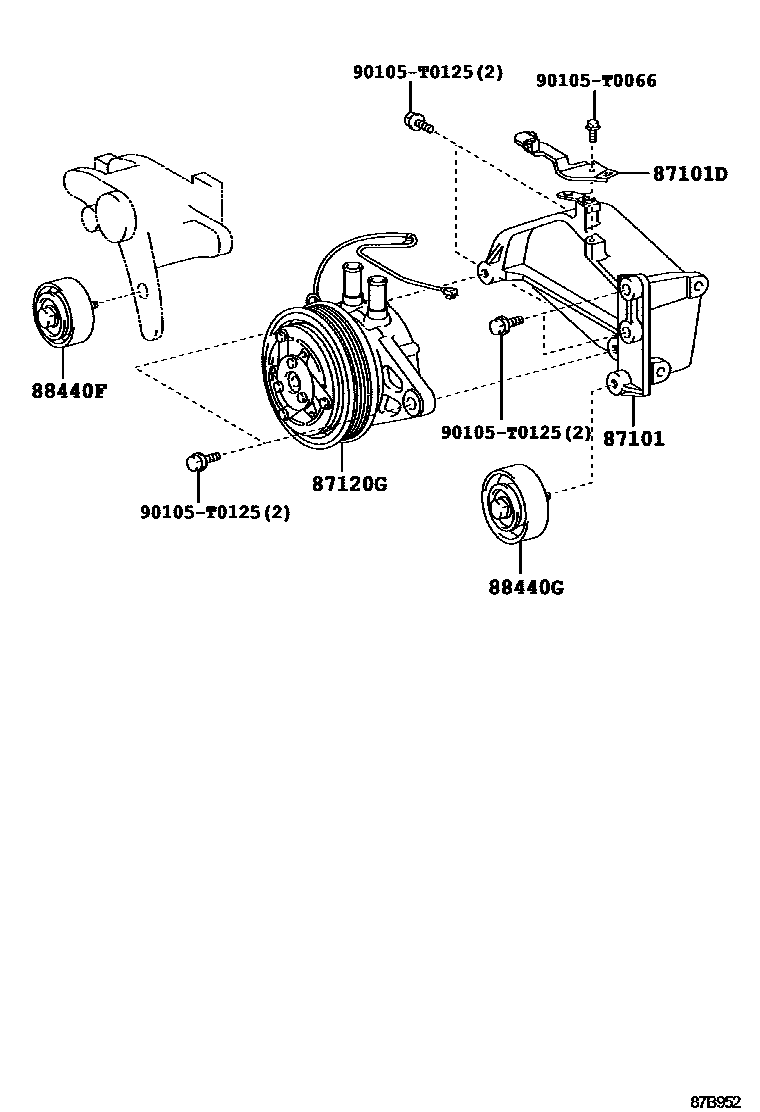

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101 | No. 1 viscous heater bracket sub-assembly | 87101-0K010 |
| 87101D | No. 2 viscous heater bracket sub-assembly | 87101-0K050 |
| 87120G | Viscous heater assembly with electromagnetic clutch | 87120-0K010 |
| 88440F | No. 1 idler gear assembly | 88440-0K010 · 88440-0K030 |
| 88440G | No. 2 idler gear assembly | 88440-0K060 · 88440-0K070 |
