Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.

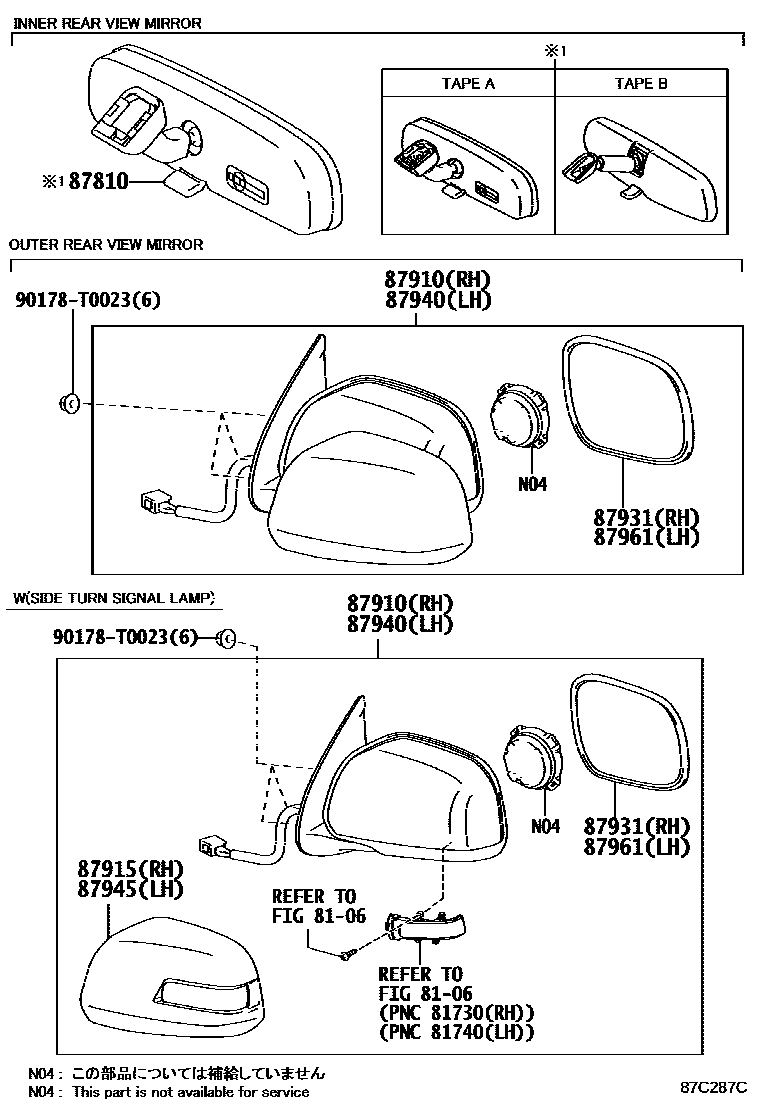

Toyota HILUX 后视镜 EPC diagram — 87C287C
后视镜 — 87C287C (201106 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06041 · 87810-AA011
87910Right exterior rearview mirror assembly87910-0K870 · 87910-0K890 · 87910-0KA10 · 87910-0KA20 · 87910-0KA30 · 87910-0KA60
87915Right exterior rearview mirror cover87915-0K190 · 87915-0K250
87931Right exterior rearview mirror87931-0K870 · 87931-0K890
87940Left exterior rearview mirror assembly87940-0K730 · 87940-0K750 · 87940-0K770 · 87940-0K780 · 87940-0K790 · 87940-0K820
87945Left exterior rearview mirror cap87945-0K190 · 87945-0K250
87961Left exterior rearview mirror87961-0K730 · 87961-0K750
