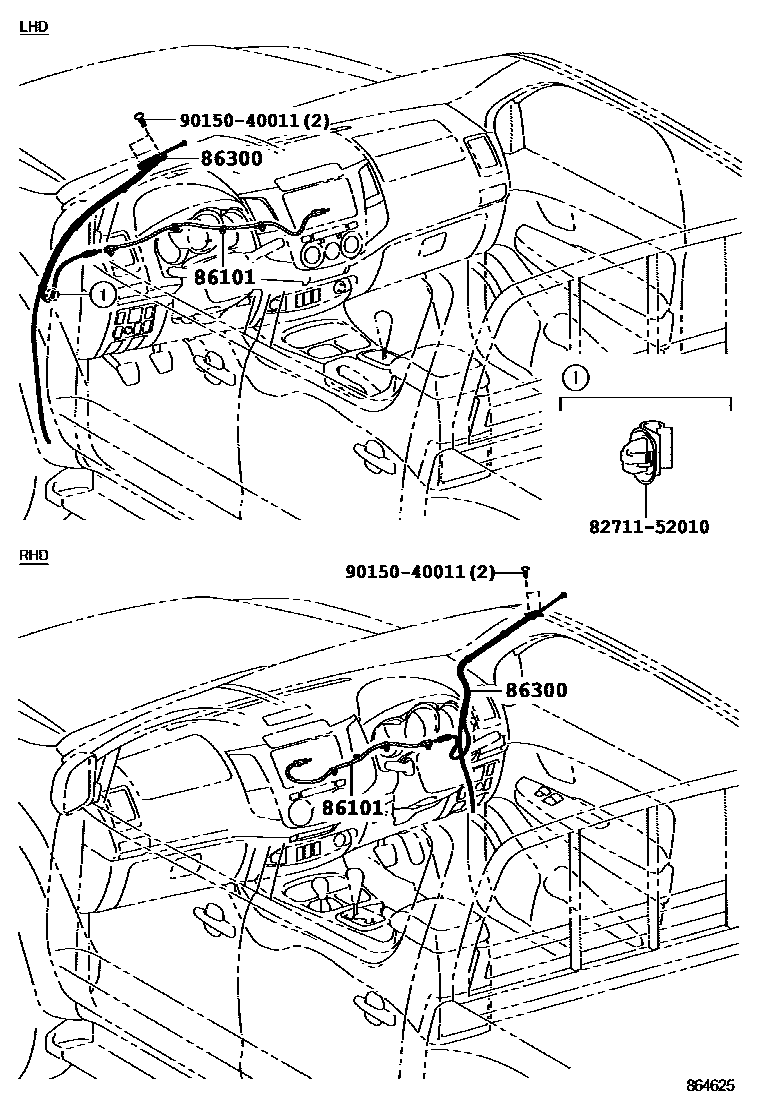

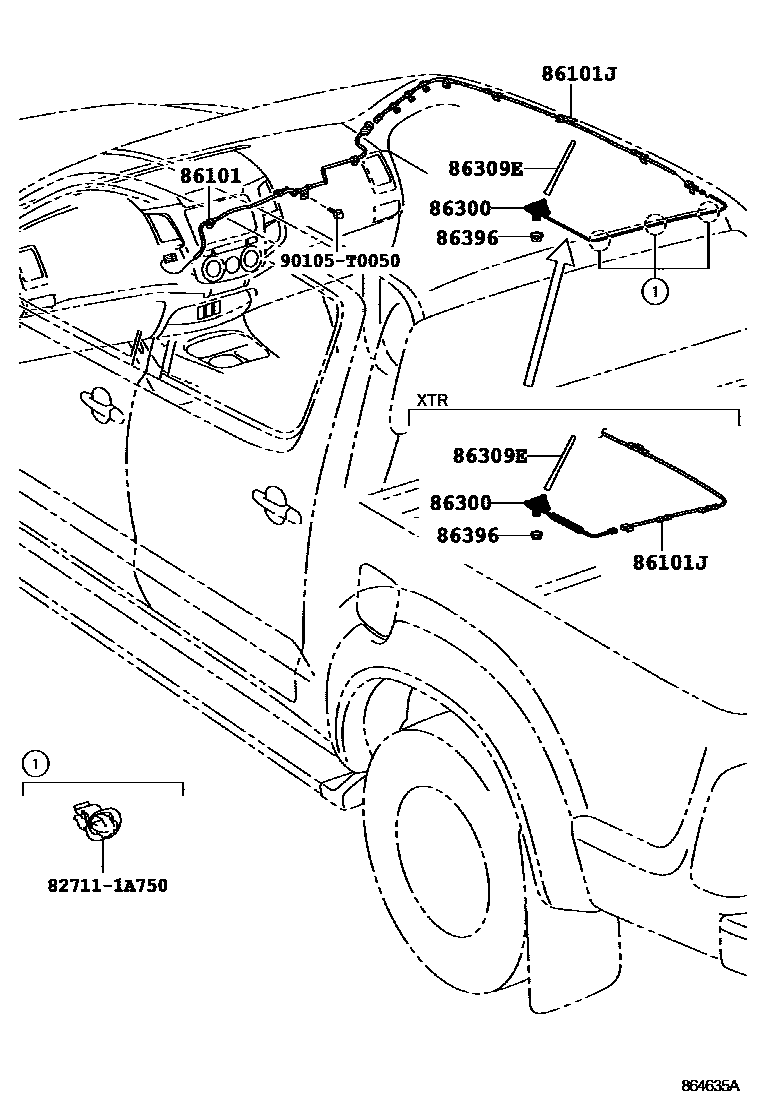

Toyota HILUX antenna — Figure 8604
Toyota HILUX EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0K270 · 86101-0K320 · 86101-0K340 · 86101-0K450 · 86101-0K550 · 86101-0K560 · 86101-0K600 · 86101-0K610 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-0K260 · 86101-0K420 · 86101-0K500 · 86101-0KD10 · 86101-0KD40 · 86101-0KD60 |
| 86300 | Antenna assembly with fixing parts | 86300-0K010 · 86300-0K050 · 86300-71030 · 86300-71050 · 86300-71080 · 86300-71090 |
| 86309E | Roof antenna sub-assembly | 86309-68020 |
| 86396 | Antenna nut | 86396-20040 |
