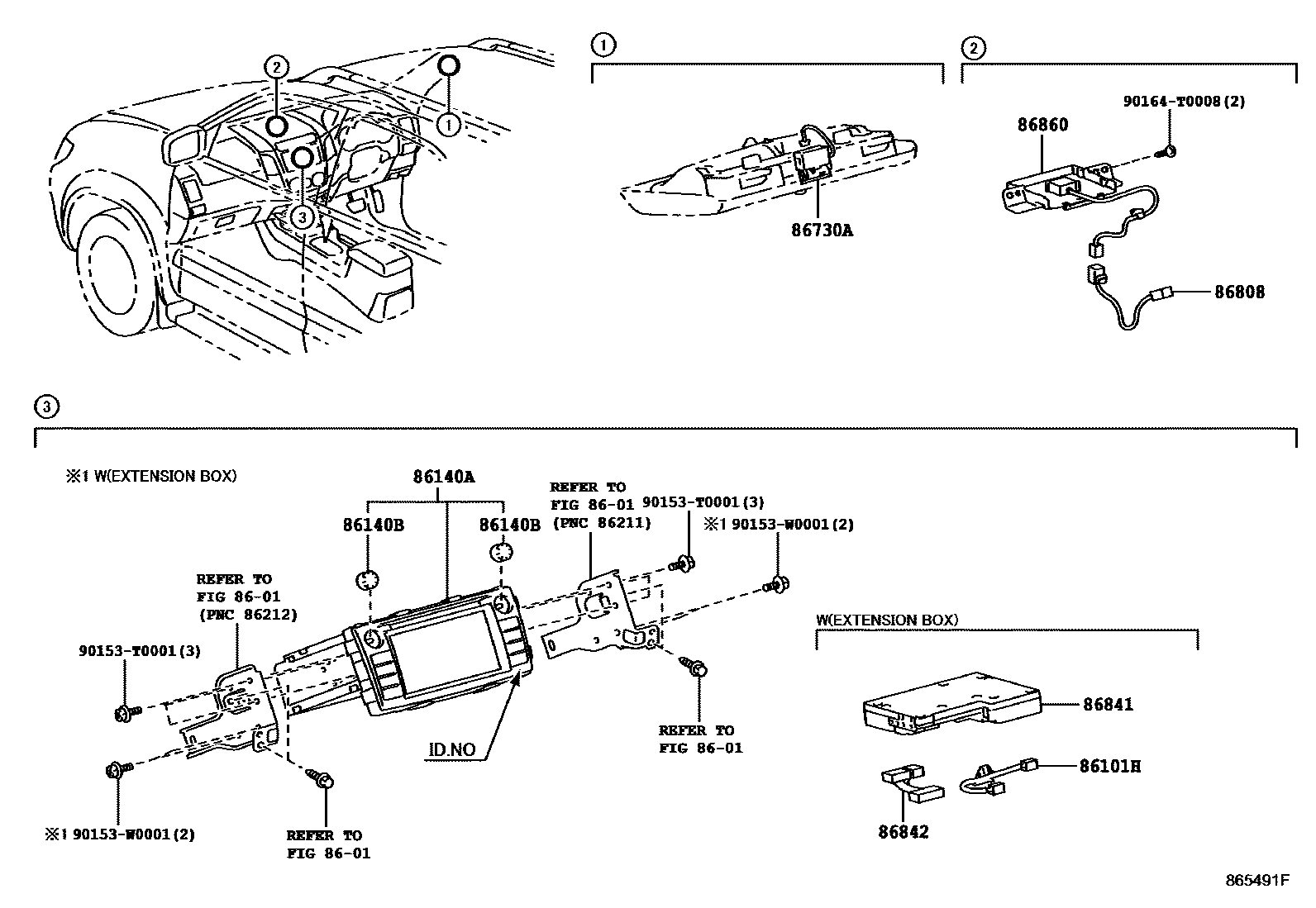

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101H | Antenna wire sub-assembly | 86705-02070 |
| 86140A | Radio and display receiver assembly | 86140-0K120 · 86140-0K130 · 86140-0K411 · 86140-0K421 |
| 86140B | Radio and display receiver switch button | 90011-25189 · 90011-25270 |
| 86730A | Telephone amplifier assembly | 86730-12030 · 86730-12050 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0K080 · 86808-0K090 · 86808-0K100 |
| 86841 | Navigation ECU | 86840-02011 · 86840-02012 · 86840-02013 · 86840-02014 · 86840-0W010 · 86840-0W011 · 86840-0W012 · 86840-0W013 |
| 86842 | Navigation harness No. 1 | 86842-12010 |
| 86860 | Navigation antenna assembly | 86860-71011 · 86860-71012 |
