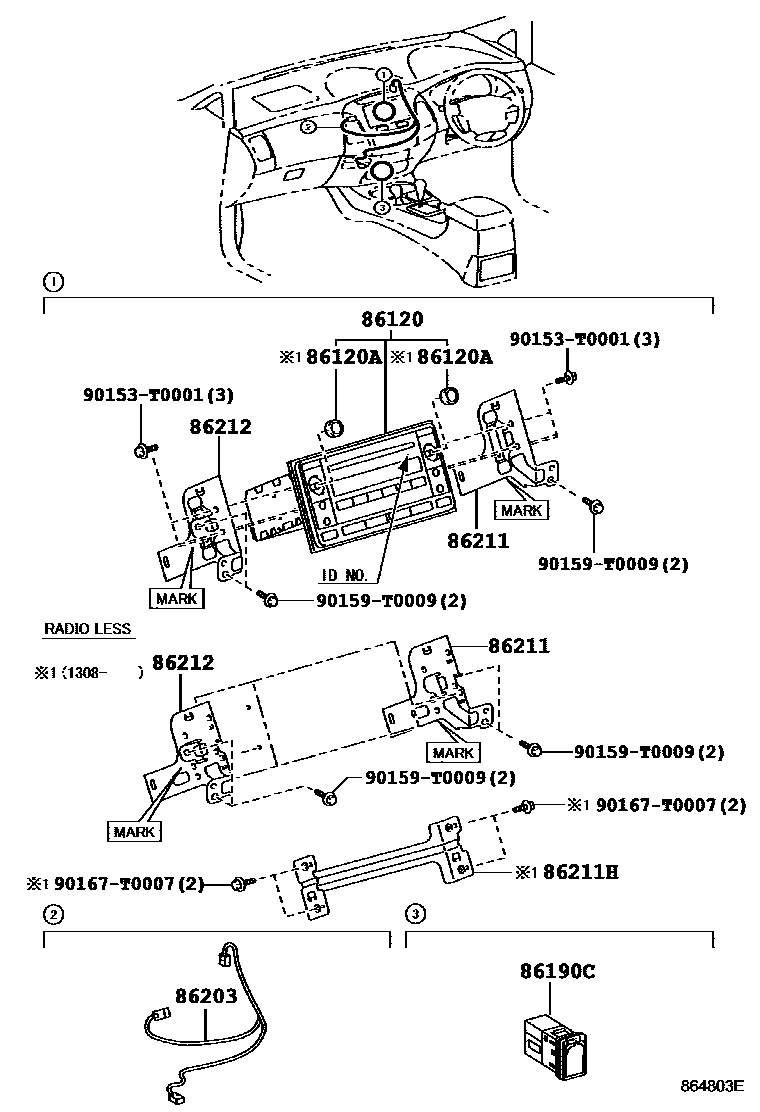

Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601
Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120 | Radio assembly | 86120-0K490 · 86120-0K550 · 86120-0KC11 |
| 86120A | Radio switch knob | 90011-25246 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0K010 · 86190-0K030 |
| 86203 | radio wiring harness | 86203-71020 · 86203-71060 · 86203-71090 · 86203-71100 |
| 86211 | No. 1 radio bracket | 86211-0K030 · 86211-0K040 · 86211-0K070 · 86211-0K090 |
| 86211H | No. 2 radio bracket | 86211-0K110 |
| 86212 | No. 2 radio bracket | 86212-0K030 · 86212-0K040 · 86212-0K070 · 86212-0K090 · 86212-0K100 |
