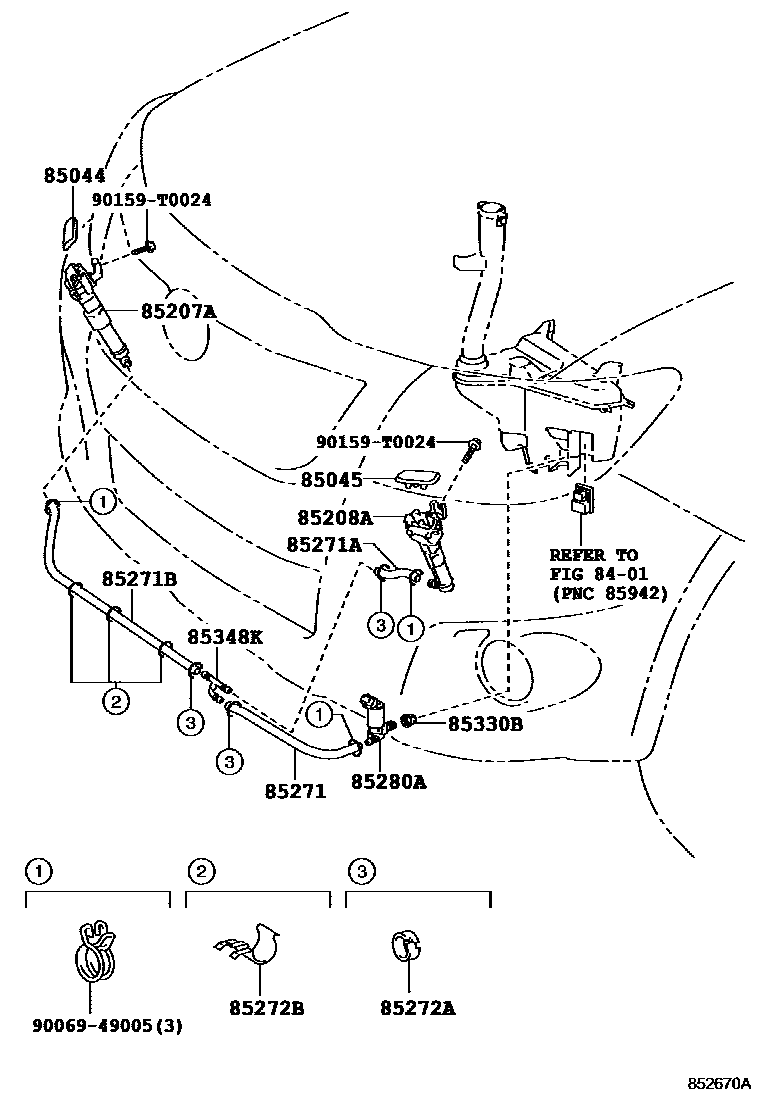

Toyota HILUX 前大灯清洗器 — Figure 8505
Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85046-71020 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85047-71020 |
| 85207A | Right headlight washer actuator sub-assembly | 85207-0K020 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-0K020 |
| 85271 | No. 1 headlight washer hose | 85277-0K010 |
| 85271A | No. 2 headlight washer hose | 85276-0K020 |
| 85271B | No. 3 headlight washer hose | 85275-0K010 |
| 85272A | Headlight washer No. 1 clip | 85273-20020 |
| 85272B | Headlight washer clip No. 2 | 90075-90509 |
| 85280A | Headlight washer motor and pump assembly | 85280-30040 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348K | No. 1 headlight washer elbow joint | 85279-0K010 |
