Toyota HILUX 挡风玻璃清洗器 — Figure 8503

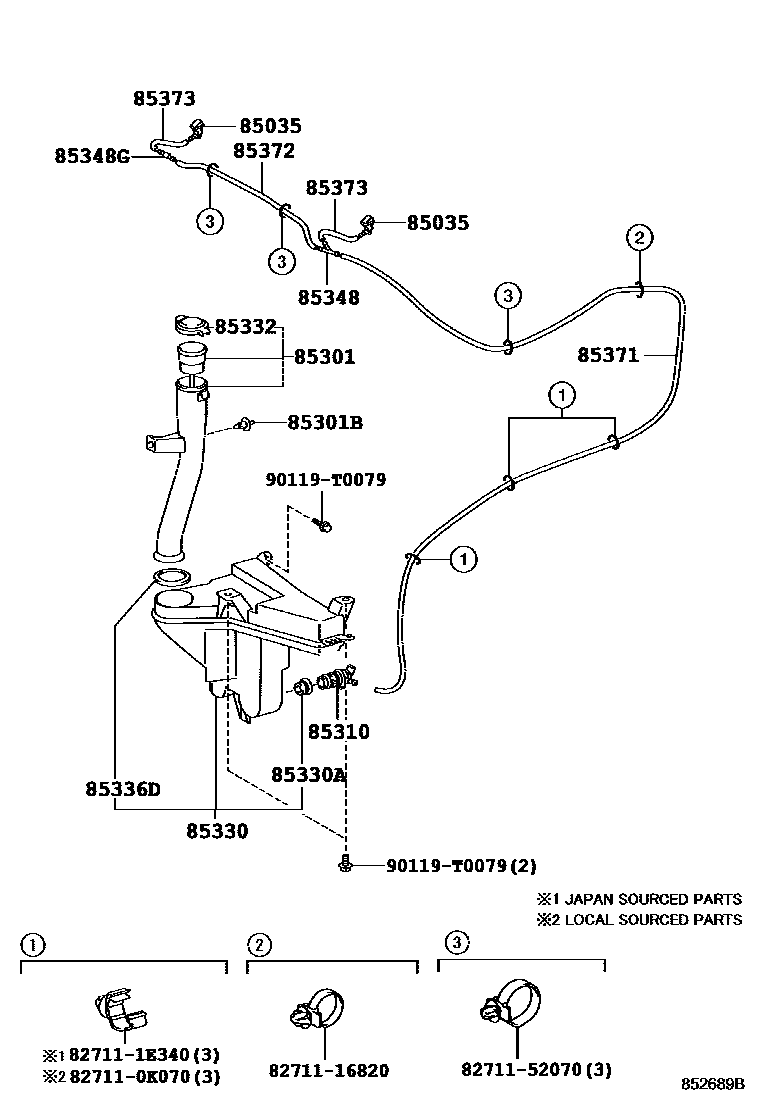

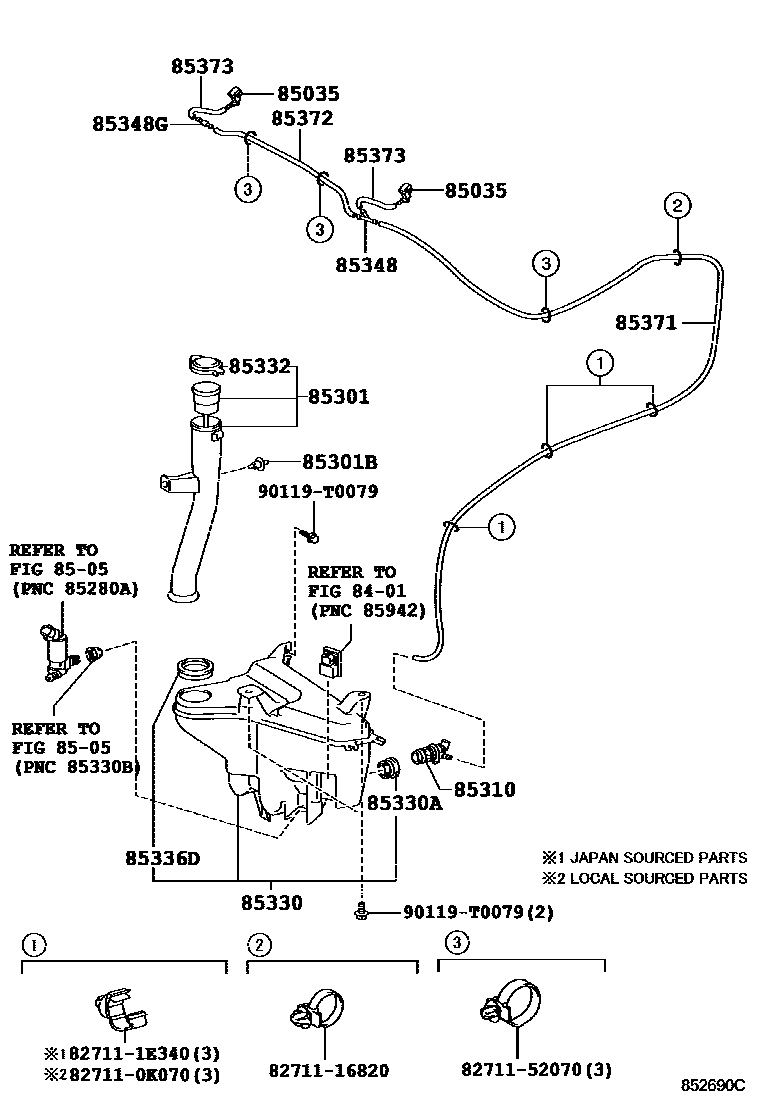

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0K010 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0K010 |
| 85310 | Windshield washer motor and pump assembly | 85330-71010 |
| 85330 | Windshield washer fluid tank assembly | 85315-0K010 · 85355-71011 |
| 85330A | Windshield washer fluid tank bushing | 85336-0K020 · 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-0K010 |
| 85336D | Windshield washer fluid tank seal | 85336-0K010 · 85336-42190 |
| 85348 | Windshield washer hose connector No. 1 | 85378-0K051 |
| 85348G | Windshield washer hose connector No. 2 | 85375-02330 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33108 |
