Toyota HILUX 挡风玻璃刮水器 — Figure 8501

Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 9 PNC and OE references.

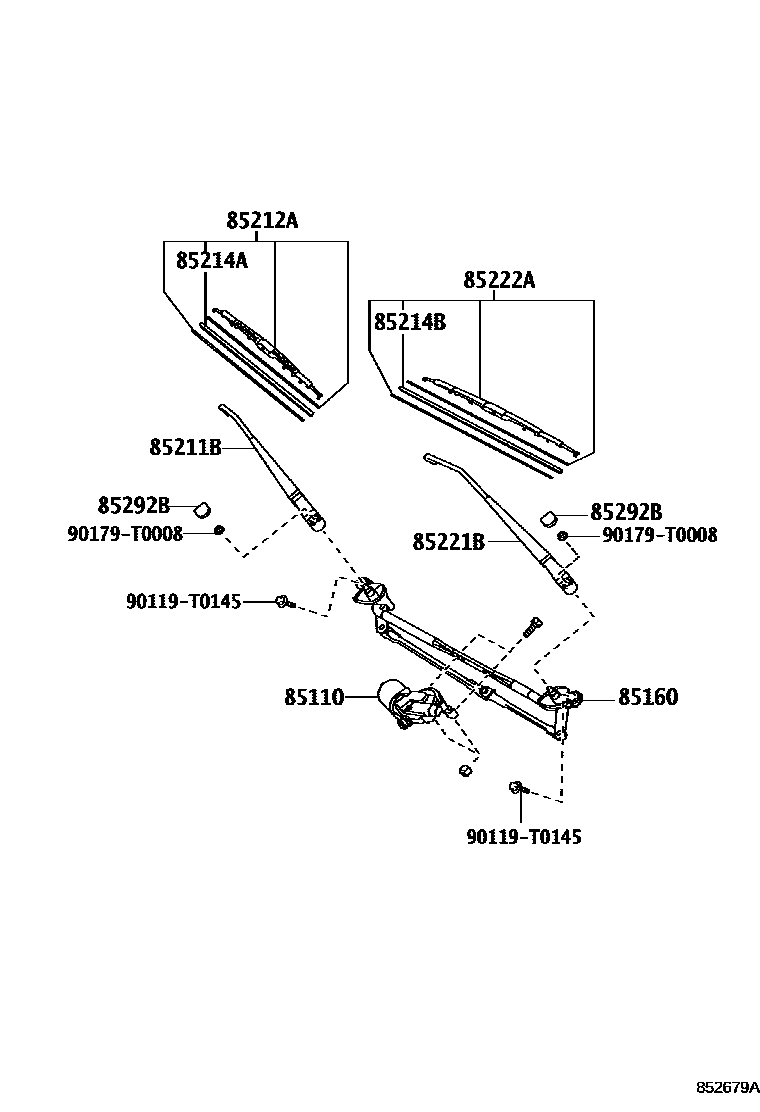

Toyota HILUX 挡风玻璃刮水器 EPC diagram — 852679A
挡风玻璃刮水器 — 852679A (201107 – 999999)

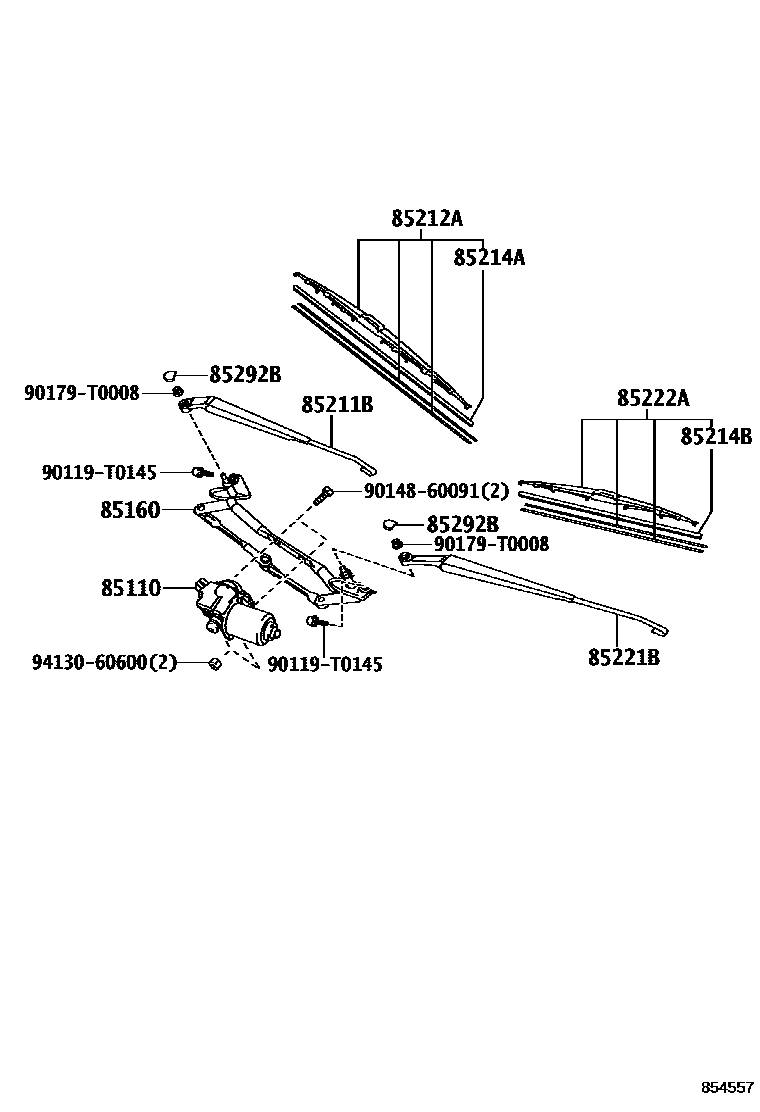

Toyota HILUX 挡风玻璃刮水器 EPC diagram — 854557
挡风玻璃刮水器 — 854557 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-0K051 · 85110-0K061
85160Windshield wiper connecting rod assembly85150-0K051 · 85150-0K061
85211BRight front wiper arm85211-0K020 · 85211-0K030
85212ARight front wiper blade85212-0K020 · 85212-0K031
85214ARight wiper rubber strip85214-0K040 · 85214-0K051
85214BLeft wiper rubber strip85214-0K040 · 85214-0K051
85221BLeft front wiper arm85221-0K010 · 85221-0K030
85222ALeft front wiper blade85222-0K010 · 85222-0K031
85292BFront wiper arm cap85292-0K030
