Toyota HILUX 防盗装置 — Figure 8424

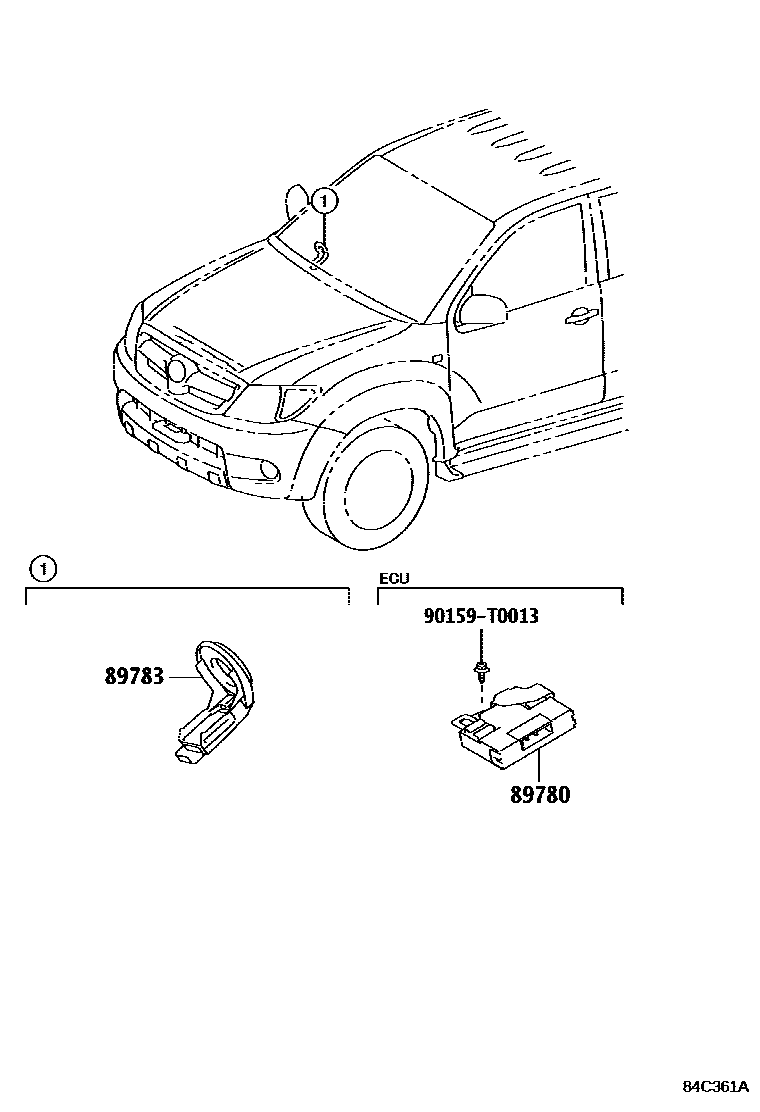

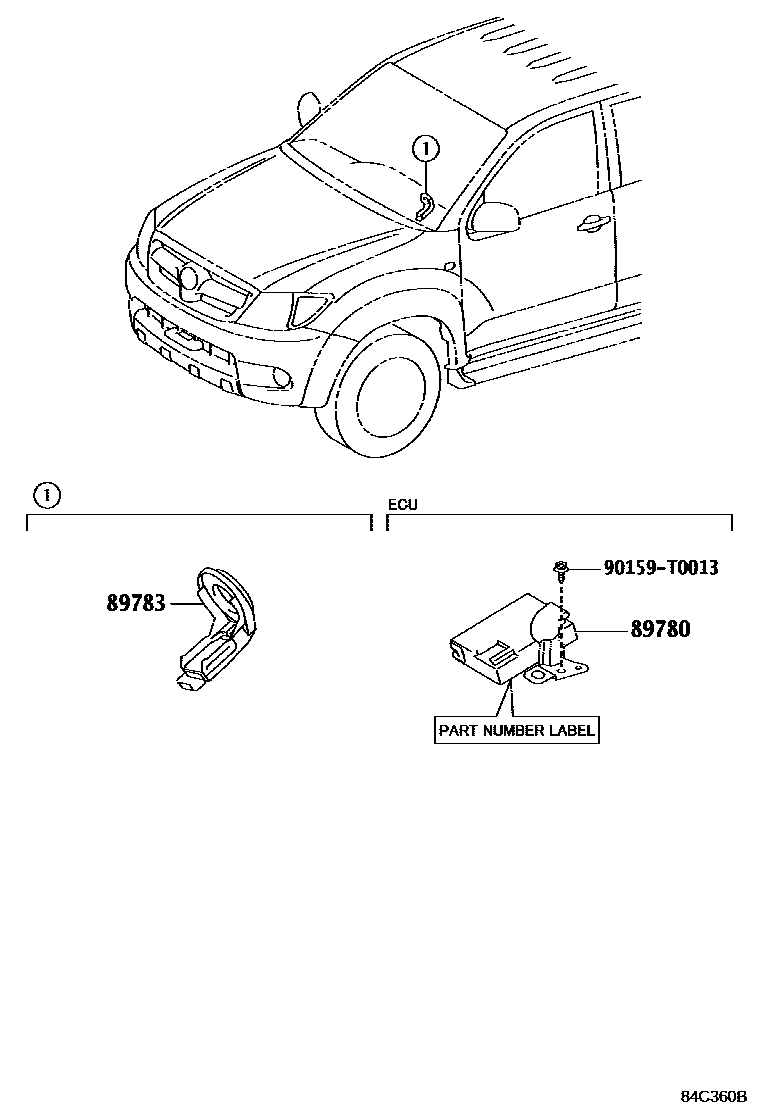

Toyota HILUX EPC diagram 8424, 防盗装置, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-71050 · 89780-71060 |
| 89783 | transceiver key amplifier | 89783-22022 · 89783-22023 · 89783-71041 · 89783-71042 |
