Toyota HILUX 空气囊 — Figure 8421

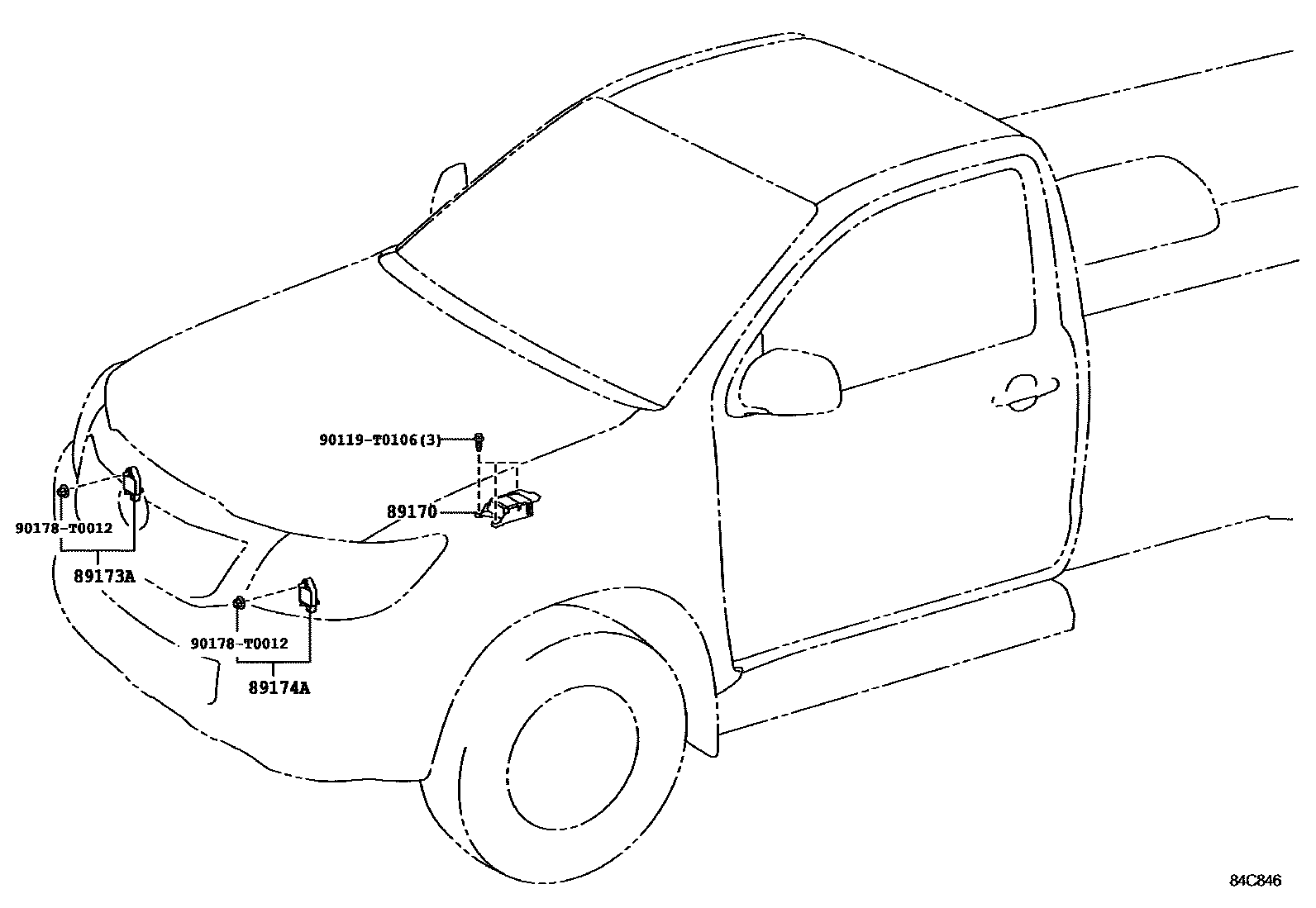

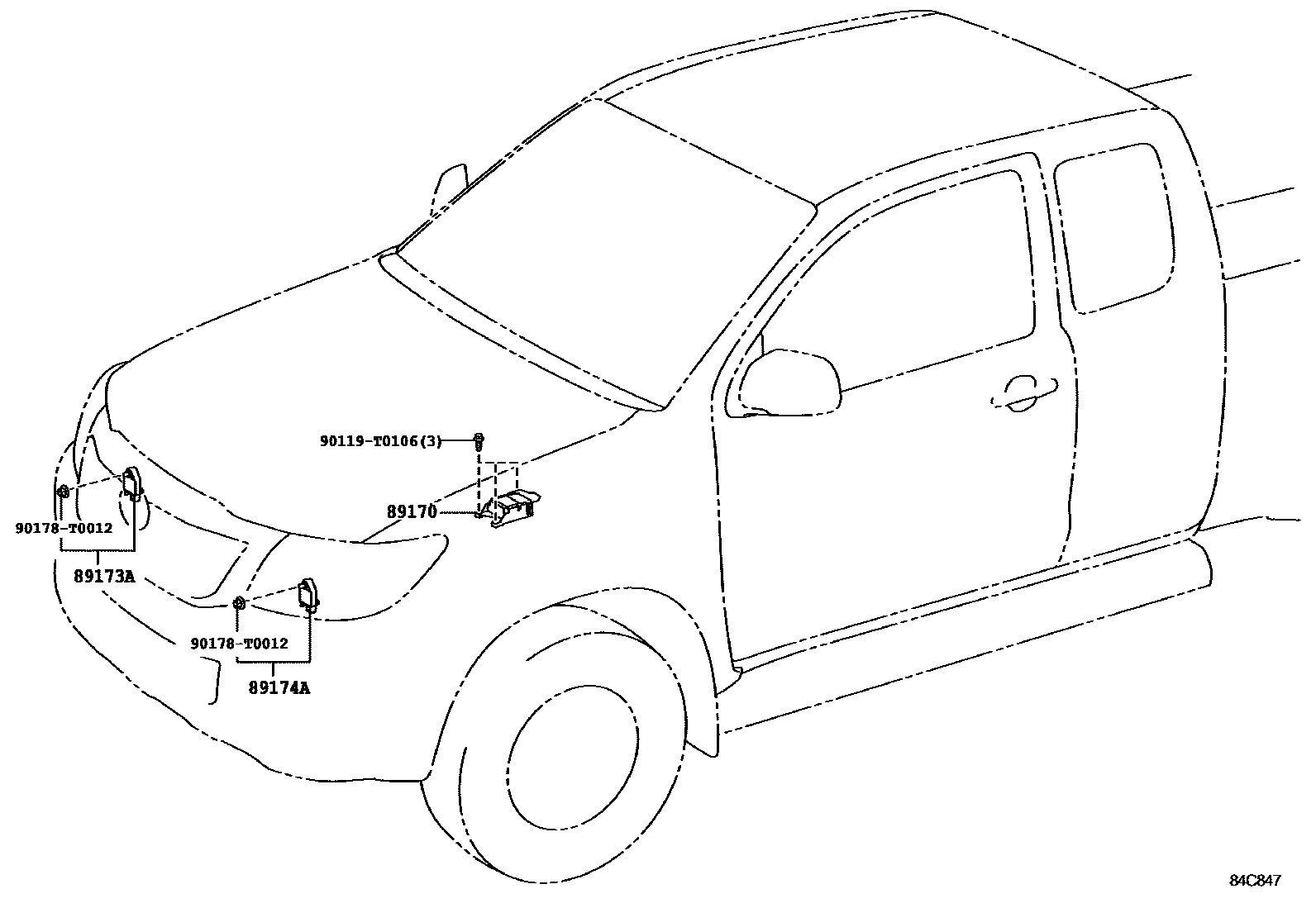

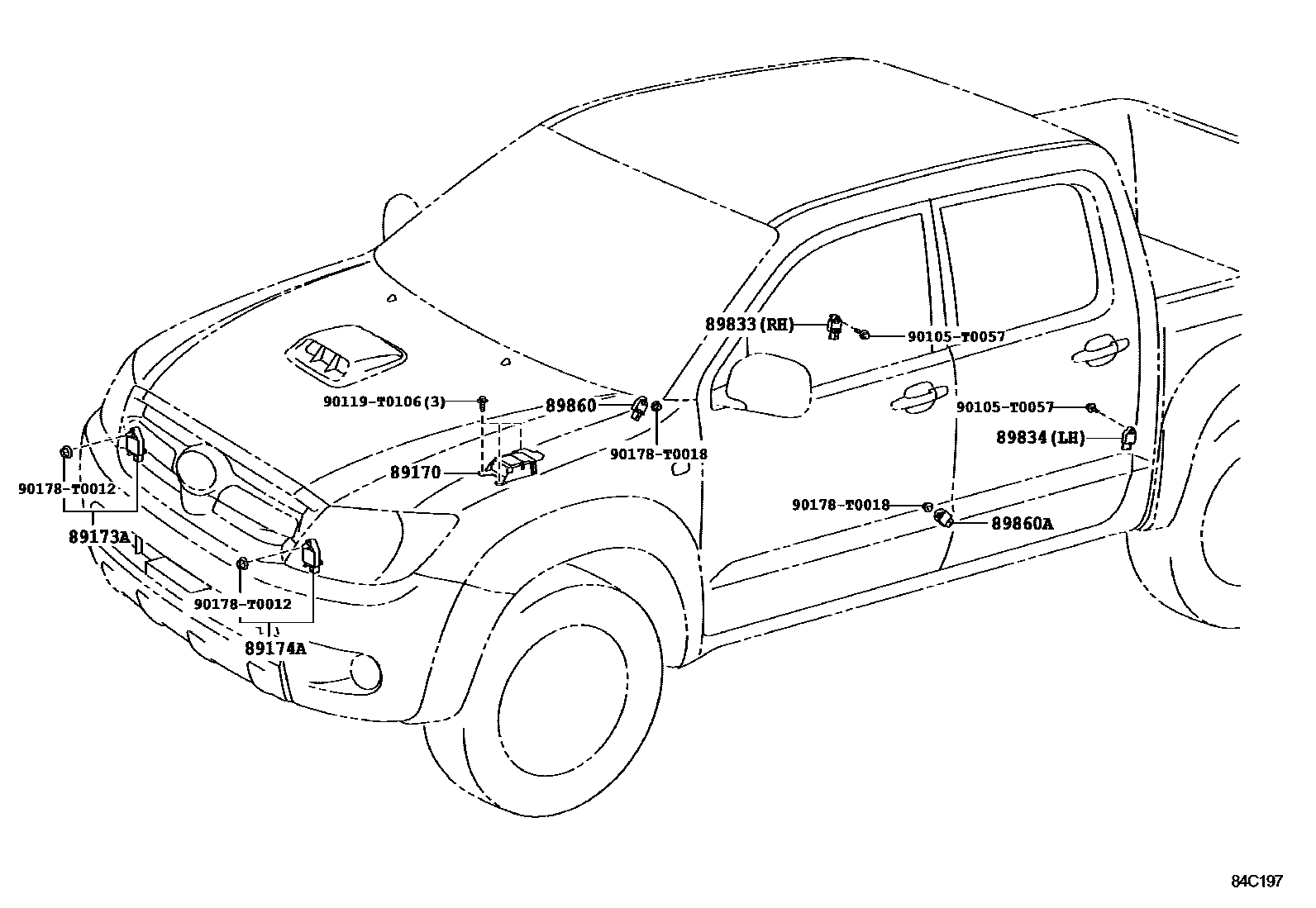

Toyota HILUX EPC diagram 8421, 空气囊, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-0K091 · 89170-0K111 · 89170-0K141 |
| 89173A | Right front air bag sensor | 89173-09550 |
| 89174A | Left front air bag sensor | 89173-09550 |
| 89833 | Right rear air bag sensor | 89831-04020 · 89831-0K010 |
| 89834 | Left rear air bag sensor | 89831-04020 · 89831-0K010 |
| 89860 | Right side airbag sensor assembly | 89831-06030 · 89831-0W050 |
| 89860A | Left side air bag sensor assembly | 89831-06030 · 89831-0W050 |
