Toyota HILUX 电子控制柴油机(ECD) — Figure 8405

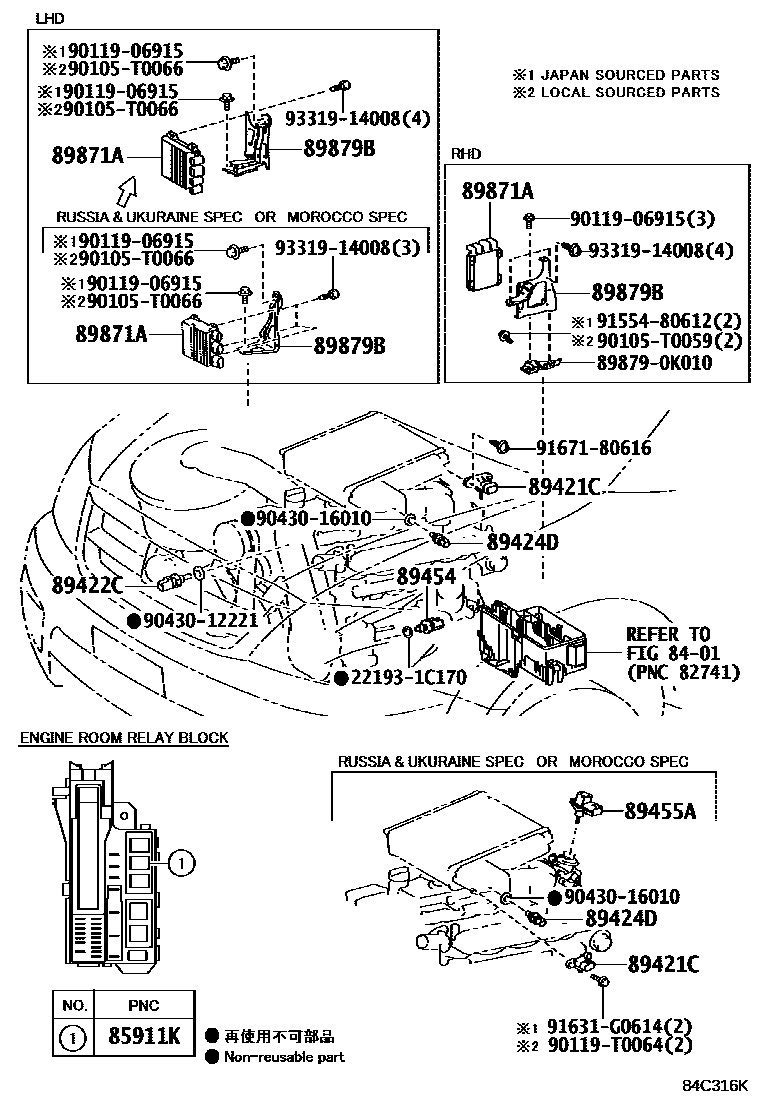

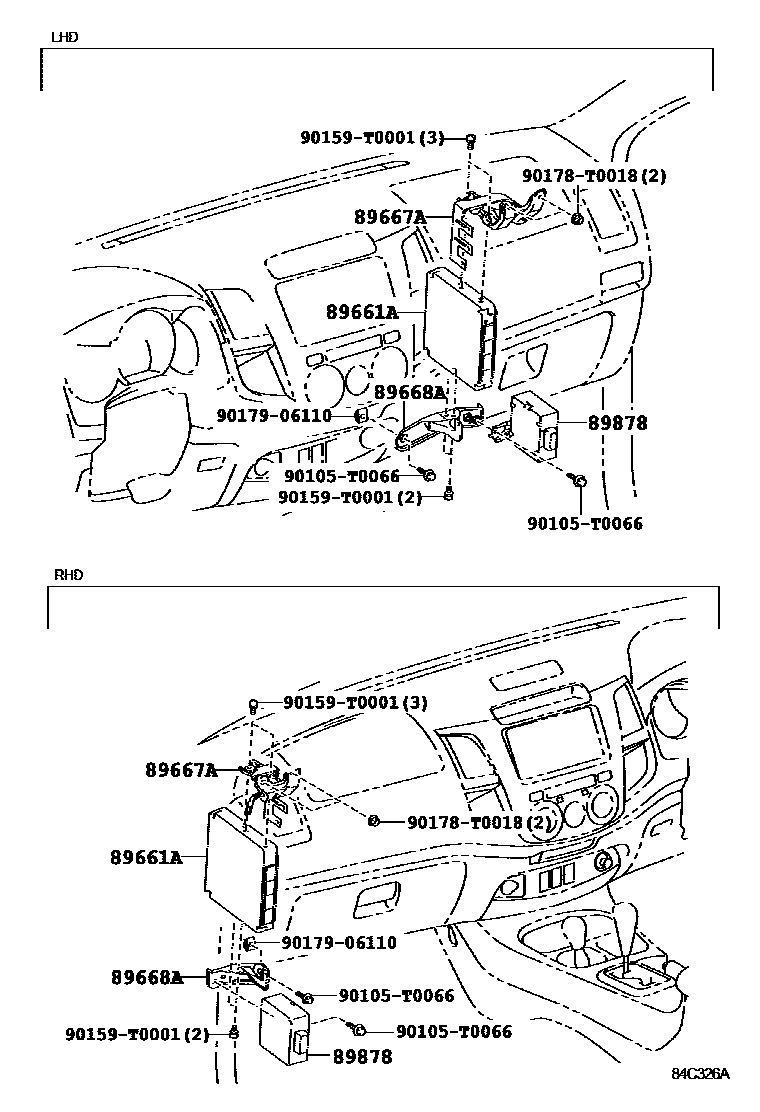

Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911K | Heater relay (for air-fuel ratio sensor) | 90987-02027 · 90987-T2001 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-71030 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-20010 |
| 89455A | EGR valve position sensor | 89455-35020 |
| 89661A | Engine control ECU | 89661-0KN51 · 89661-0KQ51 · 89661-0KQ91 · 89661-0KR01 · 89661-0KV90 · 89661-0KW00 · 89661-0KW20 · 89661-0KW30 · 89661-0KW50 · 89661-0KW60 · 89661-0KW70 · 89661-0KW80 |
| 89667A | No. 1 engine control ECU bracket | 89667-0K020 · 89667-0K040 · 89667-0K050 · 89667-0K060 |
| 89668A | No. 2 engine control ECU bracket | 89668-0K040 · 89668-0K060 · 89668-0K070 · 89668-0K080 |
| 89871A | Injector driver | 89871-20080 · 89871-25010 |
| 89878 | Turbine Motor Drive | 89878-71050 |
| 89879B | Injector driver bracket | 89879-71040 · 89879-71050 · 89879-71070 |
