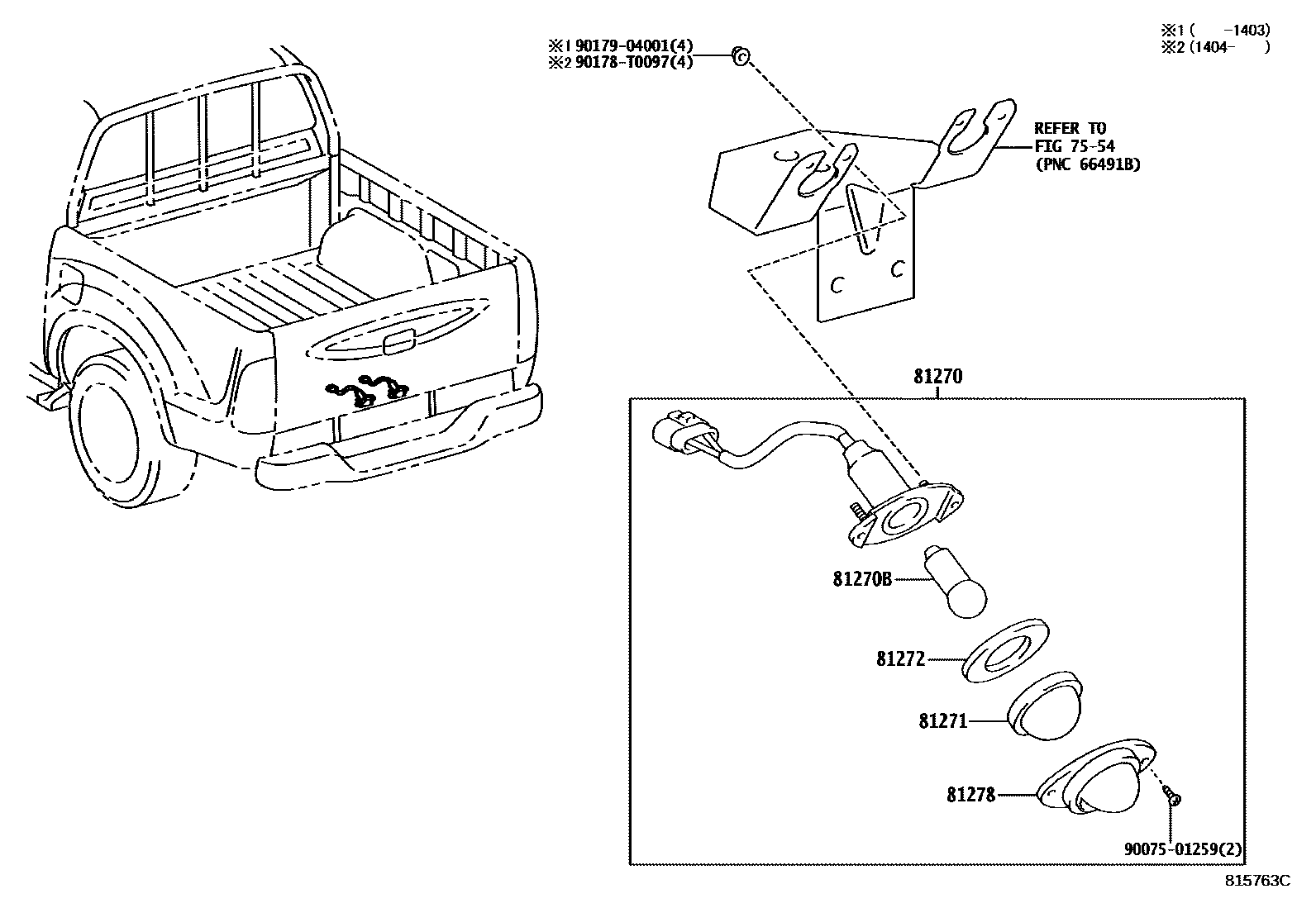

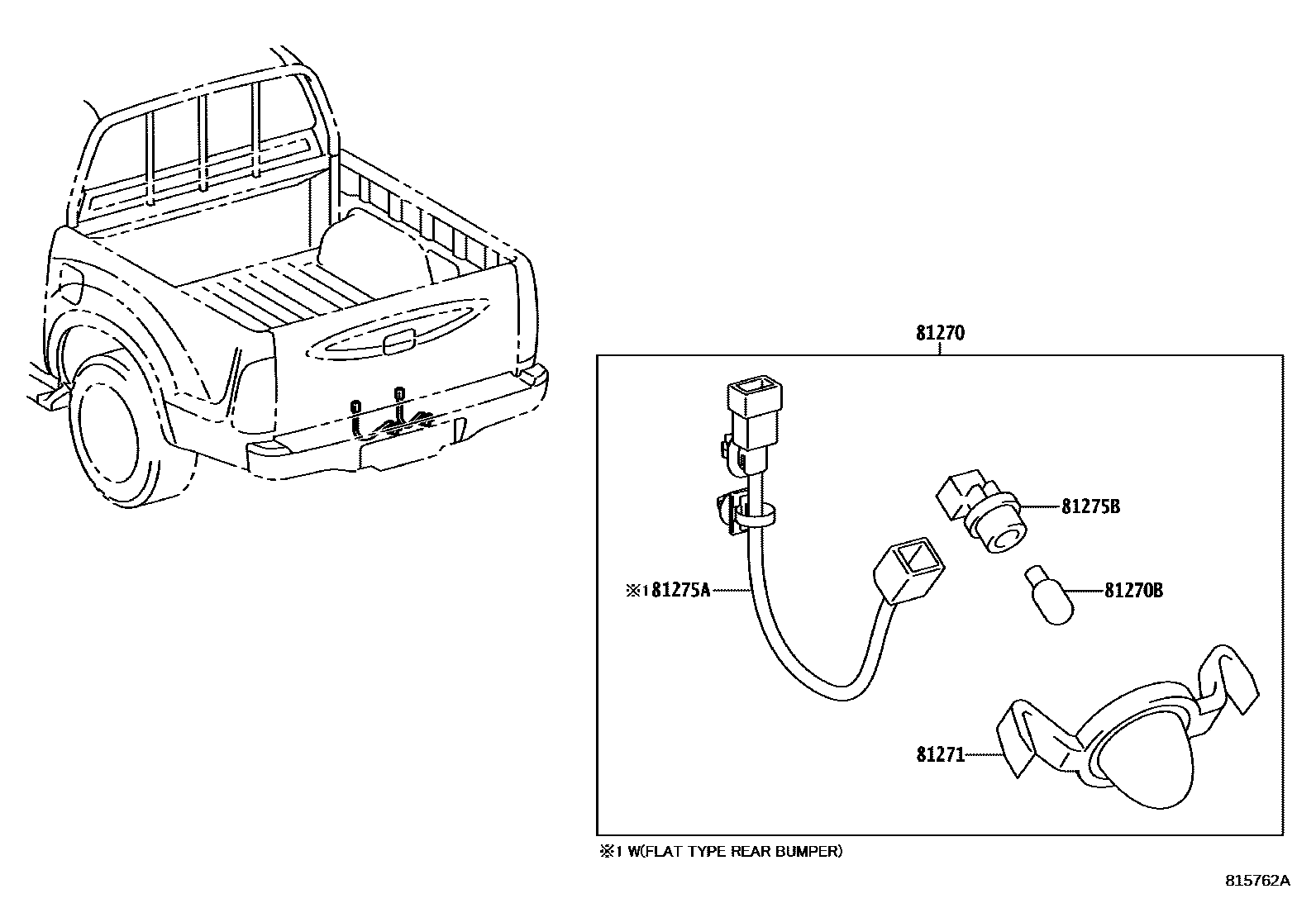

Toyota HILUX 后牌照灯 — Figure 8113
Toyota HILUX EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-04040 · 81270-0K010 · 81270-71011 |
| 81270B | Bulb (for license plate light) | 90981-12013 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-04040 · 81271-25040 |
| 81272 | License plate lamp shade gasket | 81272-37020 |
| 81275A | License plate light wire | 81275-0K010 |
| 81275B | License plate light lamp holder plug | 90075-99012 |
| 81278 | license plate light cover | 81278-25040 |
