Toyota HILUX 扰流板和侧挡泥板 — Figure 7652

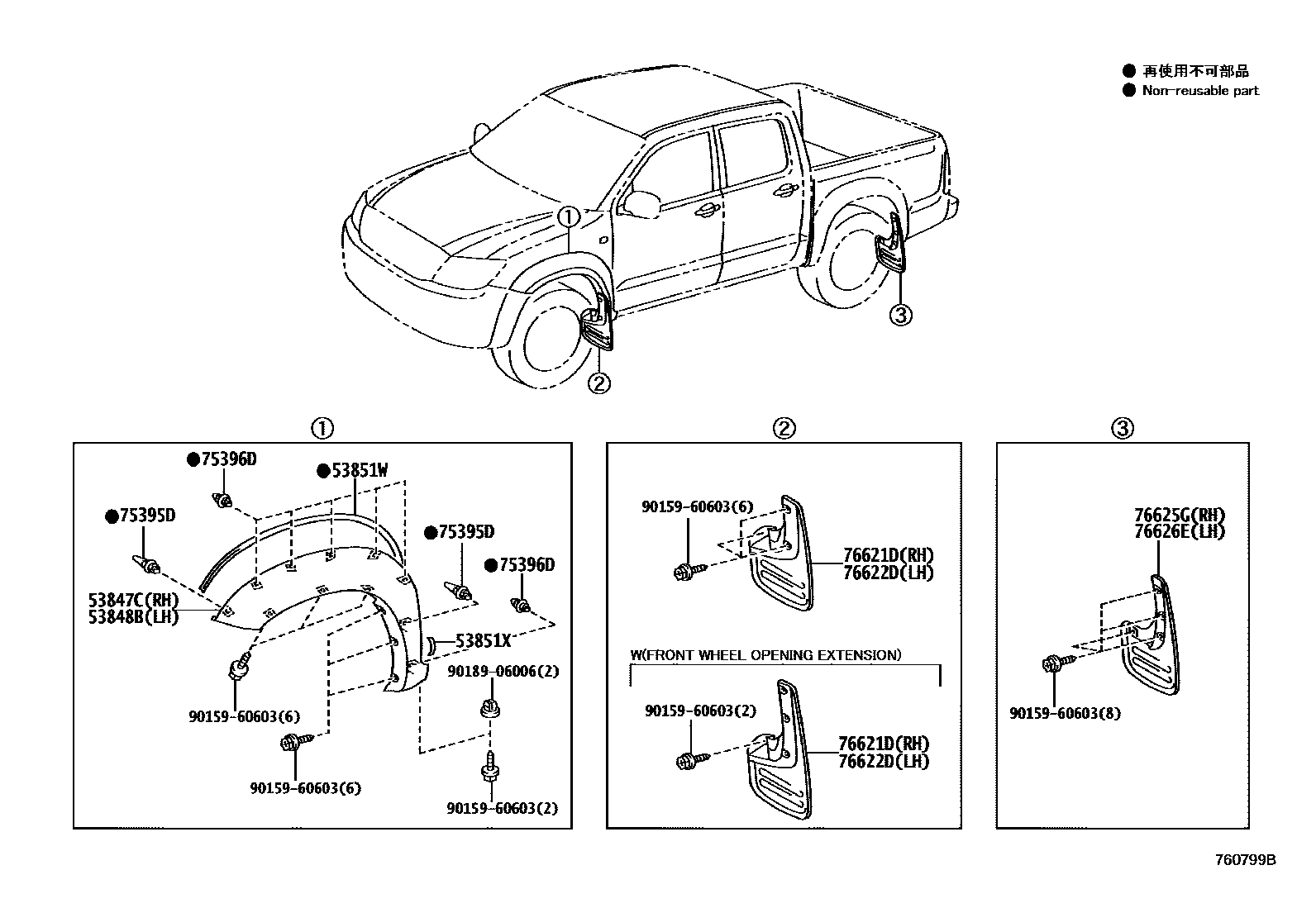

Toyota HILUX EPC diagram 7652, 扰流板和侧挡泥板, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53847C | Right front fender external panel | 53847-0K907 · 53847-0K910 |
| 53848B | Left front fender external panel | 53848-0K907 · 53848-0K910 |
| 53851X | No. 1 front fender outer panel pad | 53855-0K011 |
| 75395D | No. 1 outer protective strip clip | 75395-0K010 · 75395-35070 |
| 75396D | No. 2 outer protective strip clip | 75396-35020 |
| 76621D | Right front fender fender | 76621-0K010 · 76621-0K040 · 76621-0K100 · 76621-0K110 |
| 76622D | Left front fender fender | 76622-0K010 · 76622-0K040 · 76622-0K100 · 76622-0K110 |
| 76625G | Right rear side fender | 76625-0K130 · 76625-0K140 · 76625-0K141 · 76625-0K150 · 76625-0K160 · 76625-0K161 |
| 76626E | Left rear side fender | 76626-0K130 · 76626-0K140 · 76626-0K141 · 76626-0K150 · 76626-0K160 · 76626-0K161 |
