Toyota HILUX battery holder — Figure 7454

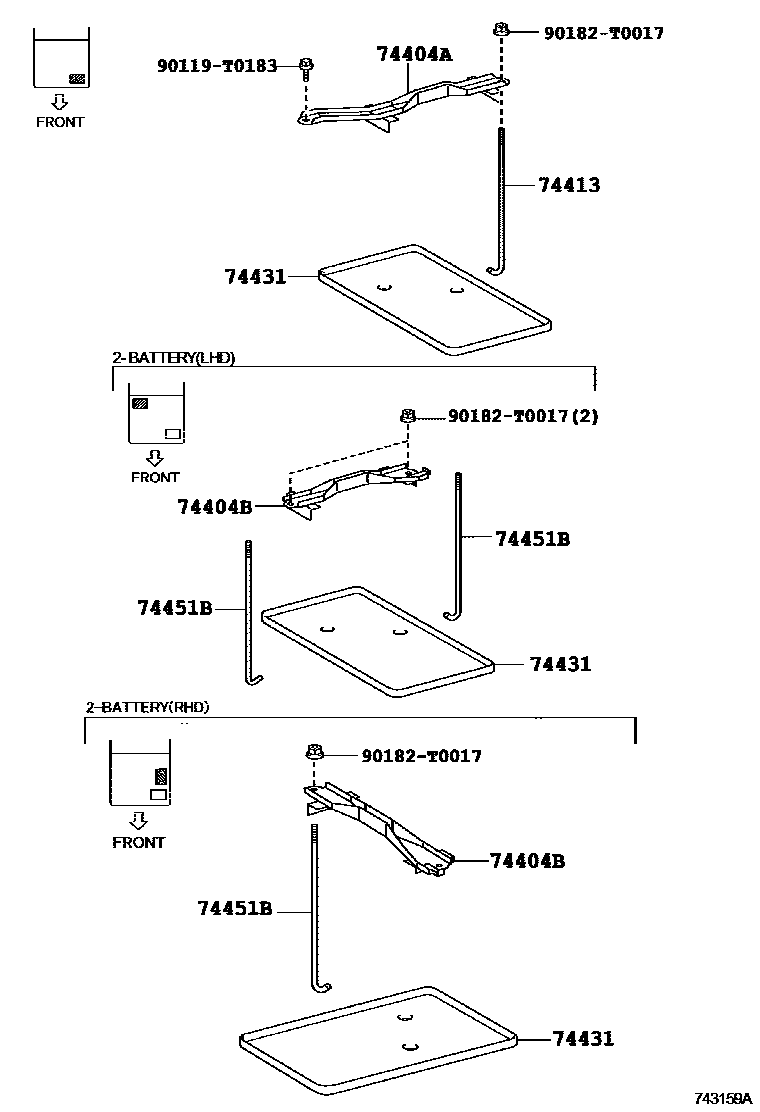

Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-0K010 · 74404-0K071 · 74404-0K120 |
| 74404B | Battery clip sub-assembly | 74404-0K030 · 74404-0K061 · 74404-0K240 |
| 74413 | Battery clamp bolt | 74451-0K010 · 74451-0K030 |
| 74431 | battery tray | 74431-04050 · 74431-04070 · 74431-0K030 · 74431-0K040 |
| 74451B | Battery clamp bolt | 74451-0K020 · 74451-0K040 |
