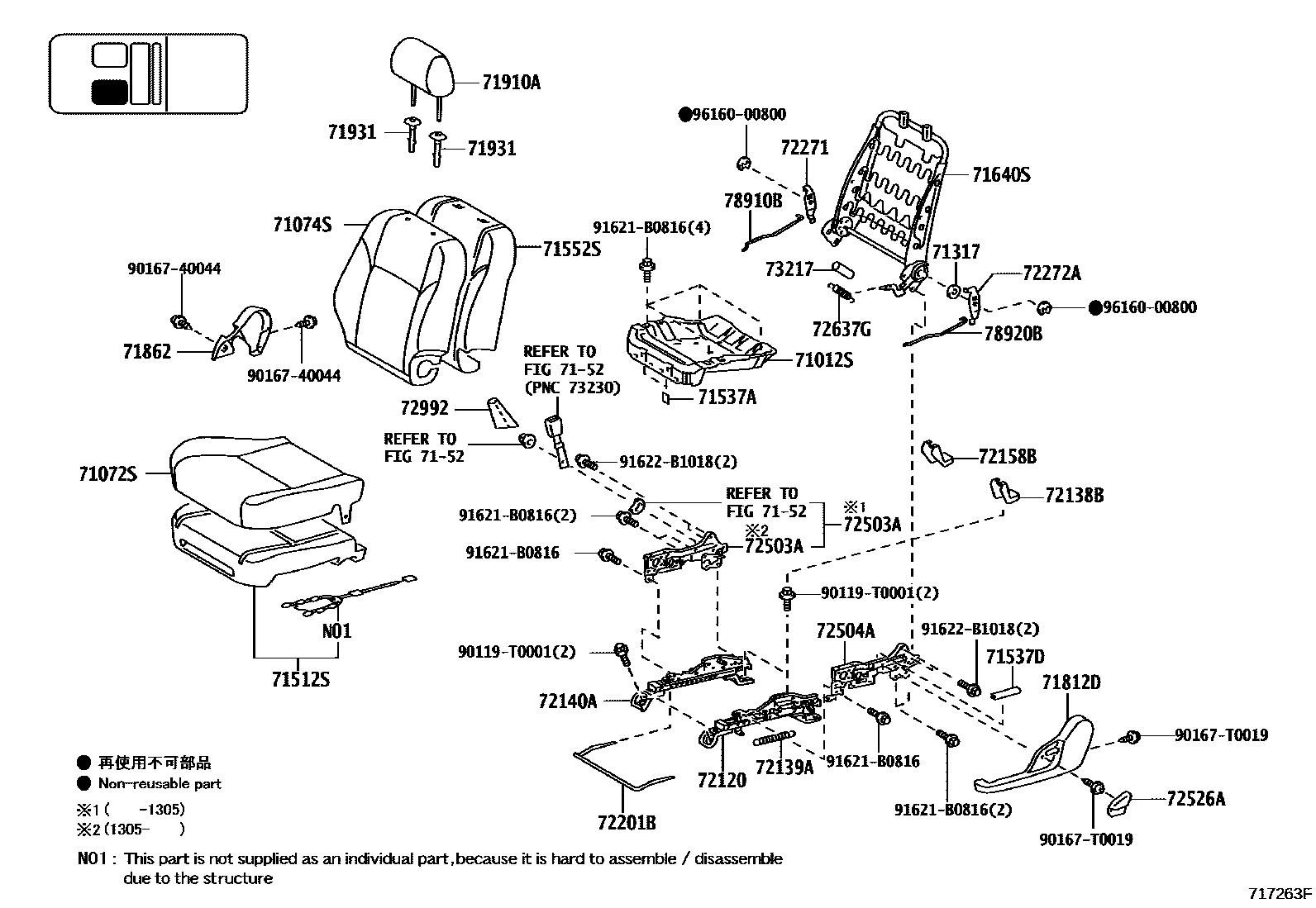

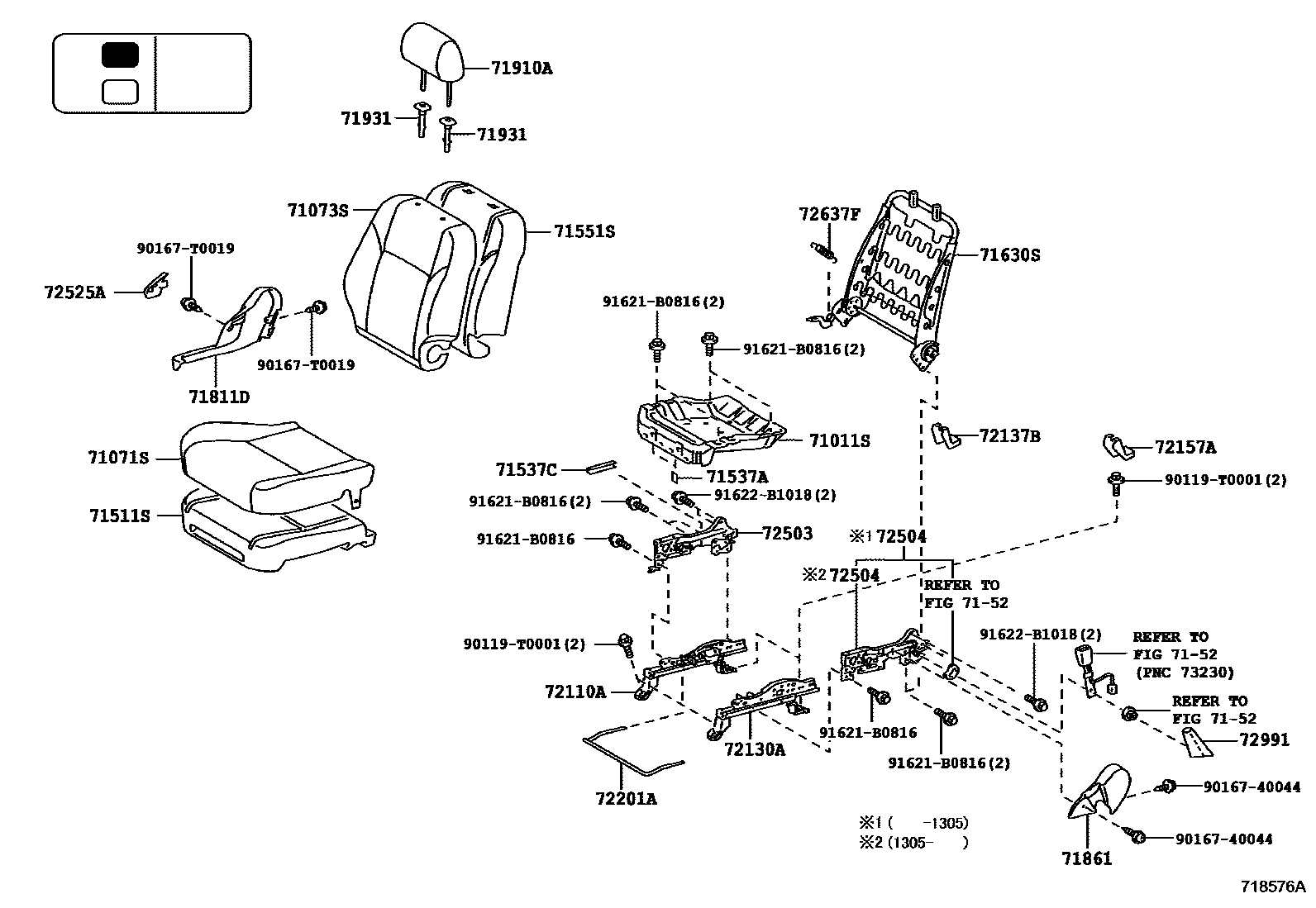

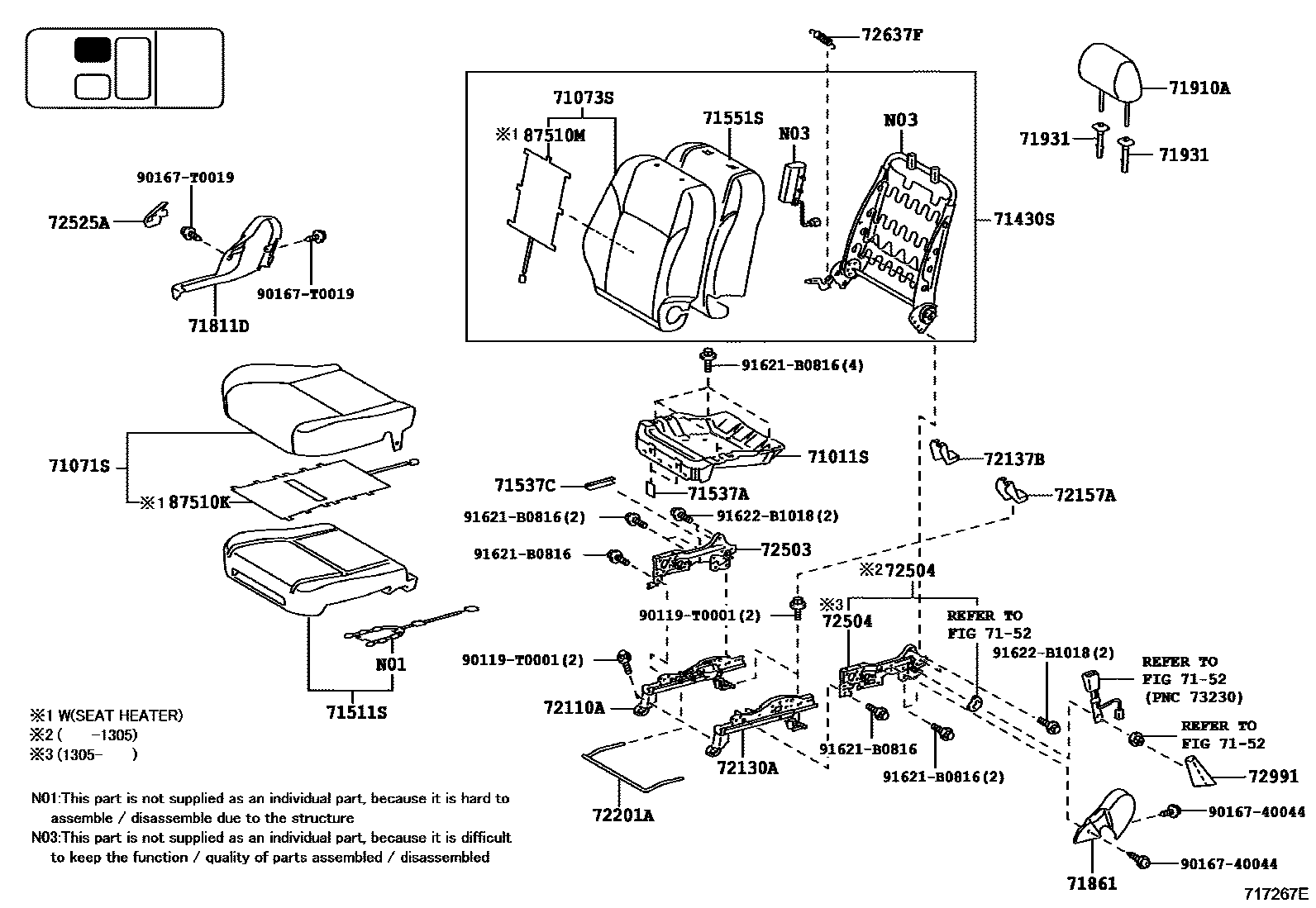

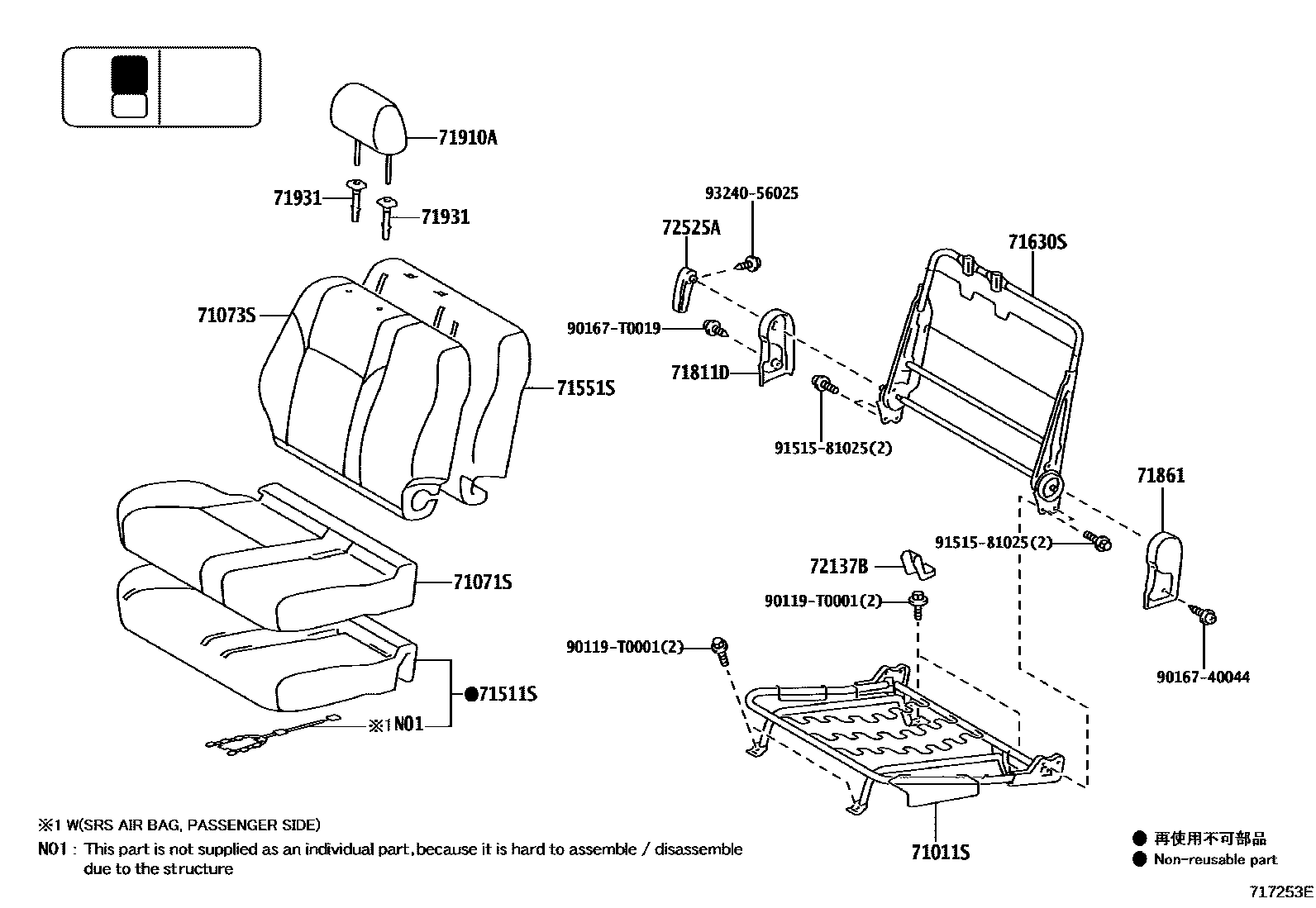

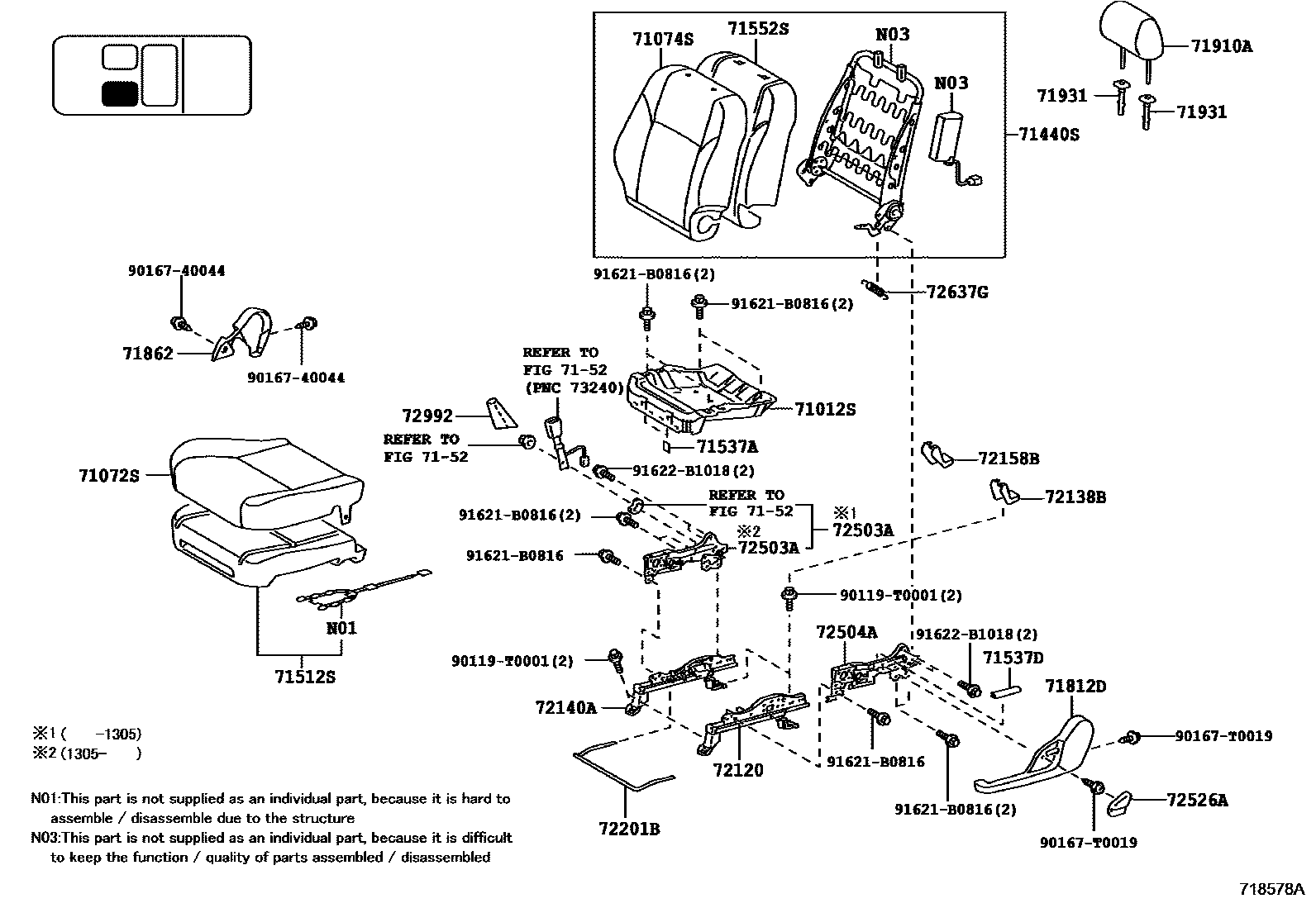

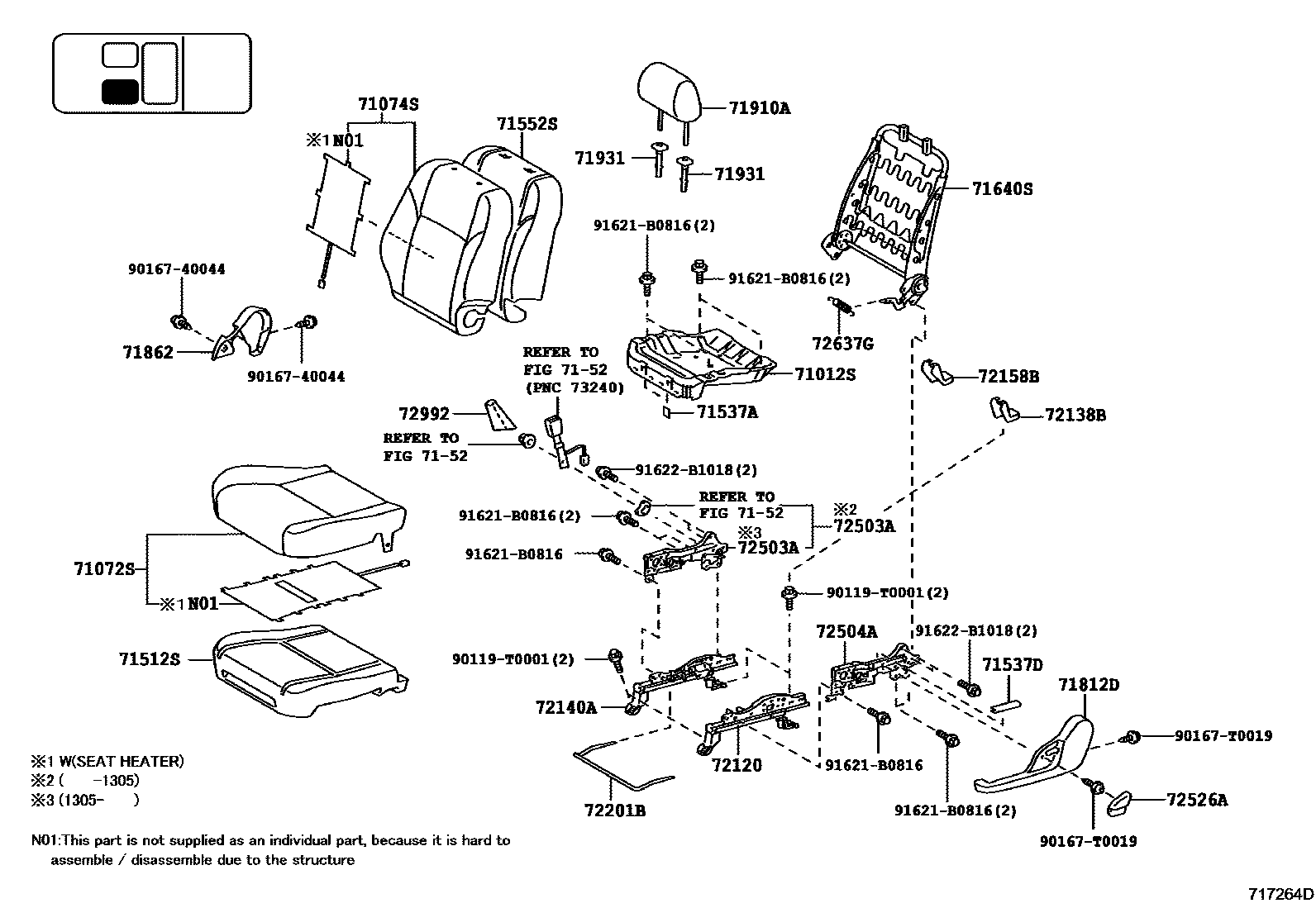

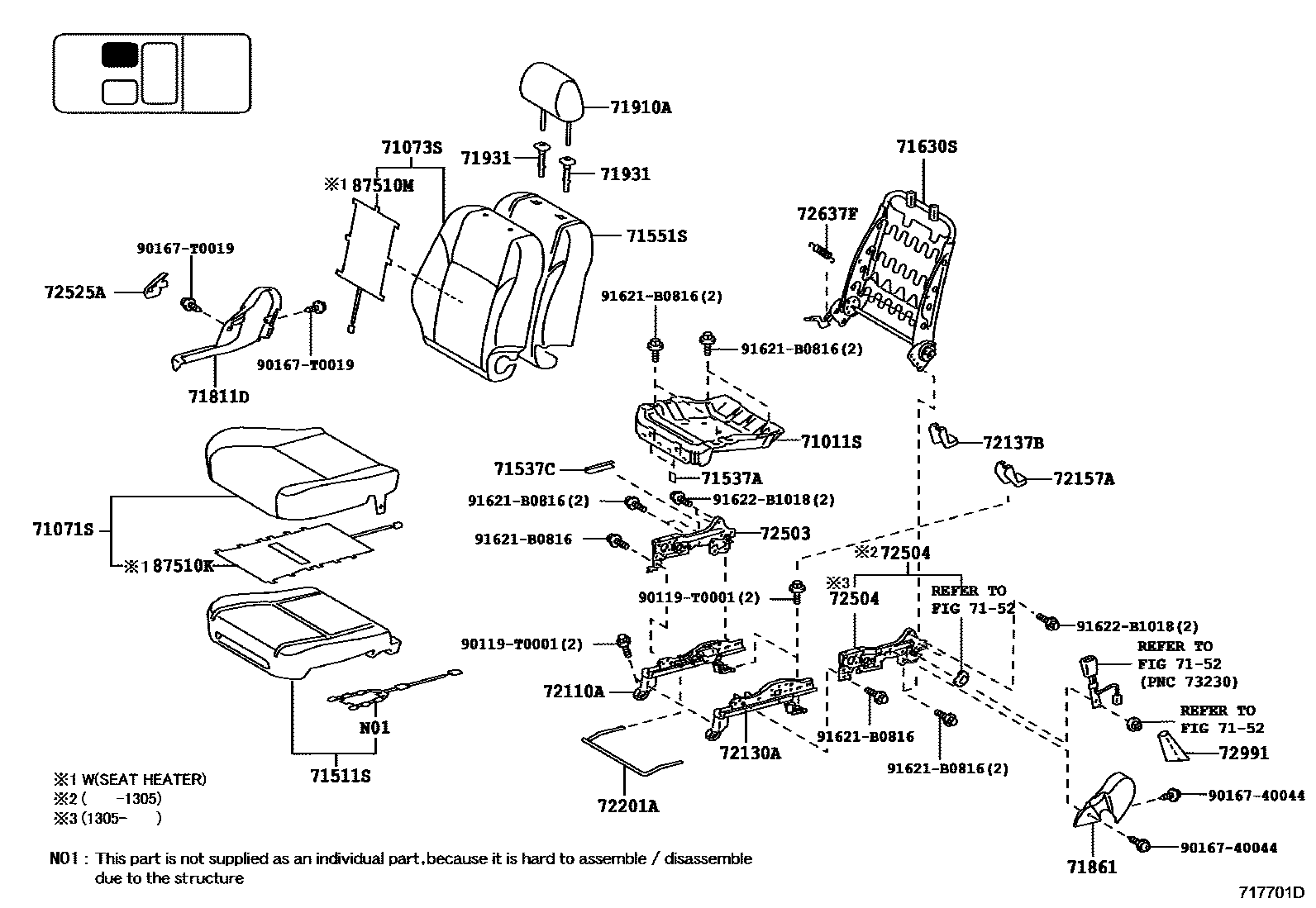

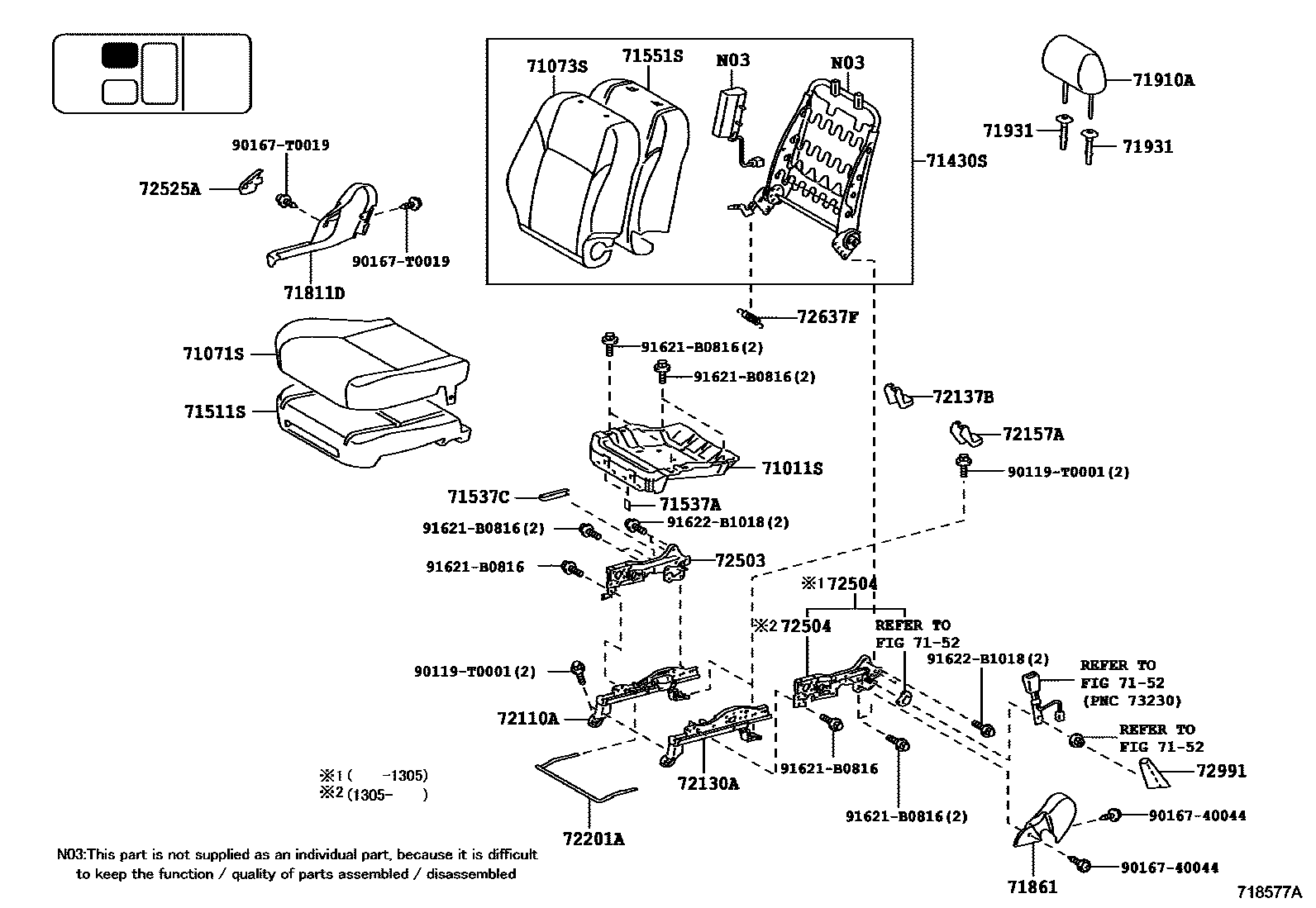

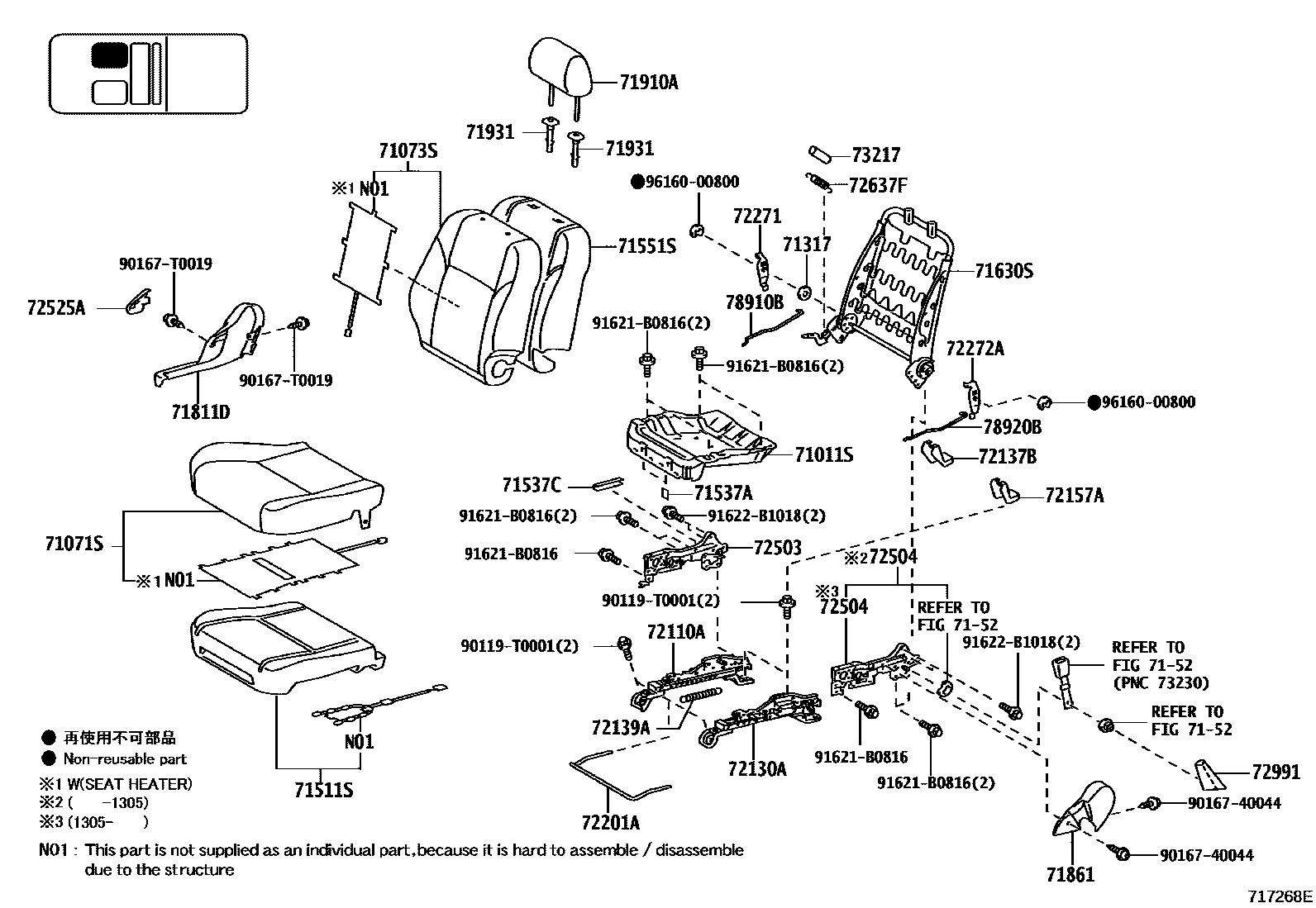

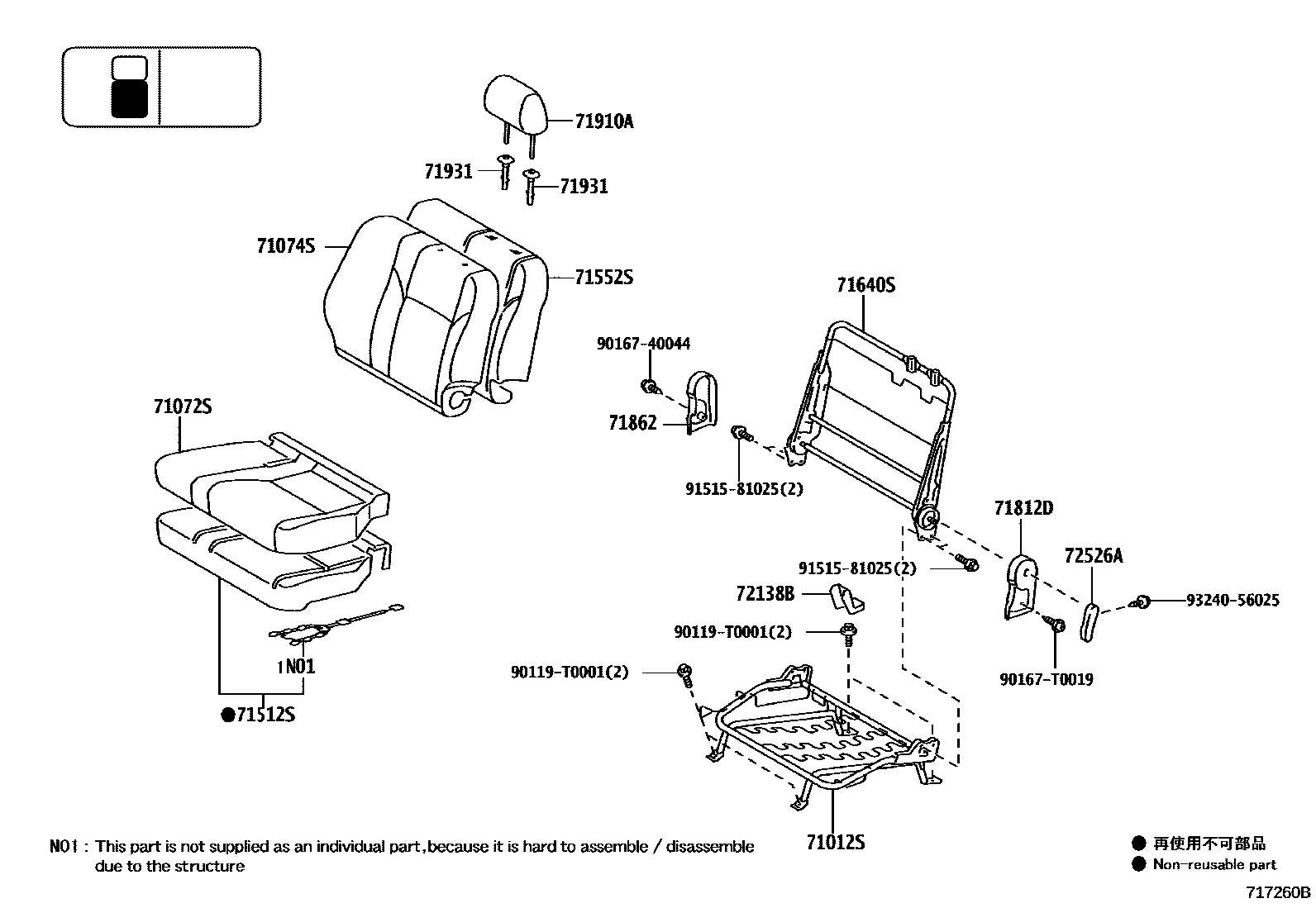

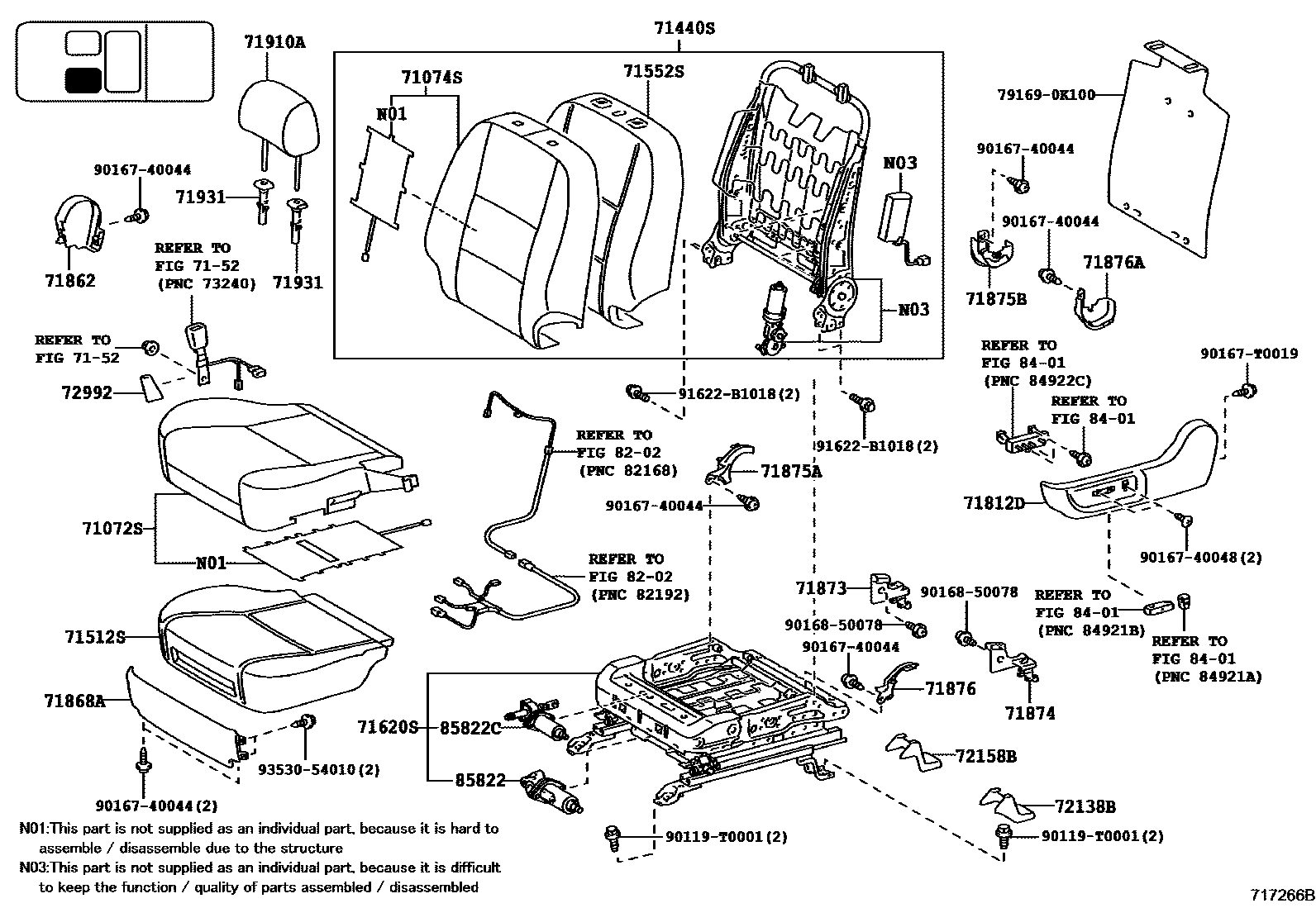

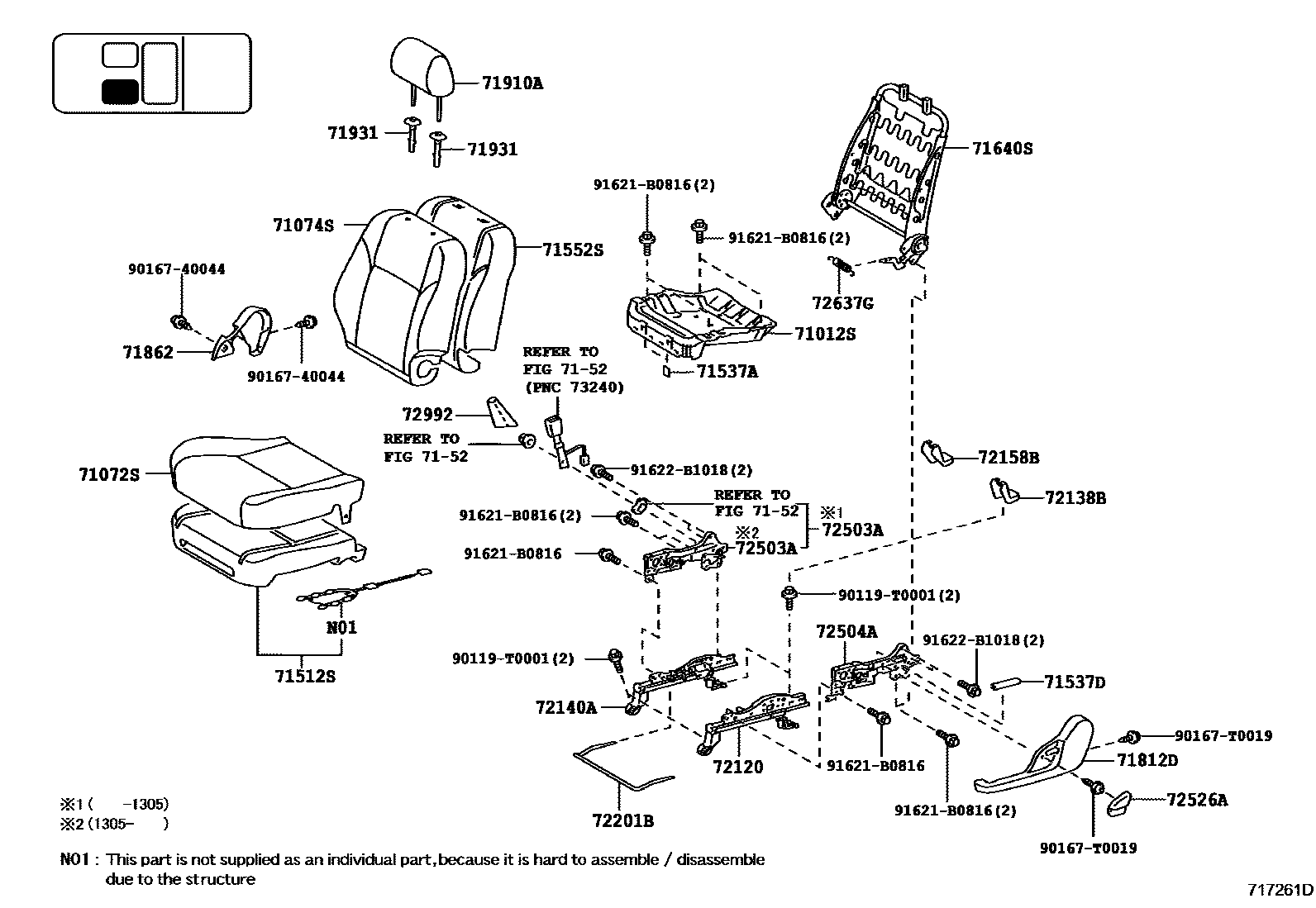

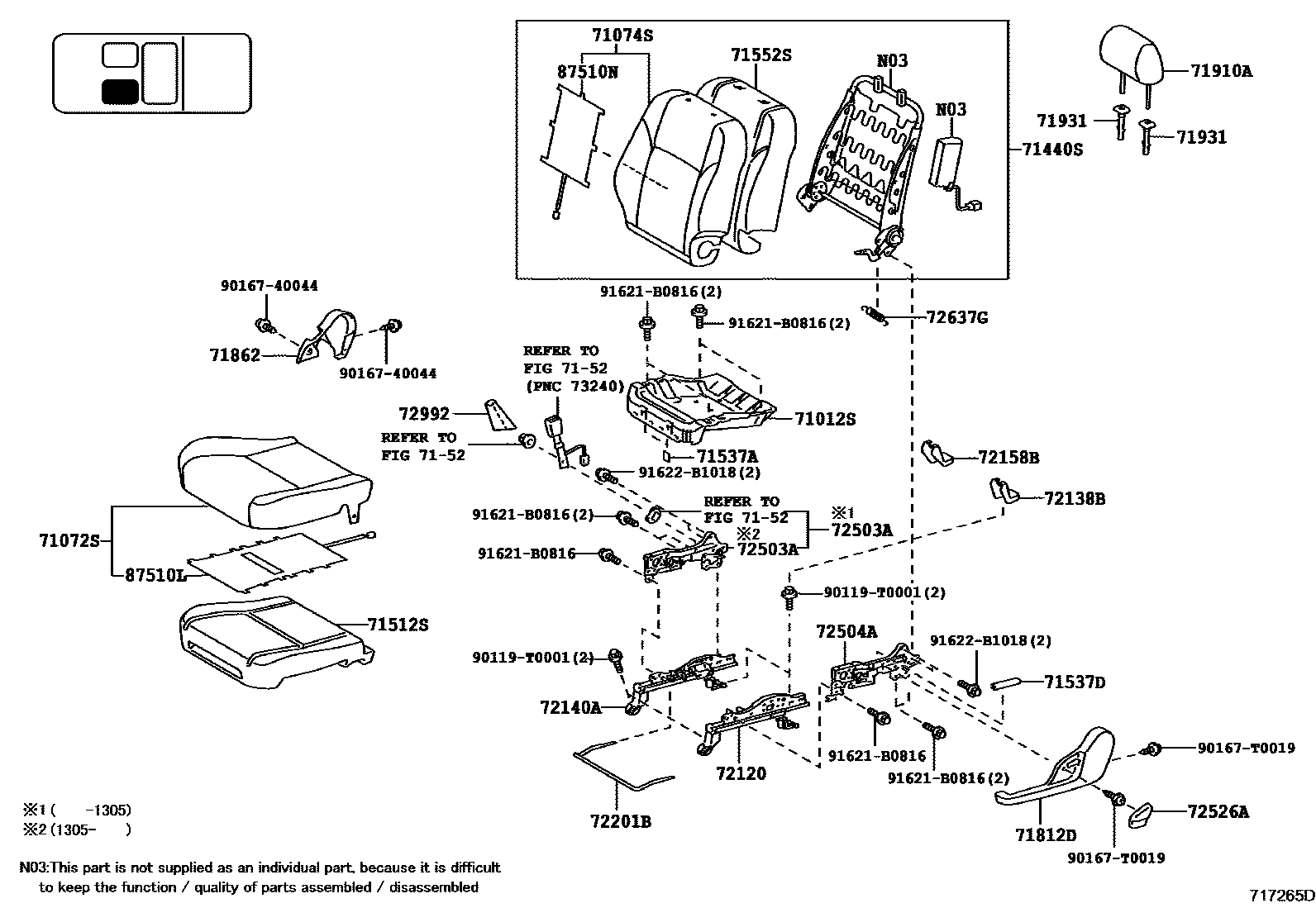

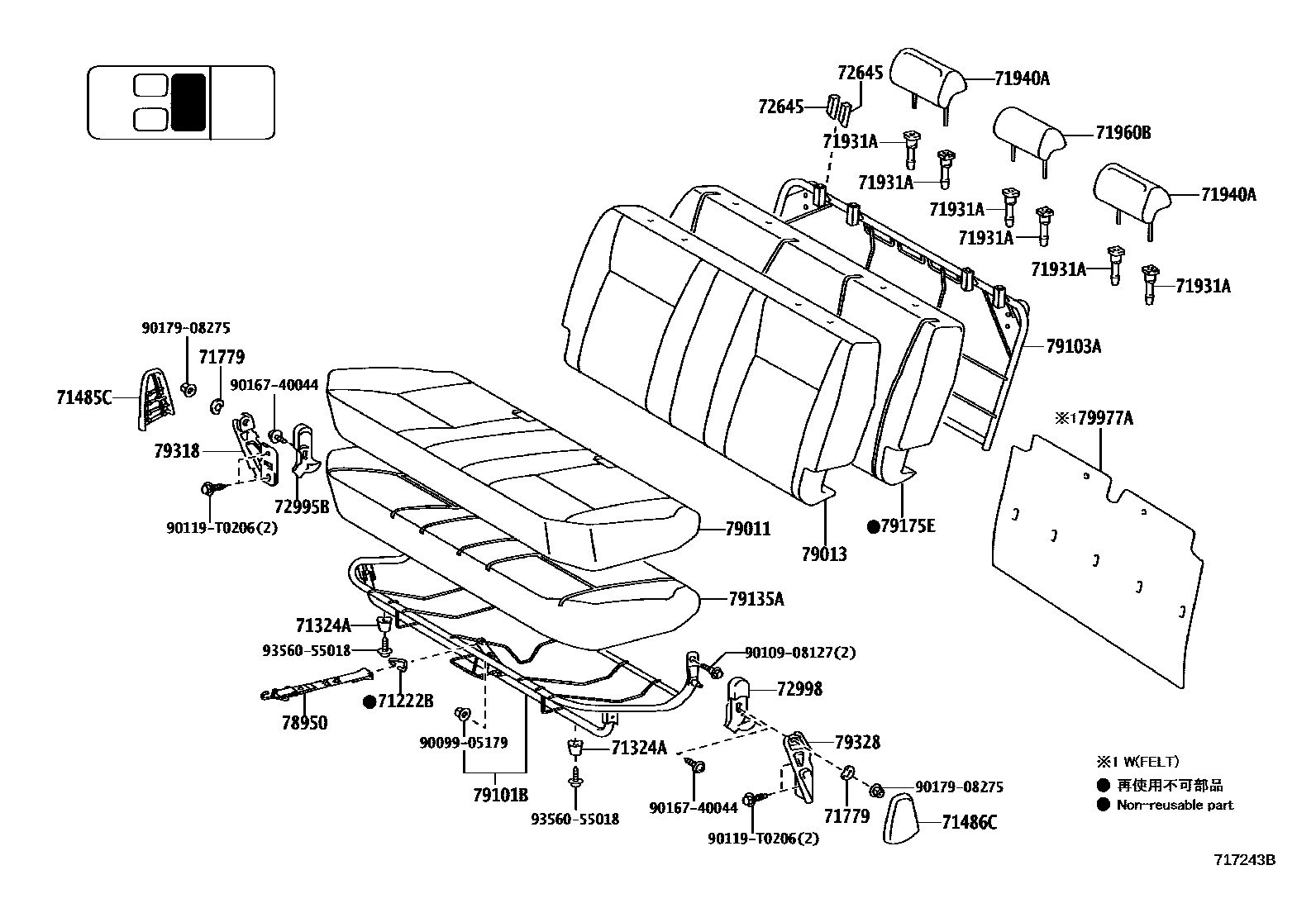

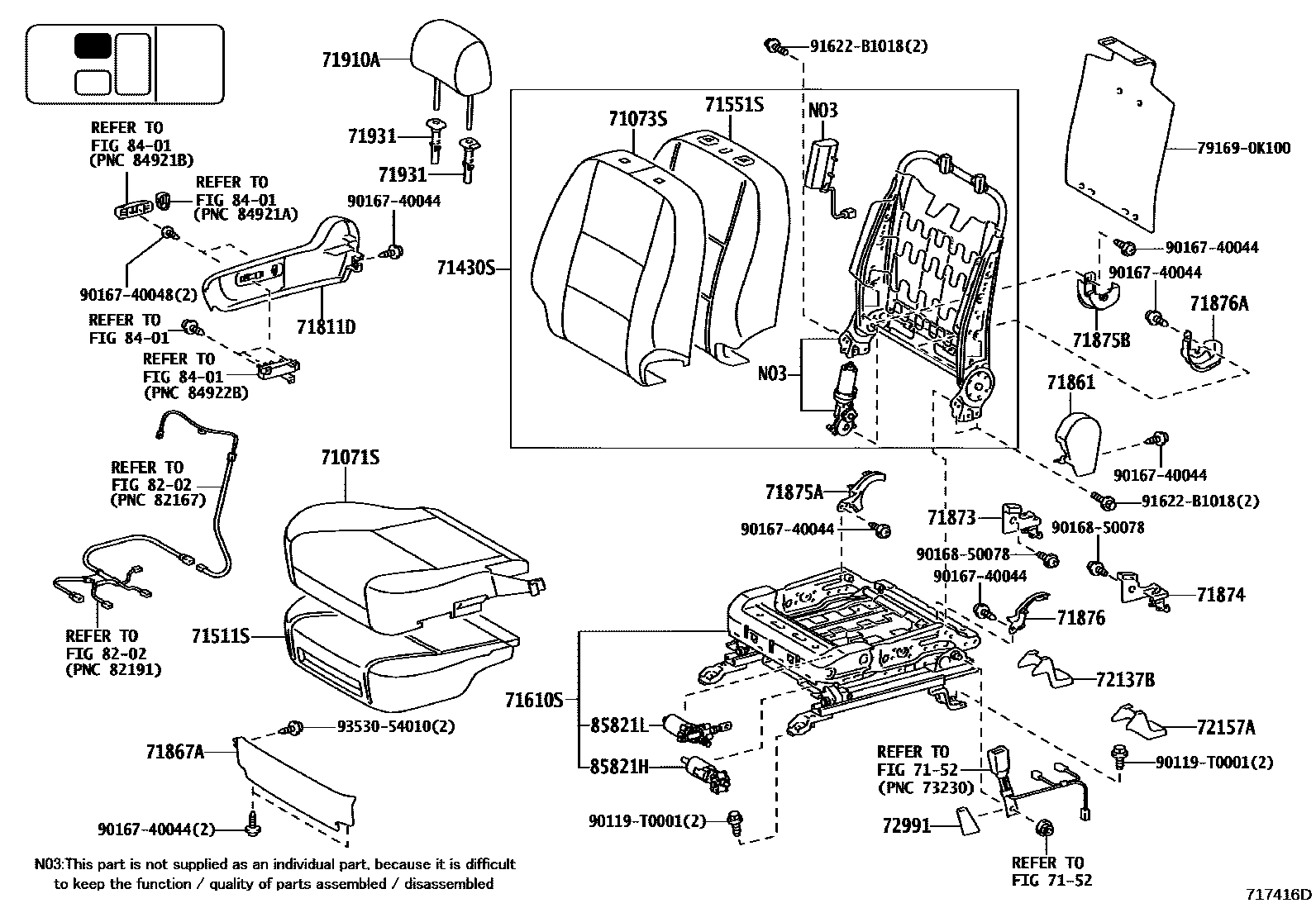

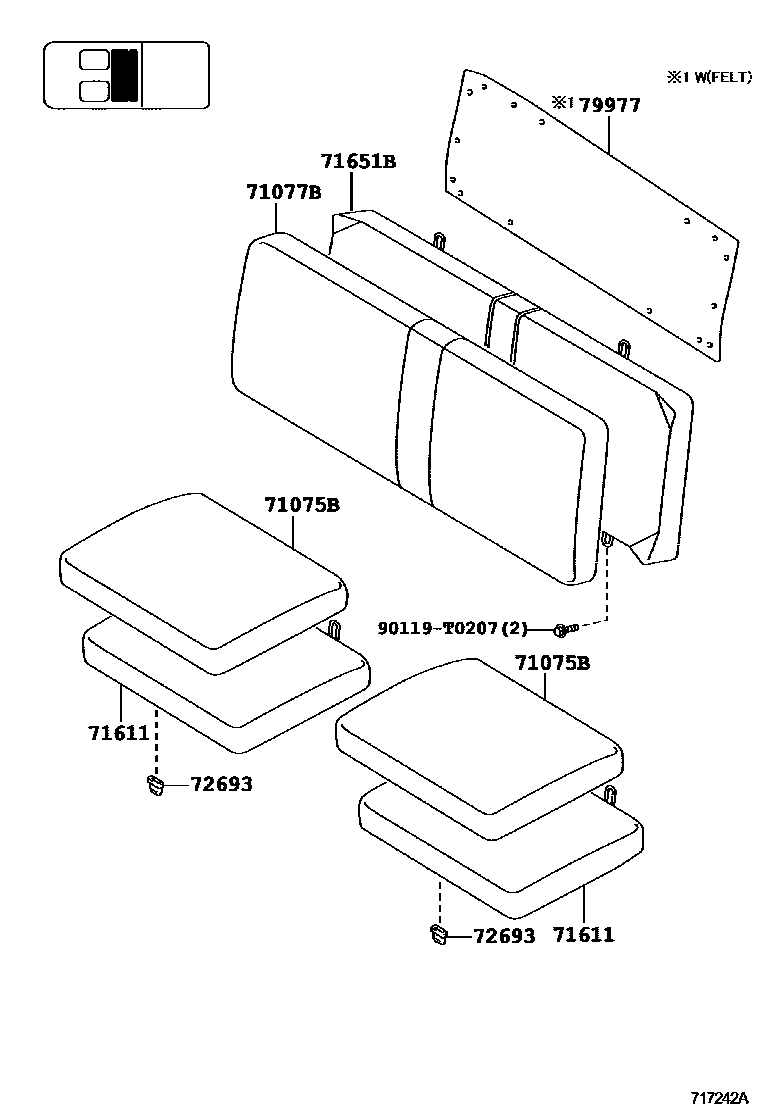

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 16 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-0K010 · 71011-0K050 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-0K050 · 71012-0K010 |
| 71074S | Front left seat back cover (for split seats) | 71073-0K671 |
| 71222B | Rear seat cushion connection harness | 71222-0K020 |
| 71317 | Front seat back hinge plate | 71317-0K010 |
| 71324A | Rear seat cushion | 71324-0K010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-0K010 · 71051-0K020 · 71051-0K040 · 71511-0K050 · 71511-0K080 · 71511-0K090 |
| 71512S | Front left seat cushion cushion (for split seats) | 71051-0K020 · 71051-0K040 · 71052-0K010 · 71511-0K050 · 71511-0K090 · 71512-0K050 |
| 71537A | Front seat cushion protective cover | 71537-0K020 |
| 71537C | Front right seat cushion edge protective cover | 71537-71010 |
| 71537D | Front left seat cushion edge protective cover | 71537-71010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0K010 · 71551-0K020 · 71551-0K050 · 71551-0K110 · 71551-0K130 |
| 71552S | Front left seat back cushion (for split seats) | 71551-0K020 · 71551-0K050 · 71552-0K010 · 71552-0K040 · 71552-0K050 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0K020 |
| 71611 | Rear seat cushion cushion | 71503-0K010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0K020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0K010 · 71630-0K030 · 71630-0K040 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0K010 · 71640-0K030 · 71640-0K040 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-0K010 |
| 71779 | Rear left side seat hinge cover | 71779-0K020 |
| 71873 | Front right seat cushion lower guard panel | 71873-06250 |
| 71874 | Front left seat cushion lower guard | 71874-06260 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-06310 · 71875-06370 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-06080 · 71876-06400 |
| 72110A | Front right seat outer slide rail assembly | 72110-0K010 · 72110-0K030 |
| 72120 | Front left seat outer slide rail assembly | 72120-0K010 · 72120-0K030 |
| 72130A | Front right seat inner slide rail assembly | 72130-0K010 · 72130-0K030 |
| 72139A | Seat rail cover spring | 72139-0K010 |
| 72140A | Front left seat inner slide rail assembly | 72140-0K010 · 72140-0K030 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-0K010 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-0K010 |
| 72271 | Right seat slide control cable bracket | 72271-0K010 |
| 72272A | Left seat slide control cable bracket | 72272-0K010 |
| 72503 | Right seat back recline adjuster lower arm sub-assembly | 72503-0K030 |
| 72503A | Right seat back recline adjuster lower arm sub-assembly | 72503-0K040 · 72503-0K041 |
| 72504 | Left seat back tilt adjuster lower arm sub-assembly | 72504-0K040 · 72504-0K041 |
| 72504A | Left seat back tilt adjuster lower arm sub-assembly | 72504-0K030 |
| 72637F | Right seat back spring | 72637-0K010 |
| 72637G | Left seat back spring | 72637-0K010 |
| 72645 | Rear seat back lock cushion | 72645-0K011 |
| 72693 | Rear seat cushion hook | 72693-43011 |
| 72991 | Front right seat cushion cover | 72991-0K051 · 72991-0K061 |
| 72992 | Front left seat cushion cover | 72991-0K061 |
| 73217 | Right regulator tube | 73217-0K010 |
| 78910B | Right No. 1 folding seat lock control cable assembly | 78910-0K020 |
| 78920B | Left No. 1 folding seat lock control cable assembly | 78910-0K010 |
| 79101B | Right No. 1 seat cushion frame sub-assembly | 79101-0K010 |
| 79103A | Right No. 1 seat back frame sub-assembly | 79103-0K020 |
| 79135A | Right seat No. 1 seat cushion cushion | 79135-0K010 |
| 79175E | Seat back cushion, right 1 | 79175-0K060 |
| 79318 | Seat No. 3 leg support | 79318-0K010 |
| 79328 | Rear seat support right front bracket | 79328-0K010 |
| 79977 | Seat back felt pad | 79977-0K010 |
| 79977A | Seat back felt pad | 79977-0K020 · 79977-0K030 · 79977-0K040 |
| 85821H | Right electric seat sliding motor assembly | 85801-06010 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-06070 |
| 85822 | Left electric seat sliding motor assembly | 85801-06020 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-06080 |
| 87510K | Front right seat cushion heater assembly | 87510-0K030 |
| 87510L | Front left seat cushion heater assembly | 87510-0K030 |
| 87510M | Front right seat back heater assembly | 87510-0K040 |
| 87510N | Front left seat back heater assembly | 87510-0K040 |
