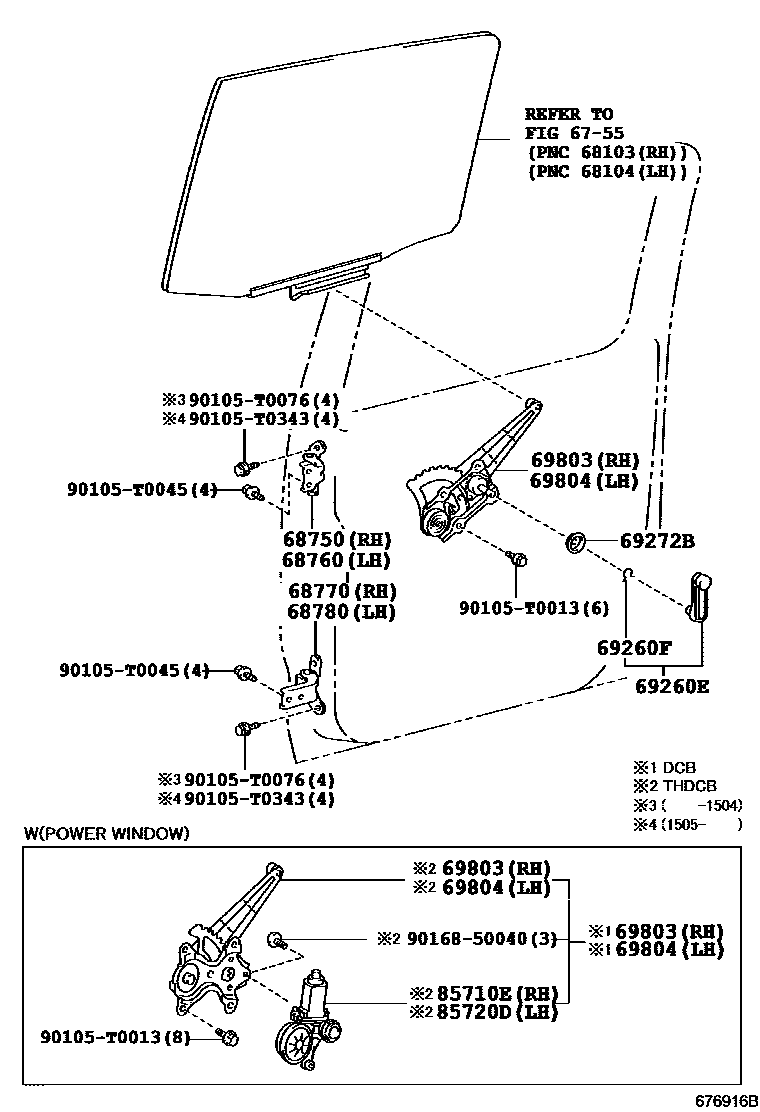

Toyota HILUX 后门车窗升降器和合页 — Figure 6757
Toyota HILUX EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0K010 · 68750-0K020 |
| 68760 | Left rear door upper hinge assembly | 68760-0K010 · 68760-0K020 |
| 68770 | Right rear door lower hinge assembly | 68770-02020 · 68770-52031 |
| 68780 | Left rear door lower hinge assembly | 68780-02020 · 68780-52031 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-04020 · 69268-0K010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0K010 · 69830-0K010 · 69830-0K031 · 69830-0K041 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0K010 · 69840-0K010 · 69840-0K031 · 69840-0K041 |
| 85710E | Right power window lift motor assembly | 85720-0K020 |
| 85720D | Left electric window lift motor assembly | 85710-0K020 |
