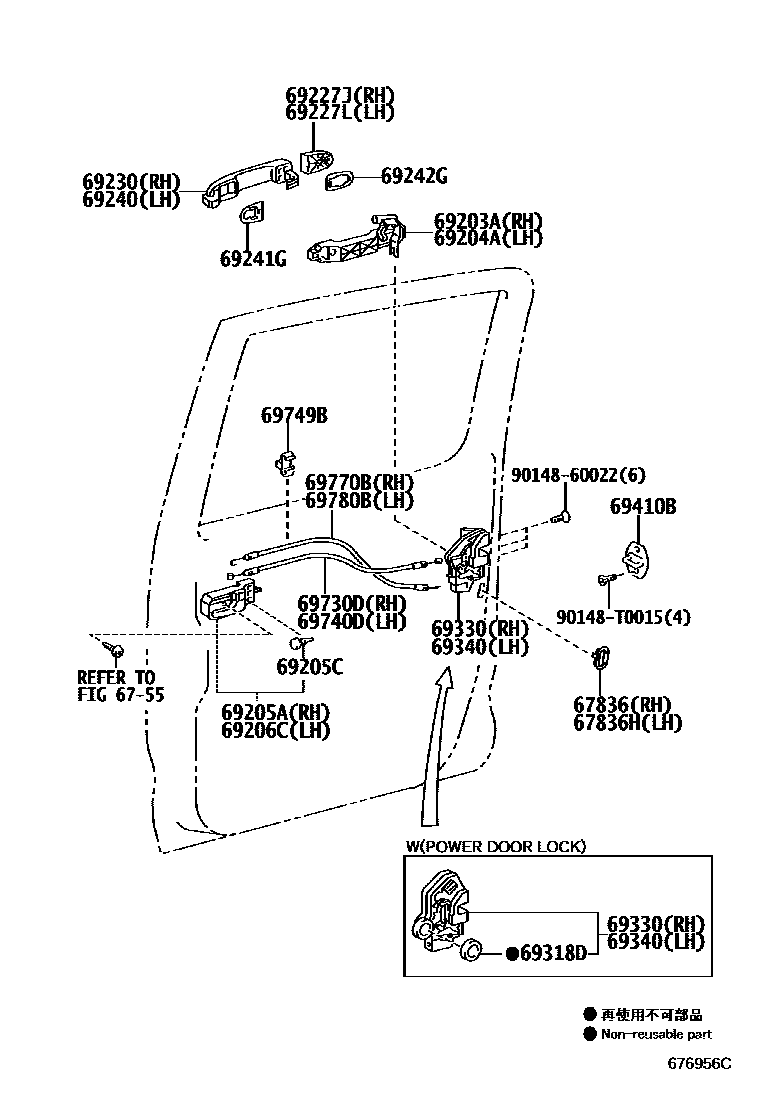

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-02030 · 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-02030 · 67836-12040 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0K010 · 69203-0K011 · 69203-0K020 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0K010 · 69204-0K011 · 69204-0K020 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227J | Right rear door outer handle cover | 69227-02070 · 69227-02100 · 69227-06030 · 69227-06031 · 69227-12080 |
| 69227L | Left rear door outer handle cover | 69227-02070 · 69227-02100 · 69227-06030 · 69227-06031 · 69227-12080 |
| 69230 | Right rear door outer handle assembly | 69210-06040 · 69210-12260 · 69211-02130 · 69211-02150 |
| 69240 | Left rear door outer handle assembly | 69210-06040 · 69210-12260 · 69211-02130 · 69211-02150 |
| 69241G | Rear door front exterior handle pad | 69241-02060 · 69241-06020 · 69241-06030 · 69241-42020 |
| 69242G | Rear door rear outer handle pad | 69242-02060 · 69242-06020 · 69242-42010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-0K010 · 69050-0K040 · 69330-0K010 · 69330-0K040 |
| 69340 | Left rear door lock assembly | 69060-0K010 · 69060-0K040 · 69340-0K010 · 69340-0K040 |
| 69410B | Rear door lock plate assembly | 69410-0K010 · 69410-0K040 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0K010 · 69730-0K020 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0K010 · 69730-0K020 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770B | Right rear door inner lock cable assembly | 69770-0K010 · 69770-0K020 |
| 69780B | Left rear door inner lock cable assembly | 69780-0K010 · 69780-0K020 |
