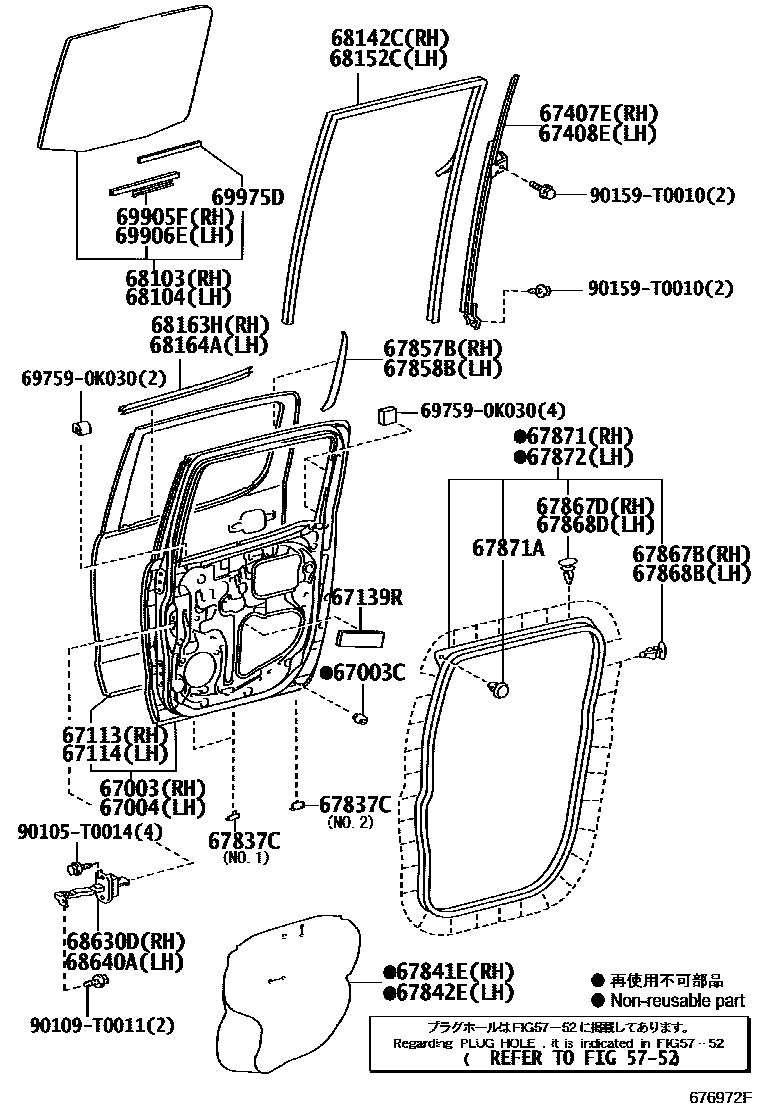

Toyota HILUX 后门板和后门玻璃 — Figure 6755
Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0K010 · 67003-0K060 |
| 67003C | Rear door panel cushion | 90541-09069 |
| 67004 | Left rear door panel sub-assembly | 67004-0K010 · 67004-0K060 |
| 67113 | Right rear door outer panel | 67113-0K010 |
| 67114 | Left rear door outer panel | 67114-0K010 |
| 67139R | Door outer panel reinforcement lining | 67139-0K010 |
| 67407E | Right rear door window divider sub-assembly | 67407-0K010 |
| 67408E | Left rear door window divider sub-assembly | 67408-0K010 |
| 67603B | Catch (for rear door trim panel) | 90467-09203 · 90467-T0019 |
| 67626C | Rear door decorative panel bracket No. 2 | 67626-0K010 · 67626-0K020 |
| 67837C | Rear door dust seal retainer | 67837-0K030 · 67837-0K120 · 67837-0K121 · 67837-71010 · 67837-71020 |
| 67841E | Right rear door access hole cover | 67841-0K010 · 67841-0K030 |
| 67842E | Left rear door access hole cover | 67841-0K010 · 67841-0K030 |
| 67857B | Right rear door panel protector | 67857-0K020 |
| 67858B | Left rear door panel protector | 67858-0K020 |
| 67867B | Door seal strip clip (for rear door) | 67867-12150 |
| 67867D | Right rear door seal strip fixing | 67867-0D060 · 67867-52010 |
| 67868B | Door glass seal strip clip (for rear door) | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-0D040 · 67867-52030 |
| 67871 | Right rear door sealing strip | 67871-0K012 |
| 67871A | Fixings (for rear door sealing strip) | 90467-06084 · 90467-T0012 |
| 67872 | Left rear door sealing strip | 67872-0K012 |
| 68103 | Right rear door glass sub-assembly | 68103-0K020 · 68103-0K140 · 68103-0K160 · 68103-0K180 |
| 68104 | Left rear door glass sub-assembly | 68104-0K020 · 68104-0K140 · 68104-0K160 · 68104-0K180 |
| 68142C | Right rear door glass lift slot | 68142-0K010 |
| 68152C | Left rear door glass lift slot | 68152-0K010 |
| 68163H | Right rear door glass outer sealing strip | 68163-0K010 |
| 68164A | Left rear door glass outer sealing strip | 68164-0K010 |
| 68173B | Right rear door glass inner sealing strip | 68173-0K010 |
| 68174A | Left rear door glass inner sealing strip | 68174-0K010 |
| 68630D | Right rear door opening limiter assembly | 68630-0K010 · 68630-0K011 · 68630-0K020 · 68630-0K021 |
| 68640A | Left rear door opening limiter assembly | 68630-0K011 · 68630-0K021 · 68640-0K010 · 68640-0K020 |
| 69905F | Right rear door glass groove sub-assembly | 69905-0K040 · 69905-0K060 |
| 69906E | Left rear door glass groove sub-assembly | 69906-0K040 · 69906-0K060 |
| 69975D | Rear door glass channel filler | 69975-0K010 · 69975-0K030 |
