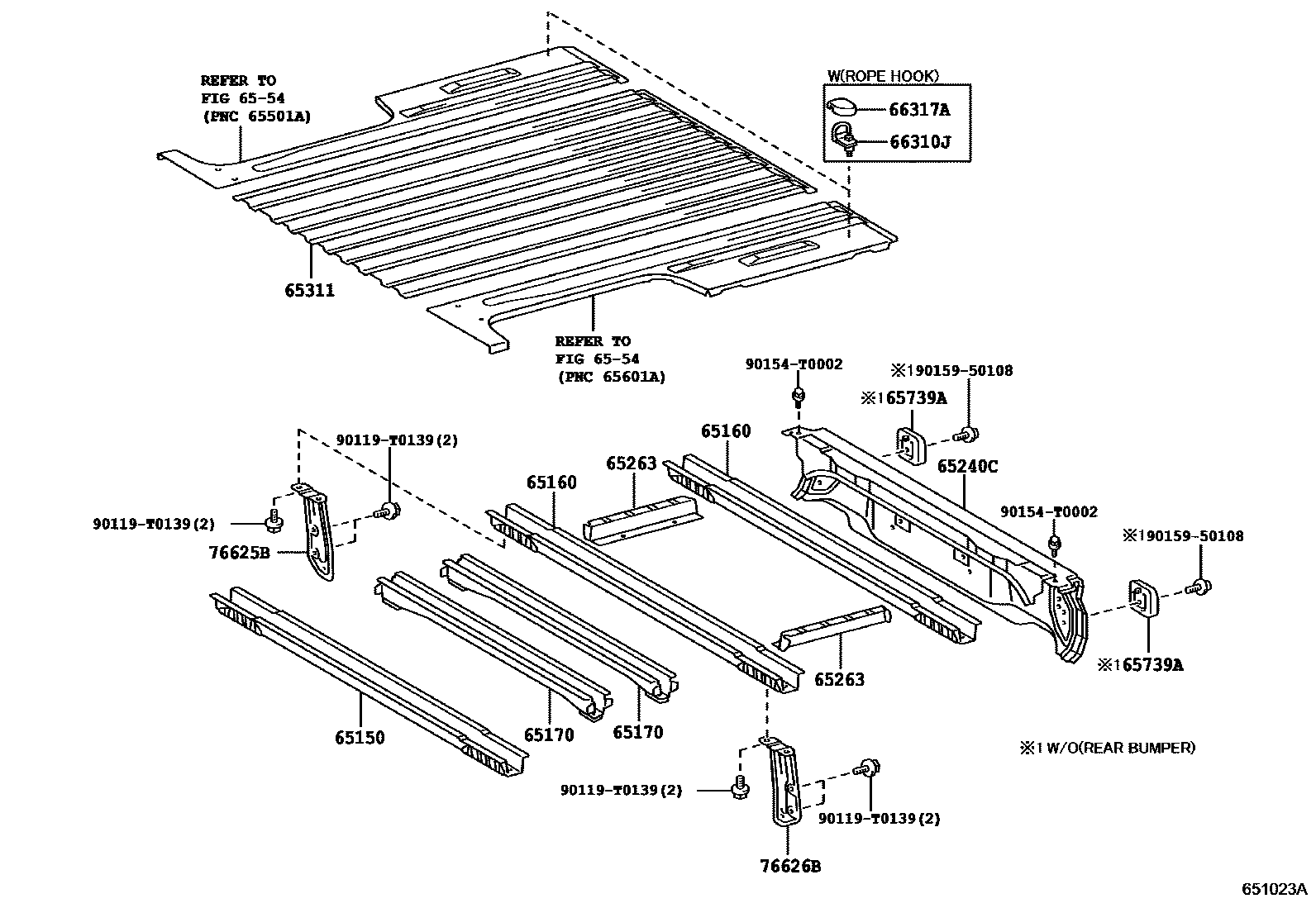

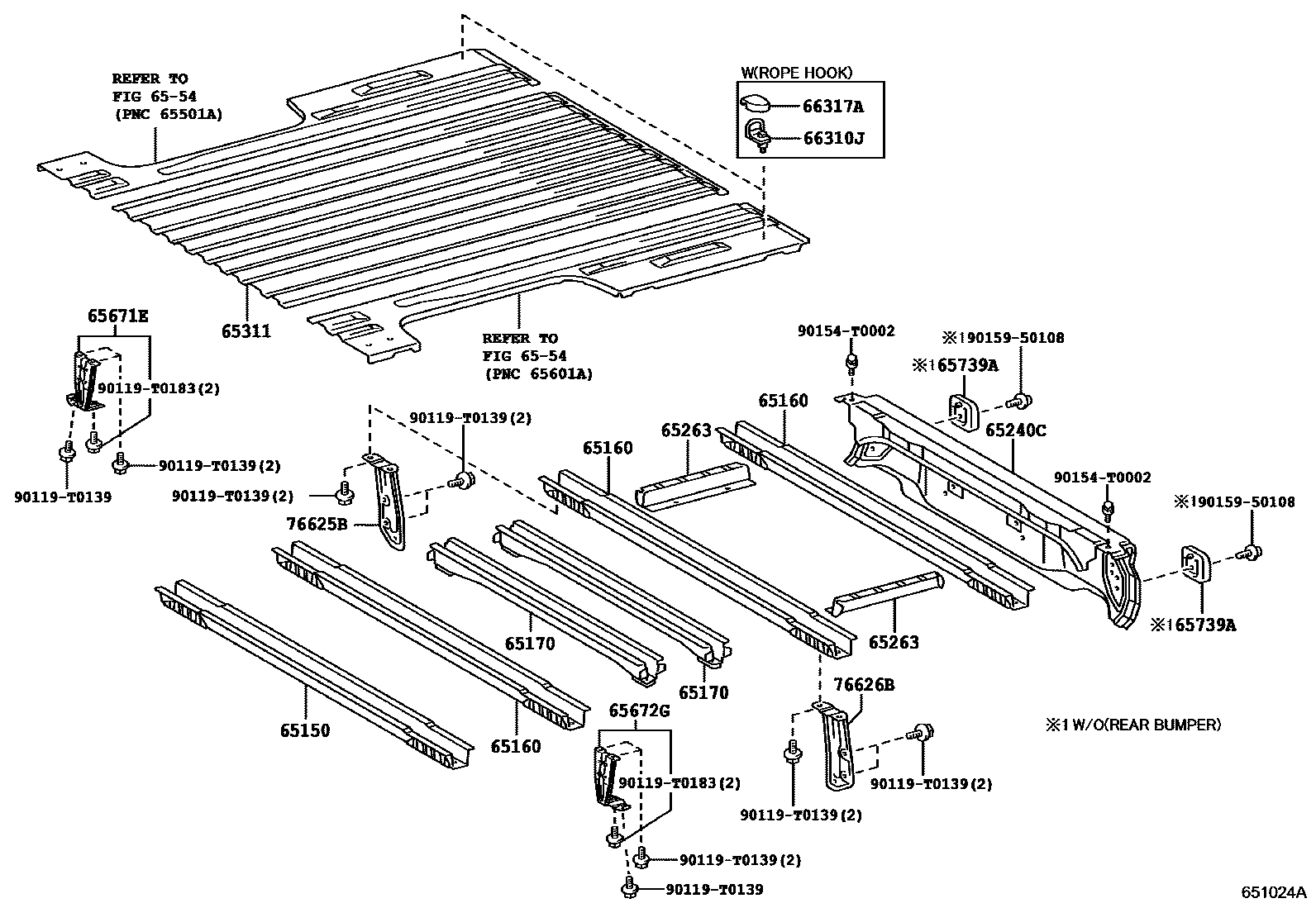

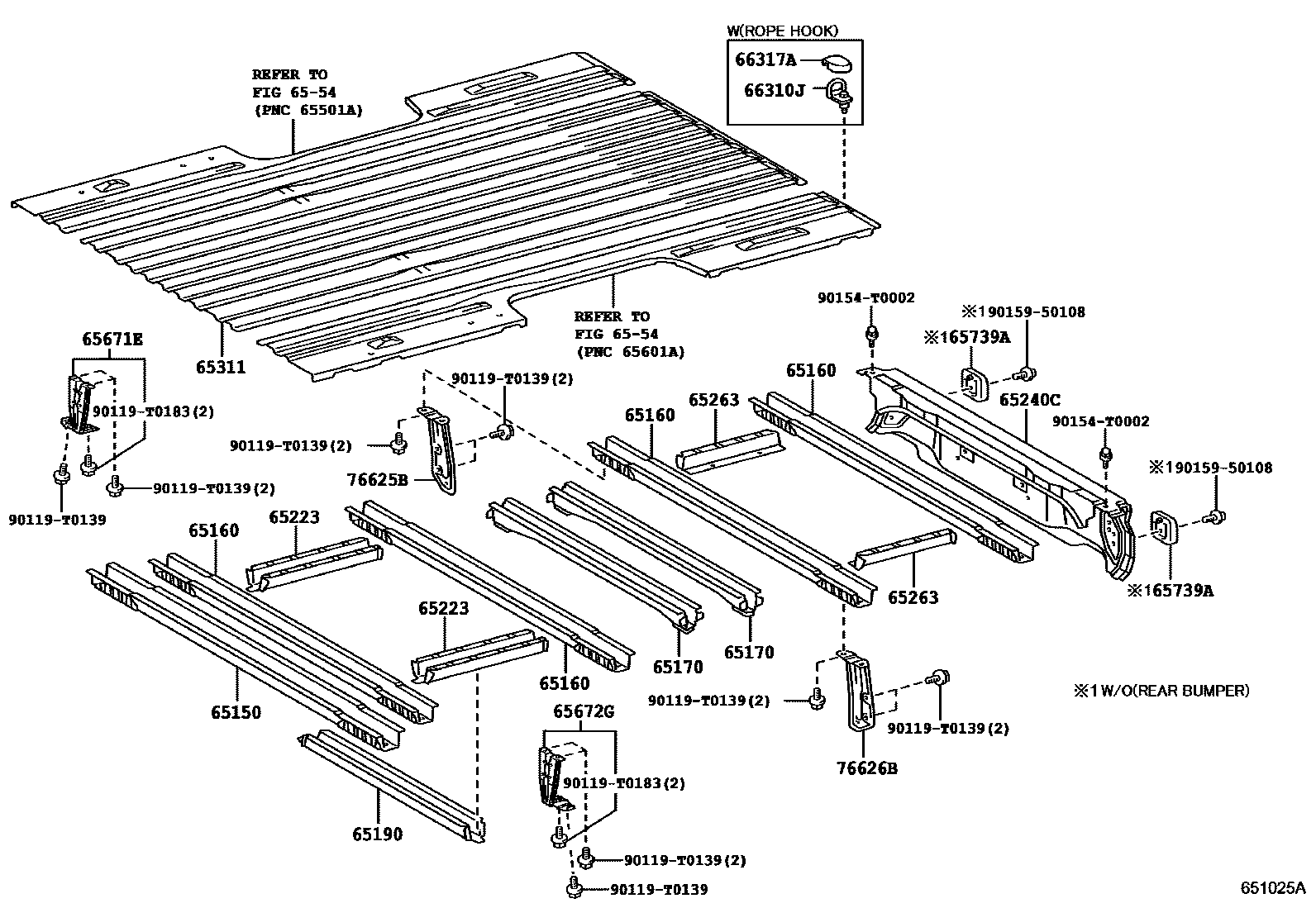

Toyota HILUX 后车身地板和翼子板 — Figure 6552
Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65150 | No. 1 crossbeam assembly | 65150-0K010 · 65151-0K010 · 65151-0K011 |
| 65160 | No. 2 beam assembly | 65160-0K010 |
| 65170 | No. 2 beam assembly | 65170-0K010 · 65170-0K011 |
| 65190 | No. 5 beam assembly | 65191-0K010 · 65191-0K011 |
| 65223 | Front floor No. 1 right reinforcement | 65223-0K010 · 65223-0K011 |
| 65240C | No. 9 beam assembly | 65240-0K010 · 65240-0K011 · 65240-0K020 · 65240-0K021 · 65240-0K040 · 65240-0K041 · 65240-0K050 · 65240-0K051 |
| 65263 | Floor side frame reinforcement | 65263-0K010 |
| 65311 | central floor | 65311-0K010 · 65311-0K030 · 65311-0K040 |
| 65671E | Right front side panel skirt bracket | 65608-0K020 |
| 65672G | Left front side panel skirt bracket | 65609-0K020 |
| 65739A | Back door buffer block | 65738-0K020 · 65739-0K040 |
| 66310J | Rope hook assembly | 66310-0K010 |
| 66317A | rope hook cover | 66317-0K010 |
| 76625B | Right rear body fender | 76607-0K040 |
| 76626B | Left rear body fender | 76608-0K040 |
