Toyota HILUX 车内装饰板 — Figure 6451

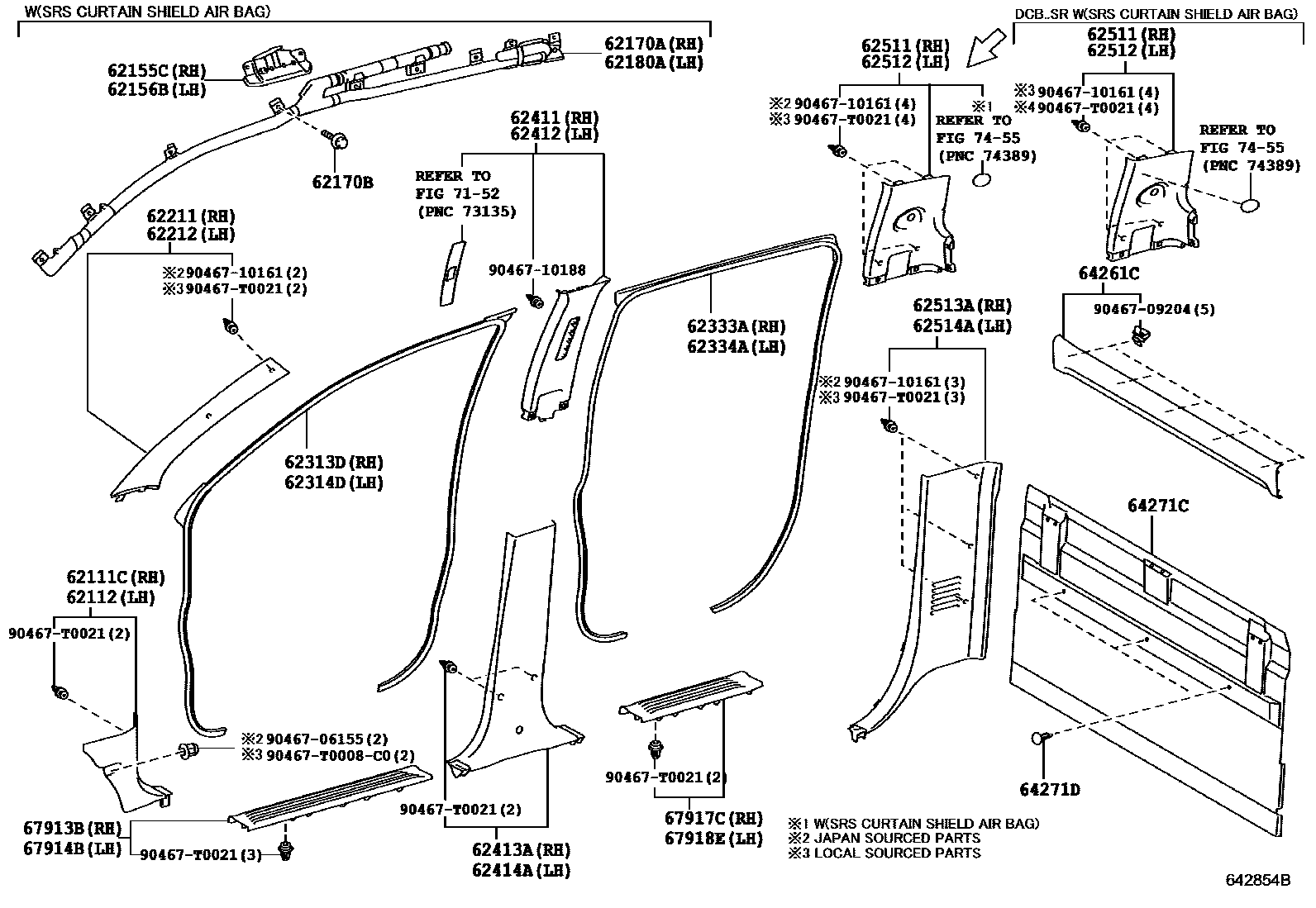

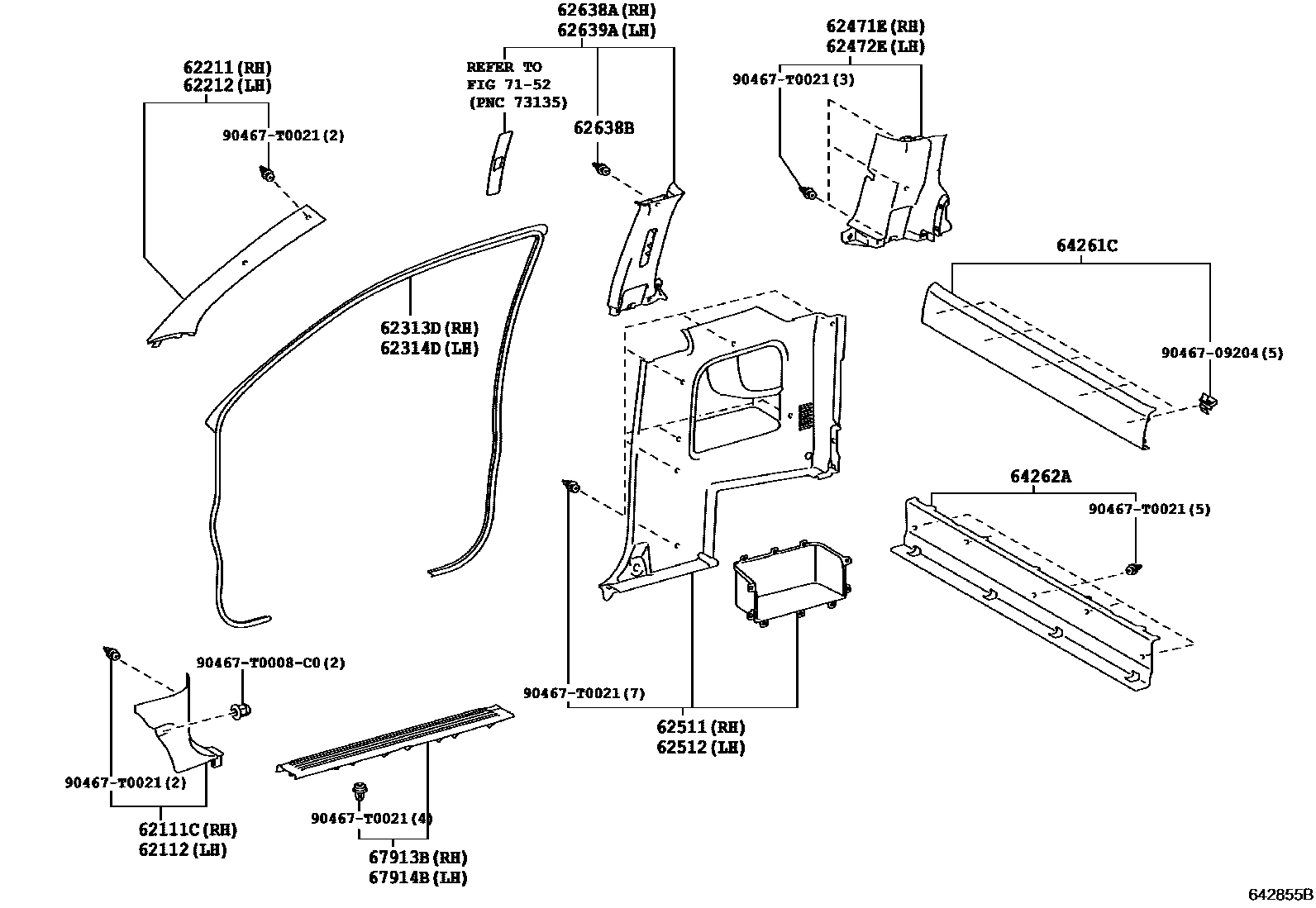

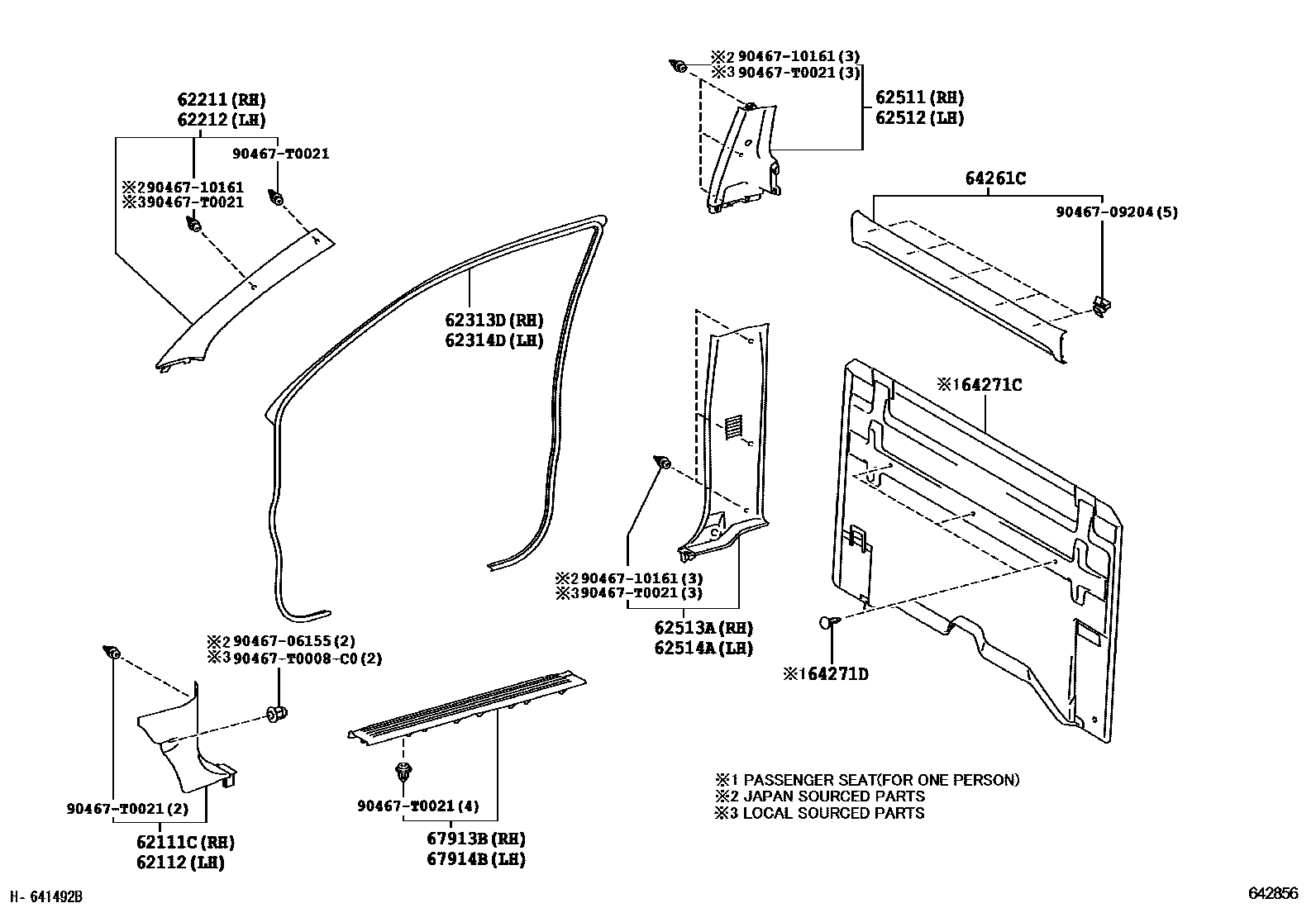

Toyota HILUX EPC diagram 6451, 车内装饰板, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62155C | Right curtain airbag bracket | 62155-0K030 |
| 62156B | Left curtain airbag bracket | 62156-0K010 |
| 62170A | Right curtain air bag assembly | 62170-0K010 · 62170-0K011 · 62170-0K030 · 62170-0K031 |
| 62170B | Bolts with washers | 90119-06869 · 90119-T0425 |
| 62180A | Left curtain air bag assembly | 62180-0K010 · 62180-0K011 · 62180-0K030 · 62180-0K031 |
| 62313D | Right front door waterproof strip | 62311-0K010 · 62311-0K070 · 62313-0K010 |
| 62314D | Left front door waterproof strip | 62312-0K010 · 62312-0K070 · 62314-0K010 |
| 62333A | Right rear door waterproof strip | 62331-0K070 |
| 62334A | Left rear door waterproof strip | 62332-0K070 |
| 62638B | clip | 90467-10188 · 90467-T0021 |
